Eaton PXM350-ENC Handbuch
Instruction Leaflet IL150009EN Effective December 2019 PXM350-ENC
NEMA 4X rated wall mount enclosure
for PXM350 series

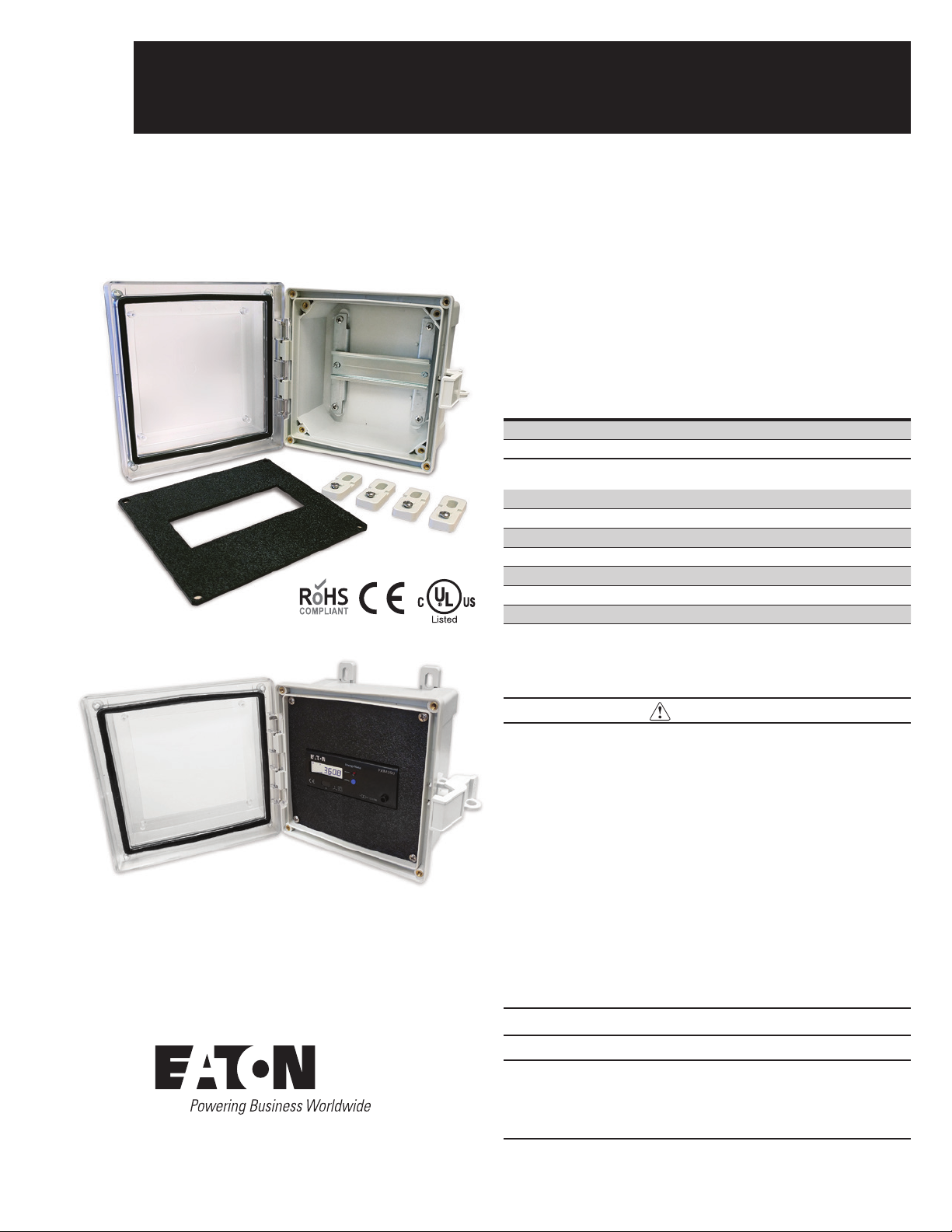

The PXM350-ENC enclosure offers a mounting option for PXM350
series energy meters that helps protect from tampering and the
elements. The enclosure is equipped with DIN rail mounting hard-
ware for easy installation, and a NEMA®4X rating ensures durability.
The swing panel kit and multiple locking options provide additional
security from unwanted tampering.
Table 1. PXM350-ENC specifications
Dimensions Length Width Height
inch 6.0 6.0 4.0
mm 152 152 102
Table 2. Environmental ratings
Ingress protection (EN 60529) IP66/IP67
Electrical insulation Totally insulated
Halogen free (DIN/VDE 0472, part 815) 0
UV resistance UL 508
Flammability rating UL 508
Glow wire test (IEC 695-2-1) ºC 960
NEMA class UL Type 4, 4X, 6, 6P, 12 and 13
Ordering information
Catalog Number: PXM350-ENC
WARNINGS
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH.
FOLLOW SAFE ELECTRICAL WORK PRACTICES. SEE NFPA 70ET IN THE U.S.,
OR APPLICABLE LOCAL CODES .
THIS EQUIPMENT MUST ONLY BE INSTALLED AND SERVICED BY
QUALIFIED ELECTRICAL PERSONNEL.
READ, UNDERSTAND, AND FOLLOW THE INSTRUCTIONS BEFORE
INSTALLING THIS PRODUCT.
TURN OFF ALL POWER SUPPLYING EQUIPMENT BEFORE WORKING ON OR
INSIDE THE EQUIPMENT.
USE A PROPERLY RATED VOLTAGE SENSING DEVICE TO CONFIRM POWER
IS OFF. DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL RESULT IN DEATH OR
SERIOUS INJURY.
CAUTION
THIS PRODUCT IS NOT INTENDED FOR LIFE OR SAFETY APPLICATIONS. DO
NOT INSTALL THIS PRODUCT IN HAZARDOUS OR CLASSIFIED LOCATIONS.
THE INSTALLER IS RESPONSIBLE FOR CONFORMANCE TO ALL APPLICABLE
CODES. MOUNT THIS PRODUCT INSIDE A SUITABLE FIRE AND ELECTRICAL
ENCLOSURE.
PXM350 meter installed; PXM350 meter and PXM350-ENC are ordered separately.
2
Instruction Leaflet IL150009EN
Effective December 2019
EATON www.eaton.com
7,16 181,9
7,04 178,9
6,10 155
4,88 124
6,06 153,9
4,88 124
7,32 186
4,00 101,6
Top View - cover removed
10-32 inserts
Wall fastening lug
,24 6
4,07 103,5
4,72 120
1,65 42
8,24 209,3
Hinged with latch
7,39 187,6
Screw cover
7,55 191,8
10-32 Inserts Hinged screw cover
7,65 194,2

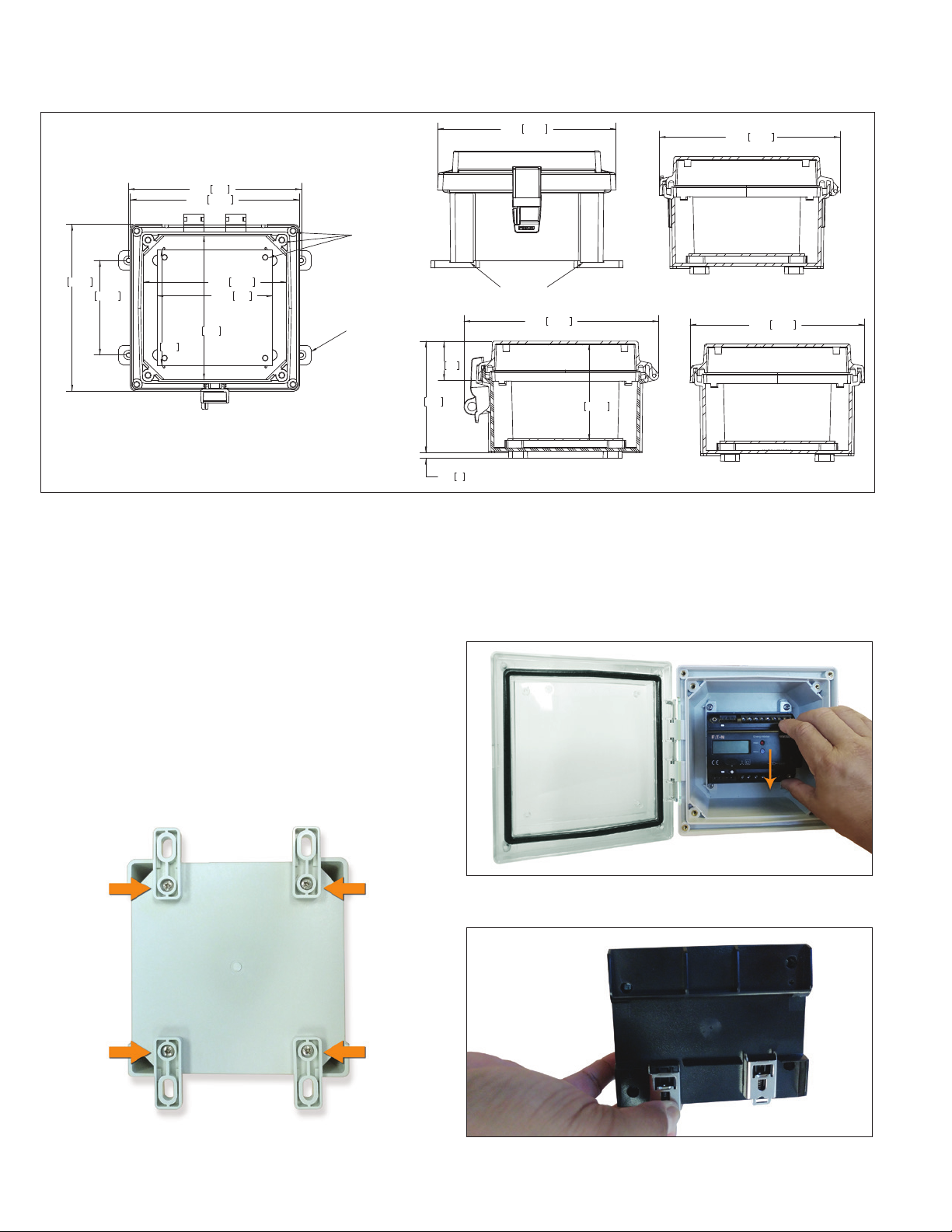

Figure 1. Dimensions
Step 1. Mount the PXM350-ENC enclosure to a wall or a panel
Cut holes in the enclosure for wire conduit connections prior to the
installation of the meter in the enclosure. After running the wiring,
seal all holes properly to maintain the enclosure rating. If using
metallic conduit, bonding between the conduit connections is not
automatic and must be provided as a part of the installation.
Take care to protect the equipment from drill chips, filings, and other
contaminants when making the wire entry holes and mounting the
enclosure to prevent component damage or a future malfunction.
Use the included mounting hardware to attach the mounting feet
to the enclosure. Then mount the enclosure to the wall or the panel
using either a 4-point or 2-point configuration (hardware for mounting
to the wall/panel is provided by the installer). The 4-point configura-
tion is shown below. For a 2-point configuration, mount the feet
as shown, but rotate the bottom feet 180 degrees so that they are
flush against the back of the enclosure.

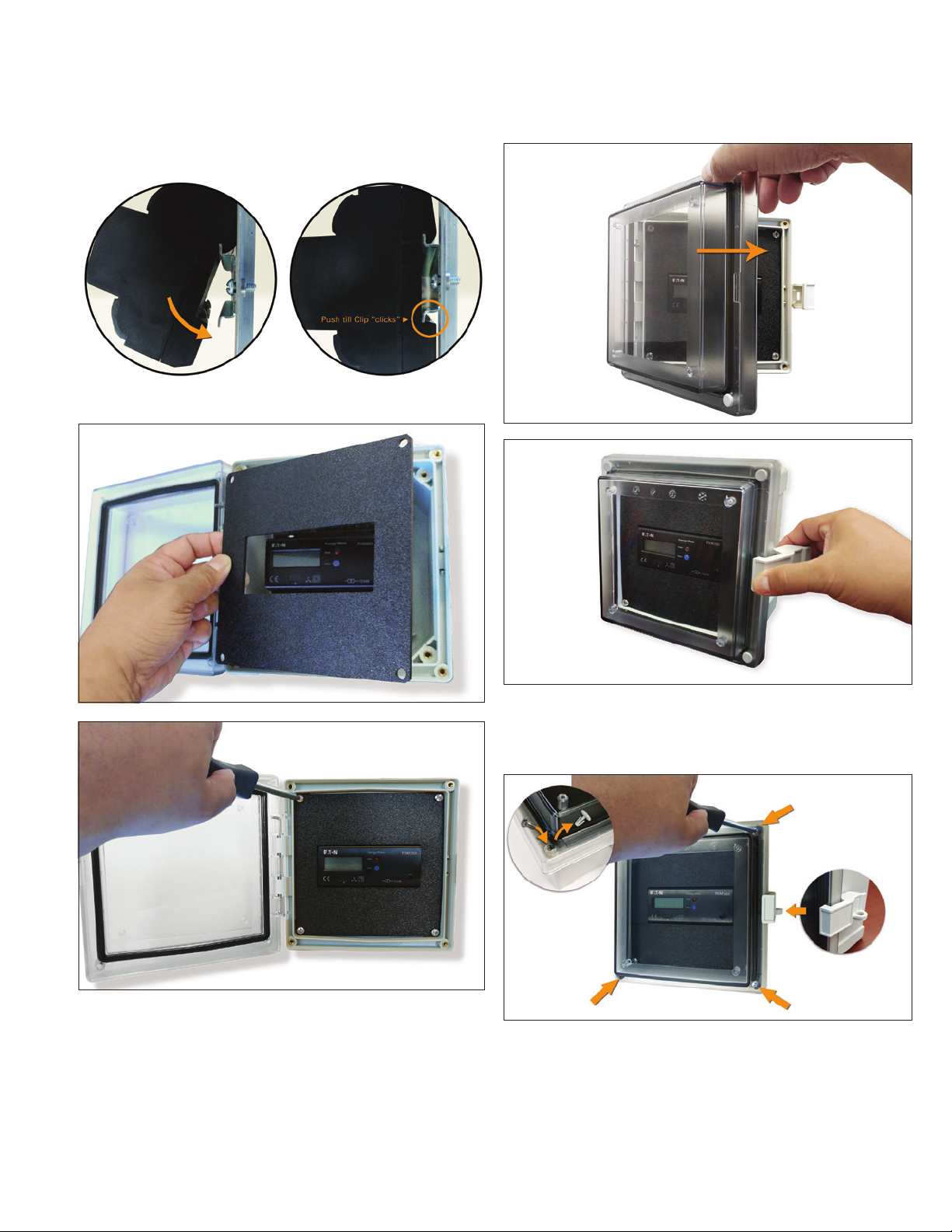

Step 2. Install PXM350 series meter onto DIN rail inside the
PXM350-ENC
The PXM350 series meter is shipped with a set of two DIN rail clips
included. These clips are already installed into the slots on the back
of the housing from the middle, moving outward. Stopping pegs
must face the underside of the housing.
Push the bottom of the meter onto the DIN rail until there is an
audible click.
3
Instruction Leaflet IL150009EN
Effective December 2019
EATON www.eaton.com
Run meter wiring through the holes drilled previously. Wire the
meter according to the instructions in the meter installation guide.
Push the top of the meter onto the DIN rail.
Swing panel cover can be attached using the enclosed hardware.
Close the hinged lid and secure the clasp to close.
Screws are provided to secure the hinged lid. Local codes may
require this step to prevent opening by unauthorized persons if a
locking mechanism is not used. For added security, the installer may
also add a locking mechanism.
Optional: Use
included hardware
to secure the
hinged lid at all
four corners.
Optional: Attach a
locking mechanism
here (not included).
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2019 Eaton
All Rights Reserved
Printed in USA
Publication No. IL150009EN / VCG
December 2019
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Instruction Leaflet IL150009EN
Effective December 2019
