ENGLISH

5PX 1000 RT2U

5PX 1500 RT2U

5PX 2200 RT2U

5PX 3000 RT2U

5PX 3000 RT3U

5PX EBM 48V RT2U

5PX EBM 72V RT2U

5PX EBM 72V RT3U

Installation

and user manual

Service and support:

Call your local service representative

614-03797-00_EN

Page 2 614-03797-00_EN

Page 3

614-03797-00_EN

ENGLISH

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.

Important instructions that must always be followed.

Do not discard the UPS or the UPS batteries in the trash.

This product contains sealed lead acid batteries and must be disposed as it's explain in this manual.

For more information, contact your local recycling/reuse or hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE)

in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.

Information, advice, help.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS. This manual contains important instructions

that should be followed during installation and maintenance of the UPS and batteries.

The 5PX models that are covered in this manual are intended for installation in an environment

within 0 to 40°C, free of conductive contaminant.

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment.This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

Certication Standards

UPS directives: UL 1778 4pth edition (UL listed).

Performance: IEC 62040-3: 2001.p

Radiated emission: FCC CFR 47 part 15 subpart B, Class A.p

Surges withstand ability: IEEE ANSI C62.41 Category A2 (UL Listed).p

Page 4 614-03797-00_EN

Safety of Persons

The system has its own power source (the battery). Consequently, the power outlets may be energizedp

even if the systems is disconnected from the AC power source.

Dangerous voltage levels are present within the system. It should be opened exclusively by qualied p

service personnel.

The system must be properly grounded.p

The battery supplied with the system contains small amounts of toxic materials.p

To avoid accidents, the directives listed below must be observed:

- never burn the battery (risk of explosion),

- do not attempt to open the battery (the electrolyte is dangerous for the eyes and skin),

- comply with all applicable regulations for the disposal of the battery,

- batteries constitute a danger (electrical shock, burns).The short-circuit current may be very high.

Precautions must be taken for all handling:

remove watches, rings, bracelets and any other metal objects, use tools with insulated handles,p

do not lay tools or metal parts on top of batteries.p

Product Safety

The UPS connection instructions and operation described in the manual must be followed inp

the indicated order.

A protection circuit breaker must be installed upstream and be easily accessible.p

The system can be disconnected from the AC power source by opening this circuit breaker.

Check that the indications on the rating plate correspond to your AC powered system and top

the actual electrical consumption of all the equipment to be connected to the system.

Never install the system near liquids or in an excessively damp environment.p

Never let a foreign body penetrate inside the system.p

Never block the ventilation grates of the system.p

Never expose the system to direct sunlight or source of heat.p

If the system must be stored prior to installation, storage must be in a dry place.p

The admissible storage temperature range is -15 ºC to +50 ºC.p

Special Precautions

All handling operations will require at least two people (unpacking, installation in rack system).p

Before and after the installation, if the UPS remains de-energized for a long period, the UPS must bep

energized for a period of 24 hours, at least once every 6 months (for a normal storage temperature

less than 25 °C).This charges the battery, thus avoiding possible irreversible damage.

During the replacement of the Battery Module, it is imperative to use the same type and number ofp

element as the original Battery Module provided with the UPS to maintain an identical level of

performance and safety. In case of doubt, don’t hesitate to contact your EATON representative.

Page 5

614-03797-00_EN

ENGLISH

Contents

1. Introduction....................................................................................... 6

1.1 Environmental protection.................................................................................................6

2. Presentation ...................................................................................... 7

2.1 Standard installations.......................................................................................................7

2.2 Rear Panels......................................................................................................................8

2.3 Control panel ...................................................................................................................9

2.4 LCD description ............................................................................................................. 10

2.5 Display functions ........................................................................................................... 11

2.6 User settings ................................................................................................................. 11

3. Installation ...................................................................................... 13

3.1 Unpacking and contents check......................................................................................13

3.2 Battery module connection............................................................................................14

3.3 Tower installation ........................................................................................................... 15

3.4 Rack installation ............................................................................................................. 15

3.5 Communication ports .................................................................................................... 16

3.6 Connection with a FlexPDU (Power Distribution Unit) module (optional) ...................... 17

3.7 Connection with a HotSwap MBP module (optional) .................................................... 17

3.8 UPS connection without a FlexPDU or HotSwap MBP module ....................................18

4. Operation......................................................................................... 19

4.1 Start-up and Normal operation.......................................................................................19

4.2 Starting the UPS on Battery...........................................................................................19

4.3 UPS Shutdown .............................................................................................................. 19

4.4 Operation on Battery Power .......................................................................................... 19

4.5 Return of AC Input Power..............................................................................................20

4.6 UPS remote control functions .......................................................................................20

5. Maintenance.................................................................................... 21

5.1 Troubleshooting .............................................................................................................21

5.2 Battery-module replacement .........................................................................................22

5.3 Maintenance on a UPS equipped with the HotSwap MBP module ..............................23

6. Appendices...................................................................................... 24

6.1 Technical specications .................................................................................................24

6.2 Glossary.........................................................................................................................25

Page 6 614-03797-00_EN

1. Introduction

Thank you for selecting an EATON product to protect your electrical equipment.

The 5PX range has been designed with the utmost care.

We recommend that you take the time to read this manual to take full advantage of the many features

of your UPS (Uninterruptible Power System).

Before installing your 5PX, please read the booklet presenting the safety instructions.

Then follow the indications in this manual.

To discover the entire range of EATON products and the options available for the 5PX range,

we invite you to visit our web site at www.eaton.com/powerquality or contact your EATON representative.

1.1 Environmental protection

EATON has implemented an environmental-protection policy.

Products are developed according to an eco-design approach.

Substances

This product does not contain CFCs, HCFCs or asbestos.

Packing

To improve waste treatment and facilitate recycling, separate the various packing components.

The cardboard we use comprises over 50% of recycled cardboard.p

Sacks and bags are made of polyethylene.p

Packing materials are recyclable and bear the appropriate identication symbol p

PET

Materials Abbreviations Number in

the symbols

Polyethylene terephthalat PET 01

High-density polyethylene HDPE 02

Polyvinyl chloride PVC 03

Low-density polyethylene LDPE 04

Polypropylene PP 05

Polystyrene PS 06

Follow all local regulations for the disposal of packing materials.

End of life

EATON will process products at the end of their service life in compliance with local regulations.

EATON works with companies in charge of collecting and eliminating our products at the end of

their service life.

Product

The product is made up of recyclable materials.

Dismantling and destruction must take place in compliance with all local regulations concerning waste.

At the end of its service life, the product must be transported to a processing center for electrical and

electronic waste.

Battery

The product contains lead-acid batteries that must be processed according to applicable local regulations

concerning batteries.

The battery may be removed to comply with regulations and in view of correct disposal.

PET

Page 7

614-03797-00_EN

ENGLISH

2. Presentation

2.1 Standard installations

Tower installation

Rack installation

Description Weights

(lb/kg)

Dimensions (inch/mm)

D x W x H

5PX 1000 RT2U 61.50 / 27.90 20.6 x 17.4 x 3.4 / 522 x 441.2 x 86.2

5PX 1500 RT2U 64.70 / 29.36

5PX 2200 RT2U 65.30 / 29.61

5PX 3000 RT2U 87.20 / 39.54 25.5 x 17.4 x 3.4 / 647 x 441.2 x 86.2

5PX 3000 RT3U 85.60 / 38.80 19.6 x 17.4 x 5.1 / 497 x 441.2 x 130.7

5PX EBM 48V RT2U 72.30 / 32.80 20.6 x 17.4 x 3.4 / 522 x 441.2 x 86.2

5PX EBM 72V RT2U 102.3 / 46.39 25.5 x 17.4 x 3.4 / 647 x 441.2 x 86.2

5PX EBM 72V RT3U 97.6 / 44.26 19.6 x 17.4 x 5.1 / 497 x 441.2 x 130.7

Page 8 614-03797-00_EN

2. Presentation

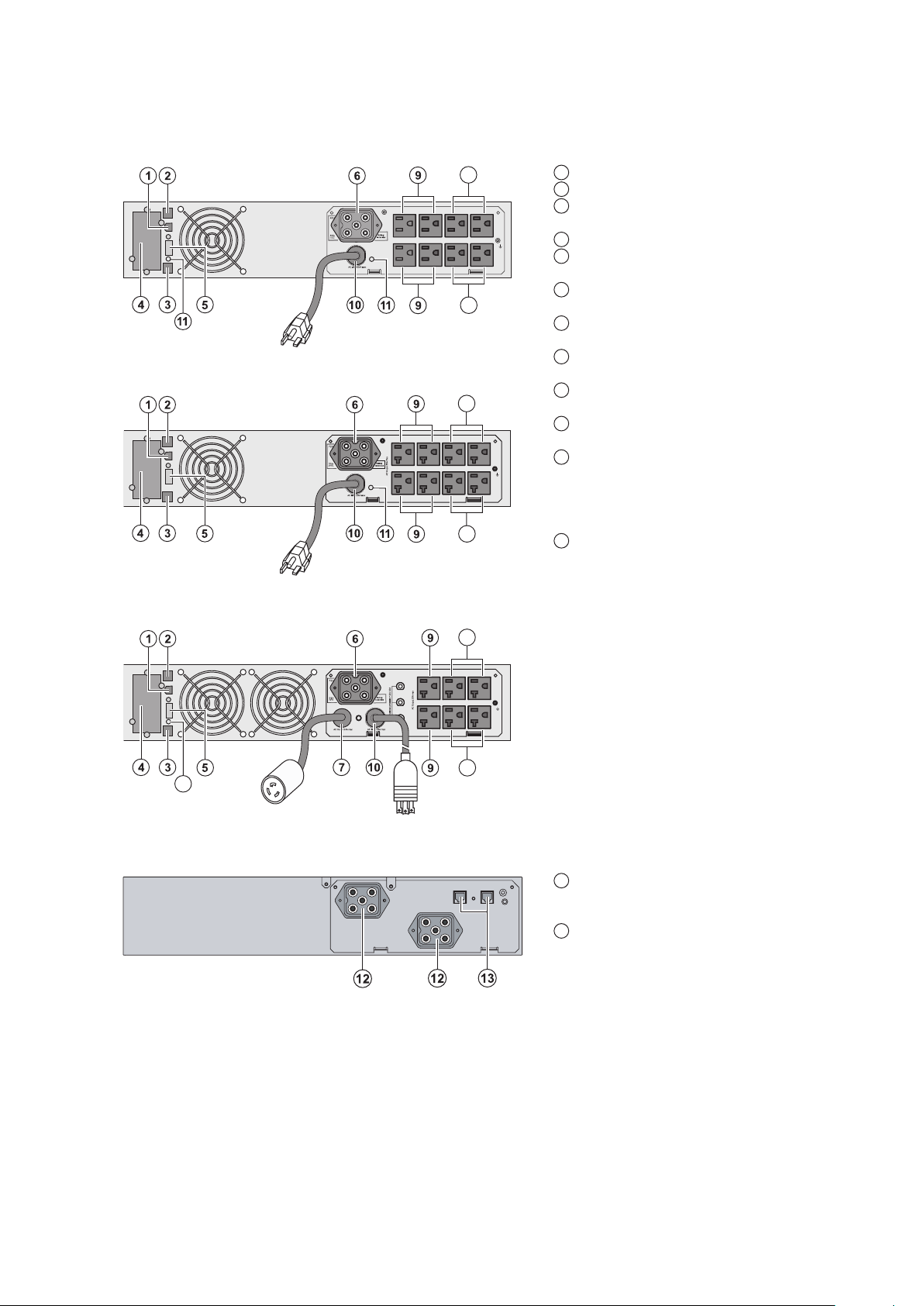

2.2 Rear panels

5PX 1000 / 1500

5PX 2200

5PX 3000

5PX EBM (optional battery module)

12 Connectors for battery modules

(to the UPS or to the other battery

modules)

13 Connectors for automatic recognition

of battery modules

1USB communication port

2RS232 communication port

3Connector for automatic recognition

of an additional battery module

4Slot for optional communication card

5Connector for ROO (remote ON/OFF)

or RPO (Remote Power OFF) control

6Connector for additional battery

module

730A outlet (L5-30R) for connection of

equipment (for 5PX 3000 only)

8a Group 1: 2 programmable outlets for

connection of equipment

8b Group 2: 2 programmable outlets for

connection of equipment

9Primary Group: outlets for

connection of critical equipment

10 Attached 8 ft. input power cord for

AC-power source

5-15P for 1000 / 1500

5-20P for 2200

L5-30P for 3000

11 LED indicating site wiring fault (SWF)

alarm

Page 9

614-03797-00_EN

ENGLISH

2. Presentation

2.3 Control panel

The UPS has a ve-button graphical LCD. It provides useful information about the UPS itself, load status,

events, measurements and settings.

Power On

Indicator (green)

On battery

Indicator (yellow)

Alarm

Indicator (red)

Normal mode

100%

17min

1EBM

100%

2.7kW

3kVA

Efficiency: 98%

Escape Up Down Enter On/Off

button

The following table shows the indicator status and description:

Indicator Status Description

Green On The UPS is operating normally.

Yellow

On The UPS is on battery mode.

Flashing The battery voltage is below the warning level.

Red

On The UPS has an active alarm or fault. See trouble-

shooting on page 21 for additional information.

Page 10 614-03797-00_EN

2. Presentation

2.4 LCD description

After 5 minutes of inactivity, the LCD displays the screen saver.

The LCD backlight automatically dims after 10 minutes of inactivity. Press any button to restore the screen.

Operation status

Load/equipment status

Normal mode

100%

17min

1EBM

100%

2.7kW

3kVA

Efficiency: 98%

Battery status

Efficiency and load group information

The following table describes the status information provided by the UPS

Note: If other indicator appears, see troubleshooting on page 21 for additional information.

Operation status Possible cause Action

Standby mode The UPS is OFF, waiting for start-up

command from user

Equipment is not powered until

button is pressed.

Normal mode The UPS is operating normally. The UPS is powering and protecting

the equipment.

In AVR mode

Load protected LED is ON

No beep

The UPS is operating normally but

the utility voltage is outside normal

mode thresholds.

The UPS is powering the

equipment through a Automatic

Voltage Regulation device.

The equipment is still normally

protected.

On Battery

Battery LED is on

1 beep every 10 seconds

A utility failure has occured and

the UPS is in Battery mode.

The UPS is powering the equipment

with the battery power.

Prepare your equipment for

shutdown.

End of backup time

Battery LED is blinking

1 beep every 3 seconds

The UPS is in battery mode and

the battery is running low.

This warning is approximate, and

the actual time to shutdown may

vary siginificantly.

Depending on the UPS Load

and number of Extended Battery

modules (EBMs), the "Battery Low"

warning may occur before the

battery reaches 25 % capacity.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eaton UPS Handbücher

Eaton

Eaton PowerRite XT PRXT-0400A Bedienungsanleitung

Eaton

Eaton Powerware 9390 Bedienungsanleitung

Eaton

Eaton Power Xpert 9395 Bedienungsanleitung

Eaton

Eaton 93PR Series Bedienungsanleitung

Eaton

Eaton 9395 UPS and Plus 1 UPS 650825 kVA Bedienungsanleitung

Eaton

Eaton Power Xpert 9395P-1100/1100 Bedienungsanleitung

Eaton

Eaton 3S Montageanleitung

Eaton

Eaton Ellipse PRO 1600 DIN Bedienungsanleitung

Eaton

Eaton 91PS Handbuch

Eaton

Eaton 9E-IN 1K Bedienungsanleitung

Eaton

Eaton 3S550IEC Bedienungsanleitung

Eaton

Eaton 10000HXL31 Bedienungsanleitung

Eaton

Eaton 9155 UPS20-30kVA Bedienungsanleitung

Eaton

Eaton Powerware 9395 Bedienungsanleitung

Eaton

Eaton Power Xpert Plus 1 Bedienungsanleitung

Eaton

Eaton UPS 20 Bedienungsanleitung

Eaton

Eaton 9E Bedienungsanleitung

Eaton

Eaton 93PM SIAC-T Bedienungsanleitung

Eaton

Eaton 9PXM8S4K Bedienungsanleitung

Eaton

Eaton 5E650iUSB-AU Bedienungsanleitung

Eaton

Eaton E.T.N 1500 VA - 60kVa Bedienungsanleitung

Eaton

Eaton 5P 1550G RL Bedienungsanleitung

Eaton

Eaton 5PX 1500i RT2U Bedienungsanleitung

Eaton

Eaton ARRAY 3A3 Pro Bedienungsanleitung

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung

ZincFive

ZincFive BC Series Bedienungsanleitung
