D54 User Guide

Robot Vacuum Cleaner

Thanks for purchasing

products Hope you can enjoy it

Thanks again for your choice!

patented

. !

Robot

Vacuum Cleaner

Enjo y S m a r t e r Life!

Content

1. Safety Instruction....

User Guide...... . . . ........ . . . ....... . . . . ..... 8. Cycle c .. .... . ..... . . . .

Power Supply for the Product.. . .. ....... . .

The Spectrum of Product Use.. . . ....... . . . Cancel Cycle Cleaning

Notes before Cleaning.......................

Child Safety. . . ....... . . . ...... ... . . . ....... . . .

10. Maintenance ...... . . . ....... . . . ........ .

Battery Replacement and Disposal

Resource Utilization

Dust Box Cleaning

When Product is in Failure. . ....... . . . ....

Sponge Filter and Dust Box Cleaing....

2. Content in the Original Package

and Technical Parameter. . . . .......

Main Brush Cleaning.......................

3. Name of Par ts

Side Brush Cleaning

Host .................................... . ...

4. Battery Charging. ....... . . . .. ...

Placement of Charging Block.. . . . . .......

11. Alar m function. . . . ... .... .. . . . .

Robot charging.... . . . ..... .

12. Common Failure.... . . . ....... . . . ......

5. Power On/Pause/Power Off. . . . . ..

Other Problems. ........ . . . ....... . . . ..

Get pawer supply and power On... . . . ..

Pause. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Off.....................................

Mode Selection....... . . . . ....... . . . ..

Auto Mode ..... . . ..

Mode. . . .. .. ..

................... 7 o Back ..... . . . . ........ . . .

313

.. 3 leaning .... . . . .... . 14

.3Set Cycle Cleaning..... . . . ........ . . . ....... 14

4..... . . . ........ . . . .. 14

9. Day-to-Day Storage . . . . ....... . . . ....... 14

.15

....... 6

Host Cleaning................................. 15

......................... 6

..... . . . ........ . . . ....... 15

.16

Sponge Filter Replacement...............

.17

..... . . . ........ . . . ....... . . . .

..... . . . ........ . . . ..... 18

.. . .. . 8

Replace Side Brush. . . . ........ . . . ....... . . . . 18

Control Panel...... . . . ........ . . . ........ . . . .... 9

Up-Ground Height Sensor Cleaning. . . . 18

..... . . . . 9Dust Sensor Cleaning........ . . . ....... . . . . 19

..... .. . 19

..... . . . ........ . . 10

. . 10

13. 21

.. 10

. . . 11

.11

6.. . 12

..... . ..... . . . ........ . . . . . . 12

Intensive cleaning ..... . . . . . 12

. G Charging

...

Do not open the equipment. The components inside the robot host are beyond repair by

user himself.

This product is only for domestic use, not suitable for industry or outdoor surroundings.

Note：

1.Safety Instruction

The User Guide

Please conform to the basic safety precautions as follows:

● Read the content in this user guide carefully and install the robot according to the detailed instructions.

● Safekeeping this guide. If you transfer this machine to another person, please make sure attach this booklet.

● Any inconsistent operation with this guide would probably cause serious damage to both human being and the

machine itself.

Power Supply for the Product

● The power supply is from a Ni-MH chargeable battery inside the host of the

robot and it is specially assigned with a charging block to do recyclable

charge.

● Please double check the marked supply voltage on the charging block and

make sure it is applied according to the instructions.

● Do not use the damaged power cord or plug, while contact our after-sales

service or find our authorized supplier to maintain.

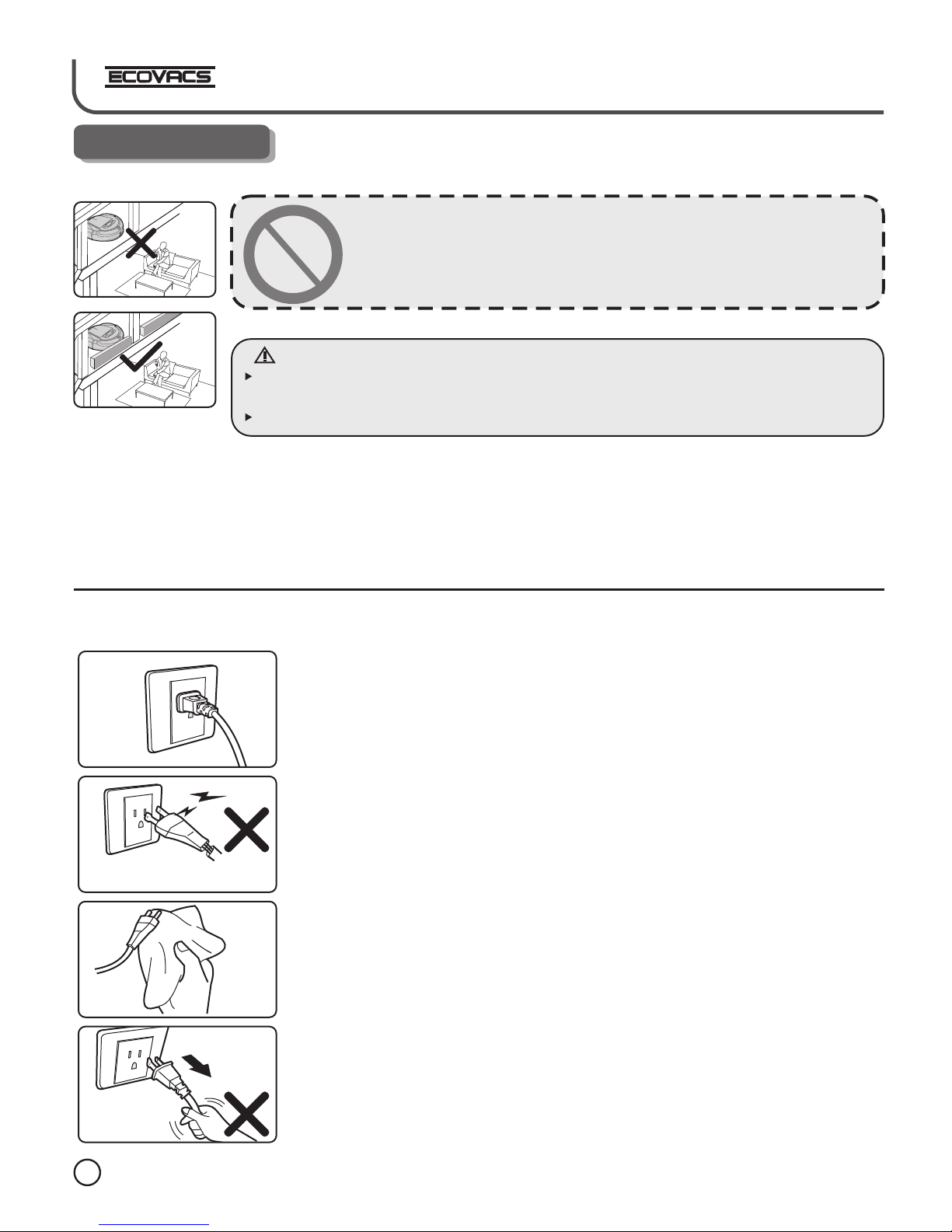

● As the charging block is heavy, please never drag the block via pulling it’s

power cord.

● Remember never to twist and swing or screw the power cord excessively,

neither to block it when close the door.

We should not put heavy things on it as well.

● Do not let power cord touch hot or sharp surfaces.

● Do not draw out the plug by pulling the cord.

● Keep wet hands away from the plug or machine.

● Pull the plug out of socket when you no longer use the charging block for

some time.

● Use dry cloth to wipe the dust on the plug frequently.

Cloth

cleaning

Where there is a drop off in the cleaning area due to a step or stairs and they

are not carpeted, you should operate the unit to see that the unit can detect

the step without falling over the edge. It may become necessary to place a

physical barrier at the edge to keep the unit from falling over the drop but

make sure the physical barrier is high enough so that you or a family member

will not trip on the barrier and cause themselves injury.

War ning

Correct

Electricity

leakage

Draw out

the plug

Guardrail

Set up

Guardrail

The Spectr um of the Product Use

● This robot is applicable to domestic sweeping, including wooden floor,

rubber floor, ceramic tile, linoleum and medium or short-haired carpet

however, it is inapplicable to long-haired carpet.

● It can not be used for the floor as below:

-- -- Have water on the surface (including flammable liquids), such

as wet floor.

-- -- Inside toilet, shower room or other humid situation.

-- -- Staircase

-- -- The room with furnace or flame

● The following objects are definitely forbidden:

-- -- Not extinguished soot, burning cigarette butts or match, because

these objects would cause fire.

-- -- Sharp objects like glass debris, pin, paper clip,stones, gypsum,

and large piece of paper. These things may block the machine.

-- -- Water or other kind of liquid, especially detergent, kerosene,

petrol, paint, alcohol, perfume, as well as carpet or floor cleaning solution.

It would make the interior of the machine wet, so that may cause short-

circuit.

-- -- The toner of laser printer and copier which may bring fire and

explosion.

● Please keep the machine away from hot source such as oven and

fireplace, because the hot can distort the crust.

● Do not use the machine in the surroundings with any explosion risk.

For example, at gas station, oil depot, chemical plant and so on.

● Never use the machine outdoors. As rain or solid dust may get inside it and

cause damage.

● Do not repair or change any performance by yourself.

● Do not throw or bend the machine.

● Do not dampen it, or else the short-circuit would cause fire or electric

shock accident.

● Take care of routine maintenance and keep it in a clean place.

● Do not expose the machine in the extreme hot or cold surroundings. This

product is not allowed to long-time kept in the temperature below zero or

over thirty degree.

● Do not keep the machine in the liquid or expose it to high humidity.

● Do not place the machine close to burning cigarette or fire.

Enjo y S m a r t e r Life!

Notes before Cleaning

● Take extra care of the robot when the first it works. Please remove the

obstacles when it is beyond the robot. Try to avoid the situation that the

robot stops working.

● Make precautions to solve the problem which may make the cleaning in

trouble, such as:

Keep the easily knock over objects in a safe place.

-- -- Permian the edge of the carpet.

-- -- The hanging table cloth and curtain should not touch the ground.

-- -- The flammable object should be cut from the fire source.

-- -- Sort out the tangled power cord on the floor.

● Check whether the main brush is correctly fixed inside the robot before

cleaning.

● Examine if the dust box is empty and insure it is fixed before it works.

● See if up-ground height sensor and dust sensor are wiped clean.

If you only need to clean one room, please close the door.

-- --

-- -- Pick up the newspaper, book, magazine and large piece of paper

scattered on the floor.

●

● Child, physically or mentally disabled and inexperienced are not allowed

to use it, unless their safety supervisor is there to give instruction.

Child Safety

● Take good care of the product and keep it beyond child and people who can

not judge danger nearby. Extra attention should be paid when it stats

working.

● You should get the person inside the room know that the machine is

working, in order to avoid man-made damage like tripping.

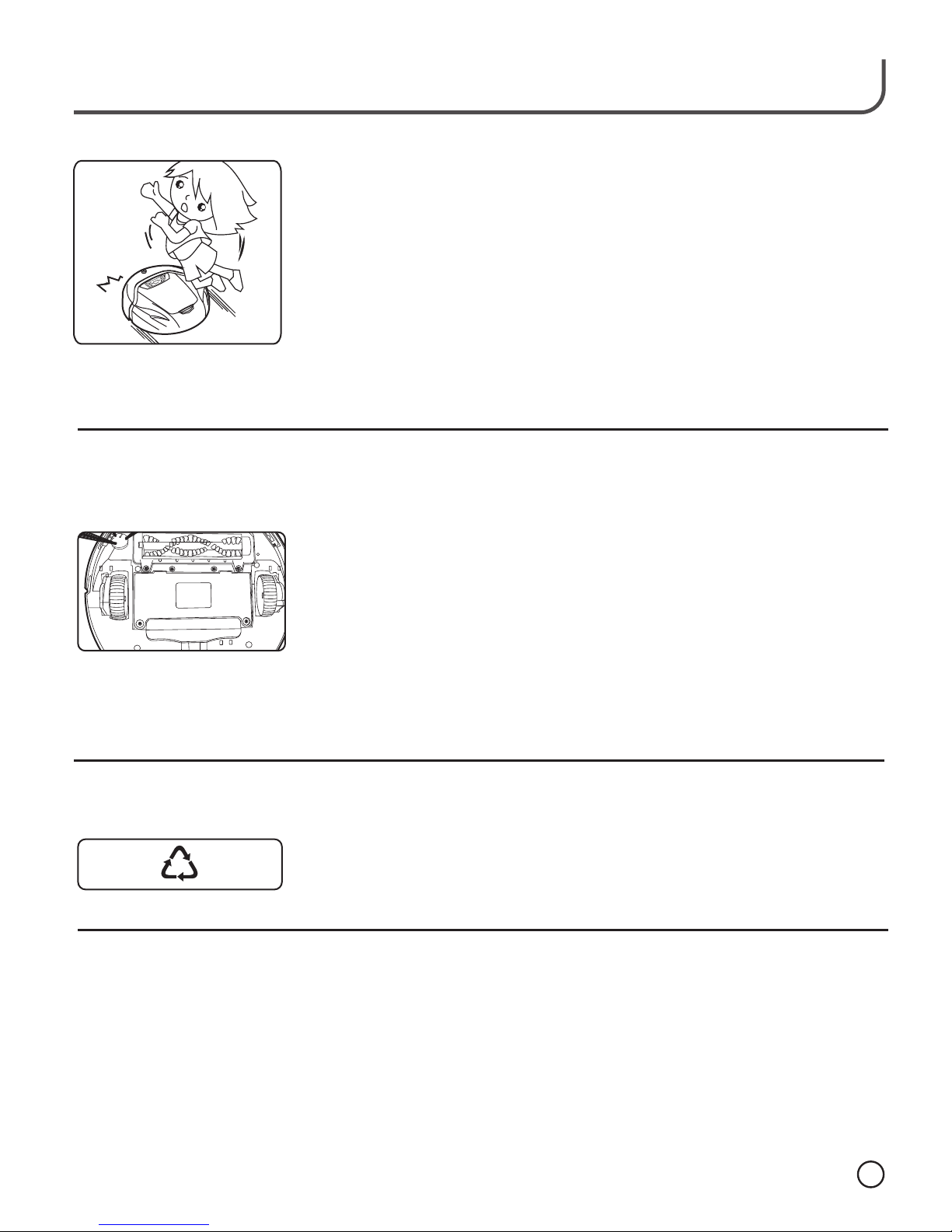

● Do not take robot as toy. Carefully attention should be paid when child or pet

is around.

● The plastic package may bring danger of asphyxia and is supposed to

keep away from child.

● You need to contact our after-sales when you want to change the battery. It

will cause explosion if you use replacement battery of wrong model.

● There is potential danger if you use other producer's battery and

charging block. The damage cause hence is not within the warranty.

● Please dispose the spent battery properly, because there is hazardous

substance which may pollute the environment.

● Conform with local environmental legislation and dispose it at the recovery

site.

● Do not take the package material as domestic garbage and discard it

freely.

● Please deliver the package material to proper recovery site for recycle.

● Do not repair or disassemble the machine when there is damage of the

power cord or failure of the host.

● Contact our after-sales service or our designate maintenance organization

for professional repair.

Battery Replacement

and Disposal

Resource Utilization

When Product

is in Failure

Enjo y S m a r t e r Life!

D5 4 Us er G u id e

Ro bot Va c uu m C le a ner

Host Charging block

Roll brush clean-up

gadget

User guide

DC14.4V 220-240V~

DC17.5V

50Hz

30W

0.7A

30W

0.25meter/second

0.7L

≤62dB

About 4~5 hours

45 minutes

90-120 2

335×335×100mm

2.8Kg

The host The charging block

Working voltage In-put voltage

rated out-put voltage

rated frequency

rated power

rated out-put

currency

Rated power

Speed

Capacity of dust box

Noise

Charging duration

Duration upon full

battery 60 minutes

Max Coverage upon

full battery

Size

Net weight

technique parameter

2.Content

3.Name of parts

control button

wind gate

rotating side brush

up-ground height sensor

All-round

wheel

suspended

driving wheel

rubber scraper

on/off switch

dust sensor

dust box

dust box handle

ash exit

sponge filter

lock of dust box

charging and

alarm indicator

open button of upper cover

docking electrode

wind gate

power cord

power indicator

infrared transmitter

anti-skid band

main brush

welted

induction

infrared

receiver

buffer plate

bottom view of

robot

elevation of robot

charging block

dust box

host

charging dock

electrode

Enjo y S m a r t e r Life!

1.5m

0. 5m

678910

Control Panel

AUTO

Put the block at an even place and make the base perpendicular to the ground.

Meanwhile, take a look at the marked electricity voltage to make sure the

product is used under instruction.

Placement of charging block

4.Robot Charging

Tangle the power cord and do not scatter it besides the block in case that

robot would get impeded when it turns back.

There should not be any object at least 1.5 meter in front of the charging

block. Besides, anything with strong reflector is not supposed to stay ahead of

the infrared receiver. For example, ground glass, smooth ceramic vase and

so on. Otherwise, the machine shall not detect the charging block.

1. Power

2. AUTO mode button

3. intensive mode buttom

4. Cycle mode button

5. Back charging button

6. Battery level

7. Alarming indicator

8. Auto mode indicator

9. Cycle mode indicator

10. Intensive mode indicator

Please do not put the charging block to the staircase to avoid accidental

cases.

Tips:

Inhaltsverzeichnis

Andere ECOVACS Staubsauger Handbücher

ECOVACS

ECOVACS DEEBOT OZMO 930 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT R98 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT D77 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT OZMOT8+ Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT T9+ Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT3 D35 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT T10 TURBO Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT 900 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT M81Pro Bedienungsanleitung

ECOVACS

ECOVACS DD4G Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT 900 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT T10 PLUS Bedienungsanleitung

ECOVACS

ECOVACS 7 Series Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT R98 Bedienungsanleitung

ECOVACS

ECOVACS Deebot M8 Bedienungsanleitung

ECOVACS

ECOVACS ECO D56 Bedienungsanleitung

ECOVACS

ECOVACS WINBOT 880 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT OZMO 930 Bedienungsanleitung

ECOVACS

ECOVACS ECO D77 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT 7 Bedienungsanleitung

ECOVACS

ECOVACS Deebot X1 OMNI Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT OZMO 920 Bedienungsanleitung

ECOVACS

ECOVACS DEEBOT OZMO 960 Bedienungsanleitung

ECOVACS

ECOVACS Deebot T9 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
