Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
technician can address your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS official website:
www.ecovacs.com
The Company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
Benutzerhandbuch............................................................25
DE
Manuale d'uso .................................................................103
IT
..................................................51
Manual de instrucciones
ES
.......................................................77
Manuel d'instructions
FR
..............................................................2
Instruction Manual
EN
EU-Declaration of conformity.............................................129
EN
1. Important Safety Instructions......................................................................2
2. Package Contents and Technical Specications ......................................6
2.1 Package Contents ....................................................................................6
2.2 Specications ...........................................................................................6
2.3 Product Diagram.......................................................................................7
3. Operating and Programming.......................................................................9
3.1 Notes Before Cleaning .............................................................................9
3.2 Quick Start..............................................................................................10
3.3 Cleaning Mode Selection........................................................................13
3.4 Programming the Robot .........................................................................15
3.5 Indicator Light and Alarm Sounds...........................................................17
4. Maintenance................................................................................................19
4.1 Dust Bin and Filters ................................................................................19
4.2 Main Brush and Side Brushes................................................................20
4.3 Other Components .................................................................................21
4.4 Regular Maintenance .............................................................................22
5. Troubleshooting .........................................................................................23
Contents
.......................................................77
EN
2
1. Important Safety Instructions
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
Appliance in a safe way and understand the hazards involved.
Children shall not play with the Appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small
objects from the floor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains and
tablecloths off the oor.
3. If there is a drop off in the cleaning area due to a step or stairs,
you should operate the Appliance to ensure that it can detect the
step without falling over the edge. It may become necessary to
place a physical barrier at the edge to keep the unit from falling.
Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power
voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in
outdoor, commercial or industrial environments.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or lters in place.
9. Do not operate the Appliance in an area where there are lit
candles or fragile objects.
10. Do not use in extremely hot or cold environments (below
-5˚C/23˚F or above 40˚C/104˚F).
EN 3
1. Important Safety Instructions
11. Keep hair, loose clothing, fingers, and all parts of body away
from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child
is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing
water.
14. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in
areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a re.
17. Do not put objects into the suction intake. Do not use if the
suction intake is blocked. Keep the intake clear of dust, lint, hair,
or anything that may reduce air ow.
18. Take care not to damage the power cord. Do not pull on or
carry the Appliance or Charging Dock by the power cord, use
the power cord as a handle, close a door on the power cord,
or pull power cord around sharp edges or corners. Do not run
Appliance over the power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not
use the Appliance or Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors, or come in contact
with water. It must be repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the
Appliance.
EN
4
1. Important Safety Instructions
23. The plug must be removed from the receptacle before cleaning
or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF
the power switch to the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and
regulations.
27. Do not incinerate the Appliance even if it is severely damaged.
The batteries can explode in a re.
28. When not using the Charging Dock for a long period of time,
please unplug it.
29. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused by
improper use.
30. The robot contains batteries that are only replaceable by skilled
persons. To replace or remove the battery, please contact
Customer Service.
31. If the robot will not be used for a long time, fully charge the robot
and power OFF for storage and unplug the Charging Dock.
32.WARNING: For the purposes of recharging the battery, only
use the detachable supply unit DK18-190060H-V provided with
this appliance.
33. The Remote Control pre-installs two non-rechargeable AAA
batteries. To replace the battery of the Remote Control, please
turn over the Remote Control, press and remove its Battery
Cover. Remove the batteries, and insert the new batteries with
the correct polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be recharged.
35. Different types of batteries or new and used batteries are not to
be mixed.
EN 5
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household waste throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can safely
recycle this product.
For EU Countries
1. Important Safety Instructions
36. Batteries of the Remote Control are to be inserted with the
correct polarity.
37. Exhausted batteries are to be removed from the Appliance and
safely disposed of.
38. If the Remote Control is to be stored unused for a long period,
the batteries should be removed.
39. The supply terminals are not to be short-circuited.
To disable Wi-Fi module on DEEBOT, power the robot ON.
Place the robot on the Docking Station making sure the Charging
Contacts on DEEBOT and the Docking Station Pins make a
connection.
Press and hold the AUTO Mode Button on the robot for 10
seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the robot OFF and
then power ON. The Wi-Fi module is turned on when DEEBOT is
restarted.
EN
6
2. Package Contents and Technical Specications

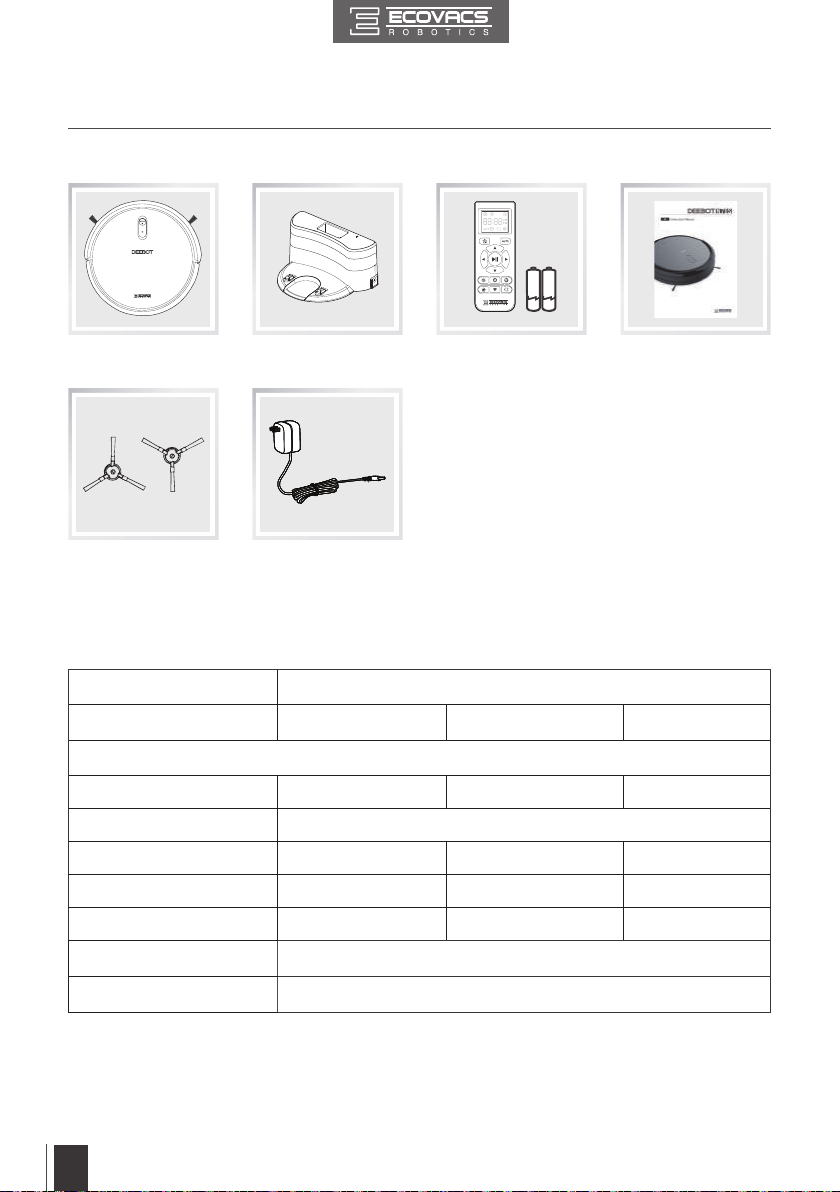

2.1 Package Contents
Robot
(2) Side Brushes Power Adapter
Charging Dock with
Power Adapter
Remote Control
(with battery)
Instruction Manual
Model DN622.11
Working Voltage 14.4V DC Rated Power 25W
Charging Dock
Rated Input Voltage 19V DC Rated output current 0.6A
Power Adapter Model DK18-190060H-V
Rated Input Voltage 100-240V AC Rated Input Current 0.5A
Rated output Voltage 19V DC Rated output current 0.6A
Remote Control Model RC1507 Input Voltage 3V DC
Off/Standby Mode Power Less than 0.50 W
Networked Standby Power Less than 2.00 W
2.2 Specications
* Technical and design specications may be changed in the course of continuous product improvement.
EN 7

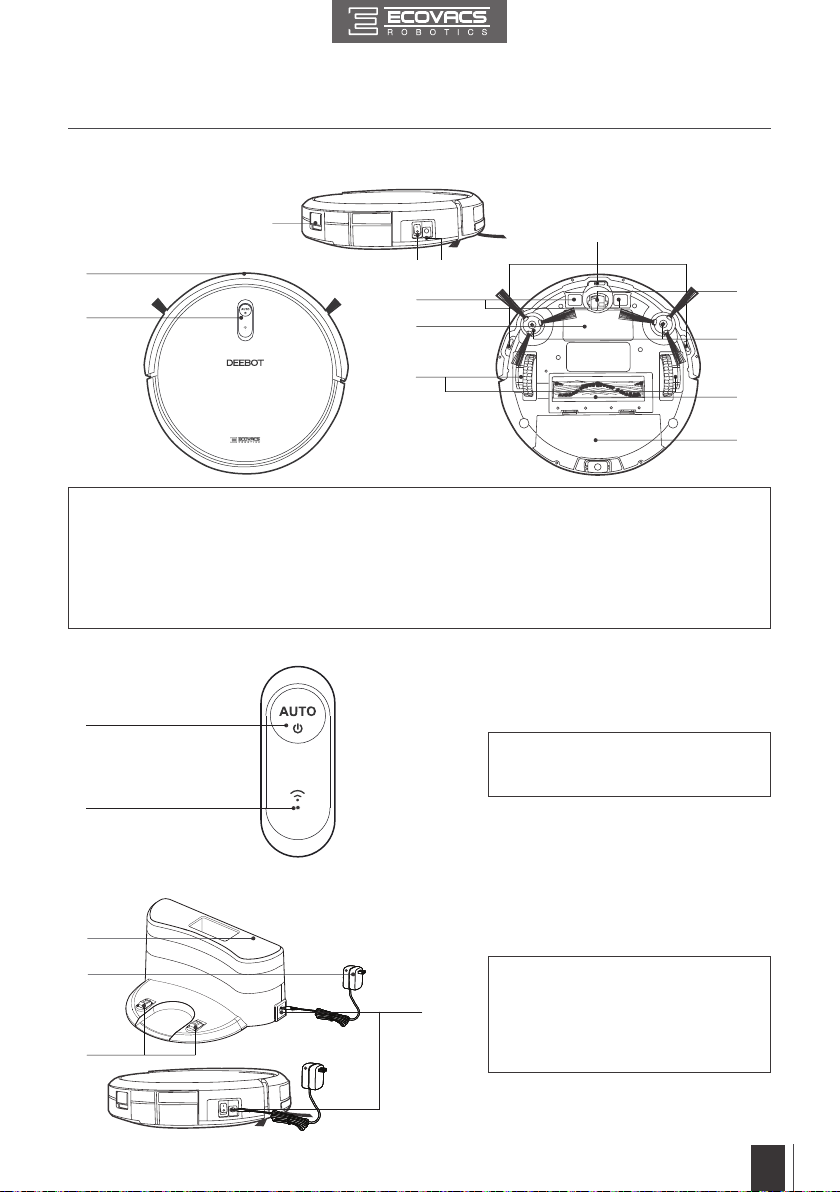

2.3 Product Diagram
Robot
1. Anti-Collision Sensors and Bumper
2. Control Panel
3. Dust Bin Release Button
4. Charging Contacts
5. Battery Cover
6. Driving Wheels
7. Power Adapter Port
8. Power Switch
9. Anti-Drop Sensors
10. Universal Wheel
11. Side Brushes
12. Main Brush
13. Dust Bin
2. Package Contents and Technical Specications
Charging Dock
1. Power Indicator Light
2. Power Adapter
3. Power Adapter Port
4. Charging Dock Pins
1. AUTO Mode Button
2. Wi-Fi Indicator Light
Control Panel
1
2
4
3
5
6
78
9
10
11
12
13
1
2
1
2
3
4
EN
8
2. Package Contents and Technical Specications

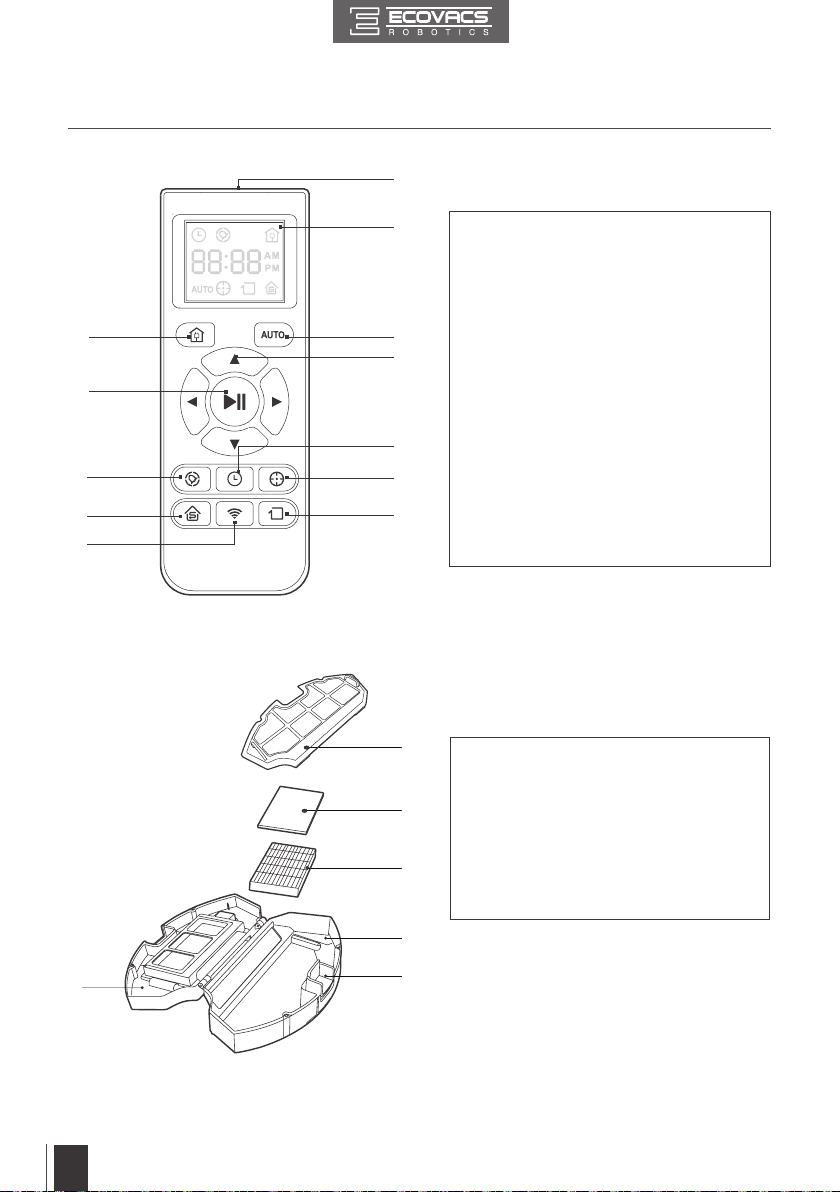

Remote Control
1. LCD Screen
2. Return to Charger Mode Button
3. AUTO Mode Button
4. Direction Control Buttons
5. START/PAUSE Button
6. Time Scheduling Button
7. Set Current Time Button
8. Spot Cleaning Mode Button
9. Single Room Mode Button
10. Network Setup Button
11. Edge Cleaning Mode Button
12. Infrared Emitter
Dust Bin
1. Filter Net
2. Sponge Filter
3. High Efciency Filter
4. Dust Bin Cover
5. Dust Bin
6. Dust Bin Release Button
2
5
6
9
10
1
2
3
6
5
4
1
12
3
4
7
8
11
Andere Handbücher für DEEBOT N79S
1
Inhaltsverzeichnis
Andere ECOVACS Staubsauger Handbücher
ECOVACS
ECOVACS Deebot D58 Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT 710 Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT X1 PLUS DEX55 Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT 900 Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT 500 Series Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT D8 Bedienungsanleitung
ECOVACS
ECOVACS WINBOT W850 Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT SLIM2 DA5G Bedienungsanleitung
ECOVACS
ECOVACS W555 Bedienungsanleitung
ECOVACS
ECOVACS Deebot X1 OMNI Bedienungsanleitung
ECOVACS
ECOVACS WINBOT Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT OZMOT8+ Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT T9 AIVI Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT 601 Bedienungsanleitung
ECOVACS
ECOVACS DD4G Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT U2 Series Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT D77 Bedienungsanleitung
ECOVACS
ECOVACS deebot m88 Bedienungsanleitung
ECOVACS
ECOVACS Deebot M8 Bedienungsanleitung
ECOVACS
ECOVACS DEEBOT OZMO 920 Bedienungsanleitung
Beliebte Staubsauger Handbücher anderer Marken
Bissell
Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung
Panasonic
Panasonic MC-YL637S147-AE Bedienungsanleitung
NEFF
NEFF N17XH10 0 Series Bedienungsanleitung
LG
LG A9 Series Bedienungsanleitung
Oreck
Oreck Cordless Captura BK51700 Series Bedienungsanleitung
Kogan
Kogan KAVACROBVWA Bedienungsanleitung
