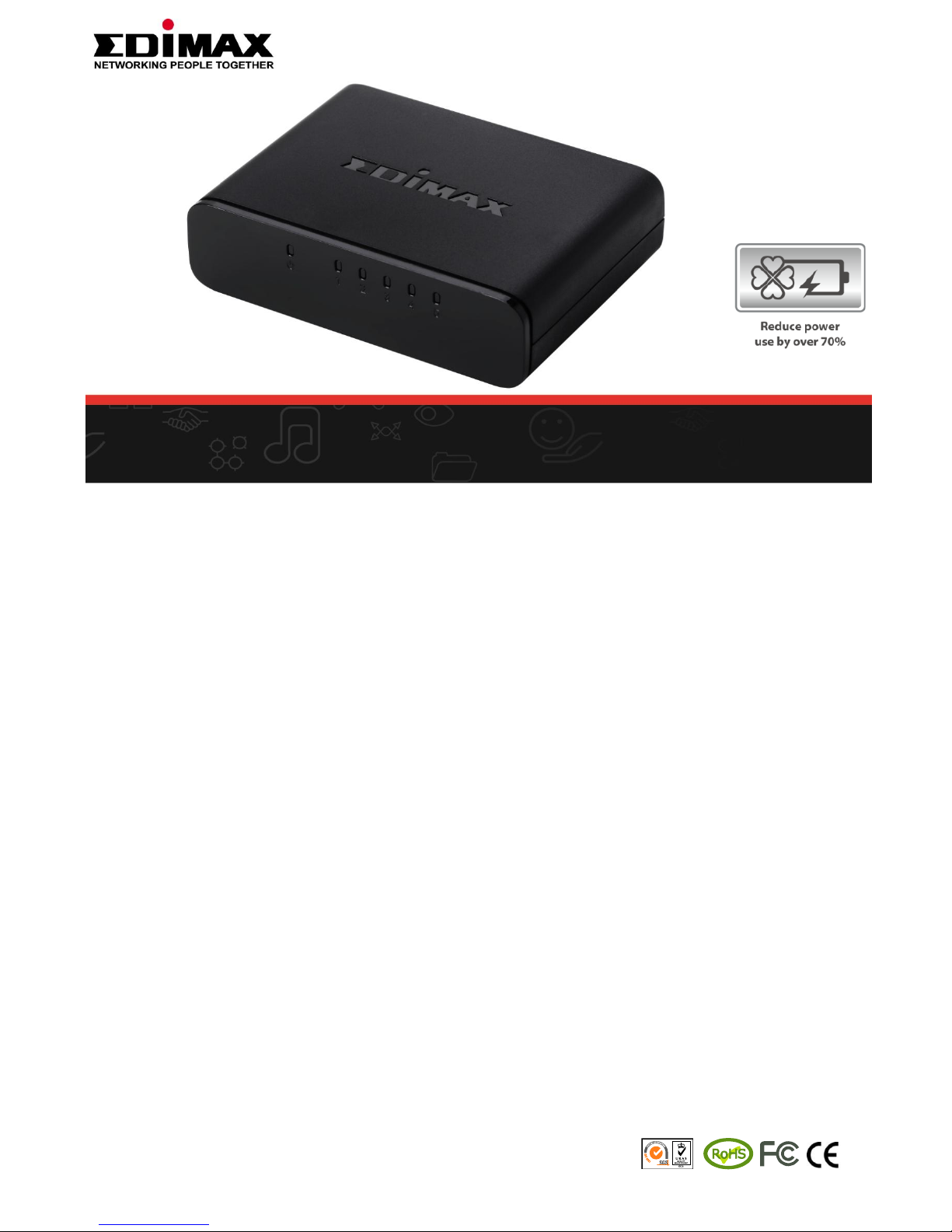

5-Port Fast Ethernet Desktop Switch

ES-3305P

www.edimax.com

Description

The ES-3305P is a 10/100 Mbps unmanaged Ethernet desktop switch designed to enhance network performance.

It’s compact, sleek design offers outstanding performance and high efficiency, using store and forward packet-

switching technology to provide reliable data transfers, ideal for network connectivity in the SOHO environment.

To extend home networks or meet online gaming, multimedia transfer or streaming requirements the ES-3305P

is a cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network

devices such as PCs, network-attached storage or print servers to a home network with no manual configuration

necessary.

Supports Auto-Negotiation

Each of the ES-3305P’s ports automatically detect whether connected network devices are running at 10Mbps or

100Mbps and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly ensuring easy and

hassle-free operation.

Supports Non-Blocking Wire Speed

The ES-3305P forwards and receives traffic seamlessly with its non-blocking wire-speed. Every port of the ES-

3305P supports speeds up to 200Mbps in full-duplex mode simultaneously, providing full wire speed to

connected devices and allowing you to run a high speed network smoothly.

IEEE Energy Efficient Ethernet (EEE) Compliance

Along with the Fast Ethernet speeds critical for next-generation network applications, the ES-3305P offers

environmental efficiency . To comply with the IEEE802.3az standard, the ES-3305P provides power saving

functionality to reduce energy consumption and save costs:

Inactive Link Detection

When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature

automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to

the link status and the number of active network devices.

Cable Length Detection

Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust

power usage accordingly. The shorter the cable length, the less power it consumes.

Easy to Use

The ES-3305P is plug-and-play and supports a wide range of network protocols. Installation and network

management is quick and straightforward, and clear and convenient LED indicators display easy to read port and

switch status.

www.edimax.com

5-Port Fast Ethernet Desktop Switch

conditions and environmental factors. Product specifications and design are subject to change without notice.

FEATURES & TECHNICAL SPECIFICATIONS

•Complies with IEEE802.3, IEEE802.3u standards

•Supports auto MDI/MDI-X crossover detecting and auto correction

•Wire-speed packet filtering and forwarding rate

•Store-and-forward architecture filters fragment & CRC error packets

•Supports IEEE802.3az energy efficient Ethernet function

Standards Features Filtering / Forwarding Rates

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet

RJ-45 Port: 5

MAC Address: 1K

Buffer Memory: 56K

Transmission Method: Store and Forward

100Mbps Port –148,800pps

10Mbps Port –14,880pps

Transmission Media LED Indicators Power Requirement

10BASE-T Cat. 3, 4, 5 UTP/STP

100BASE-TX Cat. 5 UTP/STP

Per Port: Link/Act

Per Unit: Power

DC 5V 0.6A

Power Consumption Dimensions Weight

1.07 Watts (Max) 98×71 ×25.5 mm (L x W x H) 92 g

Temperature Humidity Certifications

Operating: 0 to 40℃

Storage: -20 to 70℃

Operating: 10 to 90% RH (Non-condensing)

Storage: 5 to 90% RH (Non-condensing)

FCC Class B

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

• Connect the ES-3305P to your router or cable/xDSL modem

• Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-3305P.

Power Saving

ES-3305P
