Edimax HP-8501 Bedienungsanleitung

EDIMAX HP-8501

Quick Installation Guide

HP-8501

85Mbps Powerline Ethernet Bridge

User’s Manual

EDIMAX HP-8501

Quick Installation Guide

Index

1. Powerline Networking Installation........................................................................................................................ 0

1.1 Basic Installation............................................................................................................................... 0

1.2 Application Examples....................................................................................................................... 1

1.2.1 Connecting one computer to internet via power outlet.................................................................. 1

1.2.2 Connecting game console via power outlet ..................................................................................1

1.2.3 Connecting existed network environment to internet via power outlet.......................................... 2

1.3 Benefits............................................................................................................................................. 3

1.4 Features ........................................................................................................................................... 3

1.5 Package Contents............................................................................................................................ 3

1.6 System Requirements...................................................................................................................... 3

2. Network Utility for Powerline Bridge .................................................................................................................... 4

2.1 Software Setup................................................................................................................................. 4

2.1.1 Installation ..................................................................................................................................... 4

2.2 Windows Configuration Utility........................................................................................................... 5

2.3 User Interface................................................................................................................................... 6

2.3.1 The 'Main’ Tab ............................................................................................................................... 6

2.3.2 The ‘Privacy’ Tab..........................................................................................................................11

2.4 The ‘Diagnostics’ Tab ..................................................................................................................... 13

2.4.1 The ‘About’ Tab ........................................................................................................................... 15

2.4.2 The ‘Preferences’ Tab.................................................................................................................. 15

EDIMAX HP-8501

Quick Installation Guide

be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language or computer language, in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual or otherwise, without the prior written permission of this company

This company makes no representations or warranties, either expressed or implied, with respect

to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any

particular purpose. Any software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not this company, its

distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any

incidental or consequential damages resulting from any defect in the software. Further, this

company reserves the right to revise this publication and to make changes from time to time in

the contents hereof without obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different from those

shown in this QIG. For more detailed information about this product, please refer to the User's

Manual on the CD-ROM.The software and specifications subject to change without notice.

and product names mentioned in this manual are trademarks and/or registered trademarks of

their respective holders.

Linux Open Source Code

Certain Edimax products include software code developed by third parties, including

software code subject to the GNU General Public License ("GPL") or GNU Lesser General

Public License ("LGPL"). Please see the GNU (www.gnu.org) and LPGL (www.gnu.org)

Web sites to view the terms of each license.

The GPL Code and LGPL Code used in Edimax products are distributed without any

warranty and are subject to the copyrights of their authors. For details, see the GPL Code

and LGPL Code licenses. You can download the firmware-files at edimax’s Website：

http://www.edimax.com under "Download" page.

※ The product you have purchased and the setup screen may appear slightly different from

those shown in this QIG. For more detailed information about this product, please refer to

the User's Manual on the CD-ROM.

※ Software and specifications subject to change without notice. Please visit our web site for the

update.

holders

EDIMAX HP-8501

Quick Installation Guide

1. Powerline Networking Installation

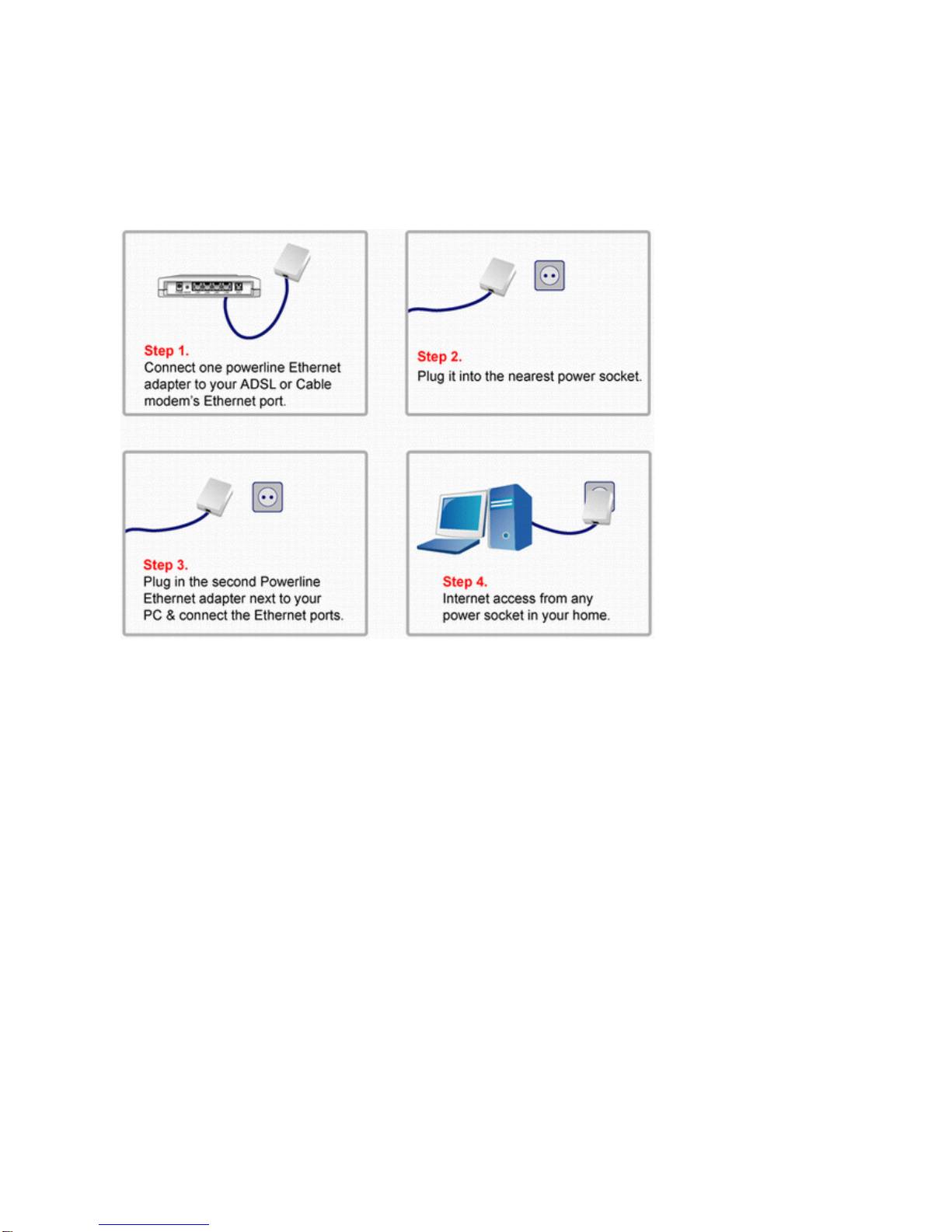

1.1 Basic Installation

EDIMAX HP-8501

Quick Installation Guide

1.2 Application Examples

1.2.1 Connecting one computer to internet via power outlet

1.2.2 Connecting game console via power outlet

EDIMAX HP-8501

Quick Installation Guide

1.2.3 Connecting existed network environment to internet via power outlet

EDIMAX HP-8501

Quick Installation Guide

1.3 Benefits

‧Up to 85 Mbps data transfer rate over the household power circuit.

‧Ranges of 200 meters.

‧No new network cables needed for home networking.

‧Deliver the benefits of Ethernet without the expense of wiring.

‧Transfer large files between computers in short time.

‧High-speed Internet access and DVD-quality video streaming

‧Compatible with IEEE 802.3, IEEE 802.3u.

‧Keep data privacy through DES data encryption method.

1.4 Features

‧Cost-efficient home network solution.

‧Using existed powerline in a house, no new network cables needed,

‧Easy to install.

‧Just use your power circuit to access the Internet or build home network through the whole house.

‧Orthogonal Frequency Division Multiplexing for high data reliability (anti-interference).

‧Up to 85Mbps of data transfer rate over powerline

‧56-bits DES link encryption for security.

‧3 status indication LEDs.

1.5 Package Contents

‧High Speed Powerline Bridge unit

‧Powerline Network Management Software CD

‧Quick Installation Guide

‧Category 5 cable

1.6 System Requirements

‧Ethernet device

‧AC power outlet

‧PC with Windows operating system for data encryption setup

EDIMAX HP-8501

Quick Installation Guide

2. Network Utility for Powerline Bridge

Note: The device is able to detect other powerline devices which is on the same power circuit automatically. You

only need to install.this utility program when you want to enable the encrypt function of Powerline Extender to

secure your data, or you have problem connecting other powerline devices.

Introduction of Configuration Utility

The configuration utility for Windows OS enables the user to search all Powerline Ethernet devices on the

Powerline network; check data rate and performance, enables encryption, and performing diagnostics.

2.1 Software Setup

2.1.1 Installation

Please verify that no other Powerline Management Utilities are installed before installing this software. If other

utilities are installed, uninstall them first and restart your computer before installing this software.

To install, insert the Windows OS configuration utility setup utility CD-ROM into the computer's CD-ROM or

DVD-ROM drive. The Setup utility shall run automatically. Alternatively this can also be done manually by double

clicking the setup.exe file on the CD. A welcome screen will be shown as Figure 1.

Click the Next button to continue.

Figure 1: Install Shield Screen

EDIMAX HP-8501

Quick Installation Guide

2.2 Windows Configuration Utility

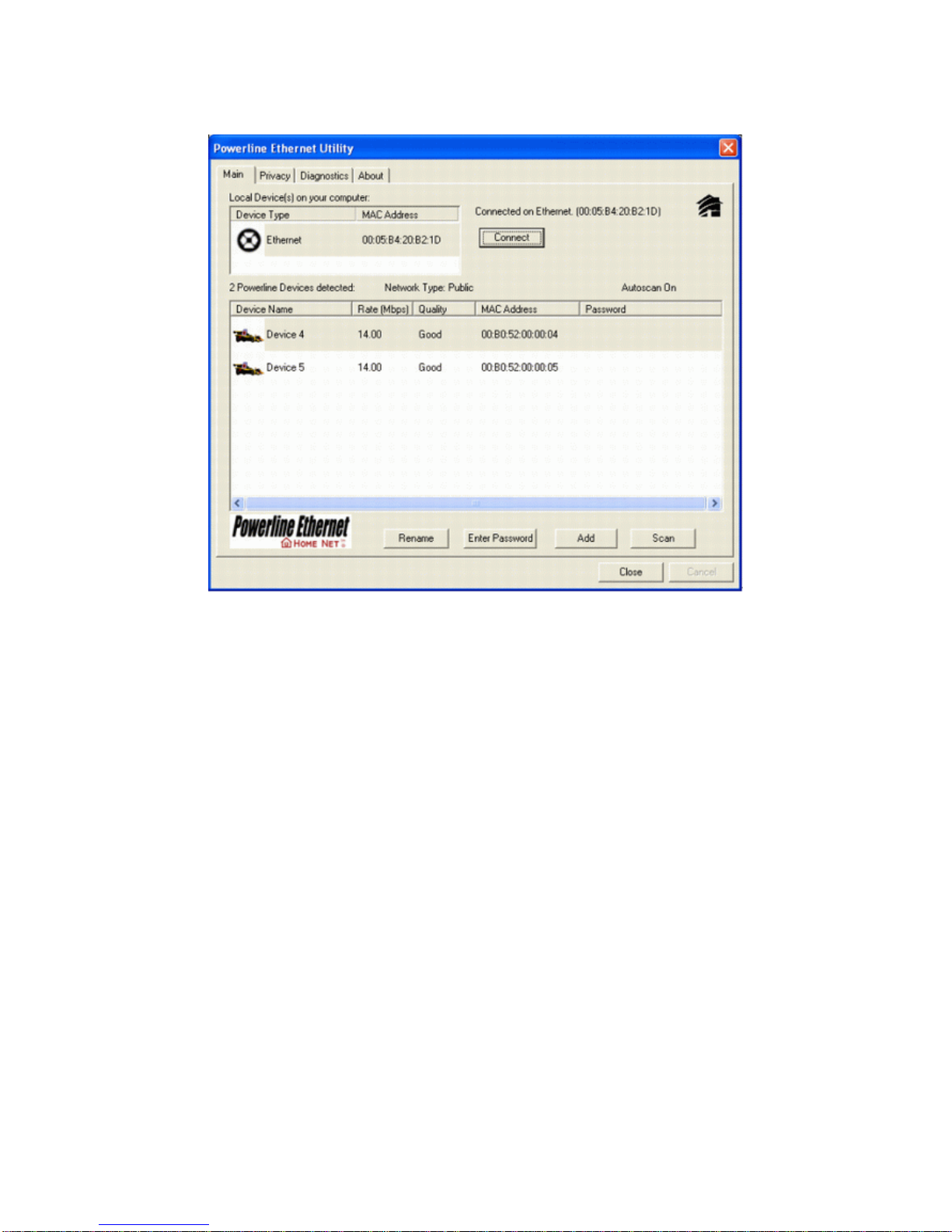

In order to run the utility, double-click the utility icon. Figure 2 shows the content of main tab of the configuration

utility. The following picture shows a Powerline Ethernet device connected as a local device and other Powerline

Ethernet devices as remote devices.

Figure 2: Main tab with a local high-speed Powerline Ethernet device

EDIMAX HP-8501

Quick Installation Guide

Figure 3 : Main tab with local low-speed Powerline Ethernet device

2.3 User Interface

2.3.1 The ‘Main’ Tab

The Main tab provides a list of all Powerline Ethernet devices logically connected to the computer where the

configuration utility is running. The top panel shows all local Powerline Ethernet devices found. In most cases,

only one device will be shown there. In environments where there are more than one device connected to the

same computer, such as a USB and an Ethernet device, the user have to click the device he or she wish to

manage and then click the Connect button to its right. The status area above the button indicates that your PC is

connected to selected device. Once connected to the a chosen local device, the utility will automatically scan the

power line periodically for any other Powerline Ethernet devices. If no local Powerline Ethernet devices are

discovered, the status area above the connect button will indicate that accordingly.

Figure 4 illustrates the presence of two local devices connected to the same computer.
