Control-Display Module Installation Sheet

Description

Control-display modules provide additional operator interface

capability for the life safety system. They can be mounted on

any local rail module, except the 3-CPU3 and 3-ANNCPU3.

Inserts are provided for labeling switches and LEDs.

This document provides installation instructions for the control-

display modules listed below.

Model

Description

-24R Twenty-four red LEDs

-24Y Twenty-four yellow LEDs

-24G Twenty-four green LEDs

-12RY Twelve red-over-yellow pairs of LEDs

-12SG Twelve LED-switches with green LEDs

-12SR Twelve LED-switches with red LEDs

-12SY Twelve LED-switches with yellow LEDs

-12/S1GY Twelve LED-switches with green-over-yellow LEDs

-12/S1RY Twelve LED-switches with red-over-yellow LEDs

-12/S2Y Twelve LED-switches with yellow-over-yellow LEDs

-6/3S1G2Y Six groups of three LED-switches with green LEDs

(top switch), and yellow LEDs (middle and bottom

switch)

-6/3S1GYR Six groups of three LED-switches with green LEDs

(top switch), yellow LEDs (middle switch), and red

LEDs (bottom switch)

-4/3SGYWR Four groups of three LED-

switches with green LEDs

(top switch), yellow-over-white LEDs (middle

switch), and red LEDs (bottom switch)

Installation

Cautions

•This product contains components that are sensitive to

electrostatic discharge (ESD). Handle with care.

•Installing this product with power applied will damage the

equipment. Power down the panel before installing.

To install a control-display module:

1. Fill out the label insert. Slip it between the overlay and the

circuit board. See Figure 1.

2. Insert the left side of the control-display module into the

door frame then push in on the right side until it snaps into

place.

3. Connect the ribbon cable (P/N 250186) to the rail module

with the red edge of the cable pointed up.

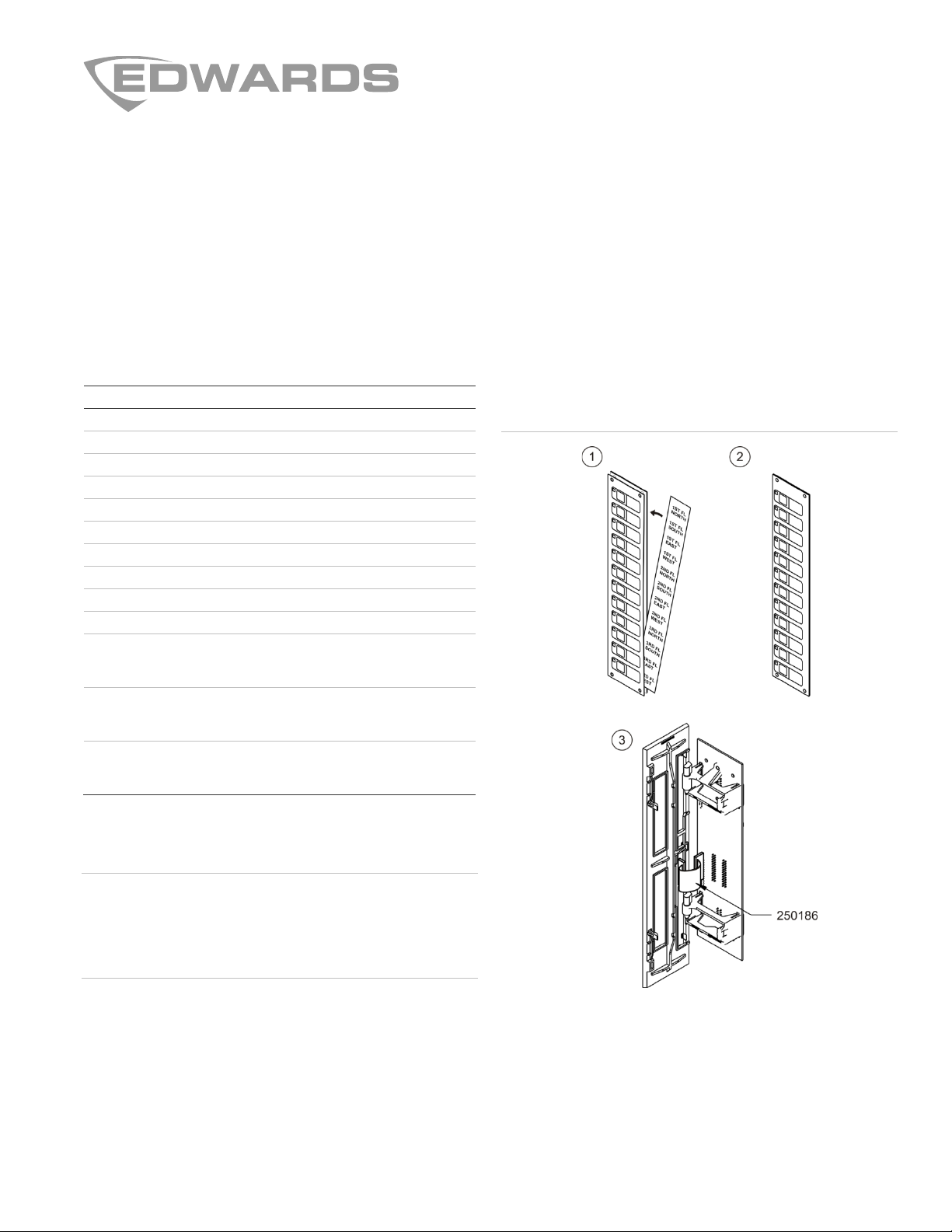

Figure 1: Installation

2 / 2 P/N 270493 • REV 06 • REB 18JAN13

Specifications

Volta

ge 24 VDC

Current

Standby

Alarm

2.0 mA plus 1.5 mA for each active LED

Operating environment

Temperature

Humidity

32 to 120°F (0 to 49°C)

0 to 93% RH, noncondensing at 90°F (32°C)

Contact information

For contact information, see www.edwardsutcfs.com.
