NRA8-80-880
Issue C Original
Instruction Manual
Micromass UK
Autospec Rotary Pump Platform Assembly
Description Item Number
RV3, RVJ2 and E2Ml8 Pumping Platform NRA880000
This product has been manufactured under a quality system registered to ISO9001
Declaration of Conformity
We, Edwards,
Crawley Business Quarter,
Manor Royal
Crawley,
West Sussex, RH10 9LW, UK
declare under our sole responsibility, as manufacturer and person within the EU authorised
to assemble the technical file, that the product(s)
Autospec Platform NRA880000
to which this declaration relates is in conformity with the following standard(s) or other
normative document(s)
EN1012-2:1996, A1: 2009 Compressors and Vacuum Pumps. Safety Requirements. Vacuum
Pumps
EN12100:2010 Safety of machinery. General principles for design. Risk
assessment and risk reduction.
EN60034-1: 2004 Rotating electrical machines. Rating and performance
EN13463-1: 2009 Non-electrical equipment for use in potentially explosive
atmospheres. Basic method and requirements
EN13463-5: 2003 Non-electrical equipment for use in potentially explosive
atmospheres. Protection by constructional safety ‘c’
and fulfils all the relevant provisions of
2006/42/EC Machinery Directive
2006/95/EC Low Voltage Directive
2004/108/EC Electromagnetic Compatibility (EMC) Directive
94/9/EC ATEX Directive on use in Potentially Explosive Atmospheres
Note: This declaration covers all product serial numbers from the date this Declaration was
signed onwards.
26.02.2013, Lutin, CZ
Peter Meares, GV Technical Support Manage
r
Date and Place
P200-07-580 Issue A
© Edwards Limited 2013. All rights reserved. Page i
Edwards and the Edwards logo are trademarks of Edwards Limited.
Contents
NRA8-80-880 Issue C
Contents
Section Page
1 Introduction .......................................................................................1
1.1 Scope and definitions ................................................................................................... 1
1.2 Description ................................................................................................................ 1
2 Technical Data ....................................................................................3
2.1 General .................................................................................................................... 3
3 Installation .........................................................................................5
4 Operation ..........................................................................................7
5 Maintenance .......................................................................................9
6 Storage and Disposal ........................................................................... 11
6.1 Storage ...................................................................................................................11
6.2 Disposal ...................................................................................................................11
7 Spares and Accessories ........................................................................ 13
7.1 Introduction .............................................................................................................13
For return of equipment, complete the HS Forms at the end of this manual.
Illustrations
Figure Page
1 Autospec rotary pump platform assembly ........................................................................... 2
Associated Publications
Publication Title Publication Number
RV3, RV5, RV8, RVI2 Rotary Vane Pumps A652-01-880
Rotary Vacuum Pumps EIMI8 and E2MI8 A343-01-880
Speedivalvcs C331-55-880
Vibration Isolators A248-01-880
System Safety Manual P400-40-100
cg/02/13
This page has been intentionally left blank.
NRA8-80-880 Issue C
Page ii © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
© Edwards Limited 2013. All rights reserved. Page 1
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction
NRA8-80-880 Issue C
1Introduction
1.1 Scope and definitions
For the safe operation of the pump platform please refer to the relevant instruction manuals and safety booklet
supplied as part of this document package.
This manual provides Installation, Operation and Maintenance instructions for the pump platform. You must use the
pump platform as specified in this manual and associated publications.
Read this manual before you install and operate the pump. Important safety information is highlighted as WARNING
and CAUTION instructions; you must obey these instructions. The use of WARNINGS and CAUTIONS is defined below.
CAUTION
Cautions are given where failure to observe the instruction could result in damage to the equipment, associated
equipment and process.
The following IEC warning labels appear on the pump:
The units used throughout this manual conform to the SI international system of units of measurement.
1.2 Description
The pump platform comprises of three rotary vacuum pumps RV3, RVl2 and E2Ml8 mounted on a single mobile
platform. Three manual speedivalve isolation valves provide process isolation. The exhausts from the vacuum pumps
arc connected via Tygon®tubing and provides a 5-metre exhaust line.
WARNING
Warnings are given where failure to observe the instruction could result in injury or death to
people.
Warning - refer to accompanying documentation.
Warning - hot surface.
XDS5 Designated Analyser
XDS10 Designated Source
XDS10 Designated Inlet-1
NRA8-80-880 Issue C
Page 2 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction

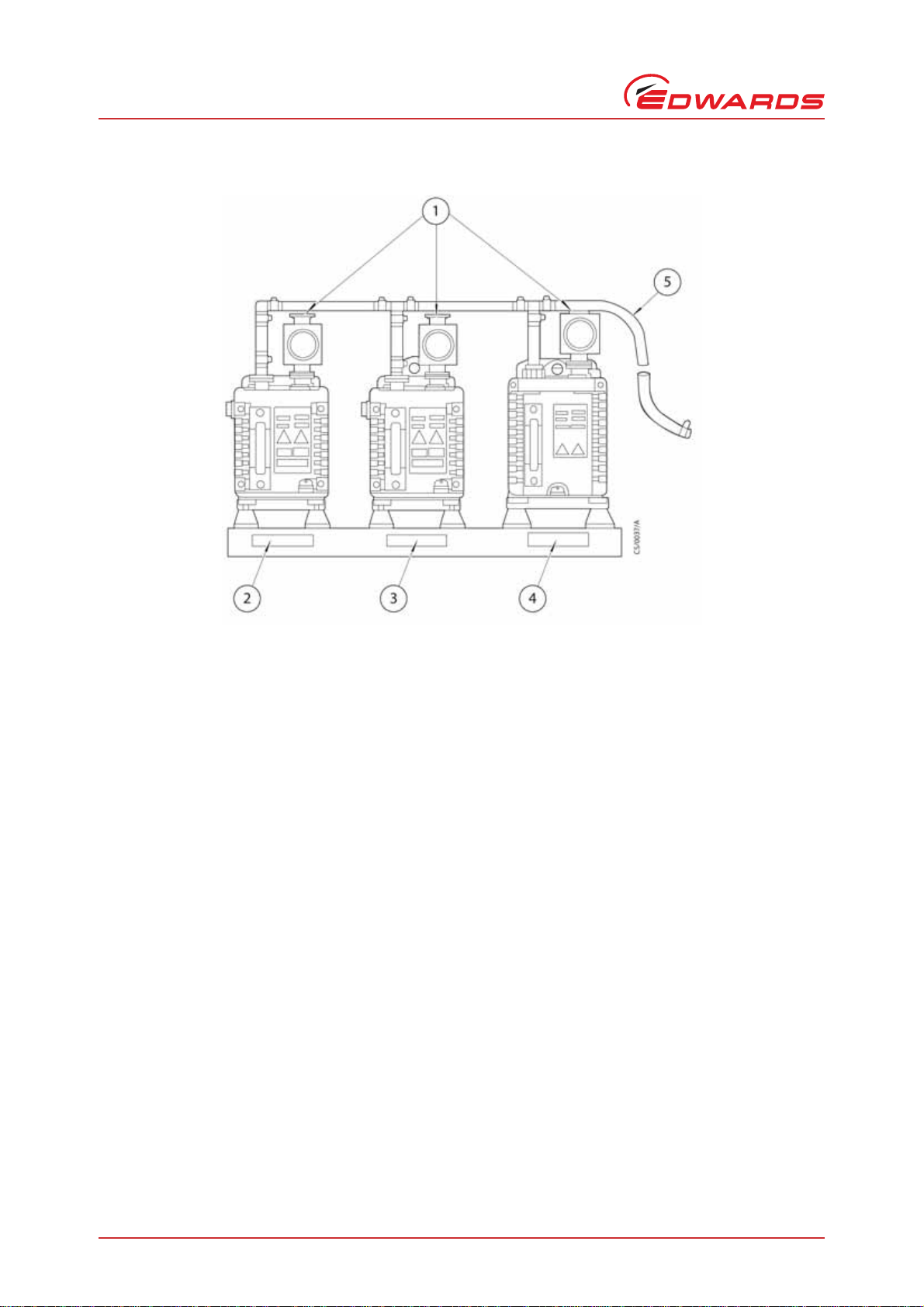

Figure 1 - Autospec rotary pump platform assembly
1 Speedivalve
2 RV3 Rotary vane pump
3RV12Rotaryvanepump
4 E2M18 Rotary vane pump
5Tygon
®tubing process exhaust
© Edwards Limited 2013. All rights reserved. Page 3
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical Data
NRA8-80-880 Issue C
2TechnicalData
2.1 General
Technical data relating to the rotary vane pumps can be found in the accompanying product manuals.
Inlet connection NW25
Exhaust connection Tygon® tubing 12.7 mm I.D.
Electrical connections Harting connector HAN 3A-M 10 A/240 V
Electrical supply 220/240 V, 50/60 Hz, 1 Ph
NRA8-80-880 Issue C
Page 4 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
This page has been intentionally left blank.
© Edwards Limited 2013. All rights reserved. Page 5
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
NRA8-80-880 Issue C
3 Installation
WARNING
This pump platform is mounted on fixed castors; risk of movement is possible which may result in
damage to the inlet and exhaust pipe work, ideally the platform should be chocked in its operating
position to prevent accidental movement.
The pump platform should be placed in a position where it does not constitute a trip hazard. The
vacuum pumps overhang the footprint of the platform. Care should be taken when moving the
platform to avoid damage to the platform and personnel.
WARNING
The pump platform should not be lifted using the individual vacuum pump lifting eyes. The pump
platform should be lifted using suitably rated slings positioned beneath the base platform and
external to the castors. Care should be taken to ensure the lifting slings do not foul the vacuum
pumps.
NRA8-80-880 Issue C
Page 6 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
This page has been intentionally left blank.
