USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² Trio RTX 3070 Ti D-RGB

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning the installation

process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water! For best results, EK

recommends the use of EK-CryoFuel coolants!

To reach optimal performance, make sure to thoroughly

bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

PREPARING THE GRAPHICS CARD 7

REMOVING THE STOCK COOLER 7

PREPARING THE WATER BLOCK FOR INSTALLATION 7

CUTTING AND PLACING THERMAL PADS 8

APPLYING THERMAL COMPOUND 9

ATTACHING THE WATER BLOCK 9

PREPARING THE BACKPLATE 11

ATTACHING THE BACKPLATE 12

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 12

FITTINGS AND TUBING 13

CONNECTING THE D-RGB LED STRIP 14

TESTING THE LOOP 14

WARRANTY 15

SUPPORT AND SERVICE 16

SOCIAL MEDIA 16

- 4 -

BOX CONTENTS

4 mm

8 mm

EK-Loop Multi Allen Key (1 pc) Allen Key 2 mm (1 pc)

Allen Key 2.5 mm (1 pc)

Thermal Pad F 1.0 mm (4 pcs)

(3830046996732)

Thermal Pad G 1.5 mm (3 pcs)

(3830046996787)

Thermal Grease (1 pc)

EK-Quantum Vector2Trio RTX 3070 Ti D-RGB

M2.5x4 AX1 Screw (13 pcs)

Terminal OR - Vector

14x1 mm (2 pcs)

120 mm

24 mm

120 mm

16 mm

Standoff Ø4.5/2.5 (1 pc)

Quantum Plug (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

EAN: 104910

EAN: 104549

M2.5x8 AX1 Screw (1 pc)

Polyamid Washer M2.5 0.5mm (13 pcs)

- 5 -

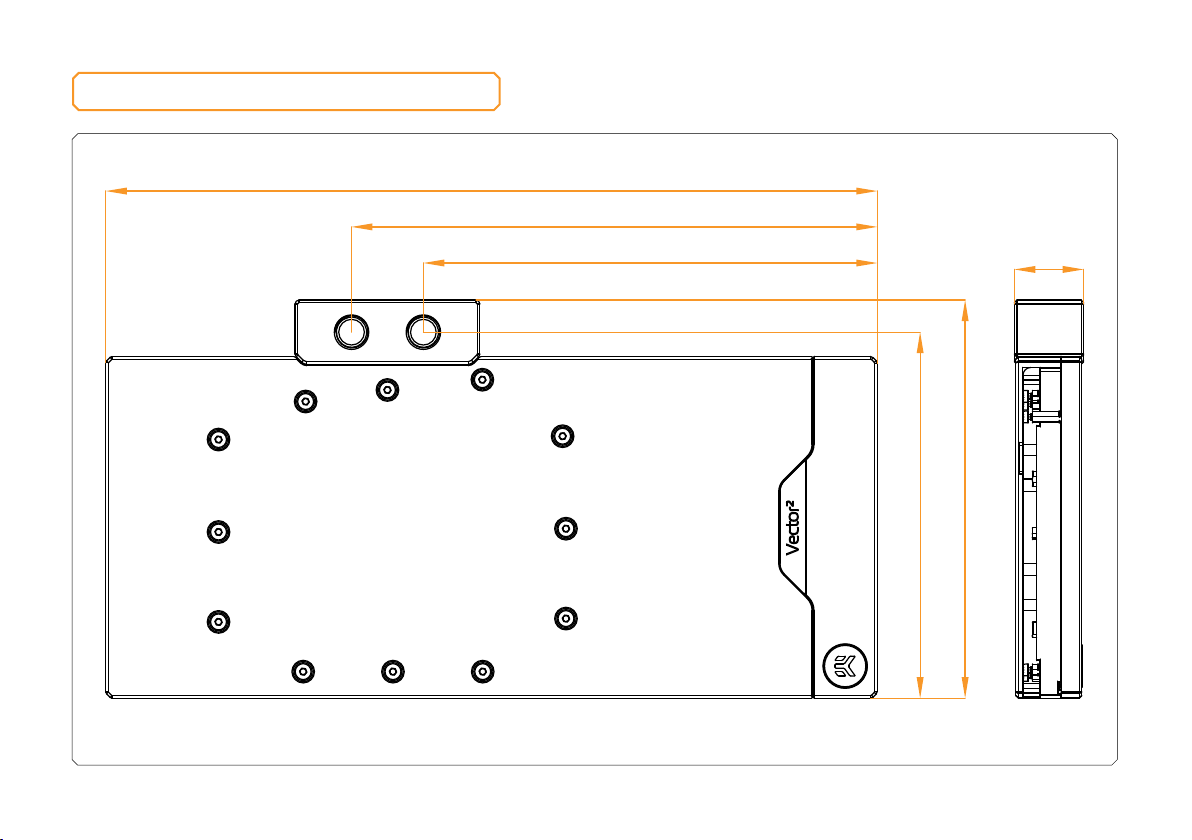

WATER BLOCK DIMENSIONS

301 mm

177 mm

205 mm

155 mm

142.5 mm

27 mm

- 6 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (LxHxW): 301 x 155 x 27 mm

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data |

Blocked | Ground)

Position EAN Description Quantity

1104376 Coldplate (Nickel) 1

2104377 Top plate (Plexi) 1

3103947 FC Terminal (Acetal) 1

4104384 Backplate (Bl. Elox) 1

5103971 Standout (Acetal) 1

6100663 EK- Badge 2

7103964 Mylar sticker 2

88208 Screw M3 x 8 7991DIN 2

9103975 Bridge Plate 1

10 103962 Plexi insert 1

11 103986 Standoff M3.5-M2.5 x 11.3 mm 6

12 103988 Standoff M4-M2.5 x 3 mm 4

13 103987 Standoff M3.5-M2.5 x 3 mm 2

14 104188 Standoff ﬁ 4.5/2.5 6

15 104187 Screw M2.5 x 8 AX1 6

16 9013 Screw M4 x 8 DIN7984 12

17 104106 Terminal O-ring 14 x 1 2

18 104216 Disc magnet 3 x 3 2

19 103942 Terminal Badge 1

20 8311 Screw M4 x 20 DIN7984 3

21 104441 Main O-ring 135 x 2 mm 1

22 104380 LED Cover (N.elox) 1

23 101556 LED D-RGB strip 500/300 mm 1

24 104903 PCB cardboard 1

- 7 -

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

Unscrew six (6) Screws M2.5 x 8 AX1. Remove the backplate

together with six (6) Screws M2.5 x 8 AX1 and backplate standoffs.

Standoffs must stay on Screws M2.5 x 8 AX1. Remove cardboard.

Save the backplate for later steps.

Do not remove standoffs from screws! In case the

standoff detaches from the screw, replace it with a

spare one. When replacing the standoff make sure

that you screw it on the AX1 M2.5 x 8 screws. Do not

push the standoff onto the screw AX1 M2.5 x 8!

STEP 1

For this step, you will need:

Phillips Head Screwdriver

M2.5 x 8 AX1

SCREW

BACK PL AT E S TAND OF F

DO NOT REMOVE

STANDOFFS

FROM SCREWS!

BACK PL AT E

PCB

CARDBOARD

PREPARING THE GRAPHICS CARD

REMOVING THE STOCK COOLER

Place your graphics card on the flat surface and carefully remove

the stock cooler. Do not forget to unplug all the LED and fan

connectors. Pay attention to the following steps in order to install

the EK-Quantum Vector2 Trio RTX 3070 Ti water block onto the

graphics card.

- 8 -

CUTTING AND PLACING THERMAL PADS

Thermal Pad G – 1.5 mm (120 x 24 mm)

120 mm

24 mm

1.5 mm

Your EK-Quantum Vector2TRIO RTX 3070 Ti D-RGB block comes

with Thermal Pads that have to be cut into smaller pieces to cover all

the VRM components. EK made sure to provide you with more than

an adequate quantity of Thermal Pads to complete this Step.

CAUTION: You must remove the protective foil from both

sides of the thermal pad before installation.

Replacement thermal pads:

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad G 1.5 mm – (120 x 24 mm) EAN: 3830046996787

For this step, you will need:

Scissors

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

STEP 2

The cardboard is printed in scale 1:1. Cut Thermal Pads to the

size printed on the cardboard. Once cut to the size, Thermal Pads

should be placed on the GPU PCB, as shown in the picture.

STEP 2

Thermal Pad - 120 x 16 x 1.0 mm

STEP 1

- 9 -

Thermal Grease

STEP 1

Apply the enclosed EK-TIM Ectotherm thermal grease (thermal

compound) on the GPU heat spreader – IHS – as shown in the

image. The layer of the thermal compound must be thin and even

over the entire surface of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

STEP 1

APPLYING THERMAL COMPOUND

For this step, you will need:

ATTACHING THE WATER BLOCK

STEP 1

Carefully position the water block with preinstalled standoffs on

the graphics card. During this process, make sure you have aligned

mounting holes of the PCB with holes of the water block.

Before placing the Water Block, make sure all the Thermal

Pads are placed correctly!

STEP 1

- 10 -

M2.5 PVC WASHER

Screws must be present in the places marked on the picture.

For this step, you will need:

Phillips Head Screwdriver

STEP 2

Use six (6) M2.5 x 4 AX1 Screws and PVC washers to tighten the

PCB on the water block. Tighten the screws evenly using the

Phillips head screwdriver.

EK recommends you start tightening the screws around the GPU core

ﬁrst, and then continuing outward to prevent damage to the GPU.

STEP 2

M2.5 x 4 AX1 SCREW
