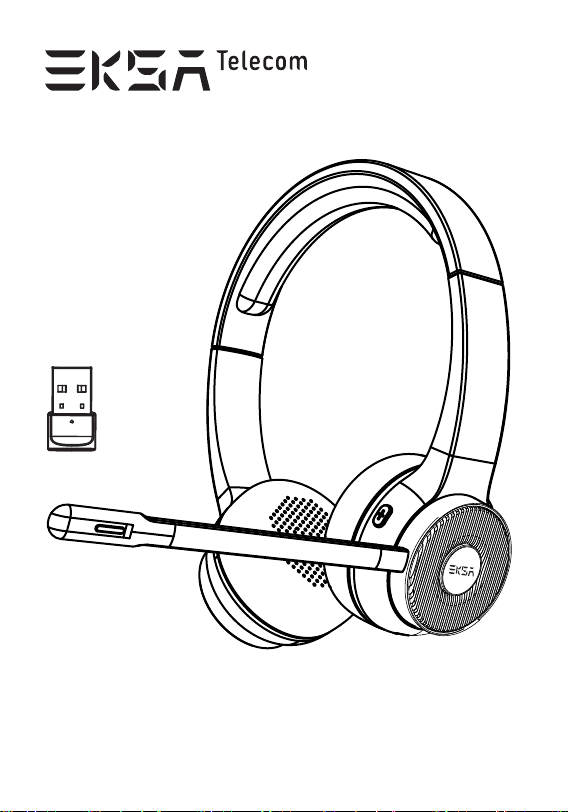

EKSA Telecom H16 Bedienungsanleitung
H16
AI-Powered ENC
Wireless
Headset
User Manual
EN
EKSAtelecom H16 Wireless Headset
EKSA USB-A Bluetooth Adapter
Type-C Charging Cable
User Manual
①
②
③
④
Package Contents
Specifications
1
1 2 4
3
Product Name: H16
Bluetooth Version: 5.2
Driver Diameter: 40 mm
Impedance: 32 Ω ± 15%
Sensitivity:115 ± 3 dB
Frequency Response: 20 Hz - 20 kHz
Battery: 400 mAh / 3.7 V
Charging Time: 2 hours
Music Time: ≈55 hours (70% volume)
Talk Time: ≈35 hours (70% volume)
Effective Wireless Range: 15 m
Net Weight: 150 g
Product Overview
2
9
10
11
7
83
5
4
3
2
5
1
9
10
11
6
8
7
Type-C Charging Port
Power Button
Volume + / next track
Volume - / previous track
Microphone Mute Button
LED Status Indicator
Long Boom Microphone (Rotatable)
Microphone Hole
USB Adapter
Removable Ear Shell
USB-A to Type-C Charging Cable
4
1
2
6
Operation Guide
(1) In the shutdown state, long press the "power button" for about 2
seconds to start the headset, and the blue light is always on for 2 seconds.
3
(2) In the power on state, long press the "power button" for about 3
seconds to shut down, the red light is always on for 2 seconds, and the
headset is turned off.
Note: The headset will shut down automatically in 10
minutes when there is no connection.
Switch on/off
2″
3″
Bluetooth Pairing
Connection
EKSA-H16
(1) When the phone is turned
off, long press the "power
button" for about 5 seconds to
turn on the phone. The blue
light and red light flash
alternately, and the headset
enters the pairing state.
2. If no connection is successful after power on, it will automatically enter the
pairing state.
(3) When the headset is disconnected, it will automatically enter the pairing state.
(4) Turn on the Bluetooth of the device, search for the Bluetooth headset, and
then select "EKSA-H16" for pairing connection. After the connection is
successful, the headset prompts "Connected", and the blue light flashes once
every 10s. The device displays that the Bluetooth headset is connected.
Note:
1. If you need to connect a new device, you need to disconnect the Bluetooth connection from
the connected device first, and the headset will automatically enter the pairing state, then use the
new device to search for Bluetooth and complete the connection with the headset.
2. Each time the headset is turned on, it will automatically search for and connect to the nearest
connected device.
3. When the phone is turned on (except for the call), press and hold the volume up key and
volume down key for 5 seconds at the same time, and the red and blue lights flash once at the
same time to clear all pairing information in the headset. After the pairing record is cleared, the
previous device cannot be connected after the phone is turned on again, and you need to pair
and connect again.
4
5″
5
USB Adapter Connection
PC:
USB-A interface Type-C interface
(Not included)
(1) Insert the USB adapter into the computer, the adapter will automatically
start up and display "EKSA PC Adapter" on the computer, and the blue LED
of the adapter will slowly flash into the pairing state.
(2) Turn on the headset, and the headset and adapter will automatically connect
successfully.
Note: A computer with Bluetooth function can have Bluetooth connection and USB
adapter connection at the same time; Select one of the connection methods by switching
the audio driver. Select the audio driver with the name of EKSA-H16 for Bluetooth
connection, and select the audio driver with the name of EKSA PC Adapter for USB
adapter connection.
(3) After successful connection, the headset blue light flashes once every
10 seconds, and the adapter blue light remains on.
USB-A interface
Indicator flashes in blue light
Type-C interface
Indicator flashes in blue light
(Not included)
6
USB Adapter Connection
Windows®:
Microphone Settings:
macOS:
Audio Settings:
[Control Panel]
[Hardware and Sound]
[Sound]
[Playback]
[EKSA PC Adapter(Set as Default Device)]
[Control Panel]
[Hardware and Sound]
[Sound]
[Recording]
[EKSA PC Adapter (Set as Default Device)]
[System Preferences] [Sound]
[Input] [EKSA PC Adapter ]
[EKSA PC Adapter ][Output]
One to Two Bluetooth
Connection
EKSA-H16
OFF
(1) First connect the headset to device A through Bluetooth pairing, and then
turn off device A. At this time, the headset is disconnected and enters pairing
mode.
(2) Then open device B, and successfully connect with the headset through
Bluetooth search pairing.
(3) Turn on device A again, and then connect the headset through device A.
After the connection is successful, the headset will be connected to device A
and device B at the same time.
7
device A
device A
device B device B
The headset supports the simultaneous connection of two devices
via Bluetooth. The specific steps are as follows:
Note: The headset is connected to two devices at the same time.
Only one of the devices works when using it. When the other
device needs to be used, the currently working device needs to
be suspended.
Call Functions
x1
Answer
Reject
Double Click
x1
x1
Click
Press for 2 seconds
Click
Hang up
Amy
Redial:
Call Handling:
Redial your last
call number
2″
x2
8
270°
Triple Click Siri
Voice dialing:
When connected,
click the power key
three times for
voice dialing.
x3
Mute Off
Mute On
Mute Off
Mute On
x1
Call Functions
Three-Way Calling:
Amy
00:10
On the phone
New call Tom
Amy
x1
Click
x2
Double Click Press for
1 seconds
1″
Answer a new
call and hang up
your current call
Tom Amy Tom Amy TomAmy
Keep your current
call and reject a new
call
Tom Amy
Keep your
current call
Answer a
new call
Three-way calling mode
During a three-way call
Switch between two calls
9
x2 Double Click
