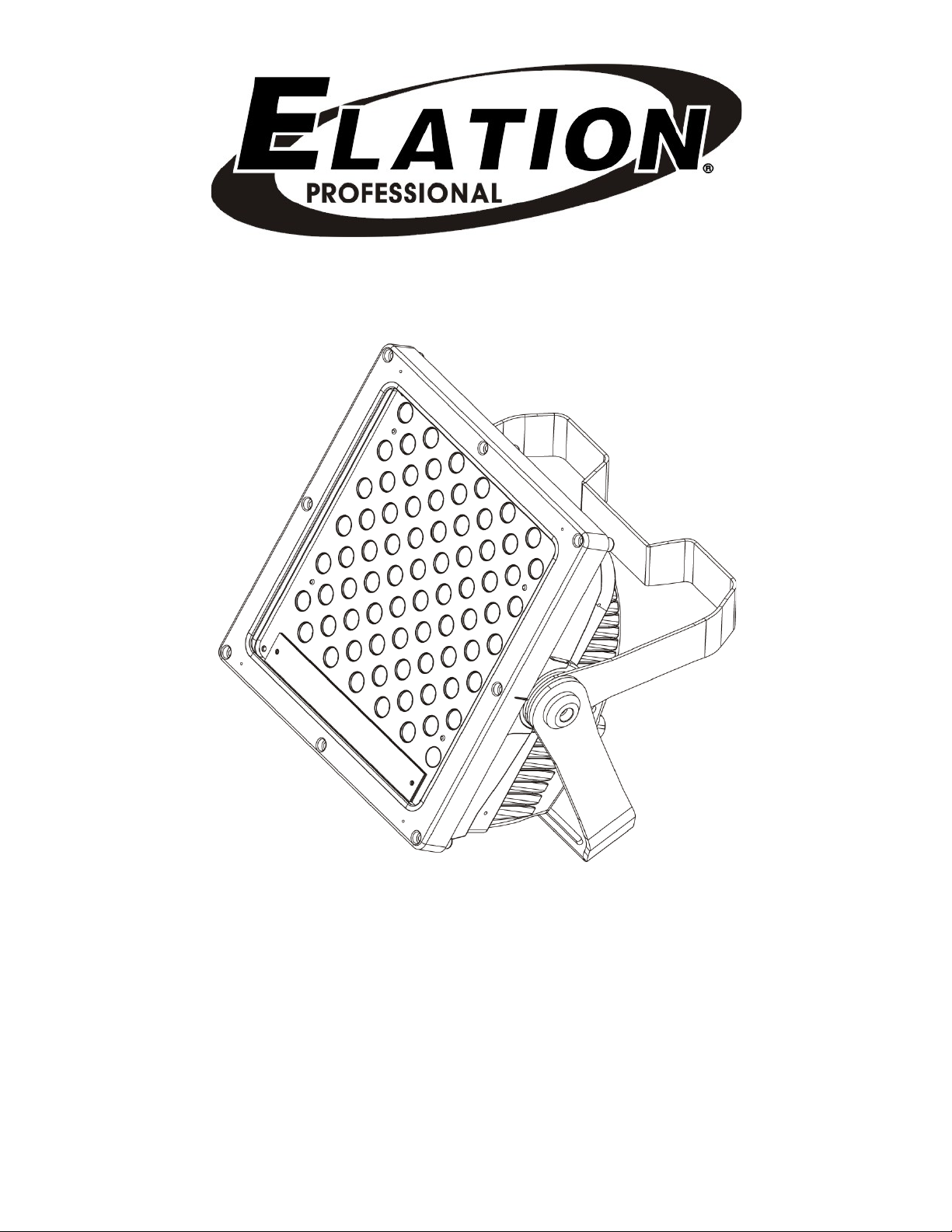

Elation 216 Bedienungsanleitung

Rev. 5/25/2010 –visage Version 1.0

ELAR 216 Panel™

Elation Professional™

6122 S. Eastern Ave.

Los Angeles, Ca 90040

www.elationlighting.com

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 1 www.ElationLighting.com

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

TABLE OF CONTENS

1. General Information……………………………………………………………………… 3

a. Introduction………………………………………………………………………. 3

b. Unpacking………………………………………………………..…………..… 3

c. Customer Support…………………………………………….………………… 3

d. Warranty Registration……………………………………………………..…… 3

2. Safety Instructions………………………………………………………........…………. 5

3. Features……………………………………………………………………………………7

4. General Guidelines………………………………………………………………………. 8

5. Fixture Overview…………………………………………………………………………. 9

6. Mounting and Installation………………………………………………………….……. 12

7. Understanding DMX……………………………………………………………………... 15

a. DMX Cables……..………………………………………………………………. 15

b. DMX Terminator………………………………………………………………….16

c. 3-Pin to 5-Pin Conversion……………………………………………………….17

d. Fixture DMX Addressing.………………………..………………………………16

8. Display LED Indicators…………………………………………………..……………… 19

9. Display Menu……………………………………………………………………………...20

a. Function Mode…..………………………………………………………………. 20

b. Information…….…………………………………………………………………. 22

c. Personality……………………………………………………………………….. 23

d. Effect Adjust………………………………………………………………………24

e. User Mode Set……………………………………………………………………24

f. Edit Program………...……………………………………………………………25

10. DMX Addressing…………………………………………………….…………………… 26

a. Remote DMX Addressing (RDMX)……………………………………………. 26

11. DMX Traits…………………………………………………………………………………28

12. Working with Built-In Programs……………………………………………………...…. 31

13. Cleaning and Maintenance………………………………………………………………34

14. Dimensional Drawings………………………………………………….……………….. 35

15. Circuit Schematic………...……………………………………………………………….36

16. Warranty…………………………………………………………………………………...37

17. Technical Specifications…………………………………………...………….………… 39

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable LED fixtures on the market today! The ELAR 216 Panel ™ has been designed to

perform reliably for years when the guidelines in this booklet are followed. Please read and

understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the ELAR 216 Panel ™ by Elation Professional®.

Every ELAR 216 Panel ™ has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may have occurred

during shipping. If the carton appears to be damaged, carefully inspect your fixture for

damage and be sure all accessories necessary to operate the fixture have arrived intact. In

the event damage has been found or parts are missing, please contact our customer support

team for further instructions. Inside the box you should find: the fixture, a IP rated power

cable, IP rated DMX cables (in and out), a safety cable, and this manual. Please do not

return this unit to your dealer without first contacting customer support at the number listed

below.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent the risk of fire and reduce the risk electrical shock, do not attempt to

operate this fixture with the lens cover removed.

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself. Doing so will void your manufactures warranty.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The ELAR 216 Panel™carries a two-year (730 days) limited

warranty. Please fill out the enclosed warranty card to validate your purchase. All returned

service items whether under warranty or not, must be freight pre-paid and accompany a

return authorization (R.A.) number. The R.A. number must be clearly written on the outside

of the return package. A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper and included in the shipping container. If the unit is

under warranty, you must provide a copy of your proof of purchase invoice. Items returned

without a R.A. number clearly marked on the outside of the package will be refused and

returned at customer’s expense. You may obtain a R.A. number by contacting customer

support at (323) 582-3322.

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

To guarantee proper and consistent operation, it is important to

follow the guidelines in this manual. Elation Professional will not

accept responsibility for damages resulting from the misuse of

this fixture due to the disregard of the information printed in this

manual.

1. Always be sure that the fan and the air inlets remain clean and are never

blocked. Allow about 6” (15cm) between this fixture and other devices or a wall

to allow for proper cooling. See page 12.

2. Never touch the fixture during normal operation.

3. Never look directly into the light source. You risk injury to your retina, which may

induce blindness.

4. For safe operation, follow the Installation guide described in chapter six of this

manual. Operating the ELAR 216 Panel ™ without suited safety aids such as

safety cables or clamps can increase the risk of damage and/or personal injury.

5. Qualified and certified personnel should only perform installation.

6. When mounting this fixture, use only the original rigging points included with this

fixture. Any structural modification will void the original manufactures warranty

and may increase the risk of damage and/or personal injury.

7. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

8. Never open this fixture while in use.

9. This device falls under protection-class I. Therefore it is essential that the device

be grounded properly.

10.Qualified personnel should perform all electrical connections.

11.Be sure the available voltage matches the voltage requirements of the unit. Be

sure the power cord is never crimped or damaged. If the power cord is damaged,

replace it immediately with a new one of similar power rating.

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com

12.Always disconnect from main power before performing any type of service or

any cleaning procedure.

13.Only handle the power cord by the plug. Never pull out the plug by tugging the

wire portion of the cord.

14.Please be aware that damages caused by modifications to the device are

not subject to warranty.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com

3. FEATURES

• IP65 Rated Fixture

• Low power consumption

• Minimal heat emission

• Maintenance free operation

• Equipped with 72 3-Watt (18 x red, 18 x green, 18 x blue, 18 x white)

• Silent Operation, convection cooled, no fans

• 100,000 hours rated LED life

• Linear RGBW Color Mixing, infinite color possibilities

• 10˚ Beam Angle/22˚ Field Angle

• USITT DMX-512 Complaint

• Preprogrammed colored macros

• Strobe-effect with a maximum flash rate of 25fps

• DMX-controlled operation or stand-alone operation with Master/Slave-function

• 7 built-in programs can be called up via DMX-controller

~ 48 preprogrammed scenes per program

• Sound-controlled via built-in microphone

• Four DMX Modes:

4 DMX channels

5 DMX channels

7 DMX channels

9 DMX channels

• DMX-control via standard DMX-controller

• Upgradable firmware via Elation “E-Loader” Data Pack

• Electronic Switching Power Supply 100v~240v

• Flicker-free operation for television and film

• 0%~100% Dimming (two dimming options; linear & standard)

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, and other types of architectural installations. Do not attempt operation or

installation without a proper knowledge on how to do so.

Consistent operational breaks will ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the fixture.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat

surface should be at least 0.5 meter (about 1.5ft). See page 12.

Always install the fixture with an appropriately rated safety cable. When installing the fixture

in a suspended environment always be sure to use mounting hardware no less than M10 x

25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.

Do not attempt to operate this fixture until you have familiarized yourself with all of its

functions.

Do not permit operation by persons not qualified for operating this type of architectural

fixture. Most damages are the result of improper operation.

Please use the original packaging to transport the fixture in for service.

For your own safety, please read this user manual carefully before installing the device.

ELAR 216 Panel™

©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com

5.FIXTUREOVERVIEW
