Elation Design Par 575D Bedienungsanleitung

Design Par 575D

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

TECHNICAL SPECIFICATIONS

• DMX Channels: 6 DMX channels default or

4 DMX channels user selectable

• Control: USITT DMX-512, 3 pin XLR serial input/output

• Optical System: Parabolic glass reector, includes

medium lens. (Lens options: very narrow, narrow,

medium, wide)

• IP Rating: IP 20

• Power Supply: 98V 50Hz

• Power consumption: 700W

• Ballast: Electronic

• Lamp: ZB-MSR 575/2 575W Discharge

• Lamp Life: 575W, 7200° K, 1,000 hrs. life

• Dimensions: (

L x W x H

) 14.25” x 17” x 19.4” /

362mm x 431.8mm x 492.8mm

• Weight: 51 lbs / 23 kg

• Rigging: Flight case: DRC-250DS

2 x 1/4 turn Omega clamps

Safety cable

3-pin data cable

FEATURES

• 575W discharge opti par moving head xture

• Gel frame holder included

• Glass Dichroic Reector for Even Lamp Output

• Anti-Reective Coated Lenses

• Includes 4 Lens options: very narrow,

narrow, medium & wide

• 40° beam angle

• Auto test for all functions

• Pan 630° or 540° (User selectable) / Tilt 265°

• Fine Pan & Tilt, Built-in programs

• Automatic Pan/Tilt Correction

• 3 operation modes: DMX controlled,

stand alone or sound activated

• Control board with 4-digit display and foil-keyboard

• Digital display can be turned 180° to t different

installation position

• On Board Lamp Dimmer (H ver)

• Built In lamp control via DMX

• Value of each DMX-channel can be displayed

• Uses 6 DMX Channels (16-bit mode)

• User Selectable Power Supply (Internal)

The Design Par 575D by Elation Professional is a 575W discharge opti par moving head ﬁxture featuring glass

dichroic reﬂector for even light output, anti-reﬂective coated lens and built in lamp control via DMX. The Design

Par 575D includes a gel frame holder and 4 lens options: very narrow, narrow, medium and wide. This ﬁxture is fan

cooled with an estimated lamp life of 1,000 hours . The Design Par 575D is operable via 6 DMX channels and has

3 operation modes: DMX controlled, stand alone or sound activated. This unit produces a standard beam angle

of 40° and is rated IP 20, ideal for indoor applications. Control data input is via 3 pin DMX data ﬁrst in and out

connections. This unit is fully operational in two different mounting positions, hanging upside-down from a ceiling,

or set on a ﬂat level surface. Other features include user selectable internal power supply and a digital display that

can be turned 180° to ﬁt different installation positions.

Design Par 575D™

©Elation Professional® 51

Design Par 575D™

16. DIMENSIONAL DRAWINGS:

Design Par 575D Dimensions

15.4” / 390 mm 10.7” / 271 mm

14.3” / 362 mm

4.9”

125 mm

16.9” / 429 mm

19.4” / 492 mm

Design Par 575D

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

LAMP

• Brilliant MSR575/2 Lamp (575w, 1000Hrs, 7200K)

• Gel frame holder included

• Glass Dichroic Reector for Even Lamp Output

• Anti-Reective Coated Lenses

• Includes 4 Lens options: very narrow, narrow, medium & wide

• 40° beam angle

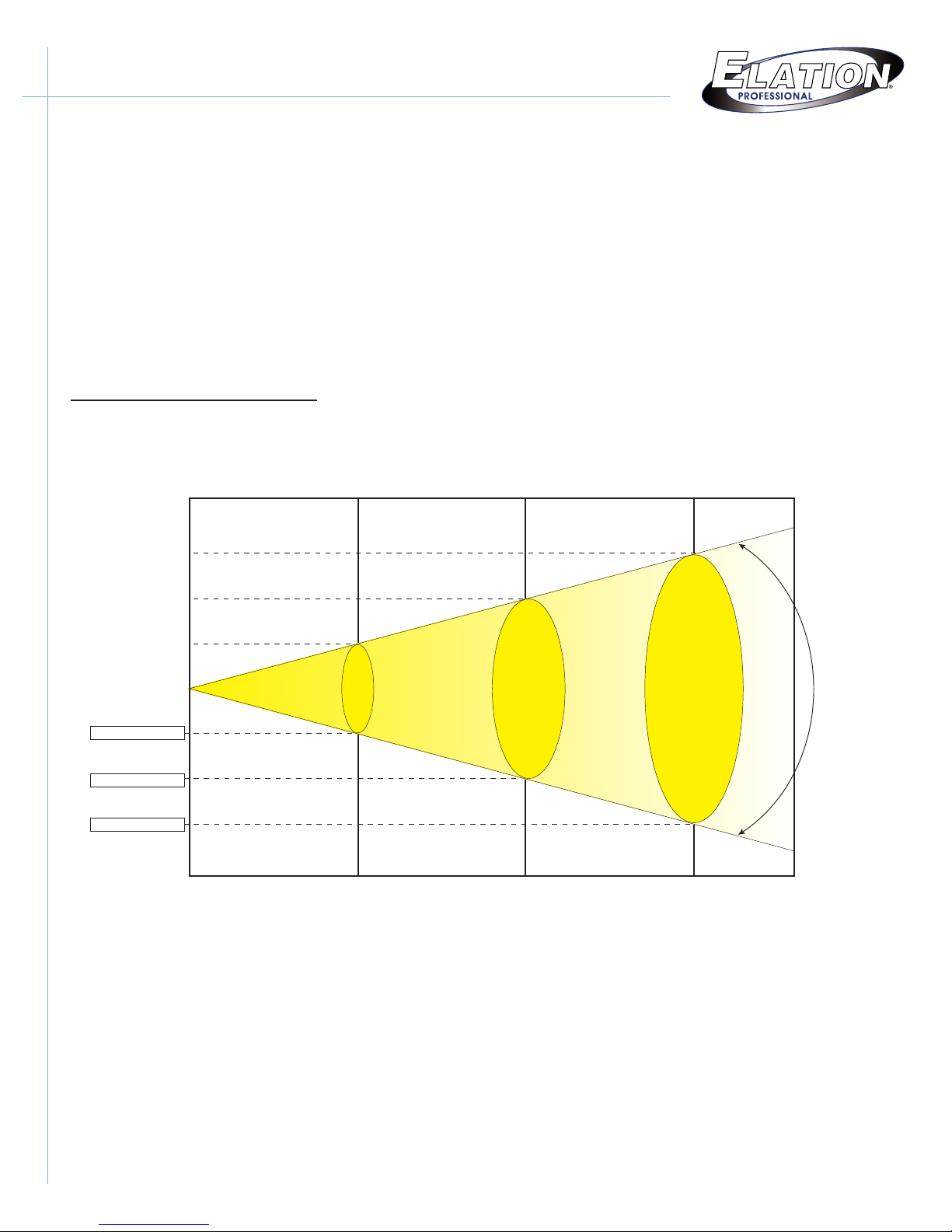

PHOTOMETRICS

Design Par 575D

Photometric Beam Angle Data

Beam Angle 40°

LUX x0.0929 = FC

40°

Beam Angle

507 FC

5460 LUX

137 FC

1480 LUX

62 FC

666 LUX

0 m

0 ft

5 m

16.40 ft

15 m

49.21 ft

10 m

32.81 ft

Ø 3.60 m

Ø 11.81 ft

Ø 7.20 m

Ø 23.62 ft

Ø 10.80 m

Ø 35.43 ft

Beam Diameter

Ø 3.6m / Ø 11.81ft

Ø 7.2m / Ø 23.62ft

Ø 10.8m / Ø 35.43ft

Design Par 575D

©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040

www.ElationLighting.com • Toll Free (866) 245-6726

DMX TRAITS

Channel Value Function

1 0 - 255 Pan movement 8-bit

2 0 - 255 Pan ne

3 0 - 255 Tilt movement 8-bit

4 0 - 255 Tilt ne

5 0 - 255 Speed pan/tilt movement

6 0 - 255 Lamp on/off, reset, internal programs

Design Par 575D™

©Elation Professional® 43

Design Par 575D™

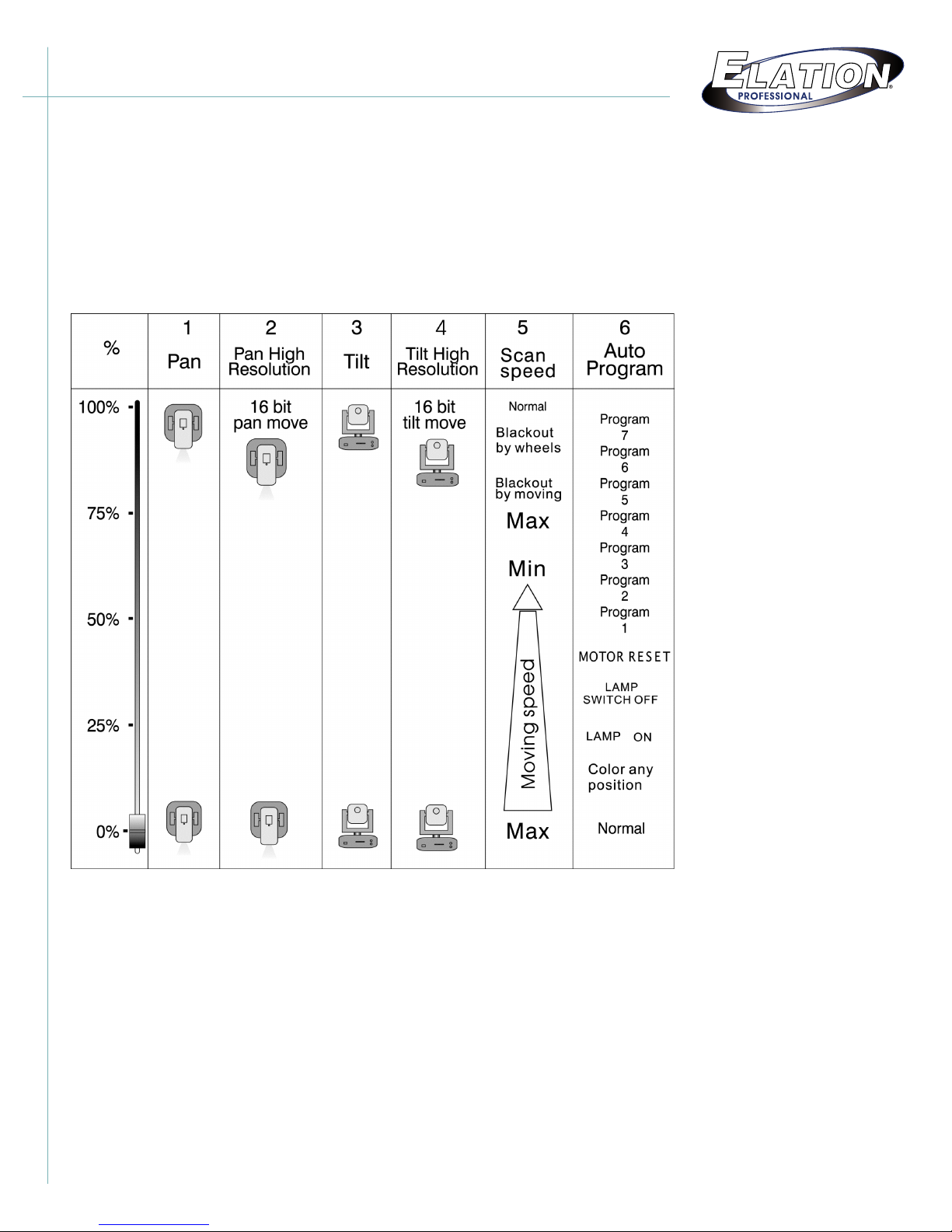

11. DMX CHANNEL TRAITS:

The chart below details the channel layout for 6 DMX channels (default).

In 8bit mode the “Pan Fine” and “Tilt Fine” channels are not used, thus converting the fixture

into a 4-channel DMX fixture.

CHANNEL 1: Pan Movement (max. 630° or 540˚User Selectable)

CHANNEL 2: 16bit Pan Movement (pan fine)

CHANNEL 3: Tilt Movement (max. 265°)

CHANNEL 4: 16bit Tilt Movement (tilt fine)

CHANNEL 5: Speed Control (Pan/Tilt movement, blackout selection)

CHANNEL 6: Special (Auto program control + lamp on, motor reset, lamp switch off)
