Electrolux CycloneXL Bedienungsanleitung

EN Operating Instructions

2 3

Thank you for having chosen an Electrolux Cyclo-

neXL vacuum cleaner. These Operating Instruc-

tions cover all CycloneXL models. This means

that with your specic model, some accessories/

features may not be included. In order to ensure

the best results, always use original Electrolux

accessories. They have been designed especially

for your vacuum cleaner.

4 5

1 2

3 4

5 6 7

9 10

Safety precautions

CycloneXL should only be used by adults and only for

normal vacuuming in a domestic environment. The

vacuum cleaner features double insulation and does

not need to be earthed. Disconnect the plug from the

mains before cleaning or maintenance of the vacuum

cleaner. Be sure to keep the vacuum cleaner in a dry

place. All servicing and repairs must be carried out by

an authorised Electrolux service centre.

Never vacuum:

• In wet areas.

• Close to ammable gases etc.

• When housing shows visible signs of damage.

Never vacuum:

• Sharp objects, uids.

• Hot or cold cinders, lit cigarette butts, etc.

• Fine dust, for example from plaster, concrete, our,

hot or cold ashes.

The above may cause serious damage to the motor

– damage which is not covered by the warranty.

Electrical cable precautions:

Regularly check that the cable is not damaged. Never

use the vacuum cleaner if the cable is damaged.

Damage to the machine’s cable is not covered by the

warranty.

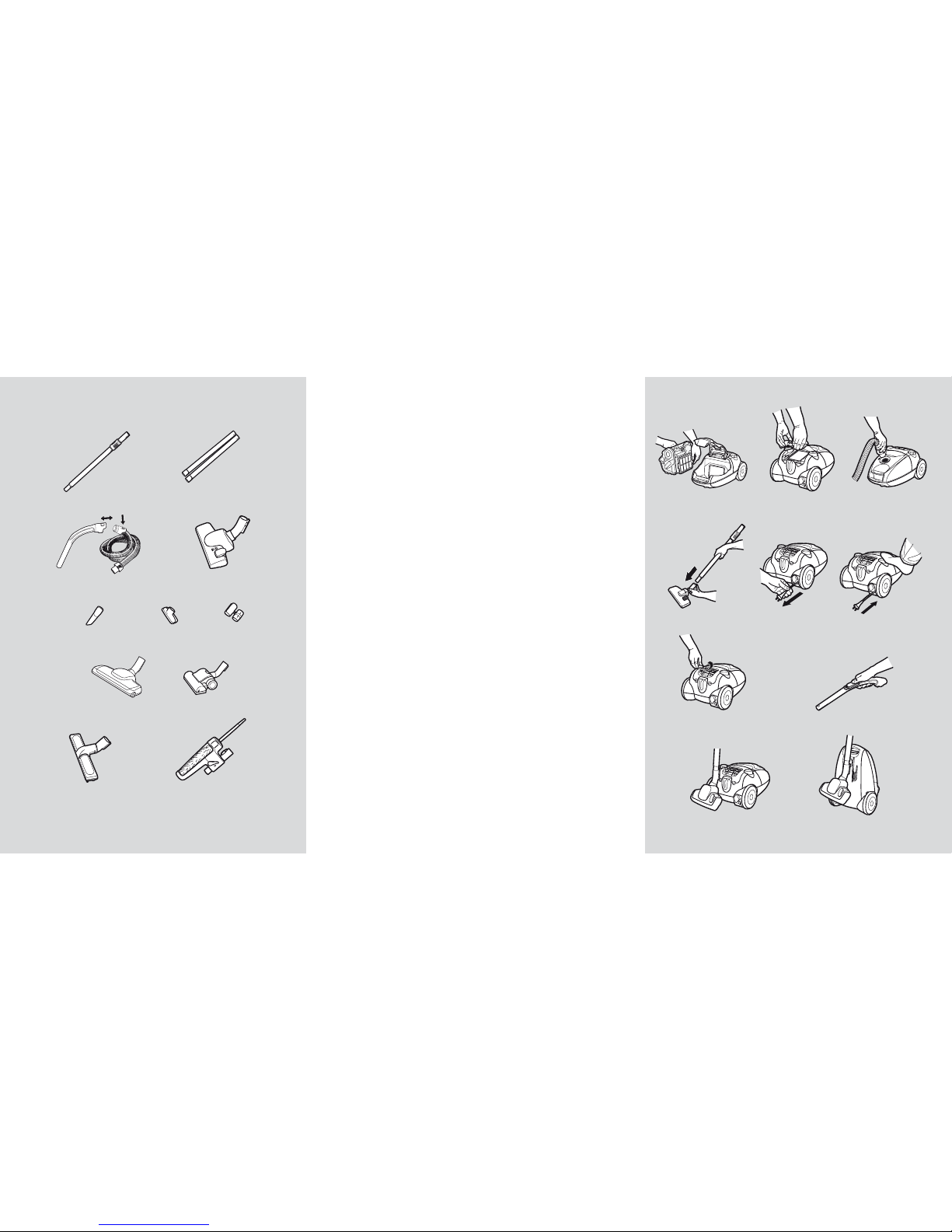

Accessories

1* Telescopic tube

2* Extension tubes

3 Hose handle + hose

4 Combination oor

nozzle

5 Crevice nozzle

6 Upholstery nozzle

7 Accessories clip

8* Turbo nozzle

9* Parquet nozzle

10* Feather duster

* Certain models only.

Before starting

11 Open the front cover on the machine and check

that the motor lter and the dust container lter

are in place. (See also Cleaning/replacing the

lters.)

12* Open the back lid on the machine and check that

the exhaust lter is in place.

13 Insert the hose until the catches click to engage

(press the catches to release the hose).

3 Insert the hose into the hose handle until the

catches click to engage (press the catches to

release the hose).

14 Attach the extension tubes* or telescopic tube*

to the hose handle and nozzle by pushing and

twisting together. (Twist and pull apart to dis-

mantle.)

15 Extend the electric cable and connect it to the

mains. The vacuum cleaner is tted with a cable

winder. Once the electric cable has been exten-

ded, it stays in that position.

16 To rewind the cable, press the cord rewinder

pedal. The cable will then rewind.

17a Start the vacuum cleaner by rotaring the power

control in the direction of the“Max” position.

Increase suction power by rotaring the control

further up to “Max” position. Stop the vacuum

cleaner by rotaring in the opposite direction to

“O ” position.

In order to achieve an optimal cyclone effect in the

cleaner, the power regulation should always be in the

“Max” position.

17b* Suction power can also be adjusted by using the

suction control on the hose handle.

18 Ideal parking position for pausing (18a) and

storing (18b).

* Certain models only.

11 12 13

15 16

17a

18a 18b

17b

6 7

19 20

21 22

23 24

25 26

Getting the best results

Use the nozzles as follows:

Carpets: Use the combination oor nozzle with the

lever in position (19).

Hard oors: Use the combination oor nozzle with the

lever in position (20).

Wooden oors: Use the parquet nozzle* (21).

Upholstered furniture and fabrics: Use the upholstery

nozzle* (22) for sofas, curtains, lightweight fabrics etc.

Reduce suction power if necessary.

Frames, bookshelves, etc.: Use the feather duster* (23).

Crevices, corners, etc.: Use the crevice nozzle* (24).

Using the turbo nozzle*

25/26 Ideal for carpets and wall-to-wall carpeting to

remove stubborn u and pet hairs.

Note: Do not use the turbo nozzle on skin rugs or carpet

fringes. To avoid damaging the carpet, do not keep the

nozzle stationary whilst the brush is rotating. Do not pass

the nozzle across electric cables, and be sure to switch off

the vacuum cleaner immediately after use.

* Certain models only. * Certain models only

Emptying and cleaning the dust container

CycloneXL’s dust container must be emptied when it

is full.

27 Pull the release button at the rear of the vacuum

cleaner.

28 Lift the dust container out.

29 Open the lid of the dust container by pressing the

release button on the right.

30 Empty it over a wastepaper basket. Put the dust

container back (31) and press the rear part of the

container until it clicks into place.

32 Every now and then the dust container should be

cleaned. Remove lids at both ends and rinse the

container in water or machinewash it. Remove

particles that may be stuck in the cone.

8 9

* Certain models only.

Cleaning the motor lter and the dust con-

tainer lter

CycloneXL has a motor lter and a dust container lter

that should be cleaned now and then.

33 Open the front lid and lift out the dust container.

34 Dust container lter: Remove the lter holder

from the dust container and carefully pull the

dirty dust container lter out of the holder.

35 Motor lter: Pull the lter upwards until coming

away from the groove.

36 Rinse the lters in lukewarm water and let them

dry. Reattach the clean lters. Replace the dust

container and then close the lid.

Cleaning/replacing the exhaust lter*

There are three types of exhaust lter:

• Micro lter* (Ref. No. EF 17)

• Hepa H12* non washable (Ref. No. EF H12)

• Hepa H12* washable (can be bought as an option,

Ref. No. EF H12W)

The filters must always be replaced with new ones and

cannot be washed (except the Hepa H12* washable).

37 Open the back lid and lift out the filter.

38 Insert a new lter and close the lid.

39 40

* Certain models only.

Cleaning the hose and nozzle

The vacuum cleaner stops automatically if the nozzle,

tube, hose or lters become blocked and when the

dust container is full. In such cases, disconnect from

mains and allow to cool for 20-30 minutes. Clear

blockage and/or replace lters, empty the dust contai-

ner and restart.

Tubes and hoses

39 Use a cleaning strip or similar to clear the tubes

and hose.

40 Hose handle could be dismantled from hose if

cleaning is needed.

41 It may also be possible to remove the obstruction

in the hose by squeezing it. However, be careful

in case the obstruction is caused by glass or

needles caught inside the hose.

Note: The warranty does not cover any damage to the

hose caused by cleaning it.

Cleaning the oor nozzle

42 Be sure to frequently clean the combination oor

nozzle.

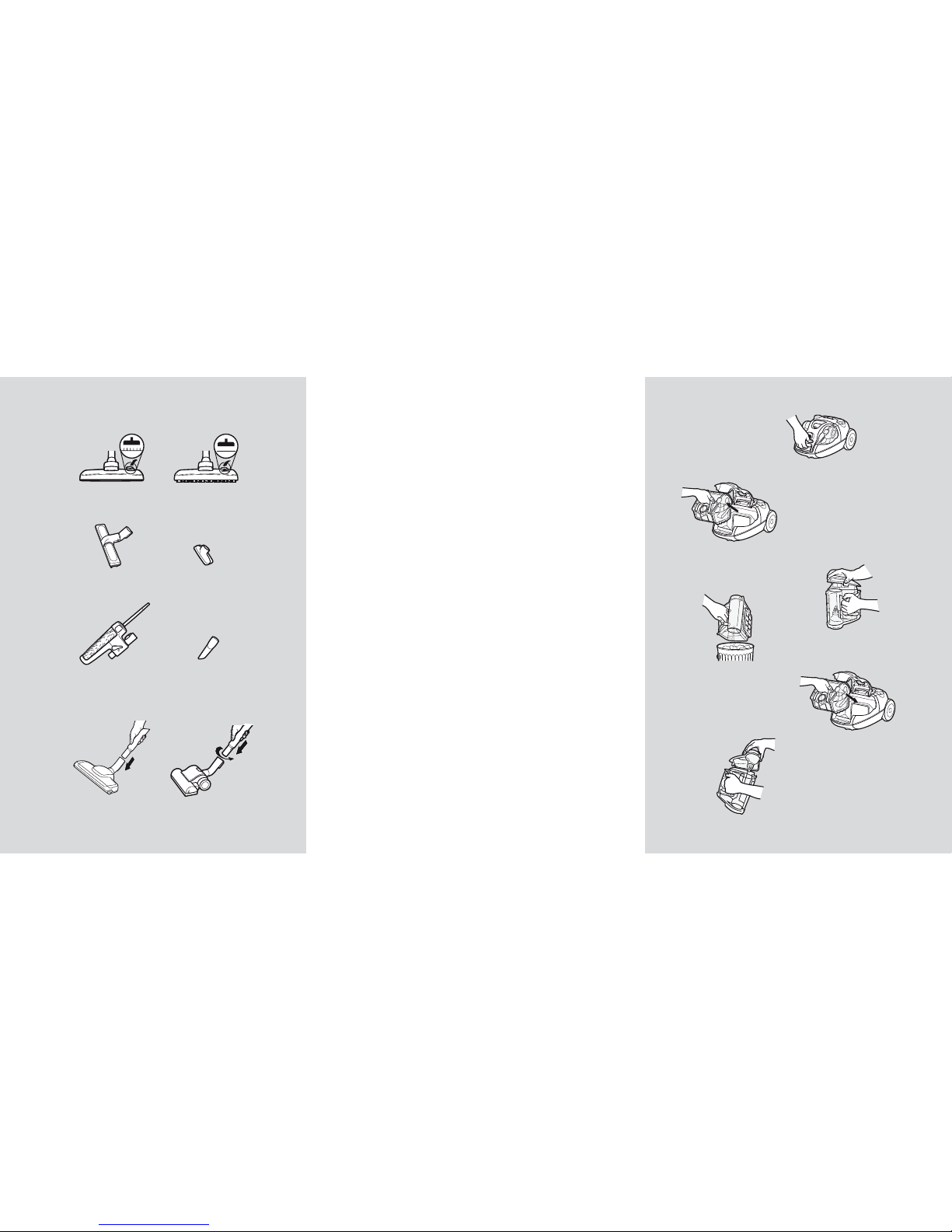

43* Press each wheel-hub and draw away the wheels.

Remove dust-balls, hair or other objects that may

be entangled.

44* Larger objects can be accessed by removing the

connection tube from the nozzle.

Cleaning the turbo nozzle*

45 Disconnect the nozzle from the vacuum cleaner

tube and remove entangled threads, etc. by

snipping them away with scissors. Use the hose

handle to clean the nozzle.

46a Disconnect the nozzle from the vacuum cleaner

tube and remove entangled threads, etc. by

snipping them away with scissors. Use the hose

handle to clean the nozzle.

46b In case the turbo nozzle stops working, open

the cleaning lid and remove any objects that

obstructs the turbine to rotate freely.

46a 46b

10 11

Troubleshooting

• Check that the cable is connected to the mains.

• Check that the plug and cable are not damaged.

• Check for a blown fuse.

The vacuum cleaner stops

• Check whether the dust container is full. If so, empty

it.

• Is the nozzle, tube or hose blocked?

• Are the lters blocked?

Water has entered the vacuum cleaner

It will be necessary to replace the motor at an autho-

rised Electrolux service centre. Damage to the motor

caused by the penetration of water is not covered by

the warranty.

Consumer information

Electrolux decline all responsibility for all damages

arising from any improper use of the appliance or in

cases of tampering with the appliance. This product

is designed with the environment in mind. All plastic

parts are marked for recycling purposes. For details see

our web site: www.electroluc.com

If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly quali-

ed person in order to avoid a hazard.

Young children should be supervised to ensure that

they do not play with the appliance. Close attention is

necessary when used near children.

The appliance is not intended for use by young child-

ren and inrm persons without supervisison.

The symbol on the product or on its

packaging indicates that this product may

not be treated as household waste. Instead

it shall be handed over to the applicable

collection point for the recycling of electrical

and electronic equipment. By ensuring this

product is disposed of correctly, you will help

prevent potential negative consequences for

the environment and human health, which

could otherwise be caused by inappropriate

waste handling of this product. For more

detailed information about recycling of this

product, please contact your local city office,

your household waste disposal service or the

shop where you purchased the product.
