Elite Screens 2 CLR Series Bedienungsanleitung

Model Number

Nominal

Diagonal

Aspect

Ratio

Screen Material Gain

Viewable

Width

(A3)

Viewable

Height

(B4)

Case

Length

(A)

Screen

Width

(A1)

Top Cover

Length

(A2)

Screen

Height

(B)

View

Height

(B1)

Fabric

Height

(B2)

Bottom

Black

Border

(B3)

N.W. G.W.

lbs lbs L W H

FTE101UH2-CLR 101" 16:9 StarBright CLR® 0.6 88.0 49.5 97.2 88.9 97.0 66.9 51.7 59.7 8.0 57.3 70.6 103.4 10.8 10.2

FTE101XH2-CLR 101" 16:9 StarBright CLR® 0.6 88.0 49.5 97.2 88.9 97.0 66.9 51.7 59.7 8.0 57.3 70.6 103.4 10.8 10.2

FTE121UH2-CLR 121" 16:9 StarBright CLR® 0.6 105.5 59.3 114.7 106.0 114.5 76.7 60.9 73.0 12.0 66.1 77.6 120.7 10.8 10.2

FTE121XH2-CLR 121" 16:9 StarBright CLR® 0.6 105.5 59.3 114.7 106.0 114.5 76.7 60.9 73.0 12.0 66.1 77.6 120.7 10.8 10.2

kgs kgs

FTE101UH2-CLR 101" 16:9 StarBright CLR® 0.6 2236 1258 2469 2257 2464 1698 1314 1517 203 26.0 32.0 2625 275 260

FTE101XH2-CLR 101" 16:9 StarBright CLR® 0.6 2236 1258 2469 2257 2464 1698 1314 1517 203 26.0 32.0 2625 275 260

FTE121UH2-CLR 121" 16:9 StarBright CLR® 0.6 2679 1507 2912 2693 2907 1948 1548 1853 305 30.0 35.2 3065 275 260

FTE121XH2-CLR 121" 16:9 StarBright CLR® 0.6 2679 1507 2912 2693 2907 1948 1548 1853 305 30.0 35.2 3065 275 260

Note：Data Error may be ±1"

Unit: mm

The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any

structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held

responsible or be otherwise liable for faulty installations.

Packaging Dims

Unit: inch

Kestrel Tab-Tension 2 CLR® Dimensions Table

Rev.11172021JA www.elitescreens.com FTE2-CLR

Rev. V121421DT www.elitescreens.com 1

Kestrel Tab-Tension 2 CLR® Series

Floor Rising Ceiling/Ambient Light Rejecting (CLR®/ALR)

Tab-Tensioned Motorized Screen

User’s Guide

IMPORTANT SAFEGUARDS

Read these instructions carefully and retain them for future use. If this product is passed to a third party,

then these instructions must be included.

Caution:

The screen’s Black Bottom Drop is already set to its maximum drop distance. There is NO extra

Black Bottom Drop in the roller. Please be aware of this as it will void your warranty with Elite

Screens®. Unapproved changes or modifications (except for cutting the power cord for hardwire

installations) to this unit are prohibited and will void your warranty.

•To avoid damaging the unit, do not use with any unauthorized accessories not recommended by

the manufacturer.

•Handle the unit carefully during transportation to avoid any damages.

•To ensure safe and reliable operation, direct connection to a properly grounded power source is

advised.

•The power outlet supplying power to the unit should be close to the unit and easily accessible.

•Do not install the unit on uneven or inclined surfaces.

•Do not put heavy objects on the power cord and position it properly to avoid creating a trip

obstacle.

•Never overload the power cord to prevent an electric shock or fire due to a loose contact or a

short circuit.

•There are not user serviceable parts in this unit. Do not attempt to disassemble this unit by

yourself. No one except authorized technicians can open and make repairs to this unit.

•Make sure the power source this unit is connected to has a continuous power flow.

•If there is need to use an extension cord, make sure the cord has an equal rating as the

appliance to avoid overheat.

•Do not handle the power plug when your hands are wet, or your feet are in contact with water.

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 2

Do not use this unit under the following circumstances.

•Disconnect the power cord under the conditions of heavy rain, wind, thunder, or lightning.

•Avoid direct Sunshine, rain shower and moisture.

•Keep away from fire sources and high temperature to prevent this device from overheating.

•Cut off the power supply first before transportation or maintenance.

•Fully disconnect from the power supply when the unit is not in use for a long period of time, as

should be done with any other electric household appliance.

•To avoid possible injury and/or an electric shock, do not attempt to use the screen if there is

obvious damage or if there are any evident broken parts.

•Keep hands clear from the closing panels.

•Keep away from children when screen is in operation.

WARNING

Individual modifications to this product are prohibited and will void the manufacturer’s warranty. Please

contact the Elite Screens® Customer Service Team with any questions.

SCREEN MAINTAINANCE

Dust, dirt, and scratches on the projection screen surface will affect the quality and performance of the

projection image. For optimal results we advise to pay attention to the following instructions.

1) The screen surface has a horizontal structure. DO NOT wipe the screen up and down or in a circular

motion.

Wipe very gently when needed from left to right only.

2) Please clean the dust on the screen surface with a soft brush or microfiber cloth (rough towel or cloth

may damage the screen’s surface).

3) Gently wipe the screen with a lightly moistened microfiber cloth with mild soap diluted in water.

Notes：

The following precautions should be always followed to avoid damaging the material,

which is not covered under warranty.

▪NEVER touch the screen material with your bare hands as it will leave oily fingerprints which

are permanent and not removable. Use cotton gloves when handling the material.

▪NEVER scratch the material, as it will leave permanent markings on the screen’s surface.

▪NEVER point to the screen material with a fingertip or other sharp objects to prevent damage

to the material.

▪NEVER use acetone, benzene, alcohol, and any other organic solvents to clean the screen

material. Using such chemicals will permanently damage the screen.

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 3

FCC Regulatory Compliance

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device is susceptible to receiving

interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 4

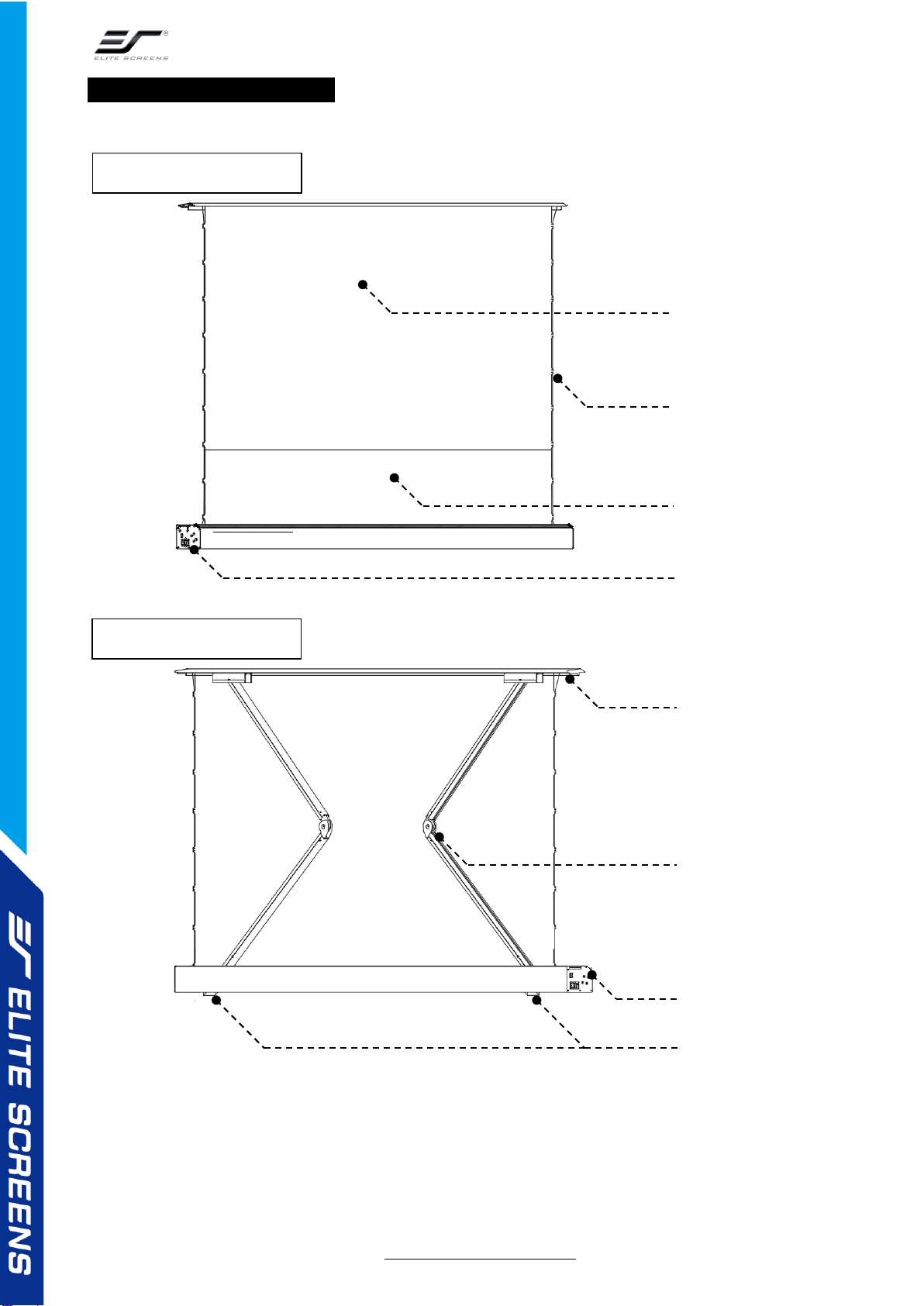

PARTS IDENTIFICATION

Note: Please always store the screen flat horizontally. Never store the screen in a vertical

position as it will permanently damage the screen’s structure, shift the material, and cause

wrinkles/folds which will void the warranty.

CLR® Material

Bottom black masking

border

Power terminal /

Power switch

Tab/Strings

Cross-rising spring

scissor mechanism

Case/Housing

Closing Panel/Lid

Feet

Front of screen

Back of screen

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 5

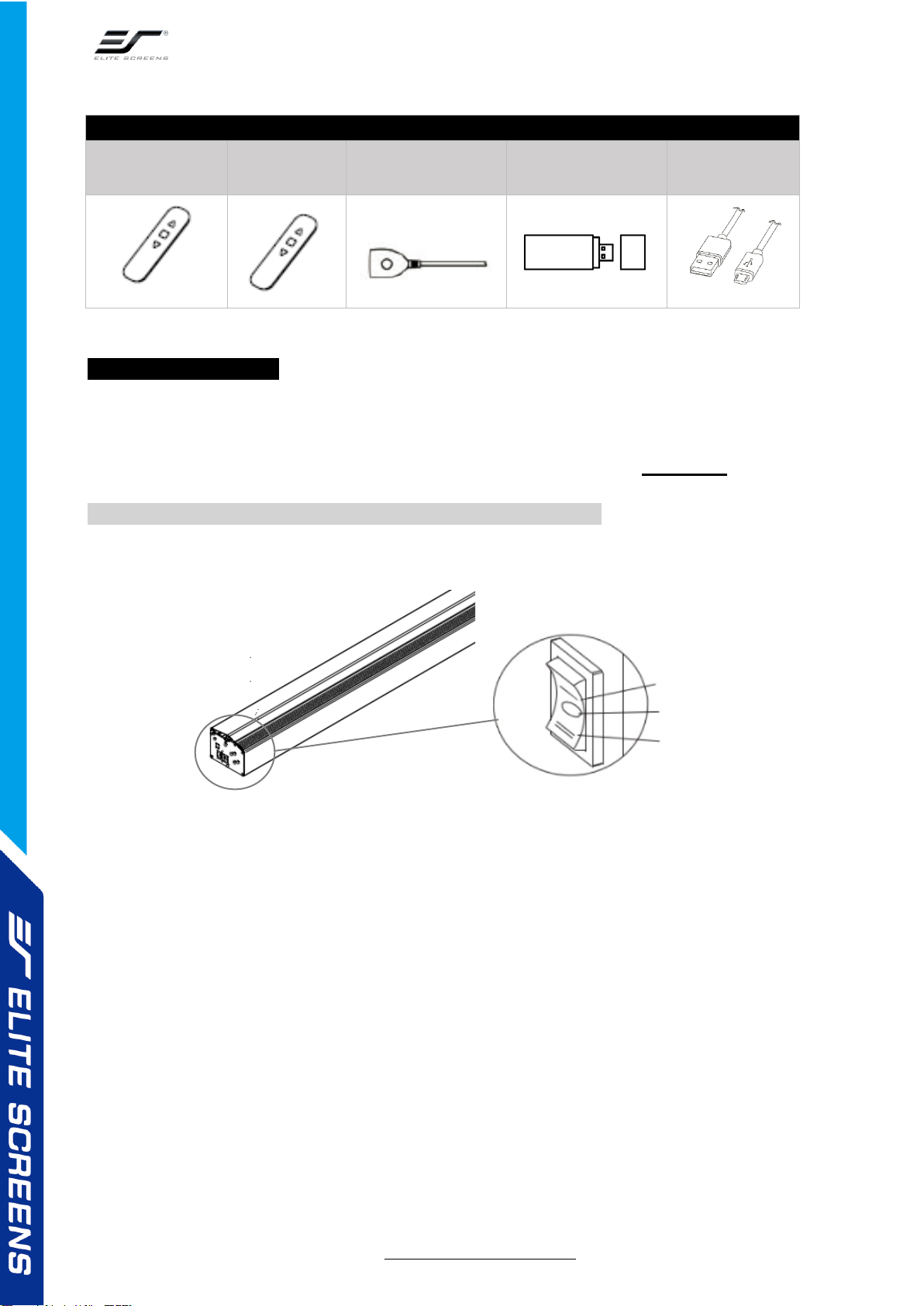

Kestrel Tab-Tension 2 CLR® Series | Controls and Accessories

A. Radio Frequency

(RF) Remote control

B. Infrared (IR)

Remote Control

C. IR extended

receiver

D. Radio Frequency

(RF) USB wireless

trigger

* E. Micro USB

Charging Cable

Installed inside housing

near circuit board box

*Included with rechargeable remote version only

SCREEN OPERATION

Electric Current: Depending on your region, the screen will operate in either 110v or 220v voltage.

1. After ensuring the power outlet & screen are compatible (voltage), plug the power cord into the power

outlet.

2. Once the screen has power, you’ll be able to control it using any of the 4 methods described below.

4 ways to control your Kestrel Tab-Tension 2 CLR® Screen

1. Manual Operation Switch: The left side of the screen's housing includes a UP/STOP/DOWN

switch to raise, lower and stop the screen without the use of the RF/IR remote.

2. RF Remote Control (Item A): The RF (A) remote is best used when the screen is concealed or when

long distance control is required. The RF technology therefore is more versatile as it does not require

line of sight to operate the screen.

3. IR Remote Control (Item B) and IR Eye Receiver

(Item C): The IR remote (B) requires a direct line

of sight through the screen’s IR receiver. Place the IR Eye Receiver (C) in a suitable location free from

obstruction. Then point the IR remote to the IR Eye receiver to operate the screen.

※ IR Eye Receiver has been installed inside the housing on left side (power terminal side)

Stop

Down

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 6

4. USB RF wireless trigger (Item D): The RF wireless trigger (D) can synchronize your projector’s

power cycle to the screen’s UP/DOWN operation.

※ The trigger has been synchronized to your electric screen.

a. Connect the RF wireless trigger into the projector’s USB port.

b. Make sure to enable this feature if needed in your projector’s menu settings.

c. Power ON the projector. The screen should raise (up) the screen automatically.

d. Power OFF the projector. The screen should descend (down) the screen automatically.

NOTE

➢When powering off the projector, assure it is completely powered off (ex. fan off), then the

screen will retract automatically.

➢If the motorized screen does not automatically drop or retract, repeat the process from step one.

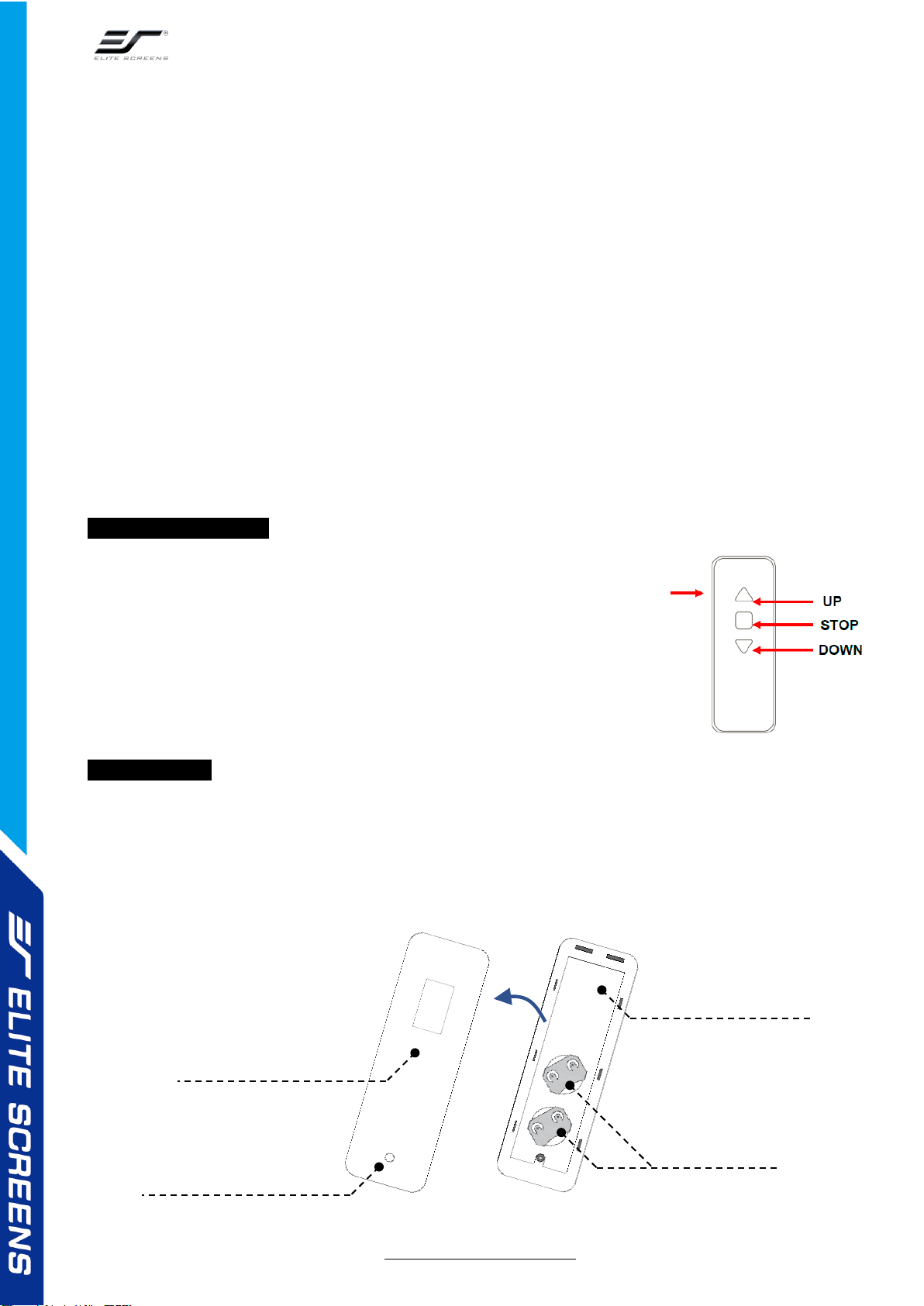

Remote control battery operated and charging instructions:

Note: One or the other type included not both types.

Rechargeable version

Charge the RF or IR remote by plugging the Micro USB

Charging cable (Item E) into any USB power source and

into the left side of your RF or IR Remote Control. While

charging, you will see a solid red light above the touch

sensitive buttons. For your convenience, you may use the

remote while it charges. Note: The red light may dim while

charging.

Battery version

Follow the steps below to replace the CR232 button cell batteries (2x required) on the remote control.

a. Unscrew the back cover of the remote control.

b. PUSH UP to remove the back cover.

c. Replace the old batteries with new batteries.

d. Put the back cover on the remote control secure with screw.

e. Check the operation of the remote control to verify screen responds to the commands.

Front cover

Screw hole

Back cover

CR232 Button

Cell battery

Charging port

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 7

Notice to Installer:

PROPER PROJECTOR PLACEMENT

The StarBright CLR®is exclusively for tabletop/bottom mounted ultra-short throw projectors.

See illustrations below for limits and criteria.

1) Tabletop mounted ultra-short

throw projection illustration

IMPROPER PROJECTOR PLACEMENT

Overhead placement or a standard

throw projector will make the image

very dark on account of the screen’s

absorbent layer deflecting light that

is not aligned with its reflective angle.

1) Ceiling mounted Ultra-short

throw projector illustration

2) Ceiling mounted Short and

Standard throw Projector Illustration

Note:

Images are not up to scale and are for

illustrations purposes only

User’s Guide Kestrel Tab-Tension 2 CLR® Series

Rev. V121421DT www.elitescreens.com 8

ANTI-PINCH SAFETY FEATURE

Prevent injury or damage to the screen when an object interferes with the screen’s descend during its

operation. The screen is equipped with an anti-pinch safety feature which prevents the closing panel/lid

to stop when it detects an object

For more information, technical support or your local Elite Screens®

contact, please visit http://www.elitescreens.com/

1. Materials needed: 2 Lint-Free white cloths, Mild Soap (hand soap is suitable) and Water.

2. Take the Lint-Free cloth and submerge it in warm water for cleaning light dust and dirt. For stubborn stains or a sticky

surface, a solution of mild dishwashing liquid diluted with warm water should be used.

3. Completely ring out cloth so it is lightly dampened, not drenched.

4. Using the damp cloth, lightly wipe in an up and down motion starting at the left of the screen moving to the right of the

screen. DO NOT WIPE IN CIRCULAR MOTION.

5. Once you have completed wiping the entire screen with a dampened Lint-Free cloth, use the dry Lint-Free cloth to wipe

off any excess water from the screen.

1. Materials needed: 2 Microfiber cloths and water.

2. Gently blot the area using a lightly dampened lint-free microfiber cloth with clear warm water. DO NOT rub.

3. Using the damp cloth, lightly wipe in an up and down motion starting at the left of the screen moving to the right of the

screen. DO NOT WIPE IN CIRCULAR MOTION.

4. To clean a stubborn stain or a sticky surface, spray a solution of equal parts Formula 409 and warm water onto a

lint-free microfiber cloth. DO NOT SPRAY THE SCREEN MATERIAL DIRECTLY.

NEVER ALLOW ANY SOLVENTS TO DRY ON THE MATERIALS AS THEY WILL CREATE A STAIN THAT IS NON-

REMOVABLE.

**If Heavily soiled (marked permanently): Unfortunately you may NOT use any solution to clean the surface as it

will damage the screen. If there is a mark, it is permanent.

• You can NOT repair a screen if it is torn.

**If heavily soiled (marked permanently): You may use alcohol with a Q-Tip to clean.

1. Dip one side of the Q-Tip in Alcohol 3. Use dry side of Q-Tip to go over mark to dry it.

2. Gently wipe marked spot ONLY. 4. You may wipe over with dry Lint-Free Cloth to finish.

Care & Use

Care for the following materials:

Proper care and use will maximize the life of the material and bring you years of enjoyment.

Care for the following materials:

CineGrey 3D®, CineGrey 3D®AT, CineGrey 4D, CineGrey 5D®, PowerGain and AirBright 3D2

AcousticPro 1080P2, AcousticPro 1080P3, AcousticPro UHD, CineWhite®, CineWhite®A8K,

CineWhite®UHD, CineWhite®UHD-B, CineWhite®X, CineWhite ISF, CineGrey, MaxWhite®,

MaxWhite®B, MaxWhite® 2, MaxWhite®FG, Spectra White FG, SilkWhite, SilkWhite 2, StarBright 9™,

VersaWhite, WraithVeil®, WraithVeil®and WraithVeil®Dual

Screen Material Maintenance Care

General Cleaning Instructions

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Elite Screens Projektionsfläche Handbücher

Elite Screens

Elite Screens Kestrel Tab-Tension 3 CineWhite X Bedienungsanleitung

Elite Screens

Elite Screens CineTension2 Series Bedienungsanleitung

Elite Screens

Elite Screens Spectrum Series Bedienungsanleitung

Elite Screens

Elite Screens Lunette Series Bedienungsanleitung

Elite Screens

Elite Screens SilverFrame 100GH1 Bedienungsanleitung

Elite Screens

Elite Screens GolfSim Portable Series Bedienungsanleitung

Elite Screens

Elite Screens VMAX113XWS Bedienungsanleitung

Elite Screens

Elite Screens QuickFold Q100V Bedienungsanleitung

Elite Screens

Elite Screens Spectrum Series Bedienungsanleitung

Elite Screens

Elite Screens Kestrel Tab-Tension 2 CLR Bedienungsanleitung

Elite Screens

Elite Screens SilverFrame 100GH1 Bedienungsanleitung

Elite Screens

Elite Screens CineTension2 Series Bedienungsanleitung

Elite Screens

Elite Screens Elite Tripod Series Bedienungsanleitung

Elite Screens

Elite Screens Vmax Series Bedienungsanleitung

Elite Screens

Elite Screens M85XWS1-SRM Bedienungsanleitung

Elite Screens

Elite Screens Elite Vmax Series Bedienungsanleitung

Elite Screens

Elite Screens Manual Series Bedienungsanleitung

Elite Screens

Elite Screens Aeon CineGrey 3D AT Series Bedienungsanleitung

Elite Screens

Elite Screens VMAX180XWV Bedienungsanleitung

Elite Screens

Elite Screens Starling 2 Series Bedienungsanleitung

Elite Screens

Elite Screens Evanesce Tension Series Bedienungsanleitung

Elite Screens

Elite Screens YardMaster 2 WraithVeil Dual Series Bedienungsanleitung

Elite Screens

Elite Screens CineTension 2 Series Bedienungsanleitung

Elite Screens

Elite Screens EDGE FREE Aeon Series Bedienungsanleitung

Beliebte Projektionsfläche Handbücher anderer Marken

FART PRODUKT

FART PRODUKT Standard SCREEN Bedienungsanleitung

Draper

Draper E Series Handbuch

Laarhoven

Laarhoven Companion II Bedienungsanleitung

Renogy

Renogy RMS-LFPS-US Bedienungsanleitung

Da-Lite

Da-Lite ExecutiveElectrol Bedienungsanleitung

Samsung

Samsung S*H65* Bedienungsanleitung

FONESTAR

FONESTAR PPTR-43100-FA Bedienungsanleitung

Slide Clear

Slide Clear Varro XL Bedienungsanleitung

OS РХ-090Н Bedienungsanleitung

Niko

Niko 10-845 Bedienungsanleitung

Speaka Professional

Speaka Professional 2357532 Betriebsanleitung

Sima

Sima XL-72 Bedienungsanleitung

Jasic

Jasic EVO 2.0 ET-200P Bedienungsanleitung

InFocus

InFocus SC-WALL GRY-92H Handbuch

Barco

Barco OverView MVL-615 Bedienungsanleitung

Draper

Draper Envoy Handbuch

SI Dynamic 2 XL Bedienungsanleitung

Draper

Draper Nocturne+ E Montageanleitung
