Elko SmartSensor Bedienungsanleitung

SmartSensor Leakage Wireless

Device User Guide

Commissioning instructions for the ELKO Smart system, devices and app.

02/2023

www.elko.no

Legal Information

The ELKO brand and any trademarks of ELKO AS and its subsidiaries referred to in

this guide are the property of ELKO AS or its subsidiaries. All other brands may be

trademarks of their respective owners.

This guide and its content are protected under applicable copyright laws and

furnished for informational use only. No part of this guide may be reproduced or

transmitted in any form or by any means (electronic, mechanical, photocopying,

recording, or otherwise), for any purpose, without the prior written permission of

ELKO.

ELKO does not grant any right or license for commercial use of the guide or its

content, except for a non-exclusive and personal license to consult it on an "as

is" basis. ELKO products and equipment should be installed, operated,

serviced, and maintained only by qualified personnel.

As standards, specifications, and designs change from time to time, information

contained in this guide may be subject to change without notice.

To the extent permitted by applicable law, no responsibility or liability is assumed by

ELKO and its subsidiaries for any errors or omissions in the informational content of

this material or consequences arising out of or resulting from the use of the

information contained herein.

Table of Contents

Safety information.......................................................................................4

SmartSensor Leakage Wireless...............................................................5

About the device.........................................................................................5

Installing the device ....................................................................................5

Pairing the device .......................................................................................5

Pairing device manually.........................................................................6

Pairing device with auto scan.................................................................8

Configuring the device ................................................................................9

Changing the device icon ......................................................................9

Renaming the device ..........................................................................10

Changing the device location ...............................................................10

Removing the device ................................................................................ 11

Resetting the device ................................................................................. 11

Using the device.......................................................................................12

Checking the device history .................................................................12

Creating an automation .......................................................................13

Replacing the batteries........................................................................17

LED Indications ..................................................................................17

Troubleshooting..................................................................................18

Technical data ....................................................................................18

DUG_Sensor Leakage Wireless_ELKO-00 3

Safety information

Important information

Read these instructions carefully and look at the equipment to become familiar

with the device before trying to install, operate, service, or maintain it. The

following special messages may appear throughout this manual or on the

equipment to warn of potential hazards or to call attention to information that

clarifies or simplifies a procedure.

The addition of either symbol to a “Danger” or “Warning” safety label indicates

that an electrical hazard exists which will result in personal injury if the

instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that accompany this symbol to avoid possible

injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

Failure to follow these instructions will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to physical injury.

4 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless

EKO07218

About the device

The SmartSensor Leakage Wireless (hereinafter referred to as Water Leakage

Sensor) has two sensing pads at the bottom of the body that activates when water

is present between the pads. The pads are close to the floor surface when the

sensor is placed in its operating position.

When the sensor is connected to the ELKO SmartHUB and detects water on the

floor, the sensor sends out a sound alarm and reports the event to the app via

ELKO SmartHUB. The sound alarm stops when the sensor is removed from the

water contact.

TIP: The water leakage sensor will sound an alarm even if it is not connected

to the ELKO SmartHUB.

Operating elements

A. Status LED

B. Function key

C. Sensing pads

D. Battery cover screws

Installing the device

Refer to the installation instruction supplied with this product.

See SmartSensor Leakage Wireless.

Pairing the device

Using the ELKO Smart app, pair your device with the ELKO SmartHUB to access

and control the device. You can either add the device manually or do an auto-scan

to pair it.

DUG_Sensor Leakage Wireless_ELKO-00 5

SmartSensor Leakage Wireless

Pairing device manually

To pair the device manually:

1. On Home page, tap +.

2. Tap , select the required ELKO SmartHUB on the slide-up menu.

3. Select an option to add the device(A):

–Add Device with Install Code

–Add Device without Install Code

Add Device

Install Code is Recommended

Add Device without Install Code

TIP: It is highly recommended to add the device with install code.

4. To pair the device with an install code, tap Add Device with Install Code to

display the slide-up menu. Select any one of the options (B):

–Scan Install Code - you can scan the device for the install code.

–Enter Install Code Manually - you can manually enter the install code

from the device.

After pairing the device with install code, proceed to Step 6.

Add Device

Install Code is Recommended

Add Device without Install Code

Add Device

Install Code is Recommended

5. To pair the device without install code, tap Add Device without Install Code.

6 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless

6. On the rear side of the sensor, short press (< 0,5 s) the function key 3 times

on the device.

3× < 0,5 s

↓

The LED blinks orange.

7. In the app, select Confirm LED is Flashing Orange and tap Start

Configuration (C).

Cancel

How to pair device

Short-press function key 3 times.

1 2

8. After a few seconds, a solid green LED indicates that the device has been

successfully paired to the ELKO SmartHUB.

…

9. Tap Done when the pairing is successful.

DUG_Sensor Leakage Wireless_ELKO-00 7

SmartSensor Leakage Wireless

Pairing device with auto scan

Pairing the device with auto scan automatically discovers the device when the

corresponding device is powered on.

1. On the Home page, tap +.

2. Tap Auto scan > Confirm.

3. Enable permissions to Access location and Wi-Fi for scanning device and

tap Start scanning.

NOTE: If you have multiple hubs, do Step 4 or proceed to Step 5.

4. Tap Select hub and select the ELKO SmartHUB from the slide-up menu.

5. Short press the setup/reset button 3 times (< 0,5 s) and wait for a few

seconds until the device search is complete.

The LED blinks orange.

TIP: If you want to pair multiple devices at once, perform step 5 on each

device and wait for a few seconds for them to be detected.

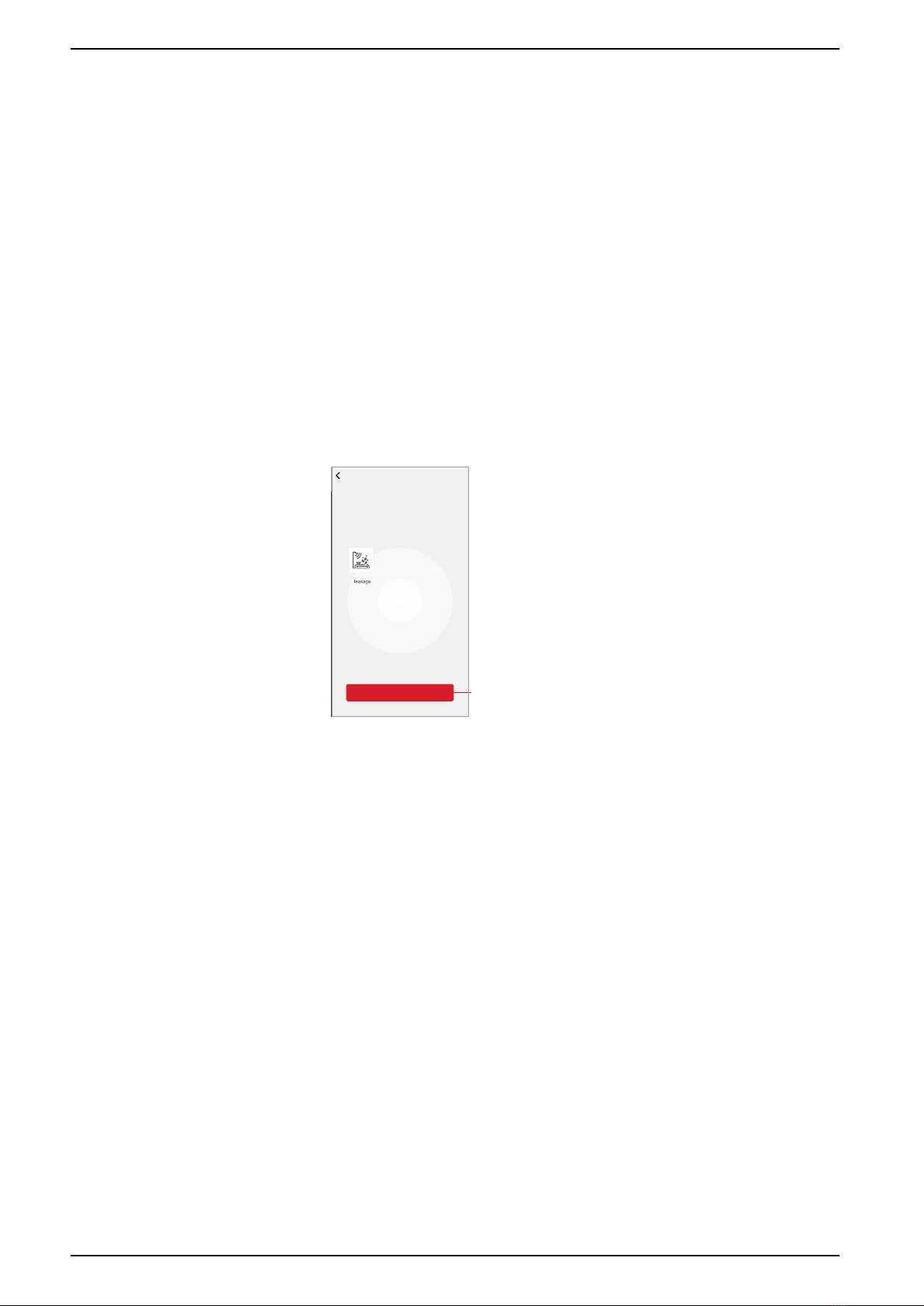

6. Tap Next (A) and select Water Leakage Sensor.

Auto Scan

Available devices found

Next A

Water

sensor

7. Once the device is added successfully, tap Done.

8 DUG_Sensor Leakage Wireless_ELKO-00

SmartSensor Leakage Wireless

Configuring the device

Changing the device icon

You can change the device icon using the ELKO Smart app.

1. On the Home page, select the device for which you wish to change the icon.

2. At the top-right corner of the screen, tap .

3. Tap edit next to the device name.

4. Tap Icon to view the menu.

5. In the slide-up menu, select any one of the following (A) to change the device

icon:

–Take photo - allows you to click a photo from the mobile camera.

–Select from Icon Library - allows you to select an icon from the app

library.

–Select from Album - allows you to select a photo from the mobile gallery.

DUG_Sensor Leakage Wireless_ELKO-00 9

SmartSensor Leakage Wireless

Renaming the device

You can rename the device using the ELKO Smart app.

1. On the Home page, select the device for which you wish to rename.

2. At the top-right corner of the screen, tap .

3. Tap edit next to the device name.

4. Tap Name, enter the new name (A) and then tap Save.

Name

Save

Rename

Changing the device location

You can change the device location using the ELKO Smart app.

1. On the Home page, select the device for which you wish to change the

location.

2. At the top-right corner of the screen, tap .

3. Tap edit next to the device name.

4. Tap Location.

5. Select the desired location from the list (A) and then tap Save.

Device location Save

Living Room

Dining Room

Kids Room

Study Room

Master Bedroom

10 DUG_Sensor Leakage Wireless_ELKO-00
