Micro Motion®

ELITE®Sensors

Installation Manual

P/N 20002158, Rev. C

September 2007

are trademarks of Micro Motion, Inc., Boulder, Colorado. Micro Motion is a registered trade name of Micro Motion, Inc., Boulder,

Colorado. The Micro Motion and Emerson logos are trademarks and service marks of Emerson Electric Co. All other trademarks

are property of their respective owners.

Installation Manual 1

Before You Begin

This manual describes how to install a Micro Motion®ELITE®sensor. The following information is provided

in this manual:

Customer service

For technical assistance, phone the Micro Motion Customer Service department:

• In the U.S.A., phone 800-522-MASS (800-522-6277) (toll free)

• In Canada and Latin America, phone +1 303-527-5200 (U.S.A.)

•InAsia:

- In Japan, phone 3 5769-6803

- In other locations, phone +65 6777-8211 (Singapore)

•InEurope:

- In the U.K., phone 0870 240 1978 (toll-free)

- In other locations, phone +31 (0) 318 495 555 (The Netherlands)

Customers outside the U.S.A. can also email Micro Motion customer service at

International.MMISupport@EmersonProcess.com.

Troubleshooting

Refer to the transmitter manual for troubleshooting help.

Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1

Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

European installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

Installation options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

Installation steps

Determining a Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6

Orienting the Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

Mounting the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16

Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Additional information

Pressure Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Purge Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21

Rupture Disks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22

Return Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 23

2Micro Motion®ELITE®Sensors

Before You Begin

Specifications

Full product specifications can be found in the product data sheet, which is available from the Micro Motion

web site at www.micromotion.com.

Definitions

The term MVD™transmitter refers to the following transmitter models:

• Models 1500, 1700, 2400S, 2500, and 2700

• Models 3500 and 3700

The term high-temperature ELITE sensor refers to the following model codes:

• CMF200A, CMF300A, CMF400A, and CMFHC3A

• CMF200B and CMF300B

The term extreme high-temperature ELITE sensor refers to the following model codes:

• CMF200C, CMF300C, CMF400C, and CMFHC3C

• CMF200E and CMF300E

European installations

This Micro Motion product complies with all applicable European directives when properly installed in

accordance with the instructions in this manual. Refer to the EC declaration of conformity for directives that

apply to this product.

The EC declaration of conformity, with all applicable European directives, and the complete ATEX

Installation Drawings and Instructions are available on the internet at www.micromotion.com/atex or

through your local Micro Motion support center.

Information affixed to equipment that complies with the Pressure Equipment Directive can be found on the

internet at www.micromotion.com/documentation.

Installation options

The ELITE sensor makes up one part of a Coriolis flowmeter. The other part is a transmitter. ELITE sensors

are available with the following electronics interfaces:

• An integral Model 2400S transmitter or enhanced core processor (see Figure 1).

• An integral core processor for connecting to a 4-wire remotely mounted transmitter or to a

user-supplied remote host (see Figure 2).

• A 9-wire junction box for connecting to a remotely mounted transmitter or a remotely mounted core

processor (see Figure 3).

• High-temperature and extreme high-temperature models are equipped with a flexible conduit, on

which can be mounted a Model 2400S transmitter, a Model 1700/2700 transmitter, a core processor, or

a junction box (see Figure 4).

Installation Manual 3

Before You Begin

Figure 1 ELITE sensor with Model 2400S transmitter or enhanced core processor

Flow direction

arrow

Purge fittings or rupture

disks (optional)

Calibration tag

Thru holes for

alternative

mounting

Process

connection

CMF010

Approval tag

Model 2400S transmitter or

enhanced core processor

Model 2400S transmitter or

enhanced core processor

CMF025, CMF050, or CMF100

Purge

connections

(optional)

Calibration tag

Approval tag

Process connection

Flow direction

arrow

CMF200, CMF300, CMF400, or CMFHC3

Approval tag

Model 2400S transmitter or

enhanced core processor

Flow direction

arrow

Purge connections

(optional)

Calibration tag

Process connection

4Micro Motion®ELITE®Sensors

Before You Begin

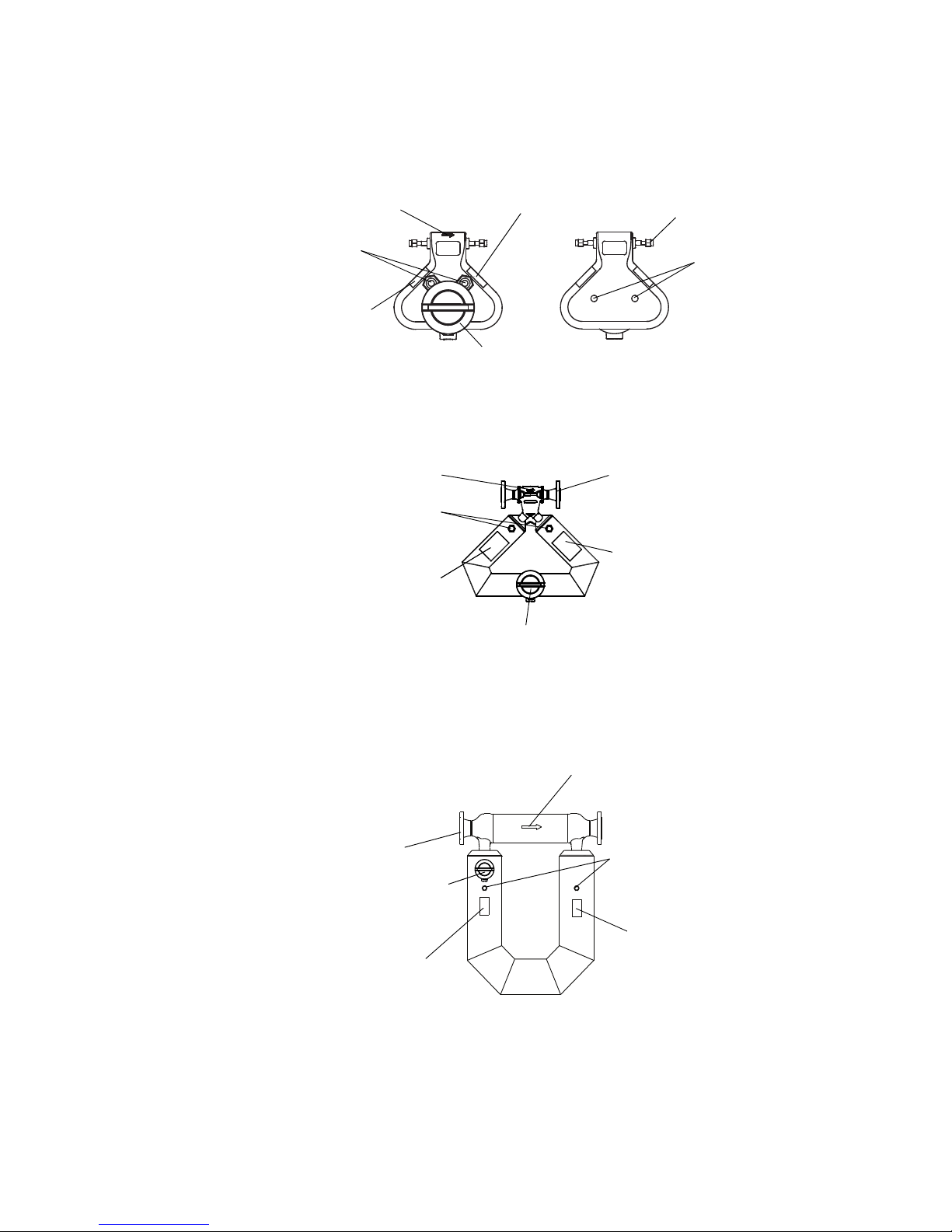

Figure 2 ELITE sensor with core processor

Flow direction

arrow

Purge fittings or rupture

disks (optional)

Calibration tag

Core processor housing

Thru holes for

alternative

mounting

Process connection

CMF010

CMF025, CMF050, or CMF100

Purge

connections

(optional)

CMF200, CMF300, CMF400, or CMFHC3

Calibration tag

Approval tag

Process connection

Flow direction

arrow

Approval tag

Core

processor

housing

Flow direction

arrow

Purge connections

(optional)

Calibration tag

Core processor

housing

Process connection

Approval tag

Installation Manual 5

Before You Begin

Figure 3 ELITE sensor with junction box

Flow direction

arrow

Purge connections or

rupture disks

(optional)

Calibration tag

Junction box

Approval tag

Thru holes for

alternative

mounting

Process connection

Junction box

Approval tag

CMF025, CMF050, or CMF100

Flow direction arrow Process connection

Purge connections

(optional)

CMF200, CMF300, or CMF400

Junction box

Calibration tag

Approval tag

Process connection

Purge connections

(optional)

CMF010

Flow direction

arrow

Calibration tag

6Micro Motion®ELITE®Sensors

Determining a Location

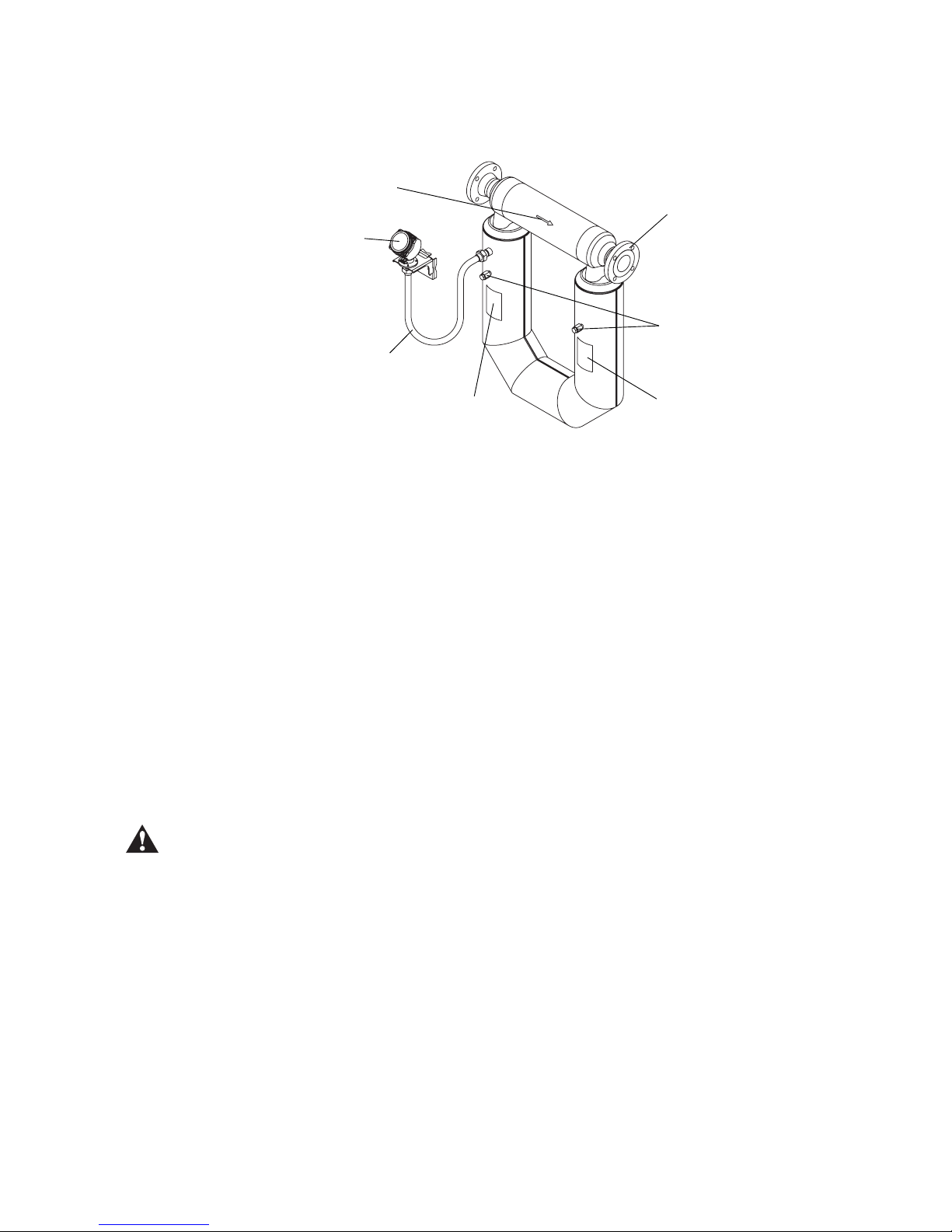

Figure 4 High-temperature or extreme high-temperature ELITE sensor

Step 1 Determining a Location

Choose a location for the sensor based on the requirements described in this section. The following general

guidelines can help you select an appropriate location for the sensor.

Full flow tubes

For optimal performance, the sensor tubes should remain full of process fluid.

Hazardous area installations

Make sure the hazardous area specified on the sensor approval tag is suitable for the environment in which the

sensor is installed. (See Figures 1–4.) For installation in an area that requires intrinsic safety, refer to the

appropriate Micro Motion approval documentation, shipped with the sensor or available from the

Micro Motion web site at www.micromotion.com.

Improper installation in a hazardous area can cause an explosion. When installing in a hazardous area,

refer to Micro Motion approvals instructions, shipped with the product or available from the

Micro Motion web site. For hazardous installations in Europe, refer to standard EN 60079-14 if national

standards do not apply.

Environmental limits

The ambient and process temperature limits of the sensor are shown in Figures 5 and 6:

• For ELITE sensor models other than high-temperature and extreme-high temperature models, see

Figure 5.

• For high-temperature and extreme high-temperature ELITE sensors, see Figure 6.

Purge connections

(optional)

Calibration tag Approval tag

Process connection

Flow direction

arrow

Flexible conduit

Transmitter, core processor,

or junction box

(Model 2400S transmitter

shown)

CMF200A, B, C, or E

CMF300A, B, C, or E

CMF400A or C

CMFHC3A or CMFHC3C

Installation Manual 7

Determining a Location

Figure 5 ELITE sensor ambient and process temperature limits (all models except

high-temperature and extreme high-temperature models)

Ambient temperature of core processor or transmitter in °F (°C)

Maximum process temperature in °F (°C)

Mount transmitter remotely; use junction box

–148 (–100)

–112 (–80)

–76 (–60)

–40 (–40)

–4 (–20)

32 (0)

68 (20)

104 (40)

140 (60)

176 (80)

–400 (–240)

–292 (–180)

–184 (–120)

–76 (–60)

32 (0)

140 (60)

356 (180)

464 (240)

248 (120)

400 (204)

113 (45)

Mount transmitter remotely; use junction box

Notes:

1. When ambient temperature is below –40 °F (–40 °C), a core processor or Model 2400S transmitter must be heated to bring

its local ambient temperature to between –40 °F (–40 °C) and +140 °F (+60 °C). Long-term storage of electronics at

ambient temperatures below –40 °F (–40 °C) is not recommended.

2. Temperature limits may be further restricted by hazardous area approvals.

3. The extended mount option allows the sensor case to be insulated without covering the transmitter, core processor, or

junction box, but does not affect temperature ratings.

4. For the purposes of selecting electronics options, this graph should be used only as a general guide. If your process

conditions are close to the gray areas, it may be inappropriate to use electronics options other than a junction box. Consult

with your Micro Motion representative.

140

(60)

8Micro Motion®ELITE®Sensors

Determining a Location

Figure 6 High-temperature and extreme high-temperature ELITE sensor ambient and

process temperature limits

Hazardous area approvals may impose additional limits on ambient and process temperature. For the ATEX

“T” rating, refer to the ATEX documentation shipped with the sensor or available on the Micro Motion web

site at www.micromotion.com. IECEx and NEPSI approvals also use the ATEX “T” rating. UL and CSA

ambient temperature limits are listed in Table 1.

Table 1 UL and CSA ambient temperature limits

Sensor models Electronics °F °C

UL All models Junction box +104 maximum +40 maximum

Core processor –40 to +104 –40 to +40

CSA All models Junction box +140 maximum +60 maximum

Core processor –40 to +140 –40 to +60

All models except CMF400 2400S transmitter –40 to +140 –40 to +60

CMF400 2400S transmitter –58 to +140 –50 to +60

–148 (–100)

–112 (–80)

–76 (–60)

–40 (–40)

–4 (–20)

32 (0)

68 (20)

104 (40)

140 (60)

176 (80)

–58 (–50)

32 (0)

392 (200)

752 (400)

842 (450)

662 (350)

800 (427)

Mount transmitter remotely; use junction box

Notes:

1. When ambient temperature is below –40 °F (–40 °C), a core processor or Model 2400S transmitter must be heated to bring

its local ambient temperature to between –40 °F (–40 °C) and +140 °F (+60 °C). Long-term storage of electronics at

ambient temperatures below –40 °F (–40 °C) is not recommended.

2. Temperature limits may be further restricted by hazardous area approvals.

662

(350)

302 (150)

122 (50)

High-temp. models

Extreme high-temp. models

482 (250)

572 (300)

212 (100)

Ambient temperature of core processor or transmitter in °F (°C)

Maximum process temperature in °F (°C)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Emerson Zubehör Handbücher

Emerson

Emerson EASYHEAT MSA-1 Montageanleitung

Emerson

Emerson Rosemount 402 Bedienungsanleitung

Emerson

Emerson Rosemount 3300HT Bedienungsanleitung

Emerson

Emerson Rosemount 499ADO Bedienungsanleitung

Emerson

Emerson Rosemount 3500P Bedienungsanleitung

Emerson

Emerson Micro Motion F Series Bedienungsanleitung

Emerson

Emerson Rosemount 226 Bedienungsanleitung

Emerson

Emerson Rosemount 214C Bedienungsanleitung

Emerson

Emerson Rosemount 228 Bedienungsanleitung

Emerson

Emerson Rosemount 3051S Series Bedienungsanleitung

Emerson

Emerson Micro Motion LF Series Bedienungsanleitung

Emerson

Emerson Carbon Dioxide Sensor Betriebsanleitung

Emerson

Emerson AVENTICS SM6 Bedienungsanleitung

Emerson

Emerson WaterSiren Pro Bedienungsanleitung

Emerson

Emerson Machinery Health PR 642 Series Bedienungsanleitung

Emerson

Emerson Rosemount Volume 1 Bedienungsanleitung

Emerson

Emerson Marston Series Kurzanleitung

Emerson

Emerson Rosemount 550pH Bedienungsanleitung

Emerson

Emerson Micro Motion H Series Bedienungsanleitung

Emerson

Emerson 210-2000 Bedienungsanleitung

Emerson

Emerson Rosemount 385+ -02 Bedienungsanleitung

Emerson

Emerson Rosemount 499AOZ Bedienungsanleitung

Emerson

Emerson Micro Motion Elite Coriolis Micro Motion Elite Coriolis... Bedienungsanleitung

Emerson

Emerson DVS205 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
