EnGenius ECM355AP Bedienungsanleitung
User Manual
Business Solutions
ECM355AP 802.11 abgn/ac Indoor AP
ECM855AP Wireless 802.11 abgn/ac Outdoor AP
ECM955AP AC1300 Wave2 Dual Band Outdoor Cloud Management Base Station
ECM955AP
version 1.1
ECM355AP ECM855AP
2
IMPORTANT
To install this Access Point please refer to the
Quick Installation Guide included in the product packaging.
3
Chapter 1 Product Overview...................................................................... 4
Introduction...................................................................................................5
ECM355AP
Key Features.................................................................................... 5
Package Contents......................................................................... 5
Physical Interface......................................................................... 6
ECM855AP
Key Features.................................................................................... 7
Package Contents......................................................................... 7
Physical Interface......................................................................... 8
ECM955AP
Key Features.................................................................................... 9
Package Contents......................................................................... 9
Physical Interface......................................................................... 10
Technical Specications.........................................................................11
Chapter 2 Conguring Your Access Point............................................13
Default Settings./Web Conguration.......................................... 14
Appendix..............................................................................................................15
FCC Interference Statement...........................................................16
Professional installation instruction...........................................19
Table of Contents
4
Chapter 1
Product Overview
5
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2018 EnGenius Technologies, Inc. All rights reserved.
ECM355AP
Key Features
• Up to 26 dBm transmit power enabling long range connectivity
• Supports IEEE802.11ac/a/b/g/n wireless standards with up to
300 Mbps data rate on 2.4GHz band and 867Mbps on 5GHz
band
• Can be monitored after deployment with ezmCloud for Windows
• Can be power up with Proprietary 54V PoE.
• Fast Transition and Handover between Access Points
• Band Steering shifts client devices to a proper frequency band
for getting more bandwidth and speed under an Access Point.
• Secured Guest Network option available
Introduction
Package Contents
The ECM355AP package contains the following items:*
• ECM355AP Access Point
• Ceiling Mount Bracket
• Mounting Screw Set
• Quick Installation Guide
*(all items must be in package to issue a refund):
6
Physical interface
1 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.
2 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,
2.4 GHz Connection and 5 GHz Connection.
3 DC in
4 Reset button
Dimensions and Weights
Length: 200mm
Width: 200mm
Depth: 45mm”
Weight: TBD
2
13 4
7
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2018 EnGenius Technologies, Inc. All rights reserved.

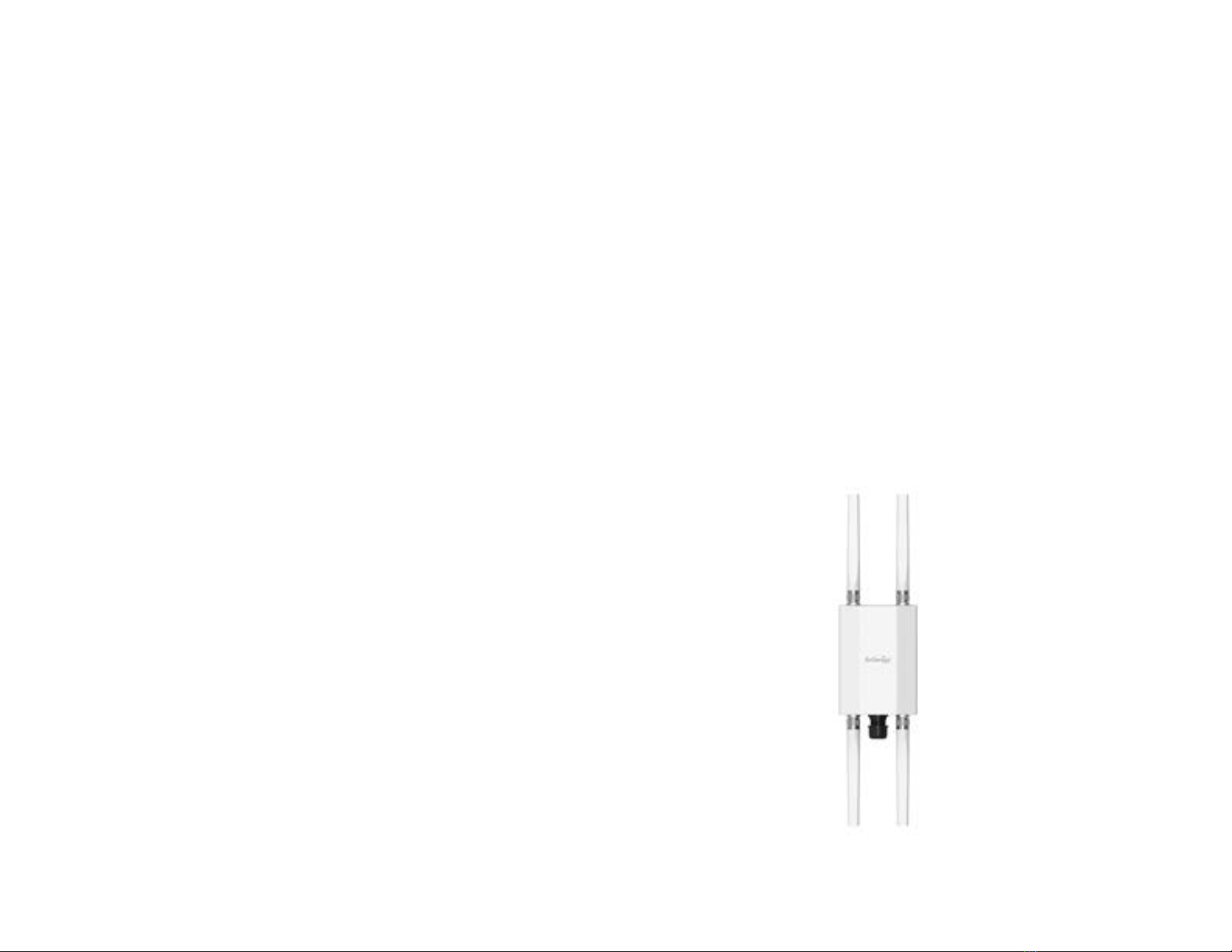

ECM855AP
Key Features
• Up to 23 dBm transmit power enabling long range connectivity
• Supports IEEE802.11ac/a/b/g/n wireless standards with up to
300 Mbps data rate on 2.4GHz band and 867Mbps on 5GHz band
• Two detachable 4.5 dBi 2.4 GHz Omni-directional antennas
• Two detachable 6.3 dBi 5 GHz Omni-directional antennas
• Can be monitored after deployment with ezmCloud for Windows.
• Can be used with included power adapter or via PoE with
Proprietary 54V.
• Fast Transition and Handover between Access Points
• Band Steering shifts client devices to a proper frequency band
for getting more bandwidth and speed under an Access Point.
• Secured Guest Network option available
Package Contents
The ECM855AP package contains the following items:*
• ECM855AP Access Point
• 2 detachable 4.5 dBi 2.4 GHz Omni-directional Antenna
• 2 detachable 6.3 dBi 5 GHz Omni-directional Antenna
• Wall Mount Screw set
• Ground cable and Screw for ground use
• Wall Mounting plate, Mounting Bracket, Screw set kit
• Quick Installation Guide
*(all items must be in package to issue a refund)
I
8
Physical interface
12.4 GHz Antennas: Detachable 4.5 dBi 2.4 GHz Omni-directional
2 5 GHz Antennas Detachable 6.3 dBi 5 GHz Omni-directional
3 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.
4 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,
2.4 GHz Connection and 5 GHz Connection.
5 Mounting Holes: Using the provided hardware, the ECM855AP
can be attached to a wall or pole.
*The installation angle of antenna must be vertical to the ground.
Dimensions and Weights
Length: 218.7mm
Width: 124.0mm
Depth: 56.2mm”
Weight: 2.04kg
1
1 2
2
4
5
3
9
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2018 EnGenius Technologies, Inc. All rights reserved.
ECM955AP
Key Features
• Up to 29dBm transmit power enabling long range connectivity
• Supports IEEE802.11ac/a/b/g/n wireless standards with up to
300 Mbps data rate on 2.4GHz band and 867Mbps on 5GHz band
• Two detachable 5 dBi 2.4 GHz Omni-directional antennas
• Two detachable 7 dBi 5 GHz Omni-directional antennas
• Can be monitored after deployment with EnGenius ezmCloud
• Can be used with included power adapter or via PoE with
Proprietary 54V.
• Fast Transition and Handover between Access Points
• Band Steering shifts client devices to a proper frequency band
for getting more bandwidth and speed under an Access Point.
• Secured Guest Network option available
Package Contents
The ECM955AP package contains the following items:*
• ECM955AP Access Point
• 2 detachable 5 dBi 2.4 GHz Omni-directional Antenna
• 2 detachable 7 dBi 5 GHz Omni-directional Antenna
• 1 LTE Antenna
• 1 GPS Antenna
• Ground cable
• Wall Mounting plate, Mounting Bracket, Screw set kit
• Quick Installation Guide
*(all items must be in package to issue a refund)
10
Physical interface
12.4 GHz Antennas: Detachable 5 dBi 2.4 GHz Omni-directional,
2 5 GHz Antennas Detachable 7 dBi 5 GHz Omni-directional
3 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.
4 LAN Port 2 (802.3af PSE Output): Ethernet port for RJ-45 cable.
5 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,
2.4 GHz Connection and 5 GHz Connection.
6 Locate GPS
7 Scanning Radio
*The installation angle of antenna must be vertical to the ground.
Dimensions and Weights
Length: 285mm
Width: 218mm
Depth: 55.5mm”
Weight: TBD
1
2
1
2
34
5
6 7
