EnGenius Mesh AP - M8000 User Manual & Configuration Guide

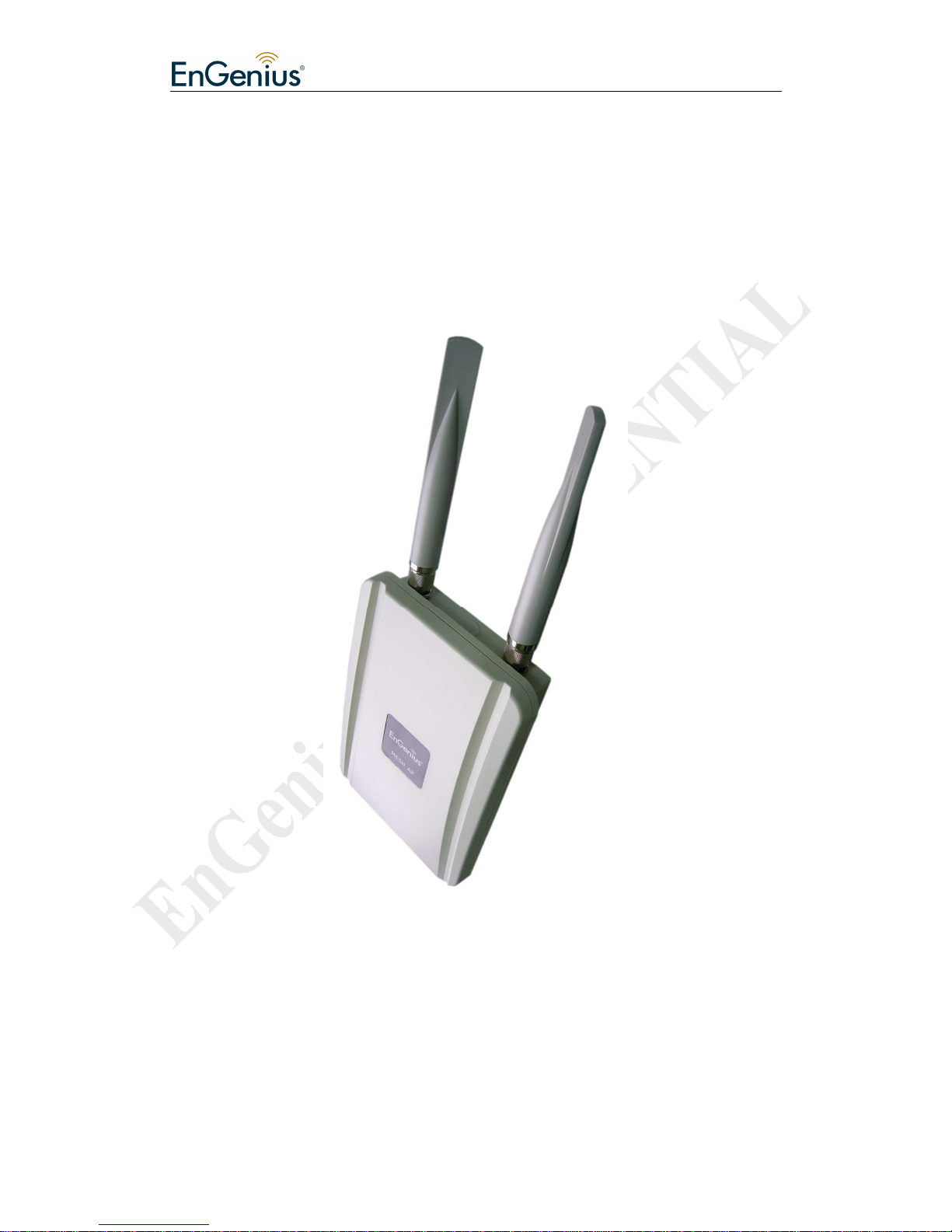

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 1 of 62

EnGenius Mesh AP

M8000

User Manual & Configuration Guide

Version : 1.0

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 2 of 62

Table of Content

Table of Content 2

1 Docu ent History 4

2 Overview 5

3 EnGenius Mesh Web-based Interface 6

4 Syste 9

System > System 9

System > Syslog 10

System > Advance 11

5 Network 13

5.1

Network > Network 13

5.2

Network > VLAN 1

5.3

Network > Mesh 16

Network > Wireless 20

5.5

Network > Route 23

6 Service 25

6.1

Service > MAC Access 25

6.2

Service > NTP 27

6.3

Service > RADIUS 28

Service > Linux Kernel Watchdog 31

6.5

Service > SSHD 32

6.6

Service > WME 33

6.7

Service > DHCP Relay 35

7 Manage ent 37

7.1

Management > HTTPD 37

7.2

Management > Configuration 39

7.3

Management > SNMP 2

Management > Firmware 5

7.5

Management > Trap 6

7.6

Management > NMS Addresses 9

7.7

Management > Reboot 51

8 Tools 52

8.1

Tools > Ping 52

8.2

Tools > Ifconfig 53

8.3

Tools > Route 5

Tools > TFTP 55

9 Status 56

9.1

Status > Status 56

9.2

Status > Interfaces 57

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 3 of 62

9.3

Status > Services 59

Status > System Log 60

9.5

Status > Neighbor 61

10 Help 61

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page of 62

1Docu ent History

Revision

Date Re arks Authors

1.0 2008-0 -07 Draft Release

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 5 of 62

2Overview

The purpose of this document is to describe the detail features of EnGenius Mesh

Access Point (M8000), and also the procedure and methodology of configuring and

the use of EnGenius MAP.

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 6 of 62

3EnGenius Mesh Web-based Interface

Web-based configuration interface is accessible with computer with TCP/IP capability

and web browser (e.g. Mozilla or IE).To access web-based configuration interface,

enter

https://192.168.0.1/.

In the browser URL/Location field.

You will see an authentication page display as shown in Figure 3.1.1.

Figure 3.1.1: Windows authentication page

Type “ad in” in User Name and Password field, then click OK button.

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 7 of 62

EnGenius Mesh page has six main menus: System, Network, Services, Management,

Tools and Status. Each main menu also will have its submenu.

Welcome

System

System System settings

Syslog Syslog settings

Advance Advance tuning

Network

Network Network settings

VLAN VLAN settings

Mesh Mesh settings

Wireless Wireless settings

Route Route settings

Services

MAC Access Filter MAC address

NT Network Time rotocol

RADIUS RADIUS client settings

Linux Kernel Watchdog Linux Kernel Watchdog settings

SSHD SSHD Configuration

WME WME Settings

DHC Relay DHC relay settings

Management

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 8 of 62

HTT D Internal webserver settings

Configuration Configuration management

SNM SNM settings

Firmware Firmware maintenance

Trap Trap settings

NMS Addresses Network Management System notifying settings.

Reboot Reboot device

Tools

ing ing

Ifconfig Ifconfig

Route Route

TFT TFT

Status

Status System status

Interfaces Interfaces statistics

Services Services status

System Log System logging

Neighbor Mesh node status

Help

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 9 of 62

4Syste

4.1 Syste > Syste

MAP 1000 is a layer 2 mesh network that supports gateway and relay operation

mode. Figure .1.1 illustrates the system information configuration page.

Figure 4.1.1: Syste Infor ation Configuration page

System Information Configuration page contains the following parameters:

•Na e – Name of the device.

•Location – Location name that device located.

•Contact Na e – Name of the contact person for consulting about the device.

•Contact E ail – Email address of the contact person.

•Contact Phone – Phone number of the contact person.

•Description – Description of the device.

•Object ID – Display SNMP MIB object identification (OID) of the device.

•Operation Mode – Type of operation mode such as “Layer 2 Gateway” &

“ Layer 2 Relay”

•“Apply” button to save any changes made. New settings are active after the

device reboot.

EnGenius Mesh AP - M8000 User Manual & Configuration Guide

EnGenius Mesh AP - M8000 User Manual & Configuration Guide Page 10 of 62

4.2 Syste > Syslog

Certain system message is useful to understand the problem behind any undesired

result. Mesh AP 000 is enabled with syslog server that can log message locally and

remotely. Figure .2.1 illustrates the Syslog configuration page.

Figure 4.2.1: Syslog configuration page

Syslog contains the following parameters:

•Active – Enable or disable system logging feature.

•Klog – Enable or disable kernel logging feature.

•Level – 8 levels of logging : emergency, alert, critical, error, warning, notice,

info and debug.

•Re ote Syslog – Enable or disable remote syslog server.

•Re ote Server Address – Address of remote syslog server when remote

syslog is enabled.

•“Apply” button to save any changes made. New settings are active after the

device reboot.
