Introduction 5

Introduction

Your Epson Stylus®Photo R2000 Series printer gives you beautiful archival prints

on a wide variety of glossy and matte papers in many sizes.

Your outstanding printouts result from these advanced features:

■Epson UltraChrome Hi-Gloss®2 ink cartridges, including red and orange

inks for improved skin tones and increased vibrancy.

■Improved gloss optimizer cartridge provides a smooth, uniform glossy coat on

glossy papers for an unprecedented look and feel.

■Enhanced media handling including thick, fine art paper, 1.3 mm boards,

and rolls for virtually any kind of print up to 13 × 44 inches, with or without

borders.

■AccuPhoto™HG technology for maximizing color gamut while providing

smoother color transitions.

■Resolutions up to 5760 × 1440 optimized dpi (dots per inch) with droplets as

small as 1.5 picoliters for the finest details.

■Direct printing onto ink jet-printable CDs and DVDs for a professional look.

■Hi-Speed USB 2.0, 100Mbps Ethernet®, and Wi-Fi CERTIFIED™802.11n

for fast, wireless connectivity to multiple computers

■Downloadable Premium ICC Profiles for precise color management

Please follow these guidelines as you read your documentation:

Warning:

Warnings must be followed carefully to avoid bodily injury.

Caution:

Cautions must be observed to avoid damage to your equipment.

Note:

Notes contain important information about your R2000 Series.

Tip:

Tips contain hints for better printing.

6Loading Paper

Loading Paper

You can print on a variety of paper types in thesheet feeder, or use the single sheet

guide for certain specialty papers (see page 8). For multiple photos, panoramics,

and banners, load roll paper using the roll paper holders (see page 10). For thick

media, use the front manual feed slot (see page 13).

Loading Paper in the Sheet Feeder

You can load the following paper types and quantities in the sheet feeder. Load

other paper types in the rear manual feed slot using the single sheet feeder (see

page 8) or roll paper holders (see page 10).

Paper type Maximum sheets by size

Plain paper Approximately 120

Epson Presentation Paper Matte 100 (Letter)

50 (B or Super B)

EpsonBright White Paper 80

Epson Photo Paper Glossy 30

Epson Premium Photo Paper Glossy

Epson Ultra Premium Photo Paper Glossy 30 (4 × 6 inch, 8 × 10 inch, Letter,

11 × 14 inch)

20 (5 × 7 inch)

10 (B, A3, Super B)

Epson Ultra Premium Photo Paper Luster

Epson Ultra Premium Presentation Paper Matte 30 (Letter)

10 (A3 or Super B)

Epson Premium Photo Paper Semi-gloss 30 (4 × 6 inch or Letter)

10 (B)

Epson Premium Presentation Paper Matte 30 (8 × 10 inch or Letter)

10 (11 × 14 inch, A3, or Super B)

Epson Premium Presentation Paper Matte

Double-sided

Epson Photo Quality Self-adhesive Sheets

1 sheet

Loading Paper 7

1. Open the paper support and pull up the extensions, then open the output tray

and pull out the extensions.

2. Insert paper, glossy or printable side up, short edge first, against the right side

and beneath the tab. Then press the button on the edge guide and slide it

against the paper (but not too tightly).

Always load paper short edge first, even for landscape printing.

Load letterhead or pre-printed paper top edge first.

Note:

The edge guide moves slightly during paper feeding and printing.

Do not adjust it while printing is in progress.

8Loading Paper

Loading Paper Using the Single Sheet

Guide

You can print professional quality photos on these paper types using the single

sheet guide and the rear manual feed slot:

■Premium Photo Paper Glossy

■Ultra Premium Photo Paper Luster

■Epson Velvet Fine Art Paper

■Epson Matte Scrapbook Photo Paper

(See page 15 for available sizes.)

1. Remove any paper from the sheet feeder and close

the paper support.

2. Open the output tray and pull out the extensions.

3. Slide the roll paper edge guide on the back of the

printer all the way to the right.

4. Attach the single sheet guide by aligning the

notches on its base with the slots on the back of

the printer. Then hook the tabs over the top of the slot (marked with orange

triangles).

Roll paper

edge guide

Loading Paper 9

5. Make sure the printer is on so it can load the paper correctly.

6. Insert one sheet of paper, printable side up and against the right side, then

slide the edge guide against the sheet, but not too tightly.

Note:

Load paper short edge first, no matter which way your photo faces. Check the

paper package for any additional loading instructions.

7. Guide the paper into the printer until it meets resistance and hold it there

until the printer pulls it in slightly. Once the printer begins feeding the paper,

let go of it.

8. Open the printer cover and make sure the paper has fed all the way into the

printer and is straight. The paper must feed straight so the printer can

properly identify the edge.

If the paper is crooked or the front edge is visible, you may receive a paper jam

error when you print. To avoid this, press and hold the Ipaper button for

three seconds to eject the paper. Remove the paper from the printer, press the

Ipaper button again to clear the paper out error, and load the paper again.

9. Close the printer cover and do not open it during printing.

10 Loading Paper

Loading Roll Paper

You can load roll paper or canvas media for printing large images, panoramic

images, or multiple photos, with or without borders.

You can load roll paper in these widths:

■8.3-inches wide

■13-inches wide

(See page 15 for a list of roll paper and canvas media types and sizes.)

Tip:

It’s a good idea to check the ink status and replace cartridges, if necessary, before

loading roll paper (see page 35). This is because you must remove roll paper from the

printer before replacing cartridges to avoid ink marks on the paper.

1. Turn on the printer.

2. Remove any paper loaded in the sheet feeder and remove the single sheet

guide, if it is installed (see page 8). Also close the paper support.

3. Open the output tray, but do not pull out the extensions.

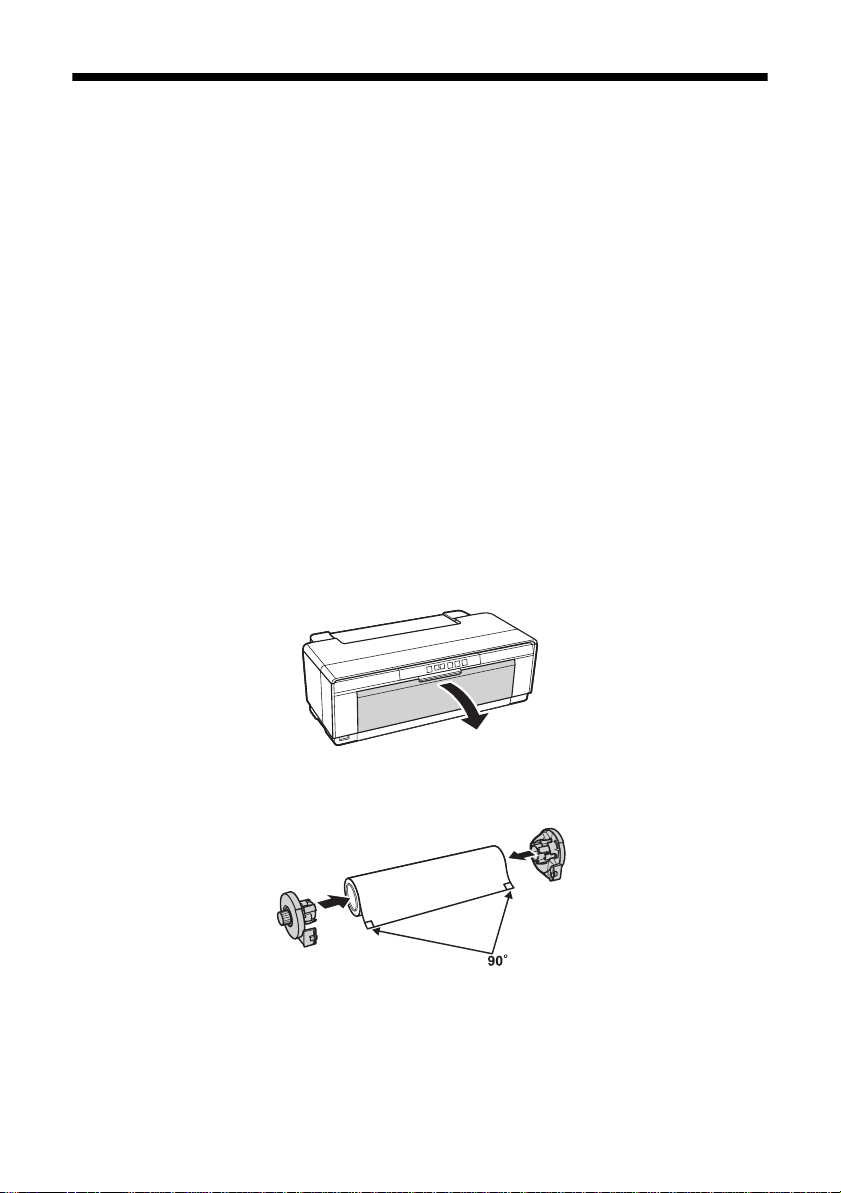

4. Place the roll paper holders on each end of the paper roll as shown.

5. Remove any tape and protective paper from the end of the roll and make sure

the corners of the paper are cut straight and at 90° angles to avoid paper

feeding problems.
