EtherWAN EX95000 Series Bedienungsanleitung

W70G-EX95000Q2 Page 1

Installation Guide

EX95000 Series | Hardened Unmanaged Switch

1Unpacking

Open the carton and unpack the items. Your package

should include:

▪One EX95000 Switch

If any items are missing or damaged, notify your

EtherWAN representative. If possible, save the carton

and packing material in case you need to ship or store

the switch in the future.

2Equipment Needed

▪Category 5 or better cable for RJ-45 ports

▪Appropriate fiber cable for fiber ports

3Select a Location

▪Installation: DIN rail. Place the device on the DIN

rail from above using the slot. Push the front of

the device toward the mounting surface until it

audibly snaps into place.

▪Choose a dry area with ambient temperature

between -40 and 75°C (-40 and 167°F).

▪Keep away from heat sources, sunlight, warm air

exhausts, hot-air vents, and heaters.

▪Be sure there is adequate airflow.

4Connect to the Data Ports

Depending on the model, your switch can have the

following ports:

▪10/100BASE-TX: 16, 15 or 14 ports

▪100BASE-FX: 0, 1 or 2 ports

5Connect Power

Two power inputs are via a 12-48VDC terminal block,

and the third power input is via a 12VDC DC Jack.

Power consumption is:

▪7.4W Max. 0.6A@12VDC

▪0.3A@24VDC

▪0.15A@48VDC

Power Input Assignment

Power 3

12VDC

DC Jack

Power 2

12-48VDC

Terminal Block

Power Ground

Power 1

12-48VDC

Power Ground

Earth Ground

Relay Output

Rating

1A @ 24VDC

Relay Alarm Assignment

The relay contact closes if Power 1

and Power 2 both fail but Power 3 is on.

The relay contact closes if Power 3

fails but Power 1 and Power 2

are both on.

Power-Up Sequence

When the switch is powered up:

▪All Link/ACT LEDs blink momentarily.

▪The Power LEDs light up and stay lit.

▪LEDs for every port connected to a device will

flash, as the switch conducts a brief Power On Self-

Test (POST).

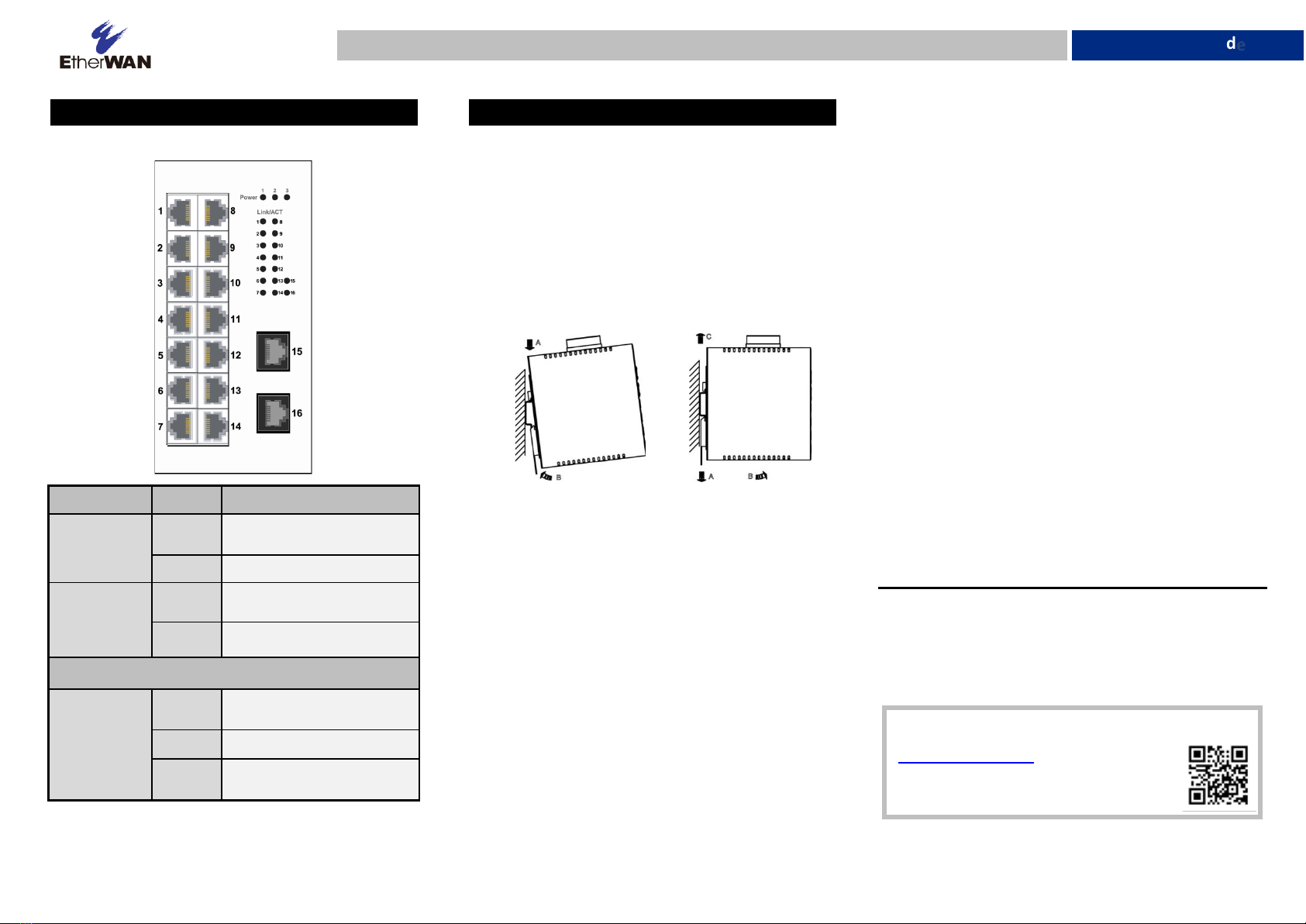

W70G-EX95000Q2 Page 2

Installation Guide

EX95000 Series | Hardened Unmanaged Switch

6LED Indicators

LED

State

Description

Power 1, 2, 3

(Green)

Switch is powered ON

correctly

Off

Switch is not receiving power

Alarm (Red)

Relay alarm on

Off

Relay alarm off

10/100BaseTX or 100Base FX/BX Ports

Link/Act

(Green)

Network connection

established

Off

No link

Blinking

Transmitting or receiving

data

7DIN Rail Installation

DIN-Rail Assembly Startup, and Dismantling

▪Assembly: Place the Switch on the DIN rail from

above using the slot. Push the front of the Switch

toward the mounting surface until it audibly snaps

into place.

▪Startup: Connect the supply voltage to start up the

Switch via the terminal block.

▪Dismantling: Pull out the lower edge and then

remove the Switch from the DIN rail.

Manufacturer information:

EtherWAN Systems, Inc.

33F, No. 93, Sec. 1, Xintai 5th Rd., Xizhi Dist., New

Taipei City, 221 Taiwan

The full product manual can be downloaded from:

www.etherwan.com
