EUROPRO V1730 Bedienungsanleitung

Style # XSY1730

for Model V1730 Sweeper Style # XSY1730

for Model V1730 Sweeper

Service Pack Contains:

1 Replacement Brush Roll

1 Squeegee

1 Gear Box With Side Sweeper

1 Battery Pack 8.4V dc

Changing the Rotating Brush, Gear Box & Squeegee

WARNING:Use caution when changing the rotating brush, gear box and

squeegee so that the unit does not turn ON when pressing

down on the sweeper power head.

1. Remove the extension tube from the sweeper power

head.

2. Turn sweeper power head upside down being careful

Not to accidentally turn the unit ON.

3. Remove the transparent brush cover. (Fig. 1) (Refer to

your owner's manual for detailed instructions.)

4. Push in on the locking tab of the gear box and lift gear

box to remove. (Fig. 2 & Fig. 3)

5. Lift the brush bar end cap up from the slot. (Fig. 4)

6. Lift the brush bar out from the bushing and slip off the

belt to remove the brush bar. (Fig. 5)

7. Insert the new brush bar by first inserting the brush bar

into the bushing on the end opposite the driver belt.

(Fig. 5)

8. Slip the belt over the brush bar cap.

9. Insert the brush bar into the slot. (Fig. 4)

10. Insert the gear box tabs into the tab slots and push

down until it clicks into place.

11. To remove the squeegee, follow instructions above for

removing the gear box and pull the squeegee out from

the clips. (Fig. 6) To replace the squeegee, press the

new one back into the clips.

Fig. 4 Fig. 5

Fig. 1

Fig. 3

Lift

Gear box

tabs

Locking

tab

Gear box

Fig. 2

Fig. 6

Service Pack Contains:

1 Replacement Brush Roll

1 Squeegee

1 Gear Box With Side Sweeper

1 Battery Pack 8.4V dc

Changing the Rotating Brush, Gear Box & Squeegee

WARNING:Use caution when changing the rotating brush, gear box and

squeegee so that the unit does not turn ON when pressing

down on the sweeper power head.

1. Remove the extension tube from the sweeper power

head.

2. Turn sweeper power head upside down being careful

Not to accidentally turn the unit ON.

3. Remove the transparent brush cover. (Fig. 1) (Refer to

your owner's manual for detailed instructions.)

4. Push in on the locking tab of the gear box and lift gear

box to remove. (Fig. 2 & Fig. 3)

5. Lift the brush bar end cap up from the slot. (Fig. 4)

6. Lift the brush bar out from the bushing and slip off the

belt to remove the brush bar. (Fig. 5)

7. Insert the new brush bar by first inserting the brush bar

into the bushing on the end opposite the driver belt.

(Fig. 5)

8. Slip the belt over the brush bar cap.

9. Insert the brush bar into the slot. (Fig. 4)

10. Insert the gear box tabs into the tab slots and push

down until it clicks into place.

11. To remove the squeegee, follow instructions above for

removing the gear box and pull the squeegee out from

the clips. (Fig. 6) To replace the squeegee, press the

new one back into the clips.

Fig. 4 Fig. 5

Fig. 1

Fig. 3

Lift

Gear box

tabs

Locking

tab

Gear box

Fig. 2

Fig. 6

BATTERY REMOVAL & DISPOSAL BATTERY REMOVAL & DISPOSAL

NOTE : If uncertain as to how to remove your battery pack, we suggest you

take your sweeper to a reputable small appliance service technician to

have this service performed.

NOTE : If uncertain as to how to remove your battery pack, we suggest you

take your sweeper to a reputable small appliance service technician to

have this service performed.

Follow these steps when battery removal is required.

This sweeper is equipped with Ni-Cd batteries and you need to dispose of them properly. When

the batteries are no longer good for use, they must be removed from the sweeper for disposal.

Do not remove the batteries for any reason other than disposal of them. Call your nearest

recycling center for information on the recycling and disposal of Ni-Cd batteries.

WARNING:You must never use ordinary batteries for replacement as

these may leak and cause damage.

Follow these steps when battery removal is required.

This sweeper is equipped with Ni-Cd batteries and you need to dispose of them properly. When

the batteries are no longer good for use, they must be removed from the sweeper for disposal.

Do not remove the batteries for any reason other than disposal of them. Call your nearest

recycling center for information on the recycling and disposal of Ni-Cd batteries.

WARNING:You must never use ordinary batteries for replacement as

these may leak and cause damage.

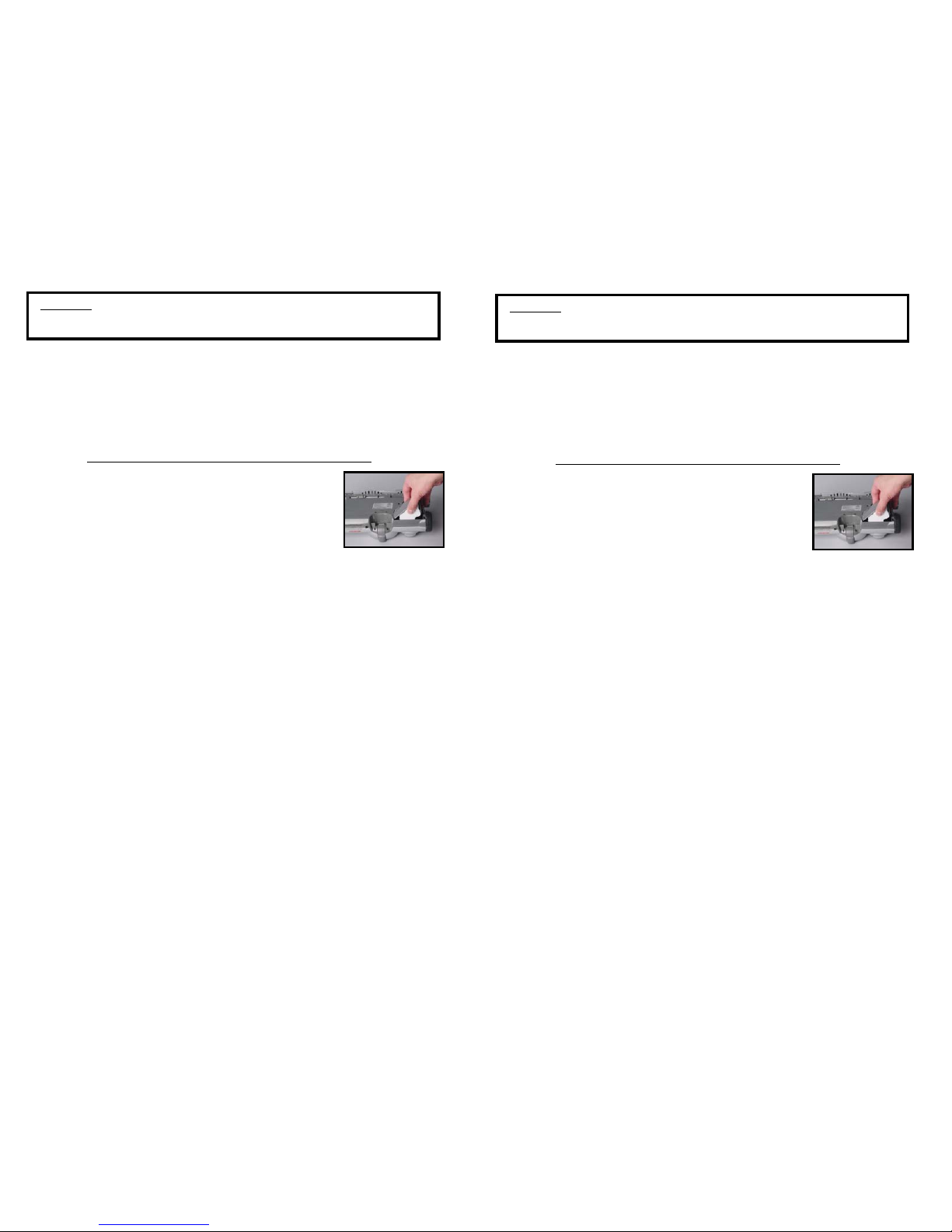

REMOVAL & REPLACEMENT OF BATTERY PACK REMOVAL & REPLACEMENT OF BATTERY PACK

1. Remove the extention tubes and dust cup container.

2. Turn unit over so that the base is facing upwards.

3. Lift locking tab on battery compartment cover and set

aside cover.

4. Remove the old battery pack from the unit.

5. Insert the new battery pack into the battery

compartment and replace cover.

1. Remove the extention tubes and dust cup container.

2. Turn unit over so that the base is facing upwards.

3. Lift locking tab on battery compartment cover and set

aside cover.

4. Remove the old battery pack from the unit.

5. Insert the new battery pack into the battery

compartment and replace cover.

THIRTY (30) DAY LIMITED WARRANTY

EURO-PRO Operating LLC warrants this product to be free from defects in material and workmanship for a period

of thirty (30) days from the date of the original purchase, when utilized for normal household use, subject to the

following conditions, exclusions and exceptions.

If your appliance fails to operate properly while in use under normal household conditions within the warranty

period, return the complete accessory kit, freight prepaid to:

In US: EURO-PRO Operating LLC: 94 Main Mill Rd., Door 16, Plattsburgh, N.Y. 12901

In Canada: EURO-PRO Operating LLC, 4400 Bois Franc, St. Laurent, QC, H4S 1A7

If the appliance is found by EURO-PRO to be defective in material or workmanship, EURO-PRO will repair or

replace it free of charge. Proof of purchase date and $ 6.95 to cover the cost of return shipping and handling must

be included. *

Non-durable parts including, without limitation brushes, squeegees, which normally require replacement are

specifically excluded from warranty.

The liability of EURO-PRO Corporation is limited solely to the cost of the repair or replacement of the unit at our

option. This warranty does not cover normal wear of parts and does not apply to any unit that has been tampered

with or used for commercial purposes. This limited warranty does not cover damage caused by misuse, abuse,

negligent handling or damage due to faulty packaging or mishandling in transit. This warranty does not cover

damage or defects caused by or resulting from damages from shipping or repairs, service or alterations to the

product or any of its parts, which have been performed by a repair person not authorized by EURO-PRO.

This warranty is extended to the original purchaser of the unit and excludes all other legal and/or conventional

warranties. The responsibility of EURO-PRO Corporation if any, is limited to the specific obligations expressly

assumed by it under the terms of the limited warranty. In no event is EURO-PRO Corporation liable for incidental

or consequential damages of any nature whatsoever. Some states do not permit the exclusion or limitation of

incidental or consequential damages, so the above may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from province to

province.

*Important: Carefully pack item to avoid damage in shipping. Be sure to include proof of purchase date

and to attach tag to item before packing with your name, complete address and phone number with a note

giving purchase information, model number and what you believe is the problem with item. We

recommend you insure the package (as damage in shipping is not covered by your warranty). Mark the

outside of your package “ATTENTION CUSTOMER SERVICE”. We are constantly striving to improve our

products, therefore the specifications contained herein are subject to change without notice.
