EUTECH INSTRUMENTS CYBERSCAN DO 5000 DO METER Bedienungsanleitung

Instruction Manual

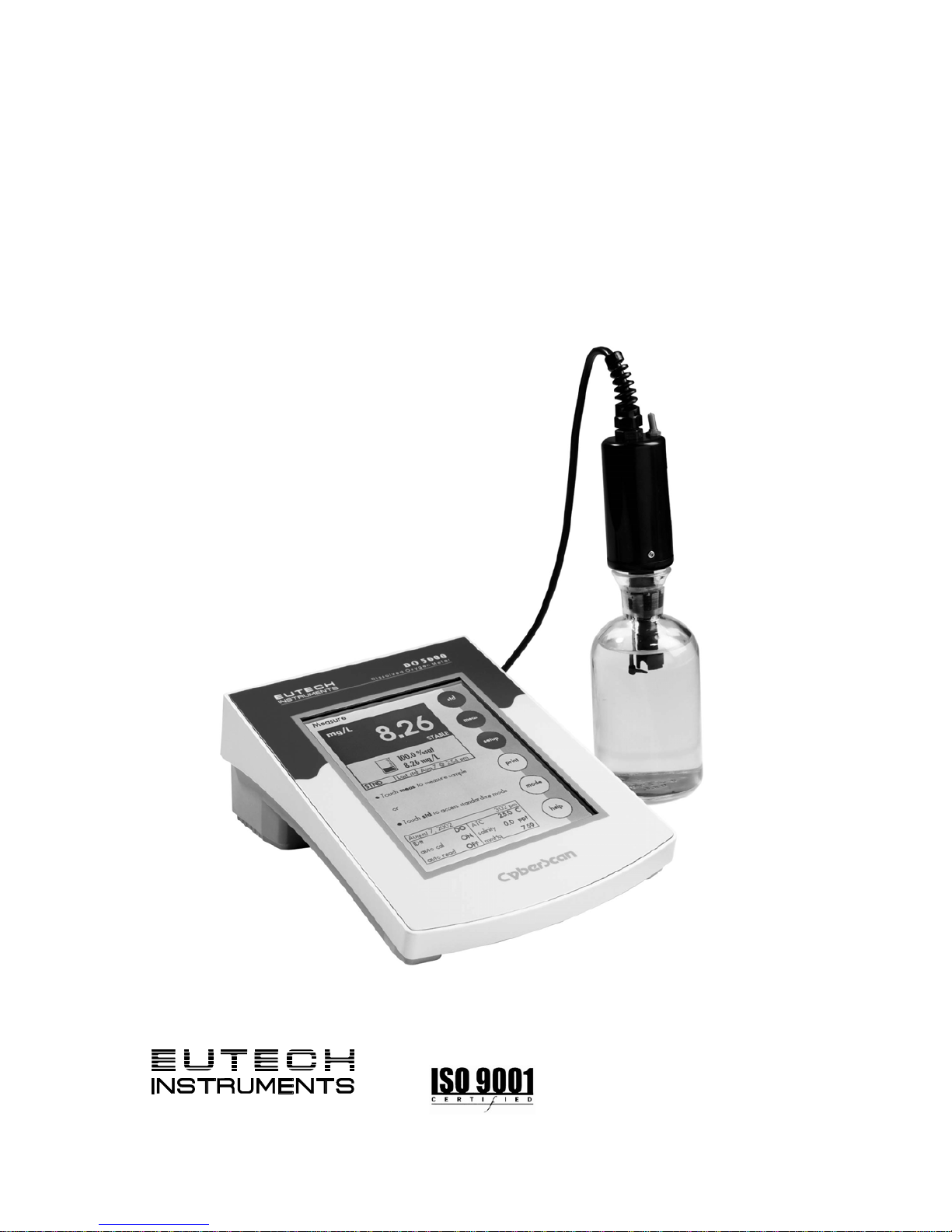

CyberScan DO 5000

Bench Dissolved Oxygen Meter

(Also Applicable for CyberScan PCD 5500)

Technolo

ade

68X292330

Rev. 2 07/03

PREFACE

Thank you for selecting the Eutech Instruments CyberScan DO 5000

bench meter. This meter measures dissolved oxygen and

temperature (°C/ °F).

This instruction manual serves to explain the use of the CyberScan

DO 5000 bench meter as a step-by-step operational guide to help

you familiarize with the meter’s features and functions. It is structured

sequentially with illustration of diagrams that explains the various

functions and setup menus available.

This manual is written to cover as many anticipated applications and

uses of the CyberScan DO 5000 Bench meter as possible. If there

are doubts in the use of the meter, please do not hesitate to contact

the nearest Eutech Instruments’ Authorized Distributors or call us at

(65) 6778-6876 for Eutech Instruments’ Customer Service Dept. for

assistance.

Kindly remember to complete the warranty card and mail it back to

your Authorized Distributors or Eutech Instruments Pte Ltd.

Eutech Instruments reserve the rights to change, make improvement

and modify specifications without prior notice and cannot accept any

responsibility for damage or malfunction to the instrument caused by

improper use.

Rev 2 07/03

TABLE OF CONTENTS

1INTRODUCTION 1

1.1 Introducing the CyberScan Series 1

2UNPACKING THE METER 3

3GETTING STARTED 4

3.1 Connectors 4

3.2 Dissolved Oxygen Probe 5

3.3 Touch Screen Operation 9

3.4 Button functions 10

4SYSTEM SETUP 12

4.1 Set Date 15

4.2 Set Time 17

4.3 Set Beeper Status 19

4.4 Set Print Configuration 21

4.4.1 Set Baud Rate 23

4.4.2 Set Number of Bits 24

4.4.3 Set Stop Bits 25

4.4.4 Set Parity 26

4.4.5 Set Serial Output Mode 27

4.5 Set Barcode Configuration 28

4.6 Set Operator 29

4.7 Set Display Contrast 31

4.8 Display Meter Information 33

4.9 Reset to Factory Defaults 34

5D.O. / BOD/ OUR/ SOUR SETUP 35

5.1 To Access Setup 36

5.2 Set Sample ID# 37

5.3 Select Calibration Mode 41

5.4 Select Auto Read Mode (Only available in D.O. mode) 42

5.5 Set Configurations for BOD/ OUR and SOUR 43

(Not applicable in D.O. mode) 43

5.6 Set Stability Criteria 45

5.7 Set Temperature Units 46

5.8 Set Measurement Units 47

5.9 Set the Salinity Value of Your Sample 48

5.10 Set Barometer 49

5.11 Set Alarm Limits 51

5.12 Set Print Criteria 53

5.13 Set Print Interval 55

5.14 Set Data Storage Criteria 57

5.15 Set Display Resolution 59

5.16 Set Display Configuration 61

5.17 View Stored Data 63

6D.O. OPERATION 67

6.1 DO Standardization 68

6.2 Biological Oxygen Demand (BOD) Measurement 76

6.3 Oxygen Uptake Rate (OUR) Measurement 88

6.4 Specific Oxygen Uptake Rates (SOUR) 90

7CLEANING 92

8TROUBLE SHOOTING 92

9DATA MANAGEMENT 93

10 DO FUNDAMENTALS 95

11 METER SPECIFICATIONS 96

12 ACCESSORIES 99

12.1 Replacement Meters and Accessories 99

12.2 Dissolved Oxygen / BOD Electrode 99

13 WARRANTY 100

Instruction Manual CyberScan DO5000

1 INTRODUCTION

1.1 Introducing the CyberScan Series

Thank you for selecting a Eutech Instruments CyberScan Bench

meter. This manual describes the operation of the CyberScan DO

5000 bench meter. The state-of-art meter that you have purchased is

easy to operate and will guide you through the various functions by

displaying easy to understand prompts. This instruction manual

should answer any questions that might arise in operating your meter,

however, do not hesitate to call our Technical Support at (65)

67786876 or fax at (65) 67730836.

The CyberScan DO 5000 bench meter provides microprocessor

precision in a compact benchtop design that is easy to use. One

touch screen controls all procedures, letting you:

Measure dissolved oxygen and temperature (°C/ °F)

Customise your display screen and operating parameters

Assign operator and sample identification numbers

Store 250 data points in the meter’s memory or transfer data to a

computer or printer.

Access extensive online help with just a touch a button

It all adds up to rapid, completely automatic, intuitive operation.



You will find this symbol appearing in this manual; it indicates useful

tips that ease your meter operation.

Instruction Manual CyberScan DO5000

2 UNPACKING THE METER

The following is a listing of what you should have received with your

new CyberScan DO 5000 meter.

Meter with kit includes

Meter

Power adapter (120 VAC/ 12VDC) OR (220 VAC/ 12 VDC)

depending on order code.

BOD Probe

Instruction Manual

If any of these items are missing, please contact your nearest

Authorized Distributor.

Accessory conductivity probes and ion selective electrodes are

available and can be ordered by contacting any Authorized

Distributor or Eutech Instruments Marketing (65) 67786876.

Instruction Manual CyberScan DO5000

3 GETTING STARTED

3.1 Connectors

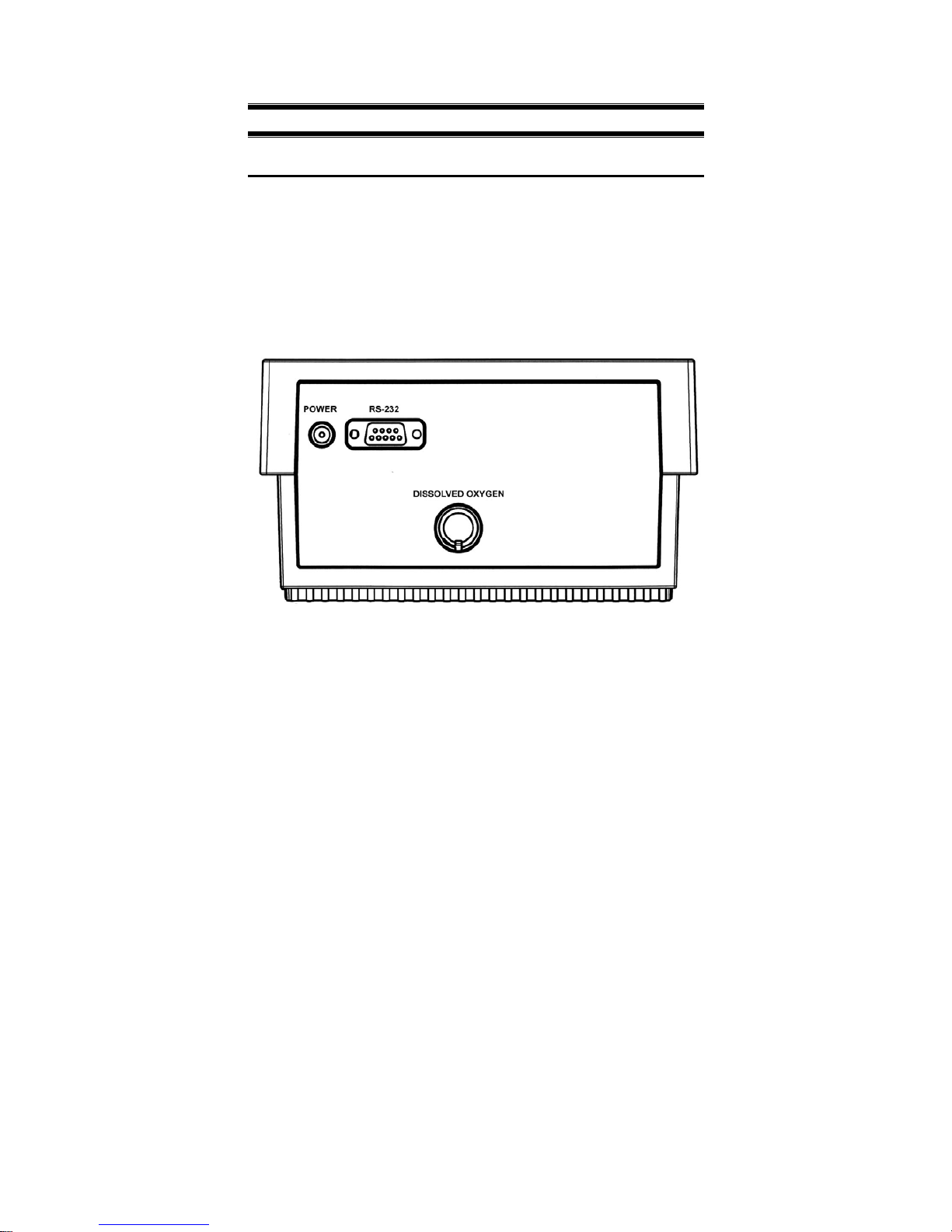

1. Review the layout and arrangement of the rear connector panel.

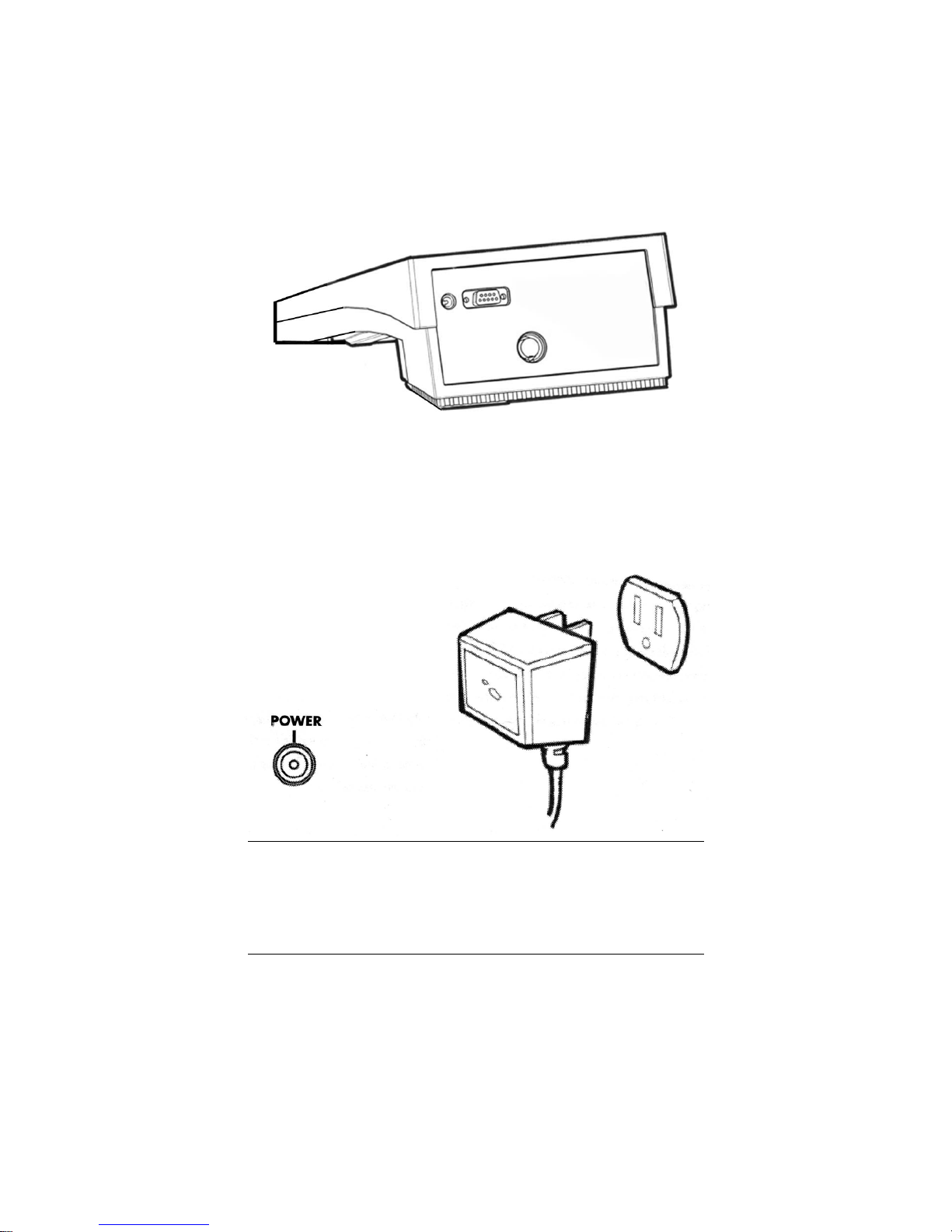

2. Connect the power cable to the rear connector panel power jack

and to a powers source.

Instruction Manual CyberScan DO5000

3.2 Dissolved Oxygen Probe

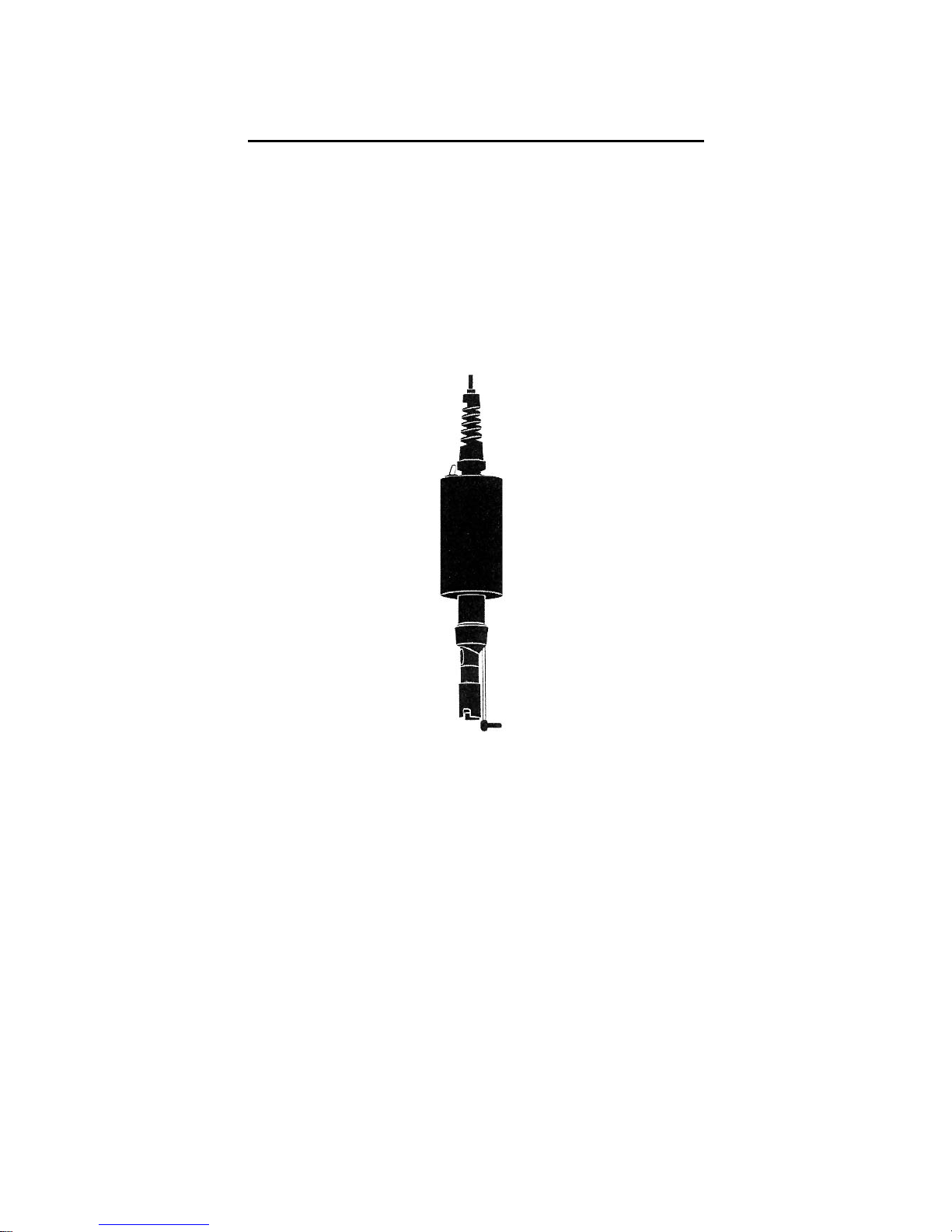

This meter is equipped to use the BOD probe.

1. Carefully review the instruction sheet accompanying the probe for

setup and conditioning information.

2. Connect the probe to the meter by plugging it into the DIN

connector on the back of the meter. Permit the probe to warm up

for 30 minutes.

3. Store the DO probe in a BOD bottle filled with 1 inch of water.

Instruction Manual CyberScan DO5000

1. Connect the electrode arm to the base.

2. Connect the power cable to the connector cable to the rear

connector panel power jack and to a power source.



To connect RS232, see Data Management on Section 9 below, page

93.

Instruction Manual CyberScan DO5000

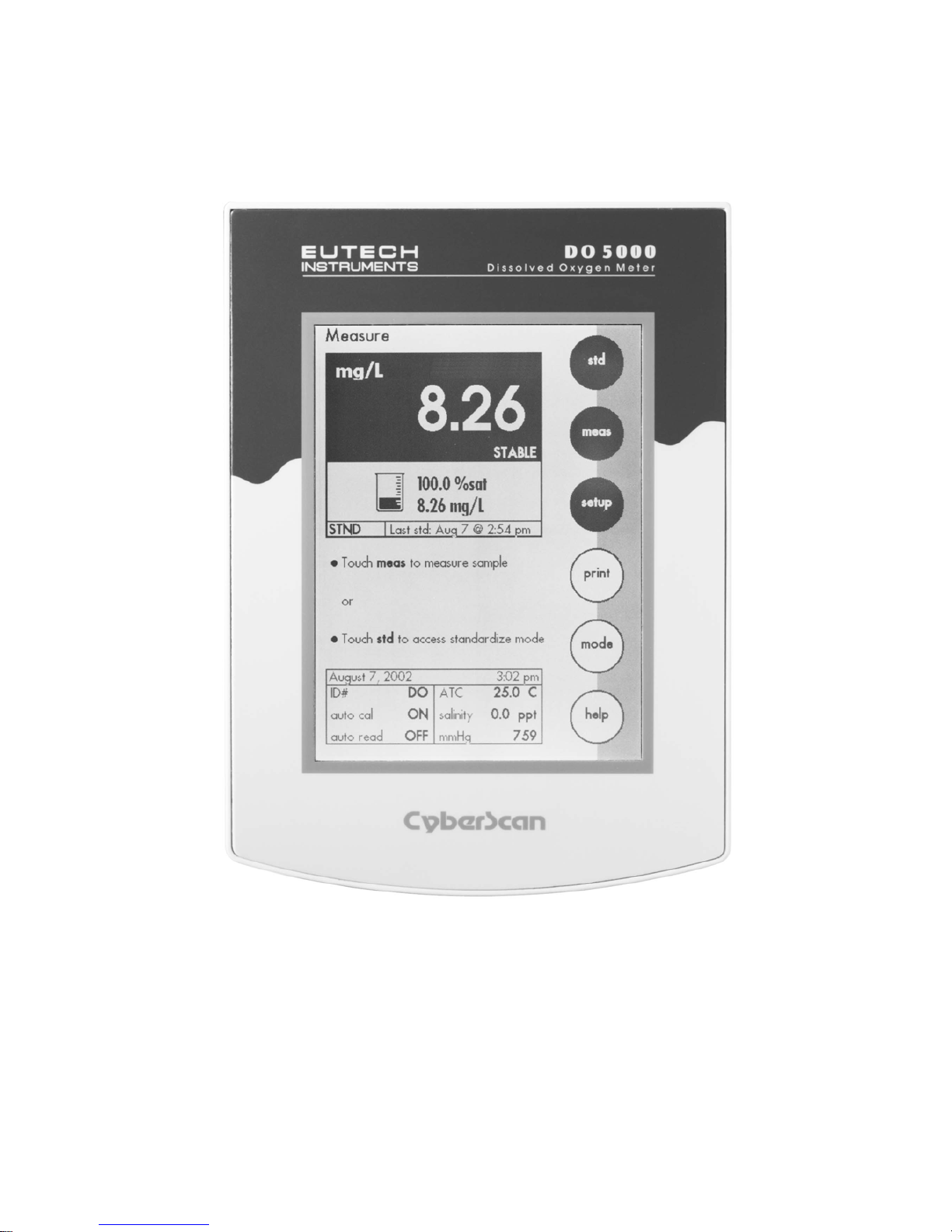

Standby screen

Touch anywhere to resume

E U T E C H

INSTRUMENTS

11:11 am
