EUTECH INSTRUMENTS PC 700 - REV 3 Bedienungsanleitung

Technolo

ade

Instruction Manual

PC 700 pH/mV/Conductivity/ºC/ºF

Bench Meter

Part of Thermo Fisher Scientific 68X541704 Rev 3 Nov. 2010

TABLE OF CONTENTS

1. INTRODUCTION.............................................................. 1

2. GETTING STARTED........................................................ 2

2.1 Keypad Functions ...................................................................2

2.2 LCD Annunciators...................................................................3

2.3 Meter Connections..................................................................3

3. CONDUCTIVITY ELECTRODE ....................................... 4

4. PH AND MV CALIBRATION............................................ 4

4.1 pH Calibration .........................................................................4

4.2 Millivolt (mV) Offset Adjustment..............................................6

5. CONDUCTIVITY AND TDS CALIBRATION.................... 6

5.1 Automatic or Manual Calibration.............................................6

5.2 Single or Multi-Point Calibration..............................................7

5.3 General Calibration Tips .........................................................8

5.4 Automatic Conductivity Calibration Procedure........................8

5.5 Manual Conductivity & TDS Calibration Procedure.................9

5.6 Temperature Calibration .........................................................9

6. CONDUCTIVITY AND TDS MEASUREMENT ................ 10

6.1 Taking Measurements.............................................................10

6.2 Automatic and Manual Ranging..............................................10

7. HOLD FUNCTION............................................................ 11

8. STORING AND RECALLING DATA ............................... 11

9. SETUP FUNCTIONS........................................................ 12

9.1 1.0 CAL (Calibration)...............................................................12

9.2 2.0 ELE (Electrode Information)..............................................12

9.3 3.0 ConF (Configuration).........................................................13

9.4 3.1 rdY (Ready / Stability Indicator).........................................13

9.5 3.2 ºC ºF (Celsius or Fahrenheit) ............................................13

9.6 3.3 buFF (pH Buffers & Calibration Points)—pH only .............13

9.7 3.3 AtC (Auto Temp Compensation)—Con & TDS only..........14

9.8 3.4 tdS (TDS factor)—Con & TDS only...................................14

9.9 3.5 t.CO (Temperature Coefficient)—Con & TDS only............14

9.10 3.6 t.nr (Normalization Temperature in ºC)—Con & TDS only 15

9.11 3.7 ACAL (Auto Conductivity Calibration)—Con & TDS only..15

9.12 3.8 SPC (Single Point Calibration)—Con & TDS only.............15

9.13 3.9 CELL (Nominal Cell Constant)—Con & TDS only.............15

9.14 4.0 rSt (Reset).........................................................................16

9.15 5.0 CLr (Clear Memory) ..........................................................16

10. CALCULATING TDS CONVERSION FACTOR.............. 17

11. CALCULATING TEMPERATURE COEFFICIENTS........ 18

12. REPLACEMENTS AND ACCESSORIES........................ 19

13. TROUBLESHOOTING GUIDE......................................... 20

14. SPECIFICATIONS............................................................ 22

15. WARRANTY..................................................................... 24

16. RETURN OF ITEMS......................................................... 25

1. INTRODUCTION

Thank you for purchasing our PC 700 series benchtop meter.

This microprocessor-based meter is economical and simple to

use. The design incorporates a large LCD for clear viewing, yet

offers a small footprint to conserve space.

The PC 700 measures pH, mV (ORP), conductivity, or TDS

simultaneously with temperature (ºC or ºF).

Each meter includes a convenient slide-out card for quick

reference. Also included is an electrode arm and metal bracket

which can be easily attached to the left or right side of the meter

according to your preference.

The PC 700 benchtop meter replaces our popular pH/CON 510

series meter that was introduced in 2000.

We take great pride in every instrument we manufacture

and hope this one serves you well.

2. GETTING STARTED

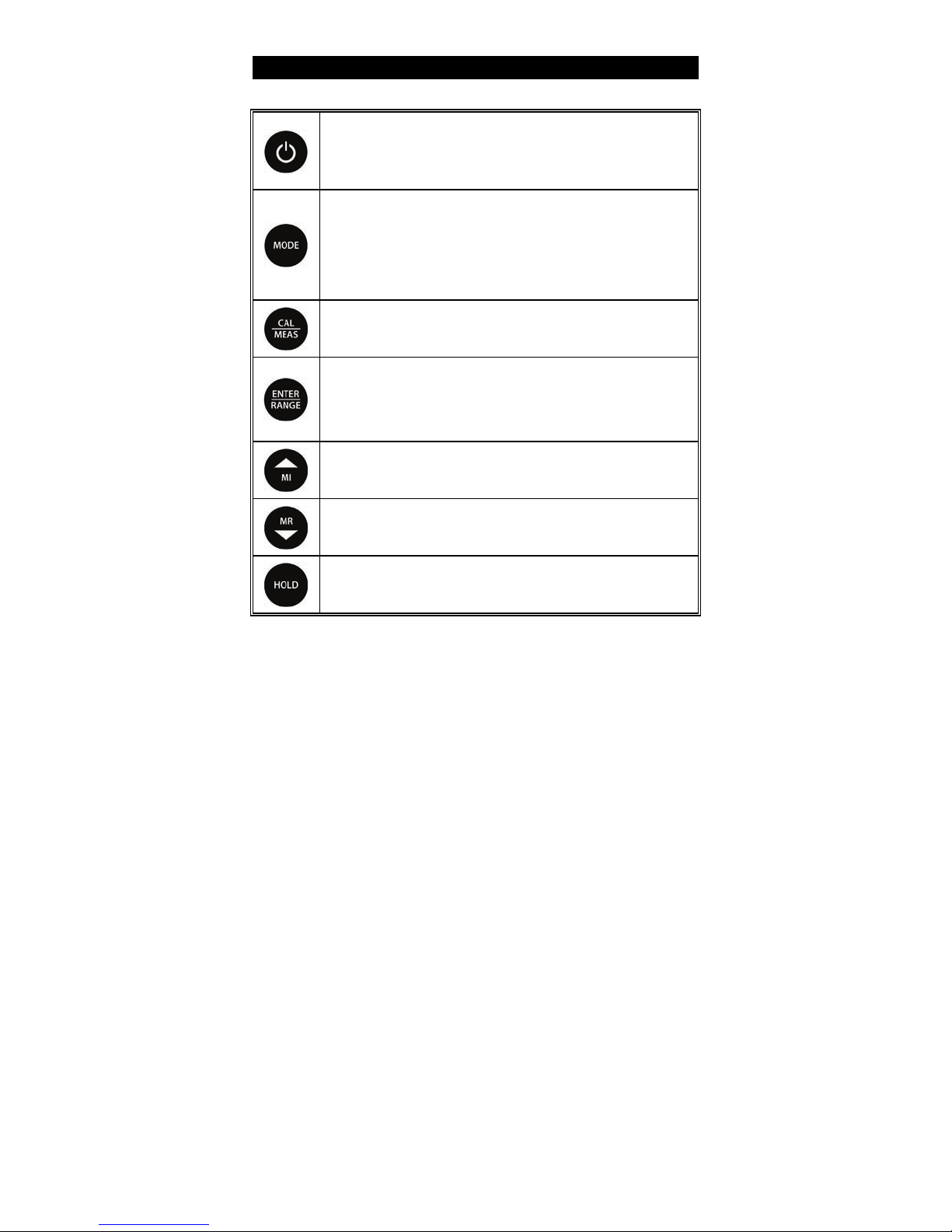

2.1 Keypad Functions

Powers the meter on and off. Upon power on, the meter

automatically begins in the mode that was last used.

Calibration and memory values are retained even if meter

is unplugged.

Toggle between available measurement modes—

pH/Temp, mV/Temp, Conductivity/Temp, or TDS/Temp.

Also used to switch to Temperature calibration during pH,

mV, Conductivity or TDS calibration modes.

Press and hold for 5 seconds to enter SETUP mode.

Toggles between measurement and calibration modes.

In SETUP mode, returns user to the measurement mode.

Confirms calibration values in CAL mode.

Confirms selections in SETUP mode.

Changes Con/TDS range and resolution in MEAS mode.

View recalled values in memory mode.

MI (Memory Insert) stores values into memory.

SIncrease value. Scroll up in SETUP & CAL modes.

MR (Memory Recall) recalls values from memory

TDecrease value. Scroll down in SETUP & CAL modes.

Freezes measured reading. Press again to resume

live reading.

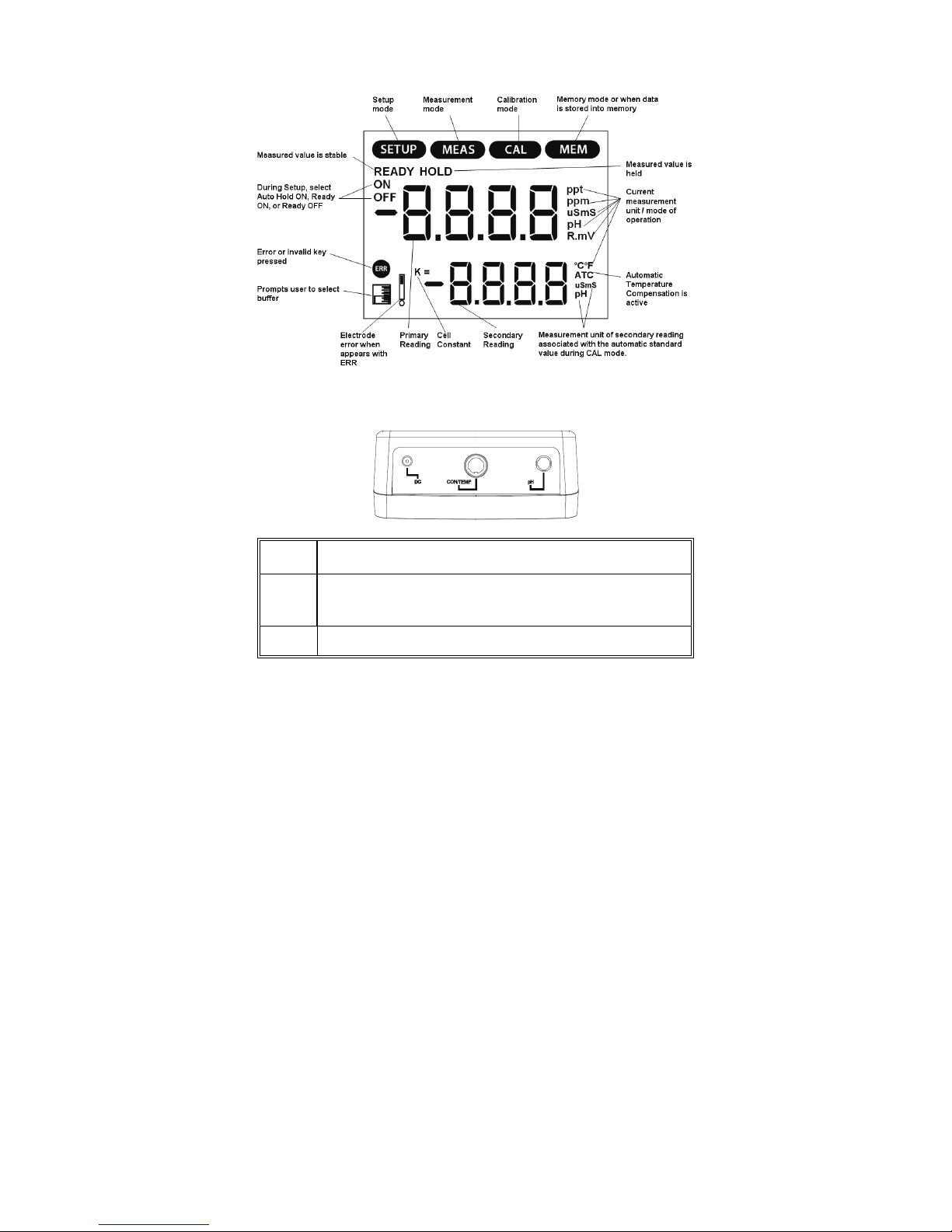

2.2 LCD Annunciators

2.3 Meter Connections

DC Power supply

CON/

TEMP 8-pin DIN connection for 2-cell Con/TDS/Temp electrode

pH BNC connection for pH, or ORP (Redox) electrode

3. CONDUCTIVITY ELECTRODE

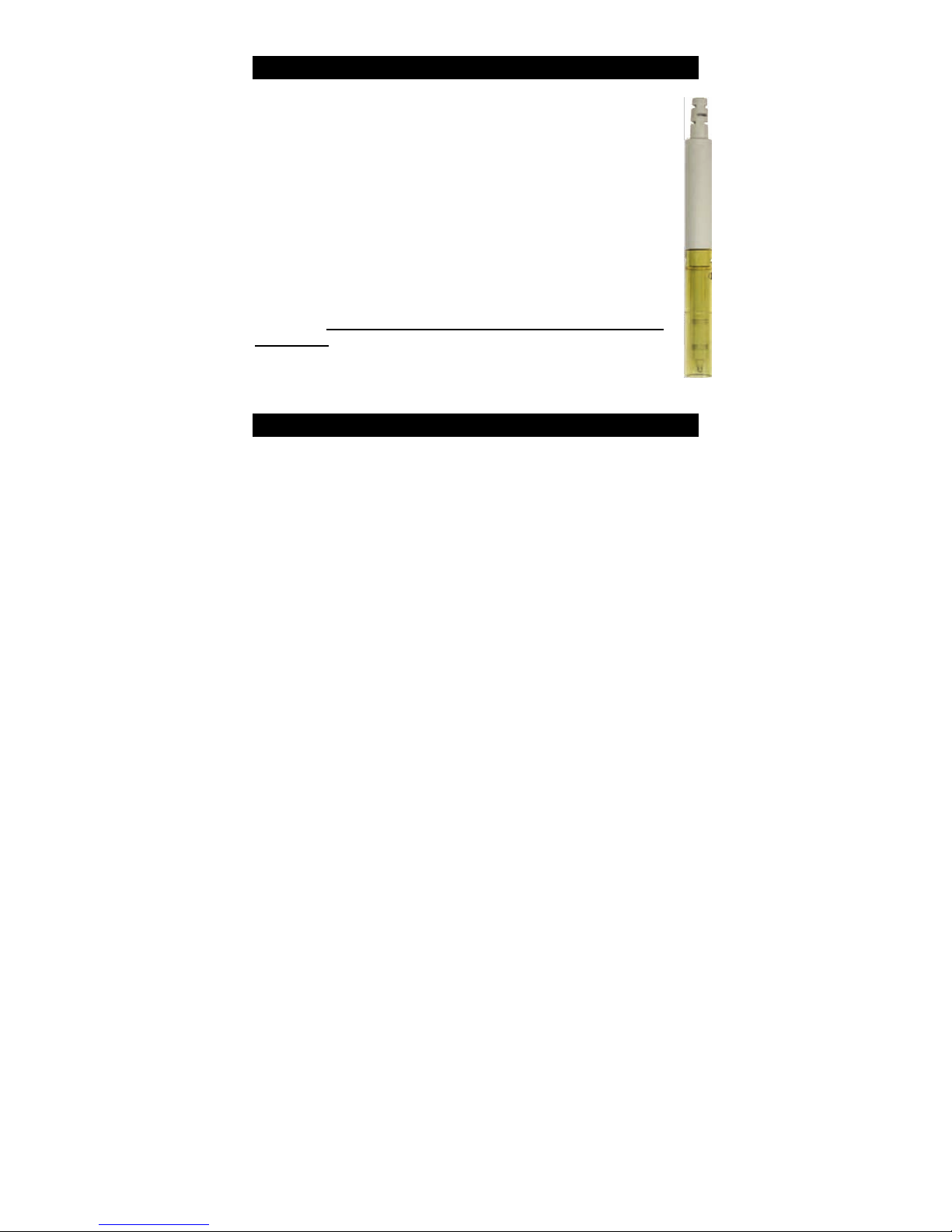

The PC 700 includes an electrode with a nominal cell constant of k

= 1.0, built-in temperature sensor, and 1 meter cable. The Ultem

body housing has good chemical resistant properties. The

electrode design offers fast temperature response and reduces air

entrapment, ensuring accurate, repeatable, and stable readings.

The wetted materials of the probe include:

•Polyetherimide (Ultem) – protective probe guard

•Polybutylterphalate (Valox) – sensor housing

•Stainless Steel (SS 304) – 2 bands

The protective probe guard can be removed temporarily for

cleaning however it must be re-attached during measurement and

calibration. Erroneous results will occur while the probe guard

is removed.

Always immerse the probe beyond upper steel band for best

results. Use the fill line on the outside of the probe guard for

reference.

4. PH AND MV CALIBRATION

4.1 pH Calibration

For best results, periodic calibration with known accurate standards is

recommended. Calibrate with standards that bracket your intended

measuring range while including a neutral standard (pH 7.00 or 6.86).

For example, if you expect to measure samples from pH 6.2 to pH 9.5,

calibration with 4.01, 7.00, and 10.01 will work well.

The PC 700 meter can be calibrated with up to 5 buffers. The

non-volatile memory retains all calibration values upon meter shut

down.

The following calibration standards are automatically recognized;

See Section 9.6 to change the buffer group

1) Press as needed to select pH.

2) Dip the pH and ATC electrodes into pH buffer and press . The

secondary display will lock on the appropriate buffer value. Provide

stirring for best results. When the READY indicator appears, press

to accept. The primary reading will flash briefly before the

secondary display begins scrolling the remaining available buffers.

3) Rinse the pH and ATC electrodes then dip into the next pH buffer.

The secondary display will lock on the appropriate buffer value.

When the READY indicator appears, press to accept. The

primary reading will flash briefly then display the percent efficiency

(slope) before the secondary display begins scrolling the remaining

available buffers.

4) To calibrate another buffer repeat step 3) or press to return to

the measurement mode. Note: The meter will automatically return

to measurement mode upon successful completion of the number of

specified calibration points. To specify a different number of pH

calibration points see Section 9.6.

TIPS: A single point (offset) calibration is only allowed with pH 7.00 or

pH 6.86 buffers.

When the first calibration value is accepted during a new calibration,

all prior calibration values are erased.

Press at any time to abort calibration and return to measurement

mode.

USA buffer group 1.68, 4.01, 7.00, 10.01, 12.45

NIST buffer group 1.68, 4.01, 6.86, 9.18, 12.45

4.2 Millivolt (mV) Offset Adjustment

Oxidization Reduction Potential (ORP or Redox) is not a precise

measurement, but is useful as a relative indicator. As such, mV offset

adjustment is not meant to enhance accuracy, but rather to make

readings comparable to a reference. Commercial ORP solutions are

often used as a check standard in which a meter/electrode system are

verified to be close to a given value, instead of being used as a

calibration standard in which adjustments are made in an attempt to

match the ORP value.

1) Connect an ORP electrode and press as needed to select mV

(or R.mV).

2) Dip the ORP electrode into a solution with a known mV value

(i.e. Zobel, Light’s, quinhydrone, or iodidetriiodide) and stir.

3) Press when the reading is stable. The primary display shows

the relative millivolt value (R.mV) while the secondary display shows

the factory default mV value.

4) Adjust the R.mV value using or . Press to accept or

to cancel. The meter allows an adjustable maximum value of ±

150 mV from the factory default mV value.

Note: When an offset has been stored successfully, R.mV replaces

mV.

5. CONDUCTIVITY AND TDS CALIBRATION

5.1 Automatic or Manual Calibration

The PC 700 is capable of automatic or manual calibration for

conductivity, and manual calibration for TDS.

In the automatic calibration mode, the meter will automatically select

one of (4) conductivity calibration standard values depending on the

range and normalization temperature being used (TABLE 1).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere EUTECH INSTRUMENTS Messgerät Handbücher

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN TB 1000 TURBIDITY METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS POTASSIUM EPOXY Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS PC 700 Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ?lpha-CON550 Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF CYBERSCAN DO 300 DISSOLVED OXYGEN... Montageanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF EC Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS TURBIDIMETER TN-100 WATERPROOF PORTABLE... Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH ION 510 PH ION BENCH METER Montageanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ECOSCAN SALT 6 METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF CYBERSCAN DO 300 DISSOLVED OXYGEN... Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS STANDARD TDSCAN 2 TDS TESTER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN CON 1500 CONDUCTIVITY METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ION 700 - REV 3 Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH 10 PHMV METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH 10002500 PHION METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ECOSCAN CON TDS 5 CONDUCTIVITY PORTABLE... Montageanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH 110 PHMVRS232 METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH 1500 PHION METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF PHTESTR 1 PH TESTER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PC 5000 PHCONDUCTIVITY METER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CyberScan PCD 650 Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF PHTESTR 2 PH TESTER Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF PHTESTER 102030BNC Bedienungsanleitung

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS STANDARD PHSCAN 2 PH TESTER Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
