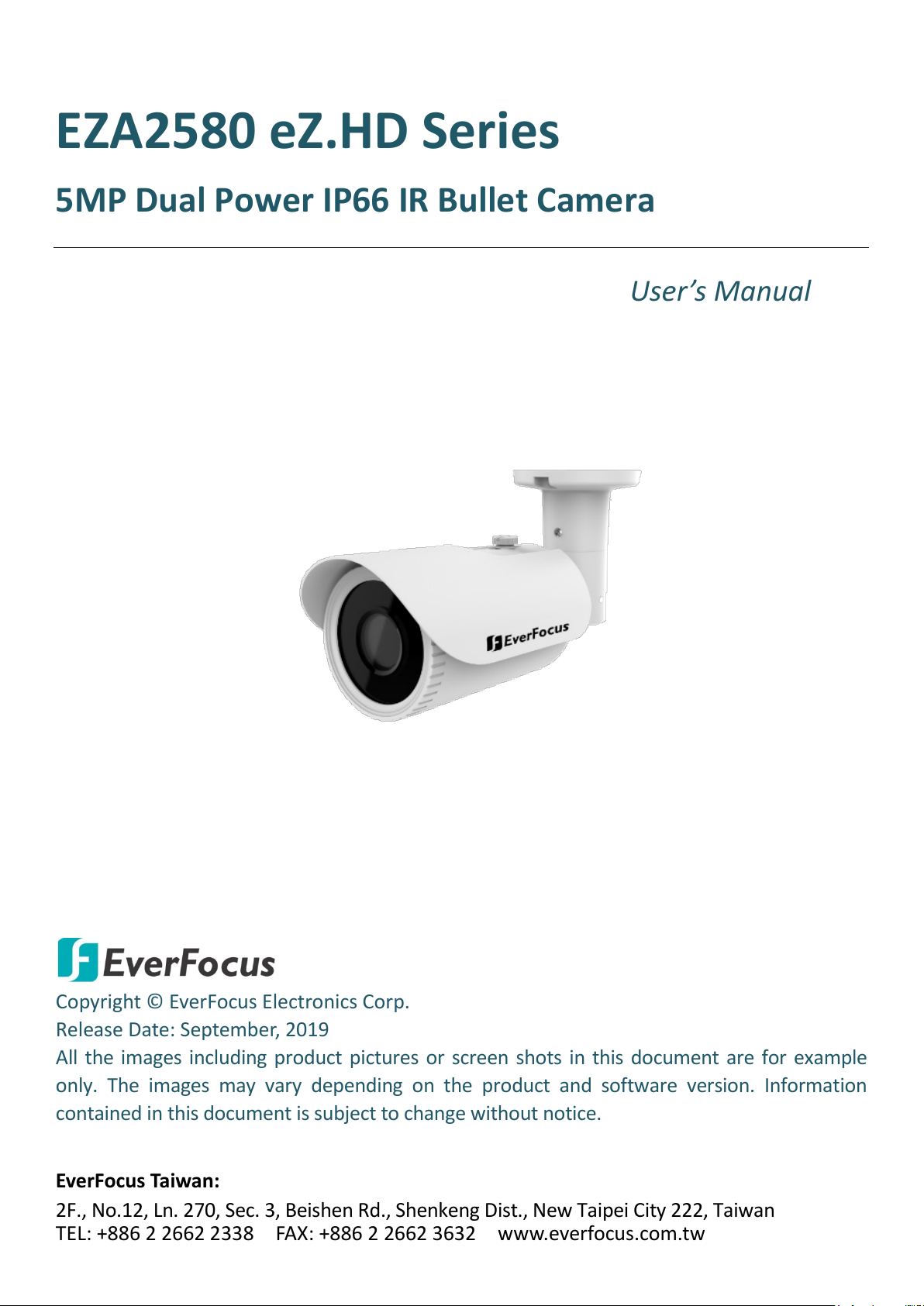

EverFocus EZA2580 eZ.HD Series Bedienungsanleitung

EZA2580 eZ.HD Series

5MP Dual Power IP66 IR Bullet Camera

User’s Manual

Release Date: September, 2019

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

All manuals and user guides at all-guides.com

1. Introduction

Equipped with a Sony STARVIS CMOS sensor, the EZA2580 deliver 5MP image

quality. The model provides 2.8-12mm lens with ICR. Featured with True Wide

Dynamic Range (T-WDR), the camera can provide clear images even under

backlight circumstances where intensity of illumination can vary excessively.

The EZA2580 supports dual power (12VDC / 24VAC, depends on model) and

supports both NTSC and PAL scanning systems.

1.1 Packing List

Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1

Screw & Screw Anchor x 3

User Manual x 1

1.2 Features

5MP Sony STARVIS CMOS sensor, delivering amazing high sensitivity

Varifocal 2.8-12mm with ICR to capture the desired field of view

Extended IR range of up to 40m / 131ft. with 4 LEDs (depends on scene

IR reflectivity)

T-WDR to improve the visibility under high contrast scene

3-Axis rotation design allows wall or ceiling mounting

IP66-rated with metal housing

Supports dual power (12VDC / 24VAC, depends on model)

Supports UTC function: Control camera OSD settings directly from DVR

end

1.3 Dimensions

128mm / 5"

280mm / 11"

91.5mm /3.6"

84mm / 3.31"

All manuals and user guides at all-guides.com

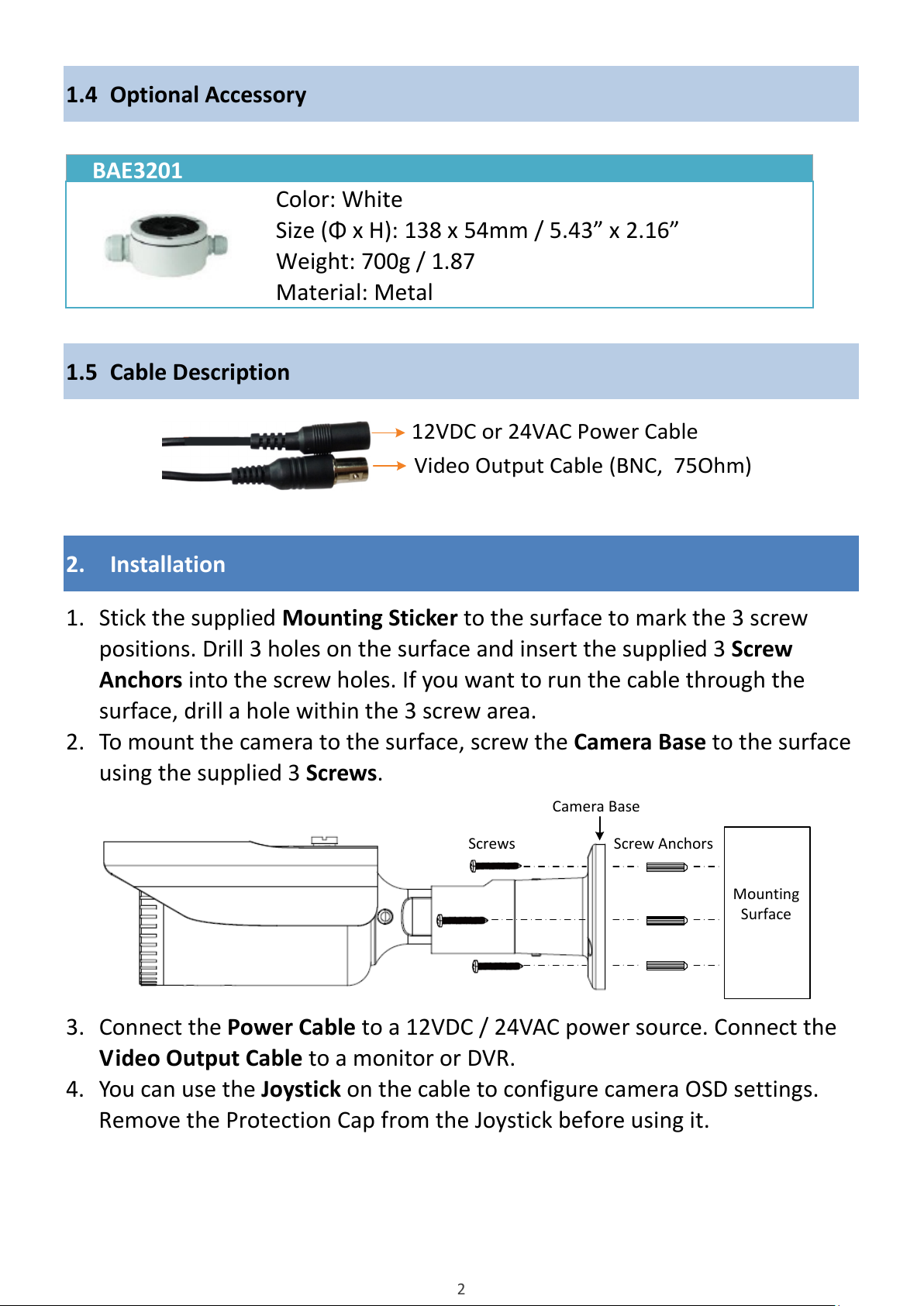

1.4 Optional Accessory

BAE3201

Color: White

Size (Φ x H): 138 x 54mm / 5.43” x 2.16”

Weight: 700g / 1.87

Material: Metal

1.5 Cable Description

12VDC or 24VAC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw

positions. Drill 3 holes on the surface and insert the supplied 3 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 3 screw area.

2. To mount the camera to the surface, screw the Camera Base to the surface

using the supplied 3 Screws.

Mounting

Surface

Screws Screw Anchors

Camera Base

3. Connect the Power Cable to a 12VDC / 24VAC power source. Connect the

Video Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings.

Remove the Protection Cap from the Joystick before using it.

All manuals and user guides at all-guides.com

Configuring OSD Settings:

•Push the Joystick up / down to select among

menu items.

•Push the Joystick left / right to adjust the level

of the selected item.

•Press the Joystick to enter the submenu or

exit the OSD Setup Menu.

5. For the first time installation, check whether the camera is properly

focused. If not, you can manually adjust camera Zoom or Focus using the

supplied L-Type Wrench. You can find the Zoom and Focus nuts on the

bottom of the camera.

6. You can optionally adjust camera angles. To do so, loosen the Tilt Screw or

Rotate Screw on the bracket using the supplied L-Type Wrench to adjust

camera angles. After adjusting camera angles, tightly screw back the

Tilt/Rotate screws.

Tilt Screw

Rotate Screw

All manuals and user guides at all-guides.com

3. Configuration in the OSD Menu

Main

Sub Menu

Sub Menu / Function

1 Edge Det On

Level

0-10

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

Off

2 Exposure

Brightness

0-20

Shutter

Auto

Mode

Normal / Deblur

Manual Speed

1/30, 1/60, 1/120, 1/250,

1/500, 1/1000, 1/2000,

1/4000, 1/8000, 1/15000,

1/30000

Flicker

Sens-Up

X2, x4, x8, x16, x32, Off

AGC

0-10

3 Backlight

HLC

Level

0-20

Color

YEL, CYN, GRN, MAG, RED, BLU, BLK,

WHT

BLC

H-POS

0-26

V-POS

0-32

H-SIZE

0-26

V-SIZE

0-32

WDR

WDR Mode

Frame, Line

ROI Mode

Box

Window Zone

0-3

Window Use

On, Off

H-POS

0-2608

V-POS

0-1960

H-SIZE

0-2608

V-SIZE

0-1960

Polygon

Window Zone

0-3

Window Use

On, Off

POS0-X

0-721

POS0-Y

0-535

POS1-X

0-721

POS1-Y

0-535

POS2-X

0-721

POS2-Y

0-535

POS3-X

0-721

POS3-Y

0-535

Off

Weight

High, Middle, Low

Off

4 Day/Night Mode

Auto

IR LED

Adaptive, Off

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Color

B/W

IR LED

Adaptive, Off

All manuals and user guides at all-guides.com

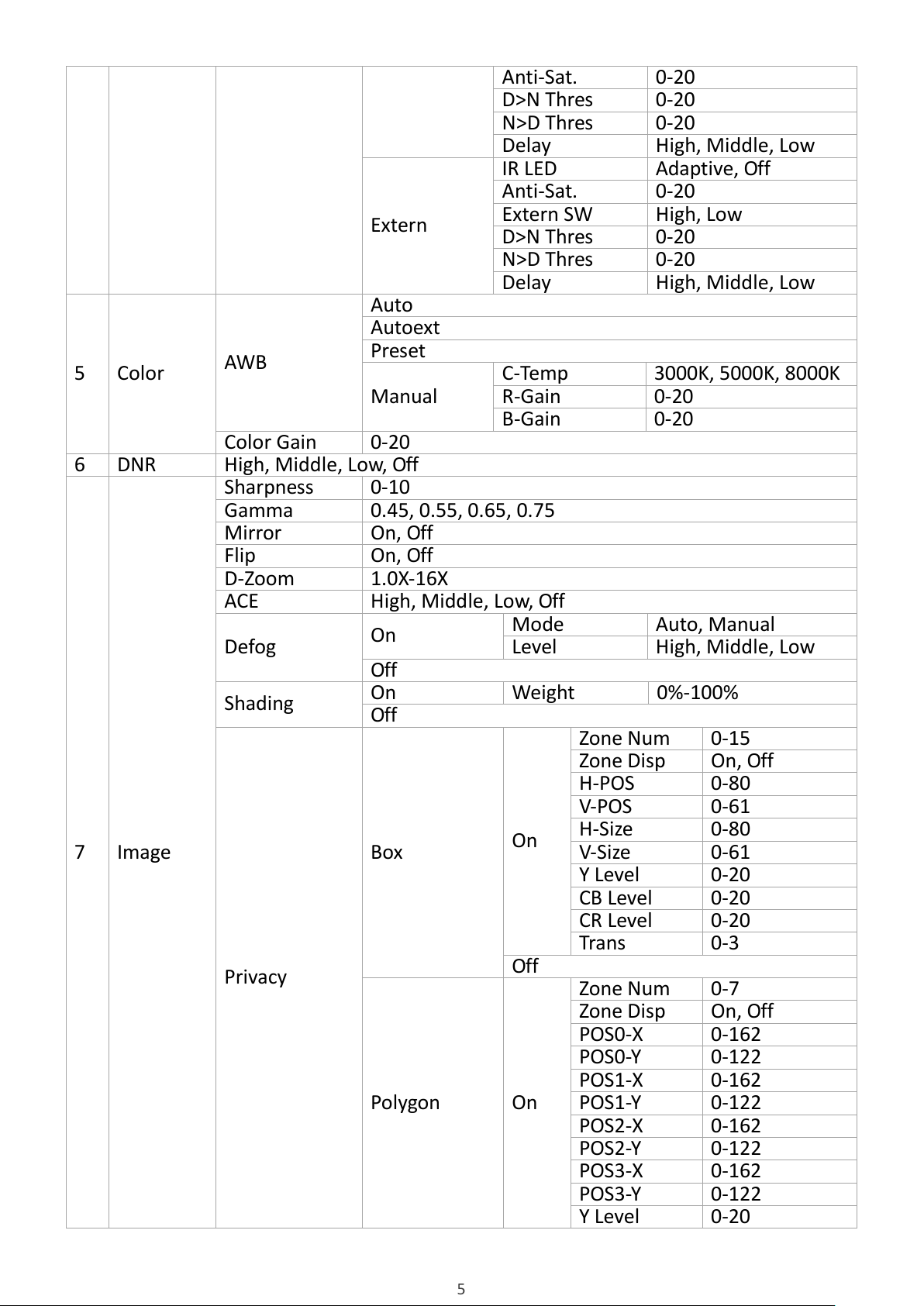

Anti-Sat.

0-20

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

Extern

IR LED

Adaptive, Off

Anti-Sat.

0-20

Extern SW

High, Low

D>N Thres

0-20

N>D Thres

0-20

Delay

High, Middle, Low

5 Color AWB

Auto

Autoext

Preset

Manual

C-Temp

3000K, 5000K, 8000K

R-Gain

0-20

B-Gain

0-20

Color Gain

0-20

DNR

High, Middle, Low, Off

7 Image

Sharpness

0-10

Gamma

0.45, 0.55, 0.65, 0.75

Mirror

On, Off

Flip

On, Off

D-Zoom

1.0X-16X

ACE

High, Middle, Low, Off

Defog On

Mode

Auto, Manual

Level

High, Middle, Low

Off

Shading

Weight

0%-100%

Off

Privacy

Box On

Zone Num

0-15

Zone Disp

On, Off

H-POS

0-80

V-POS

0-61

H-Size

0-80

V-Size

0-61

Y Level

0-20

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

Polygon On

Zone Num

0-7

Zone Disp

On, Off

POS0-X

0-162

POS0-Y

0-122

POS1-X

0-162

POS1-Y

0-122

POS2-X

0-162

POS2-Y

0-122

POS3-X

0-162

POS3-Y

0-122

Y Level

0-20

All manuals and user guides at all-guides.com

CB Level

0-20

CR Level

0-20

Trans

0-3

Off

8 Motion On

Det Window

Window Use

0-3

Window Zone

On, Off

Det H-POS

0-80

Det V-POS

0-60

Det H-Size

0-80

Det V-Size

0-60

Sensitivity

0-10

Motion OSD

On, Off

Text Alarm

On, Off

Signal Out

On, Off

Off

9 System

Output

Frame Rate

4K/15fps, 4MP/30fps, 1080p/30fps,

5MP/12.5fps, 5MP/20fps, 4MP/15fps

Freq

60Hz, 50Hz

Analog Mode

AHD, TVI, CVI, CVBS

Confirm

Yes

Return

Exit

Image Range

Full

Comp

User

Offset

0-32

Color Space

HD-CbCr, SD-CbCr, YUV

Audio Mic

Not supported

Color Bar

On, Off

Language

ENG, CHN, CHN(S), JPN, KOR, POR, ESP

Cam Title

Left-Down

Right-Up

Off

Reset

Exit
