EverFocus EZN2550-SG Bedienungsanleitung

Value IP Series Network Camera

EZN2550-SG, EHZ2550-SG, H265, IR, WDR

Quick Installation Guide

EHN2550-SG

EZN2550-SG

Release Date: June, 2021

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained in

this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., ShenkengDist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

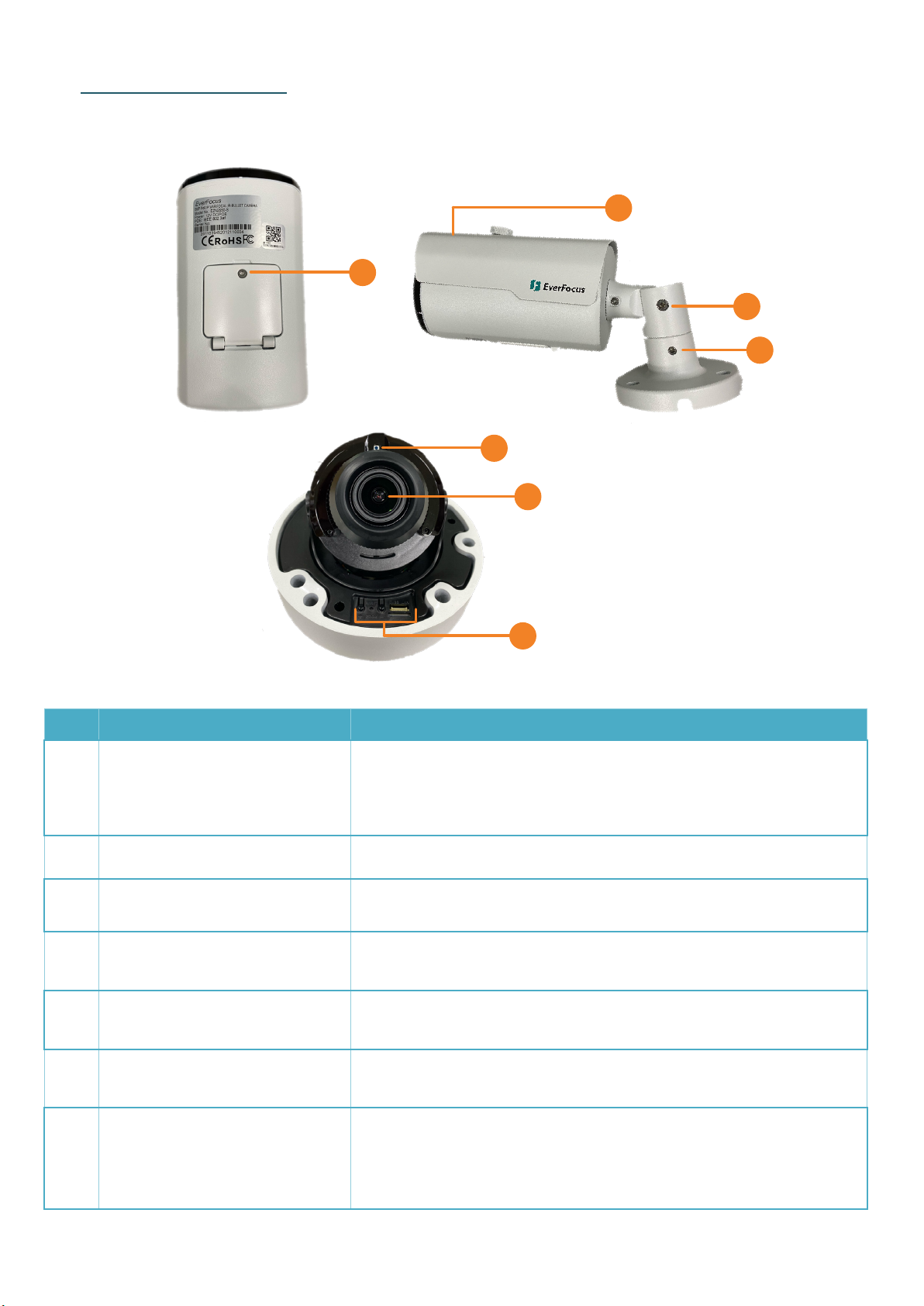

1. Physical Description

No.

Item Name

Descriptions

Reset Button

/ Micro SD Card Slot

/CVBS Lan / Zoom in &

out

Use the supplied Hexagon Wrench to loosen the

screws to access the Reset Button, Micro SD slot,

CVBS Lan (this function is currently reserved),

and Zoom In & Out.

2 Sunshield Protect the camera from the direct sun rays.

3 Tilt Screw

Use the supplied Hexagon Wrench to loosen the

Tilt Screw.

4 Pan Screw

Use the supplied Hexagon Wrench to loosen the

Pan Screw.

5 Light Sensor Detects lights.

6 Lens Camera lens.

Reset Button

/ Micro SD Card Slot

/CVBS Lan / Zoom in &

out

To access the Reset Button, Micro SD slot, CVBS

Lan (this function is currently reserved), and

Zoom In & Out.

Dimensions

EZN2550-SG

EHN2550-SG

Packing List

Please check that there is no missing items in the package before installing.

EZN2550-SG

EHN2550-SG

1. Camera x 1

2. Cable Gland Kit x 1

3. Screw x 3

4. Screw Anchor x 3

5. Hexagon Wrench x 2

6. Quick Installation Guide x 1

7. Installation Sticker x 1

1. Camera x 1

2. Cable Gland Kit x 1

3. Screw x 4

4. Screw Anchor x 4

5. Torx Wrench x 1

6. Quick Installation Guide x 1

7. Installation Sticker x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please

consult your local EverFocus office or agents for more information. Please

also keep the shipping carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the

shipping process.

Optional Accessory

You can go to the product page on EverFocus’ website to check the related

optional accessories.www.everfocus.com.tw

2. Cables

The cables of the EZN & EHN Series provide connections for network, power,

audio input / output, and alarm input / output.

Alarm Input / Output

LAN / PoE Cable

12VDC Power Input

Audio Output

Audio Input

Alarm IO PIN Assignment

Alarm In

GND

COM

Alarm Out

Reset Button

The Reset Button can be used to restore the camera to factory default. When

the camera is powered up, press the Reset Button about 10 seconds to reboot

the camera.

EZN2550-SG

EHN2550-SG

3. Installation

3.1 EZN2550-SG

1. Drill three holes on the surface according to the screw positions on the

Camera Base. Push the supplied 3 Screw Anchors into the holes. Drill another

hole in the middle within the 3 screw holes if you wish to run the wires into

the surface. Screw the camera to surface using the supplied 3 Screws.

Mounting Screws

Screw Anchors

2. Adjust the pan/tilt/rotate angles of the camera by loosen the Pan/Tilt screws

using the supplied Hexagon Wrench.

Tilt Screw

Pan Screw

3. Connect the camera to power. You can either connect the camera to a 12VDC

power source or to a PoE switch using the PoE cable.

4. Connect the camera to the network using the supplied Cable Gland Kit.

a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end)

through the supplied Waterproof Ring, Cable Gland, Stopper and Screw

Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45

Connector Cable.

Screw Cap

Cable Gland

d. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the

wires should be placed into the RJ-45 connector based on the following

order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

5. Optionally insert a Micro SD card into the card slot (please refer to No.1 in 1.

Physical Description).

6. Now you can access the camera live view. See 4. Accessing the Camera.

3.2 EHN2550-SG

1. Stick the supplied Mounting Sticker on the surface to mark the 4 screw

positions. Drill the 4 screw-depth holes on the surface and then push the

supplied 4 Screw Anchors into the screw holes. Optionally drill the bottom 2

Cable Holes if you want to run the cables through the surface.

Screw Position x 4

Optionally drill the 2 Cable Holes if

you want to run the cables through

the surface.

2. Remove the camera cover by unscrewing the 3 cover screws using the

supplied Torx Wrench (Left Image). Screw the camera base to the surface

using the supplied 4 Screws (Right Image).

3. Optionally insert a micro SD card into the card slot (please refer to No.7 in 1.

Physical Description).

4. Adjust the pan / tilt / rotate angles of the camera.

5. Connect the camera to power. You can either connect the camera to a 12VDC

power source or to a PoE switch using the PoE cable.

6. Connect the camera to the network using the supplied Cable Gland Kit.

a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end)

through the supplied Waterproof Ring, Cable Gland, Stopper and Screw

Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45

Connector Cable.

Screw Cap

Cable Gland

d. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the

wires should be placed into the RJ-45 connector based on the following

order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

7. Now you can access the camera live view. See 4. Accessing the Camera.

4. Accessing the Camera

You can look up the IP address of the IP camera using the IP Utility (IPU)

program from EverFocus website (key word search: "IP Utility").

The default network is DHCP. However, if there is no dynamic IP address

assigned to the device, its IP will switch to 192.168.0.10. By default, the ID is

admin and there is no password. Please input a password for the first-time login.
