Ewheels EW-27 Bedienungsanleitung

EW-27

Crossover Pre-Mobility Scooter

Owner’s Manual

Before you operate the scooter

www.ewheelsdealers.com

(888) 305-0881 Customer Service

(888) 571-2845 Service

Locate the below listed materials in rear basket:

Set of mirrors

Electric charger

Scooter Key (Located inside charger box)

Owner’s manual

IT IS VERY IMPORTANT TO READ OWNER’S MANUAL BEFORE SCOOTER OPERATION

Scooter Initial Operation

Operate in speed 1 –Everyday use

Read Owner’s manual

Insert key into ignition (turn key clockwise)

Set variable speed button to lowest setting (Speed 1)

Headlight and rear light will activate when ignition key is turned.

oTurn Key 1 times power

oTurn Key 2 times lights

Adjust mirrors to desired positions

Place both hands on black hand grips

Twist the throttle slowly with your right hand

Enjoy the ride!

Turn off scooter by simply turning key to off counter clockwise.

Only operate scooter on flat level surfaces.

Technical Specifications

Model

EW-27 Crossover Pre-Mobility

Weight Capacity

350Lbs.

Speed:

Up to 15mph

Distance:

35 miles per charge (distance varies on terrain, riders weight, and

road surface etc.)

Front Seat: Type

Rider seat with back rest

Front seat: Size

13”x9”x4” Backrest 8”

Front Seat:

31” From Ground

Rear Seat: Type

2nd Rider seat with back rest

Rear Seat: Size

14”x10”x7” Backrest 16”

Steering Height

38”from Ground

Rear Foot Rest:

Folding foot rest for 2nd rider

Turning Radius:

45”

Basket Dimensions (Front):

12”x12”x9” (LxWxH)

Power:

Electric

Watts:

500 Watt

Motor Type:

Transaxle differential brushless

Amps:

20 AH

Volts:

48 Volts

Dimensions:

58” x 25” x 41” (LxWxH)

Floor Clearance:

5”

Batteries:

(4) Sealed Lead Acid Maintenance Free

Forward/Reverse switch:

Yes

High/ Low Speed switch:

(3) Speed settings

Front tire size:

14” x 2.5”

Rear tire size:

14” x 3”

Charger:

Smart Charger included

Throttle Type:

Variable Speed Control –Twist throttle

Key Start:

Yes

Braking System:

Front and Rear drum brakes

Drive System:

Brushless Motor

Headlight:

12Volt Bulb Electric Light with Signals

Rear lights:

12Volt Bulb Brake light and Turn Signals

Carton Size:

Shipped Fully assembled on Pallet

Scooter Weight:

183lbs. with batteries

Battery Indicator:

Yes

Front:

Front Suspension Fork

Rear:

Rear Shock Absorbers

Reflectors:

Yes

Warranty:

Limited –3 Year Warranty

Operation of Scooter:

1. To prevent injury to yourself or others, always ensure that the power is switched off when getting

on or off the scooter.

2. Always check that the variable speed switch is set to Level 1 speed setting

Speed Switch Setting

Brake Lever

Forward / Reverse

3. Always check that you have selected the correct forward or reverse switch position.

4. Reduce your speed when making turns.

5. Do not switch off the power when the scooter is still moving forward

6. Use 12 volt batteries only.

Ramps and Curbs

1. The EW-27 scooter is designed to operate only on flat surfaces.

2. CAUTION - Avoid all uneven or sloped surfaces

3. Only operate on flat level surfaces.

General

1. Keep your feet on the scooter all the time.

2. Do not exceed weight capacity of 350lbs.

3. Do not attempt to lift or move a power scooter by any of its removable parts. Personal injury and

damage to the power chair may result.

4. Never try to use your scooter beyond its limitations as described in the manual, operate only on

flat surfaces.

5. Do not operate your scooter if it is not functioning properly.

6. Do not connect any electrical or mechanical device to the scooter. Failure to obey this instruction

may result in injury and will void the warranty.

Use While Under the Influence of Medication or Alcohol

1. Check with your physician if you are taking any medication that may affect your ability to operate

your powered scooter safely.

2. Do not operate your scooter while you are under the influence of alcohol as this may impair your

ability to operate your power scooter in a safe manner.

Environment Condition

Rain, Sleet and Snow

If exposed to water, your power scooter is susceptible to damage to electronic or mechanical

components. Water can cause electronic malfunction or promote premature corrosion of electrical

components and frame.

Warranty

For valid warranty claims E-Wheels will, at their discretion, replace/repair/refund items mutually agreed

to be defective.

E-Wheels warranty as following:

1. Frame: (3) Year limited warranty

2. Electronic components: (1) Year limited warranty

3. Controllers: (1) Year limited warranty

4. Batteries: Not warranted

5. Consumables: Wheel Tires, arm pads and seat cushion bulbs: Not warranted

6. Labor costs are NOT covered by warranty

Any damage or defect of any nature occurring from the misuse of the product is not to be covered. The

warranty is to start from the date of arrival of our product.

Instrument Panel

Power Indicator

Battery Level indicator

Brake Lever

Electric Horn

Turn Signal

Running Light / Brake Light

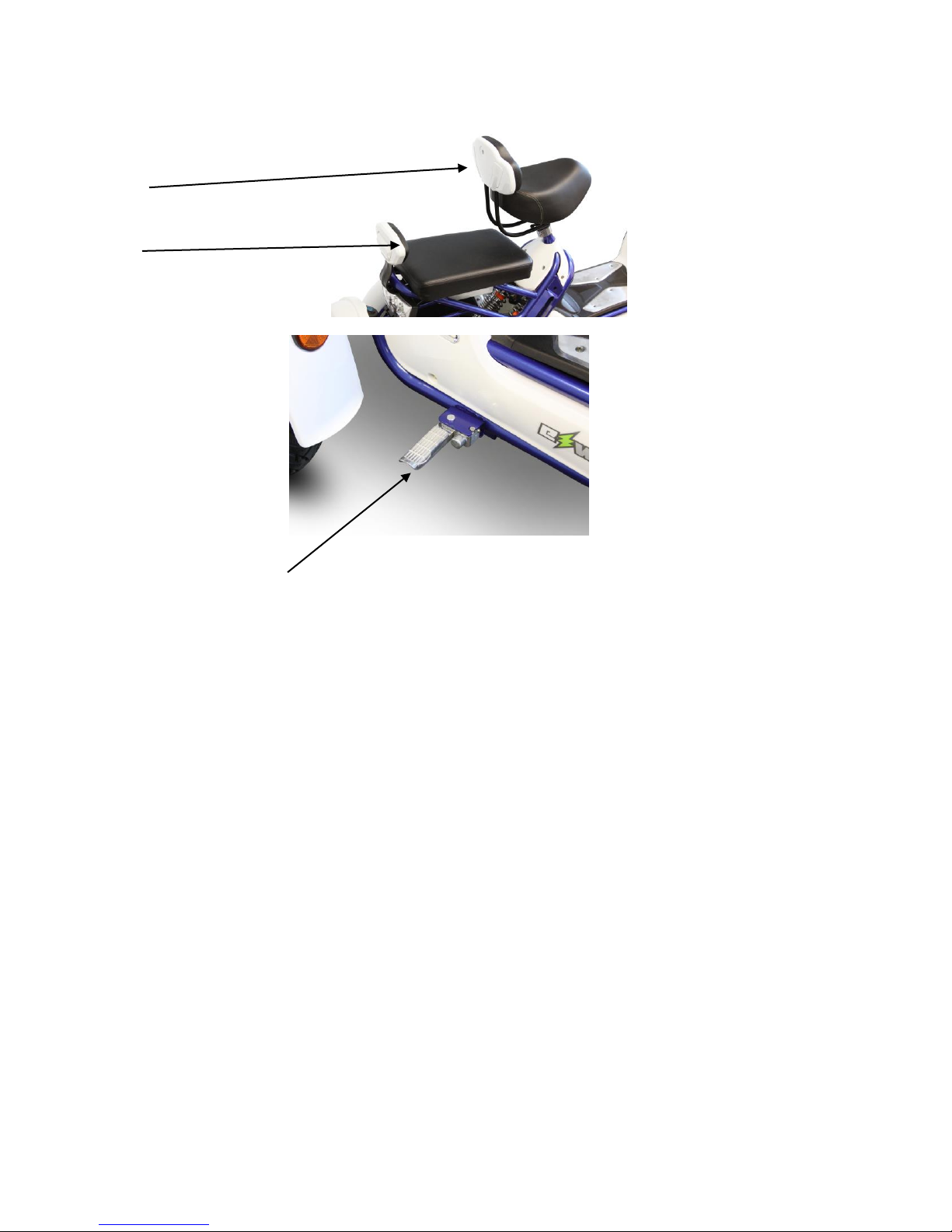

Front Seat

Rear Seat

Rear rider folding foot rest

-Simply push around silver button to open folding pedal

-Close folding pedal by simply pushing pedal towards frame.

Batteries and Charger

We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power

scooter. Lead acid (SLA) and gel cell are Deep cycle batteries that are similar in performance. Deep-cycle

batteries are specifically designed to provide power, drain down, and then accept a relatively quick

charge. Lead acid batteries should be charged fully once a month.

Specification of the battery that we recommend:

Type: Deep Cycle Sealed lead acid or gel cell

Size: 20 AH

Voltage: 12 V Each (4) totals

Depending on the use, terrain and driving conditions, the batteries will provide a range of 35 miles of

travel. However, even if the power scooter is not in use we recommend that the batteries be charged

periodically.

Note:

-Do not use any automotive starter batteries, they are not designed to handle a long, deep

discharge and are unsafe for use in power scooter.

-The useful life of a battery is quite often a reflection of the care it receives.

-Always charge your batteries in well ventilated areas

-The charger is intended for indoor use only.

-For maximum performance, it is recommended that you replace all batteries at the same time if

the batteries are weak.

-If the vehicle will not be used for a long period. Arrange to have batteries recharged at least once

every month to avoid deterioration of the batteries.

Recharge Battery only when the key is in off position.

Charger Use

1. Plug charger into Electric wall outlet.

2. Insert charger port into scooter charging plug in located directly in front of scooter main body

directly under seat.

3. Red charger light indicates scooter is charging.

4. Green charger light indicated scooter is fully charged. (Monitor to remove once green light is on)

Charger Port
