ewheels EW-44 Bedienungsanleitung
1
Table of Contents
Page 2 - Feature Guide
Page 3 - Technical Specifications
Page 4-7 - Operation of Scooter
Page 8-9 - Charging and Battery Information
Page 10 - Ramps and Curbs
Page 10 - General
Page 11 - Use While Under Influence
Page 11-13 - Safety Requirements
Page 14 –Warranty
2

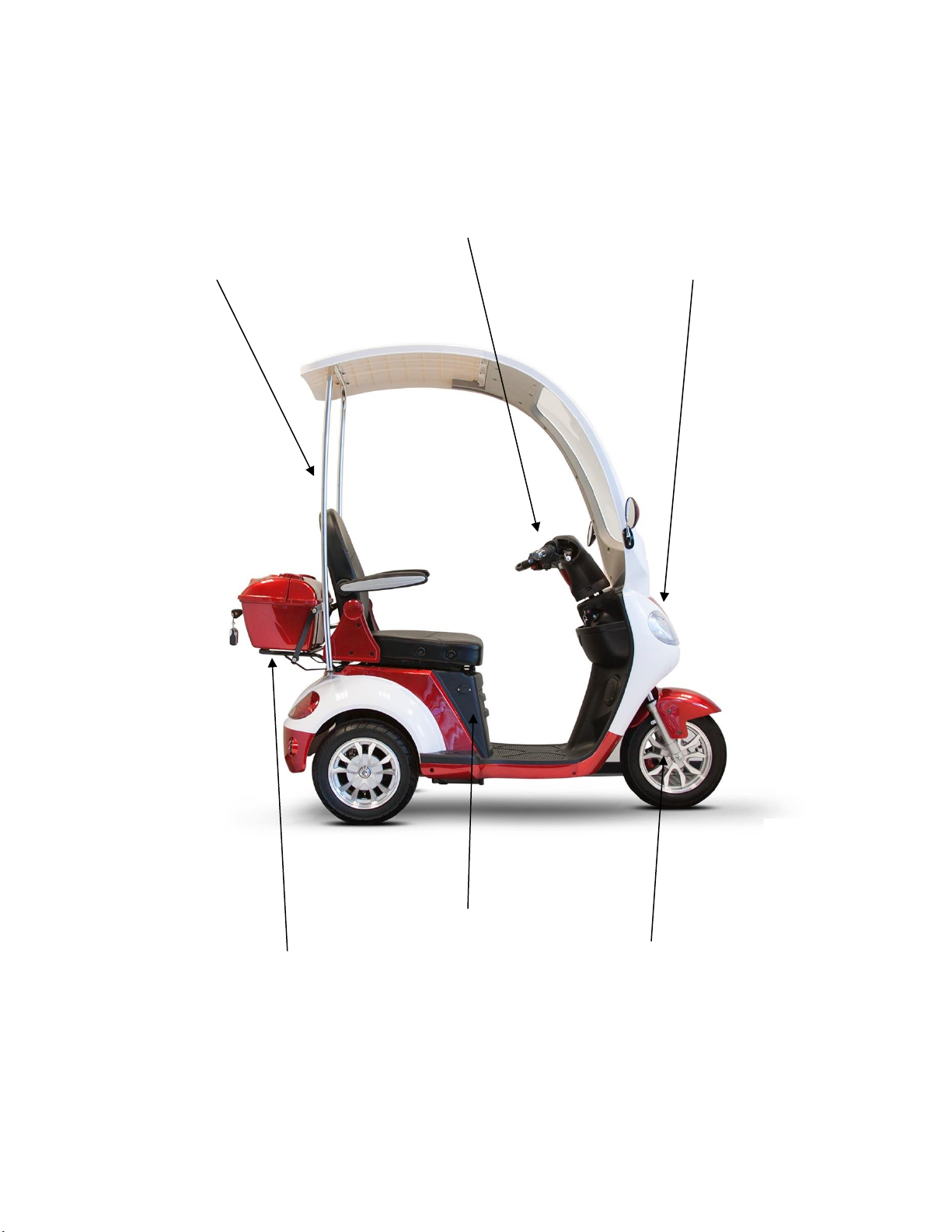

Charger Port
Rear Cargo Box Front Shocks
Steering Column
Canopy Support Bars Front Headlights
3
Technical Specifications
Model
EW-44
Weight Capacity
500LBS
Speed:
Up to 15mph
Distance:
45 miles per charge (distance varies on terrain, riders
weight, road surface, etc.)
Front Seat: Type
Adjustable Comfort Seat
Front seat: Size
19” x 17” x 19”
Front Windshield:
Yes
Rear Seat: Type
N/A
Rear Seat: Size
N/A
Steering Height
37” from Floor
Rear Foot Rest:
N/A
Power:
Electric 60 volts
Watts:
800 Watt
Motor Type:
800 Watt, Transaxle Differential Brushless Motor
Amps:
20 AH Batteries
Volts:
60 Volts
Dimensions:
68” x 27” x 45” (LxWxH)
Floor Clearance:
6”
Rear Basket:
Rear Cargo Box
Batteries:
(5) 12 Volt, 20 AH, Deep Cycle, Maintenance Free, SLA
Forward/Reverse switch:
Yes
LED Lighting Package:
Yes
Front tire size:
3” x 10”
Rear tire size:
5” x 12”
Charger:
60 volt Smart Charger
Throttle Type:
Variable Twist Throttle
Key Start:
Yes, Remote Key Fob
Braking System:
Front Disc Brake, Rear Drum Brake
Cargo Box Storage:
10” x 20” x 10” (DxWxH)
Headlight:
LED Headlights
Rear lights:
LED Taillights
Electric Horn:
Yes
Scooter Weight:
308 Lbs.
Battery Indicator:
Yes
Front Suspension:
Yes
Rear Suspension:
Yes
Reflectors:
Yes
Warranty:
3 Year Limited Warranty
4
Operation of Scooter:
1. Turning on the power *
Insert key into ignition and turn clockwise to
turn the scooter on. The battery indicator will
display the current charge level when on. Turn
the key counter-clockwise to power off when
stopped.
2. Battery Power Indicator *
The screen will light up when turned
on. The battery indicator bars will
only be displayed when the scooter
is turned on. There are four bars to
represent the scooter’s current
charge level. Each remaining bar
represents 25% of the scooter’s
overall charge.
5
3. Headlights *
The headlights have three
different functions. Running
lights, headlights low beam,
and headlights high beam.
They can be controlled by the
buttons on the handlebar
assembly.
4. Horn *
The horn button is located on the
right-hand side of the handlebars,
just below the lights control switch,
and is red. Push in to sound when
the scooter power is turned on.
6
5. Storage Box Under Seat *
There is a locked storage compartment
underneath the seat that can be used to
storage valuables. To open, first start by
making sure the seat is adjusted all the way
forward. Then, insert the key into the ignition
and turn the key counter clockwise without
pushing inwards. If the key is pushed inwards,
it will not allow the seat latch to release.
6. Emergency Brake Tab *
The emergency brake tab is located on the left-
hand side hand brake. To activate, start by
depressing the emergency brake tab towards
the while handle, then being to squeeze the
left-hand brake until the tab clicks inwards.
This will keep the scooter stationary while not
in use.
7
7. Rear Cargo Box *
The rear cargo box is locked, and
can only be opened with the
scooter’s key. To open, insert the
key into the lock cylinder, and turn
and hold it 90 degrees clockwise
while lifting on the cargo box lid.
8. Rear Cargo Box *
The top speed is controlled by the three-position
switch attached to the throttle. Below it, is the
button to activate reverse.
III - Allows the Machine to Travel Full Speed
II - Limits the Top Speed Capable to Around 12 MPH
I - Limits the Top Speed Capable to Around 8 MPH
8
Charging Instructions:
The smart charger included with your scooter will shut off its high current
mode when the scooter is fully charged. When the light on the charger is red,
the scooter is still charging. When the light turns green, this means the scooter
is fully charged. Once fully charged, unplug within two hours to avoid
overcharging.
The charging time varies depending on how charged the batteries are. If almost
empty, the charge time may take up to 8 hours. If the red lights stay on for
more than 8 hours, unplug the charger.
Batteries and Battery Maintenance:
Only use the recommend batteries for your scooter. Do not use lithium ion
batteries. The batteries can be charged as needed without causing damage.
You can wait until low, or charge right after a short ride. Avoid leaving on the
charger for an extended period to avoid potential damage.
9
Specification of the battery that we recommend:
Type: (5) 12 volt, 20 AHS, Deep Cycle, Maintenance Free, Sealed Lead Acid
Note:
-Do not use automotive starter batteries. They are not designed to handle
long deep discharge and are unsafe for use in your scooter.
-The useful life of a battery is quite often a reflection of the care it
receives.
-Always charge the batteries in a well-ventilated area.
-The charger is intended for indoor use only.
-Replace all batteries at the same time if weak.
-If the scooter will not be used for an extended period, arrange to have the
batteries recharged at least once every month to avoid deterioration of
the batteries.
