User's Guide

600Amp AC/DC True RMS Clamp Meter

Model MA640

MA640-en-GB_V2.4 5/15

Introduction

Congratulations on your purchase of this Extech MA640 True RMS Clamp Meter. This meter

measures AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty

Cycle and Continuity. Special features include Thermocouple Temperature and Non-Contact Voltage

detection. The double molded case is designed for heavy duty use. This meter is shipped fully tested

and calibrated and, with proper use, will provide years of reliable service.

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer

to the manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous

voltages may be present

Double insulation

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which

measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from

the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial use with

permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

WARNING

CAUTION

MA640-en-GB_V2.4 5/15

SAFETY NOTES

Do not exceed the maximum allowable input range of any function.

Do not apply voltage to meter when resistance function is selected.

Set the function switch OFF when the meter is not in use.

Remove the battery if meter is to be stored for longer than 60 days.

WARNINGS

Set function switch to the appropriate position before measuring.

When measuring volts do not switch to current/resistance modes.

Do not measure current on a circuit whose voltage exceeds 600V.

When changing ranges always disconnect the test leads from the circuit under test.

CAUTIONS

Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

Always remove the test leads before replacing the battery or fuses.

Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

Function Maximum Input

A AC/DC, 600A DC/AC

V DC, V AC 600V DC/AC

Resistance, Capacitance, Frequency, Diode Test 250V DC/AC

Type K Temperature 30V DC, 24V AC

250V DC/AC

MA640-en-GB_V2.4 5/15

Description

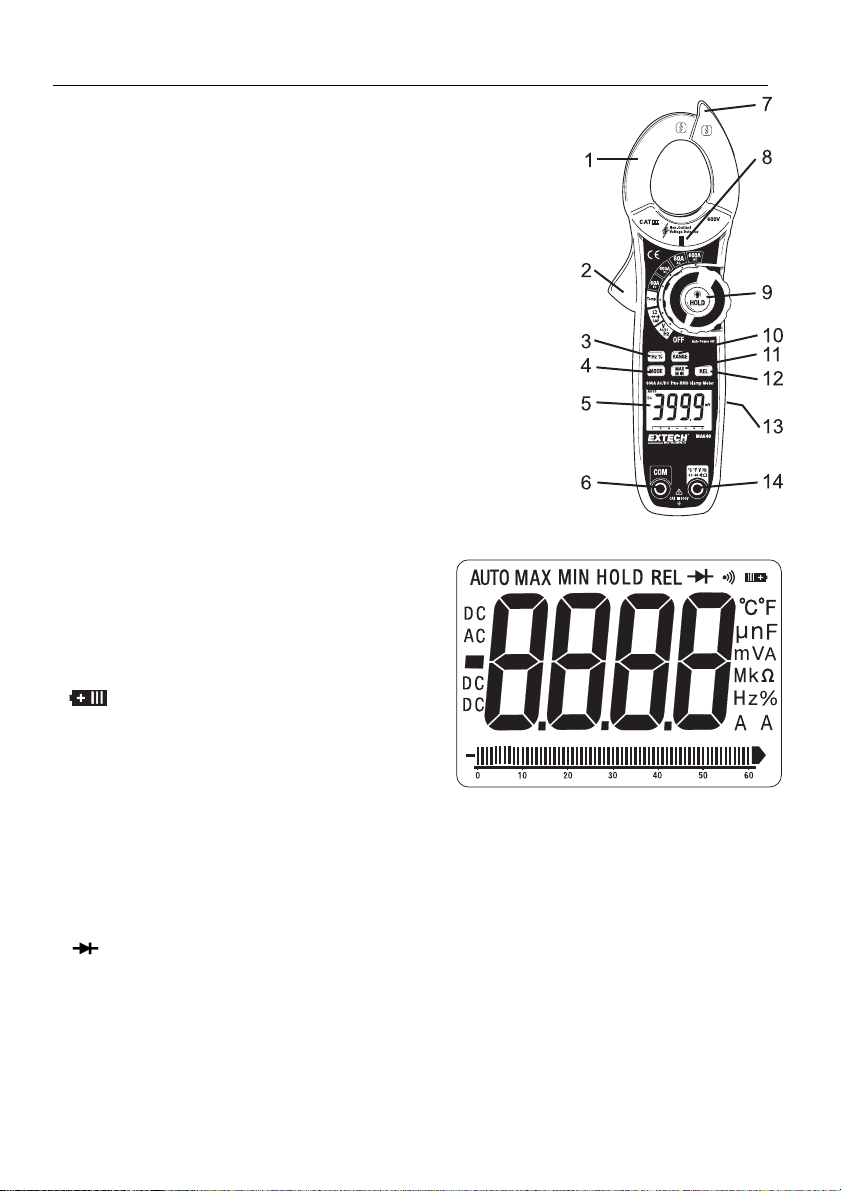

Meter Description

1. Current clamp

2. Clamp opening trigger

3. Hx % Button

4. MODE Button

5. LCD Display

6. Common Input jack

7. NCV sensor

8. NCV LED indicator

9. HOLD/BACKLIGHT Button and FUNCTION switch

10. RANGE Button

11. MAX-MIN Button

12. RELATIVE Button

13. Battery compartment (rear)

14. Positive Input jack

Display icons Description

HOLD Data Hold

AUTO Autoranging

DC Direct Current

AC Alternating Current

MAX Max reading

MIN Min reading

Low battery

REL Relative

V Volts (Voltage)

Ohms (Resistance)

A Amperes (Current)

F Farad (Capacitance)

Hz Hertz (Frequency)

% Duty Ratio

oF and oC Fahrenheit and Celsius units (Temperature)

n, m, , M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo

))) Continuity test

Diode test

MA640-en-GB_V2.4 5/15

Operation

NOTES: Read and understand all Warning and Caution statements in this operation manual prior

to using this meter. Set the function select switch to the OFF position when the meter is not in use.

Non-Contact Voltage Detector

WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live

circuit to verify proper operation.

1. Rotate the Function switch to any measurement position.

2. Place the detector probe tip on the conductor to be tested.

3. If AC voltage is present, the NCV detector light will turn on

with a steady red light.

NOTE: The conductors in electrical cord sets are often twisted. For

best results, move the probe tip along a length of the cord

to assure placing the tip in close proximity to the live

conductor.

NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy

may randomly trip the sensor. This is normal operation.

AC/DC Current Measurements

WARNING: Disconnect the test leads before making clamp measurements.

1. Rotate the Function switch to the 600A AC or

DC position

2. Press the trigger to open jaw. Fully enclose

only one conductor.

3. Read the current value in the display.

4. If the value is less than 60A, rotate the function

switch to the 60A position to improve

resolution.

DCA Zero

The REL feature removes offset values and

improves accuracy for DC current

measurements. To perform a zero, select ADC

and, with no conductor in the jaw, press and the

REL button. The display will zero. The offset value is now stored and removed from all

measurements.

MA640-en-GB_V2.4 5/15

AC/DC Voltage Measurements

CAUTION: Do not measure voltages if a motor on the circuit is being switched ON or OFF. Large

voltage surges may occur that can damage the meter.

1. Rotate the function switch to the V position.

2. Press the MODE button to select AC or DC Voltage.

3. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

4. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

5. Read the voltage value in the display.

Resistance Measurements

Note: Remove power from the device under test before making resistance measurements

1. Rotate the function switch to the position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

4. Read the resistance value in the display.

Continuity Test

1. Connect as described for resistance measurements.

2. Press the MODE button to select continuity ))).

3. Touch the test probe tips across the circuit or component under test.

4. If the resistance is < 60, a tone will sound.

MA640-en-GB_V2.4 5/15

Diode Test

1. Connect as described for resistance measurements

2. Press the MODE button to select diode test .

3. Touch the test probe tips to the diode or semiconductor junction under test. Note the meter

reading.

4. Reverse the test lead polarity by reversing the red and black leads. Note this reading.

5. The diode or junction can be evaluated as follows:

If one reading displays a value (typically 0.400V to 01.800V) and the other reading

displays OL, the diode is good.

If both readings display OL the device is open.

If both readings are very small or ‘0’, the device is shorted.

Capacitance Measurements

WARNING: To avoid electric shock, discharge the capacitor before measuring.

1. Rotate the function switch to the CAPcapacitance position.

2. Press the MODE button to select nF capacitance test

3. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive jack.

4. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

5. Read the capacitance value in the display.

Note: For very large values of capacitance measurement time can be several

seconds before the final reading stabilizes.

MA640-en-GB_V2.4 5/15

Frequency and Duty Ratio Measurements

1. Rotate the function switch to the Hz Position.

2. Press the MODE button to select AC Voltage

3. Press the HZ % button to select HZ

4. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Hz jack.

5. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

6. Read the Frequency value on the display.

7. Press the HZ % button to select %

8. Read the Duty Ratio on the display.

Type K Temperature Measurements

1. Rotate the function switch to the Temp position.

2. Press the MODE button to select °F or °C.

3. Insert the Temperature Probe into the input jacks.

4. Place the temperature probe tip where needed.

5. Read the temperature on the display.

Note: In case of an open input or a temperature overrange, the meter will display

“OL”.

Data Hold

To freeze the LCD reading, press the HOLD button. While data hold is active, the HOLD icon

appears on the LCD. Press the HOLD button again to return to normal operation.

MAX/MIN

1. Press the MAX/MIN button to activate the MAX/MIN recording mode. The display icon "MAX"

will appear. The meter will begins recording and displaying the maximum value measured.

2. Press the MAX/MIN button and “MIN” will appear. The meter will display the minimum value

measured during the recording session.

3. To exit MAX/MIN mode press and hold the MAX/MIN button for 2 seconds.

MA640-en-GB_V2.4 5/15

RANGE

In the Voltage, Resistance, Frequency or Temperature function the meter automatically selects the

best range for the measurements being made. For measurement situations requiring that a range

be manually selected, perform the following:

1. Press the RANGE button. The “AUTO” display icon will turn off.

2. Press the RANGE key to step through the available ranges. Observe the decimal point and

units displayed until the preferred range is located.

3. To exit the Manual Ranging mode and return to Autoranging, press and hold the RANGE key

for 2 seconds.

LCD Backlight

The LCD is equipped with backlighting for easier viewing, especially in dimly lit areas. Press and

hold the HOLD/ button for 2 seconds to turn the backlight on. The backlight will automatically turn

off after 5 seconds.

Automatic Power OFF

In order to conserve battery life, the meter will automatically turn off after approximately 15 minutes

of operation. The meter will beep shortly before the meter shuts off. If a button is pressed, the APO

timer will reset. If the meter is allowed to shut off, turn the function switch to the OFF position and

then to the function again to restart.

Low battery indication

When the icon appears in the display, the battery should be replaced. Refer to the battery

replacement procedure in the maintenance section.

MA640-en-GB_V2.4 5/15

Maintenance

WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads

from the input terminals, and turn OFF the meter before opening the case. Do not operate the meter

with an open case.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or

solvents. If the meter is not to be used for 60 days or more, remove the battery and store it

separately.

Battery Replacement

1. Remove the Phillips head screws that secures the rear battery door

2. Open the battery compartment

3. Replace the 9V battery

4. Secure the battery compartment door

You, as the end user, are legally bound (EU Battery ordinance) to return all used

batteries, disposal in the household garbage is prohibited! You can hand over your

used batteries / accumulators at collection points in your community or wherever batteries /

accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the

end of its lifecycle

Inhaltsverzeichnis

Andere Extech Instruments Messgerät Handbücher

Extech Instruments

Extech Instruments 461920 Bedienungsanleitung

Extech Instruments

Extech Instruments MA130 Bedienungsanleitung

Extech Instruments

Extech Instruments FHT200 Bedienungsanleitung

Extech Instruments

Extech Instruments MO25 Bedienungsanleitung

Extech Instruments

Extech Instruments 407727 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik SX800 Series Bedienungsanleitung

Extech Instruments

Extech Instruments MO53 Bedienungsanleitung

Extech Instruments

Extech Instruments MO230 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL300 Bedienungsanleitung

Extech Instruments

Extech Instruments EX622 Bedienungsanleitung

Extech Instruments

Extech Instruments 38389 Bedienungsanleitung

Extech Instruments

Extech Instruments HT200 Bedienungsanleitung

Extech Instruments

Extech Instruments 461895 Bedienungsanleitung

Extech Instruments

Extech Instruments 381295 Bedienungsanleitung

Extech Instruments

Extech Instruments UM200-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 407355 Bedienungsanleitung

Extech Instruments

Extech Instruments 461895 Bedienungsanleitung

Extech Instruments

Extech Instruments CLT600 Bedienungsanleitung

Extech Instruments

Extech Instruments PH210 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik PH100 Bedienungsanleitung

Extech Instruments

Extech Instruments 380560 Bedienungsanleitung

Extech Instruments

Extech Instruments 433201A Bedienungsanleitung

Extech Instruments

Extech Instruments HDV7C-55-HD-1 Bedienungsanleitung

Extech Instruments

Extech Instruments 407026 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
