Extech Instruments EX810 Bedienungsanleitung

User Manual

Extech EX810 1000 Amp Clamp Meter

with IR Thermometer

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Introduction

Congratulations on your purchase of the Extech EX810 Clamp Meter. This meter measures AC/DC

Voltage, AC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity, plus Non-

Contact IR Temperature. This device is shipped fully tested and calibrated and, with proper use, will

provide years of reliable service. Please visit our website ( ) to check for the latest

version and translations of this User Manual, Product Updates, Product Registration, and Customer

Support.

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer to the

manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages

may be present

Double insulation

SAFETY NOTES

•Do not exceed the maximum allowable input range of any function.

•Do not apply voltage to meter when resistance function is selected.

•Set the function switch OFF when the meter is not in use.

•Remove the battery if meter is to be stored for longer than 60 days.

WARNINGS

•Set function switch to the appropriate position before measuring.

•When measuring volts do not switch to current/resistance modes.

•Do not measure current on a circuit whose voltage exceeds 600V.

•When changing ranges always disconnect the test leads from the circuit under test.

Function Maximum Input

A AC 1000A DC/AC

V DC, V AC 600V DC/AC

Resistance, Capacitance, Frequency, Diode Test 250V DC/AC

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

CAUTIONS

•Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

•For all measurements, always use approved measurement category (CAT) voltage and current

rated test leads, test probes, and adapters. Do not exceed the CAT rating of the lowest rated

test lead, probe, adaptor, or other product accessory.

•Always remove the test leads before replacing the battery or fuses.

•Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

•Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

•Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

•This device is not a toy and must not reach children’s hands. It contains hazardous objects as

well as small parts that the children could swallow. In case a child swallows any of them,

please contact a physician immediately

•Do not leave batteries and packing material lying around unattended; they can be dangerous

for children if they use them as toys

•In case the device is going to be unused for an extended period of time, remove the batteries

to prevent them from draining

•Expired or damaged batteries can cause cauterization on contact with the skin. Always,

therefore, use suitable hand gloves in such cases

•See that the batteries are not short-circuited. Do not throw batteries into the fire.

•Do not directly view or direct the laser pointer at an eye. Low power visible lasers do not

normally present a hazard, but may present some potential for hazard if viewed directly for

extended periods of time

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Description

Meter Description

1. Current clamp

2. Clamp opening trigger

3. Backlight

4. PEAK

5. RANGE

6. LCD Display

7. Test lead input jacks

8. IR thermometer and laser pointer (rear)

9. HOLD

10. Laser pointer button

11. Function switch

12. MIN/MAX

13. Mode

Display icons Description

HOLD Data Hold

Minus sign Negative reading display

0 to 3999 Measurement display digits

ZERO Zero

P Peak value

AUTO Auto Range mode

DC/AC Direct Current / Alternating

Current

MAX Max reading

MIN Min reading

Low battery

mV or V Milli-volts or Volts (Voltage)

ΩOhms (Resistance)

A Amperes (Current)

F Farad (Capacitance)

Hz Hertz (Frequency)

oF and oC Fahrenheit and Celsius units (Temperature)

n, m, µ, M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo

•))) Continuity test

Diode test

Laser pointer

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Operation

NOTES: Read and understand all Warning and Caution statements in this operation manual prior

to using this meter. Set the function select switch to the OFF position when the meter is not in use.

AC Current Measurements

WARNING: Ensure that the test leads are

disconnected from the meter before making current

clamp measurements.

1. Set the Function switch to the AAC range.

2. Press the trigger to open the jaw. Fully

enclose only one conductor. For optimum

results, center the conductor in the jaw.

3. The clamp meter LCD will display the reading.

AC/DC Voltage Measurements

1. Insert the black test lead into the negative COM terminal and the red test lead into the positive

Vterminal.

2. Set the function switch to the VAC or VDC position.

3. Connect the test leads in parallel to the circuit under test.

4. Read the voltage measurement on the LCD display.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Resistance Measurements

Note: Remove power before making resistance measurements

1. Insert the black test lead into the negative COM terminal and the red test

lead into the

Ω

positive terminal.

2. Set the function switch to the

Ω

position.

3. Touch the test probe tips across the circuit or component under test.

4. Read the resistance on the LCD display.

Capacitance Measurements

WARNING: To avoid electric shock, discharge the capacitor under test before

measuring. If “dISC” appears in the display, remove and discharge

the capacitor.

1. Set the function switch to the

capacitance position.

2. Insert the black test lead into the negative COM jack and the red test lead

into the CAP positive jack.

3. Press MODE to zero any stray capacitance.

4. Touch the test probe tips across the part under test.

5. Read the capacitance value in the display.

6. The display will indicate the proper decimal point and value.

Note: For very large values of capacitance measurement time can be several

minutes before the final reading stabilizes.

Frequency Measurements

1. Set the function switch to the V Hz Position.

2. Press and hold the MODE button to select the Frequency (Hz)

function. “k Hz” will appear in the display.

3. Insert the black test lead into the negative COM jack and the red test lead

into the Hz positive jack.

4. Touch the test probe tips across the part under test.

5. Read the Frequency value on the display.

6. The display will indicate the proper decimal point and value.

7. Press and hold the MODE button again to return to the voltage mode.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Continuity Measurements

1. Insert the black test lead into the negative COM terminal and the red test lead into the

Ω

positive terminal.

2. Set the function switch to the

•

)))position.

3. Use the MODE button to select continuity

•

))). The display icons will change when the MODE

button is pressed.

4. Touch the test probe tips across the circuit or component under test.

5. If the resistance is < 40Ω, a tone will sound.

Diode Test

1. Insert the black test lead into the negative COM jack and the red test lead into the positive jack

2. Turn the function switch to position.

3. Touch the test probe tips to the diode or semiconductor junction under test. Note the meter

reading.

4. Reverse the test lead polarity by reversing the red and black leads. Note this reading.

5. The diode or junction can be evaluated as follows:

If one reading displays a value (typically 0.400V to 0.900V) and the other reading displays

OL, the diode is good.

If both readings display OL the device is open.

If both readings are very small or ‘0’, the device is shorted.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Non-Contact InfraRed Temperature Measurements

1. Set the function switch to the IR Temp position.

2. Aim the infrared sensor (rear of the meter) at the surface

to be measured.

3. Press the button in the center of the rotary function

switch to turn on the laser pointer and identify the

surface spot to be measured.

4. The area of the surface to be measured must be larger

than the spot size as determined by the distance to spot

size specification.

5. Read the temperature in the display.

Note: See the “Temperature Units” paragraph to select oF or oC

WARNING: Do not directly view or direct the laser pointer at an eye.

Low power visible lasers do not normally present a hazard, but may

present some potential for hazard if viewed directly for extended periods

of time.

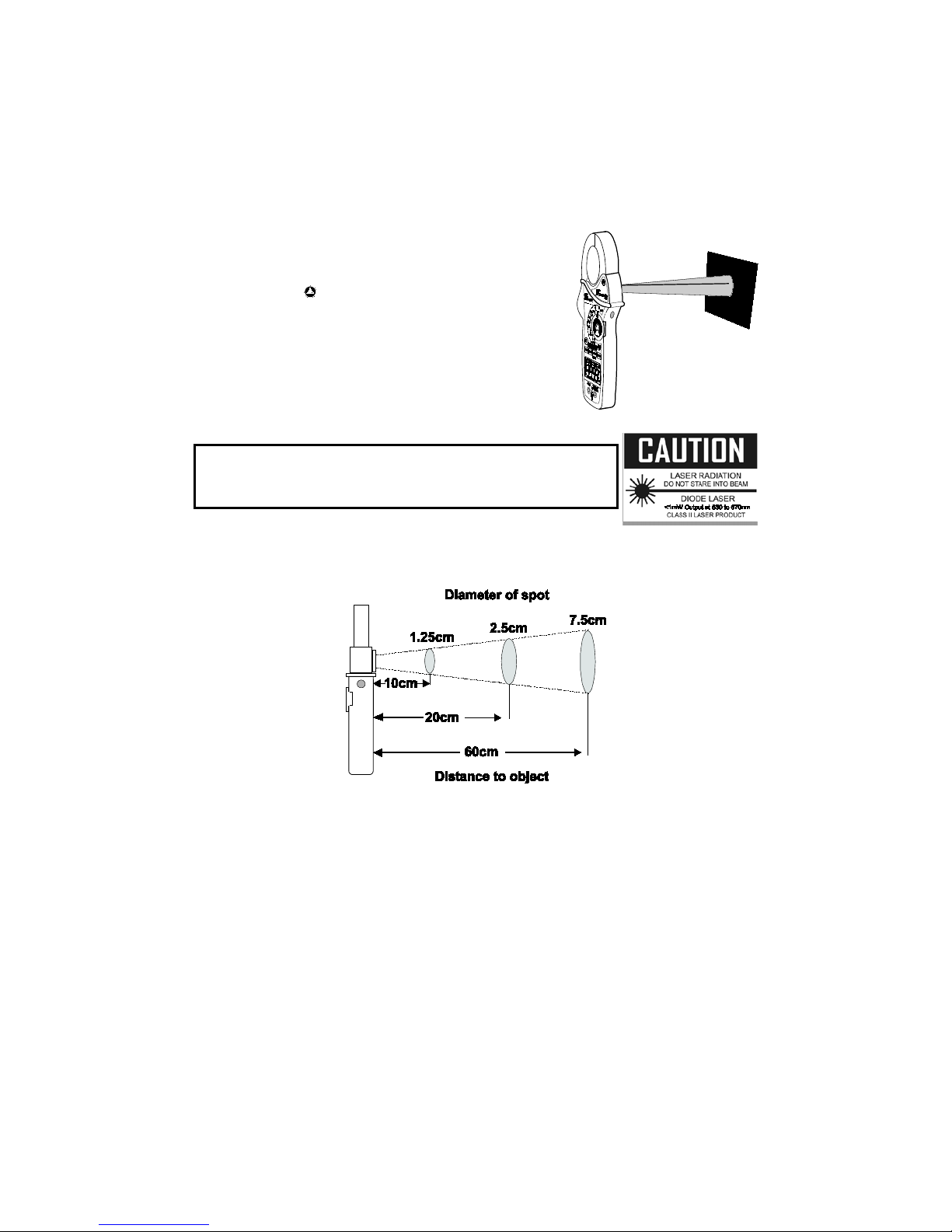

IR Spot to Distance Diagram

The 8:1 spot to distance ratio determines the size of the measured surface area with respect to the

distance the meter is held away from the surface.

IR Measurement Notes

1. The object under test should be larger than the spot (target) size calculated by the field of view

diagram.

2. If the surface of the object under test is covered with frost, oil, grime, etc., clean before taking

measurements.

3. If an object's surface is highly reflective, apply masking tape or flat black paint to the surface

before measuring.

4. The meter may not make accurate measurements through transparent surfaces such as glass.

5. Steam, dust, smoke, etc. can obscure measurements.

6. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and

down motion) until the hot spot is located.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Data Hold

To freeze the LCD reading, press the HOLD button. While data hold is active, the HOLD icon

appears on the LCD. Press the HOLD button again to return to normal operation.

Peak Hold

The Peak Hold function captures the peak AC or DC voltage or current. The meter can capture

negative or positive peaks as fast as 1 millisecond in duration.

1. Turn the function switch to the A or V position.

2. Allow time for the display to stabilize.

3. Press and Hold the PEAK button until “CAL” appears in the display. This procedure will zero

the range selected.

4. Press the PEAK button, Pmax will display.

5. The display will update each time a higher positive peak occurs.

6. Press the PEAK button again, Pmin will display. The display will now update and indicate the

lowest negative peak.

7. To return to normal operation, press and hold the PEAK button until the Pmin or Pmax

indicator switches off.

Note: If the Function switch position is changed after a calibration the Peak Hold calibration must

be repeated for the new function selected.

MAX/MIN

1. Press the MAX/MIN key to activate the MAX/MIN recording mode. The display icon "MAX" will

appear. The meter will display and hold the maximum reading and will update only when a new

“max” occurs.

2. Press the MAX/MIN key and “MIN” will appear The display icon "MIN" will appear. The meter

will display and hold the minimum reading and will update only when a new “min” occurs

3. Press the MAX/MIN key and a blinking “MAX MIN” will appear. The meter will display the

present reading, but will continue to update and store the max and min readings.

4. To exit MAX/MIN mode press and hold the MAX/MIN key for 2 seconds.

Temperature Units (˚F / ˚C)

The temperature units selection switch is located in the battery

compartment. To change the units, remove the battery door, lift out the

battery and set the switch for the desired units.

LCD Backlight Button

The LCD is equipped with backlighting for easier viewing, especially in

dimly lit areas. Press the backlight button to turn the backlight on. Press

again to turn the backlight off.

Automatic Power OFF

In order to conserve battery life, the meter will automatically turn off after approximately 25 minutes.

To turn the meter on again, turn the function switch to the OFF position and then to the desired

function position.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EX810A-en-GB_v5.1 5/17

Maintenance

WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads

from the input terminals, and turn OFF the meter before opening the case. Do not operate the meter

with an open case.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or

solvents. If the meter is not to be used for 60 days or more, remove the battery and store it

separately.

Battery Replacement

1. Remove the Phillips head screw that secures the rear battery door

2. Open the battery compartment

3. Replace the 9V battery

4. Secure the battery compartment

Never dispose of used batteries or rechargeable batteries in household waste.

As consumers, users are legally required to take used batteries to appropriate

collection sites, the retail store where the batteries were purchased, or wherever

batteries are sold.

Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-

life devices to a designated collection point for the disposal of electrical and electronic equipment.

Other Battery Safety Reminders

oNever dispose of batteries in a fire. Batteries may explode or leak.

oNever mix battery types. Always install new batteries of the same type.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Andere Handbücher für EX810

Inhaltsverzeichnis

Andere Extech Instruments Messgerät Handbücher

Extech Instruments

Extech Instruments MO53 Bedienungsanleitung

Extech Instruments

Extech Instruments 407910 Bedienungsanleitung

Extech Instruments

Extech Instruments MO300 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL700 Bedienungsanleitung

Extech Instruments

Extech Instruments 407790A Bedienungsanleitung

Extech Instruments

Extech Instruments 407730 Bedienungsanleitung

Extech Instruments

Extech Instruments 380580 Bedienungsanleitung

Extech Instruments

Extech Instruments CO10 Bedienungsanleitung

Extech Instruments

Extech Instruments AN300 Bedienungsanleitung

Extech Instruments

Extech Instruments EasyView EA31 Bedienungsanleitung

Extech Instruments

Extech Instruments CO260 Bedienungsanleitung

Extech Instruments

Extech Instruments 403125 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik PH100 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik PH100 Bedienungsanleitung

Extech Instruments

Extech Instruments UV510-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 407412 Bedienungsanleitung

Extech Instruments

Extech Instruments SL130W Bedienungsanleitung

Extech Instruments

Extech Instruments SDL470-NISTL Bedienungsanleitung

Extech Instruments

Extech Instruments RH355 Bedienungsanleitung

Extech Instruments

Extech Instruments 461700 Bedienungsanleitung

Extech Instruments

Extech Instruments 461995 Bedienungsanleitung

Extech Instruments

Extech Instruments 407303 Bedienungsanleitung

Extech Instruments

Extech Instruments 461893 Bedienungsanleitung

Extech Instruments

Extech Instruments 380943 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
