Introduction

Congratulations on your purchase of the Extech EX505 True RMS Autoranging Multimeter. This meter

measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, and

Continuity plus Thermocouple Temperature. It features a waterproof, rugged design for heavy duty use

This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable

service.

Safety

This symbol adjacent to another symbol, terminal or operating device indicates

that the operator must refer to an explanation in the Operating Instructions to

avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth ground

exceeds (in this case) 1000 VAC or VDC.

This symbol adjacent to one or more terminals identifies them as being associated

with ranges that may, in normal use, be subjected to particularly hazardous

voltages. For maximum safety, the meter and its test leads should not be handled

when these terminals are energized.

This symbol indicates that a device is protected throughout by double insulation or

reinforced insulation.

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which

measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from

the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial use with

permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

WARNING

CAUTION

MAX

1000V

EX505-EU-EN-V7.0-12/11

CAUTIONS

•Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

•Always remove the test leads before replacing the battery or fuses.

•Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

•Warning! This is a class A equipment. This equipment can cause interferences in the living

quarters; in this case the operator can be required to carry out adequate measures.

•Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

•Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

•This device is not a toy and must not reach children’s hands. It contains hazardous objects as

well as small parts that the children could swallow. In case a child swallows any of them,

please contact a physician immediately

•Do not leave batteries and packing material lying around unattended; they can be dangerous

for children if they use them as toys

•In case the device is going to be unused for an extended period of time, remove the batteries

to prevent them from training

•Expired or damaged batteries can cause cauterization on contact with the skin. Always,

therefore, use suitable hand gloves in such cases

•See that the batteries are not short-circuited. Do not throw batteries into the fire.

EX505-EU-EN-V7.0-12/11

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules listed below

must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 1000VDC/AC rms

mA AC/DC 400mA AC/DC

A AC/DC 10A AC/DC (20A for 30 sec)

Frequency, Resistance, Capacitance,

Diode Test, Continuity, Temperature 600VDC/AC rms

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth

ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the

current, resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making

resistance or diode tests.

6. ALWAYS turn off the power and disconnect the test leads before opening the covers to replace

the fuse or batteries.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place

and fastened securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

EX505-EU-EN-V7.0-12/11

Controls and Jacks

1. 4,000 count LCD display

2. RANGE button

3. Hz and % button

4. Mode button

5. Function switch

6. mA, µA and 10A input jacks

7. COM input jack

8. Positive input jack

9. Backlight button

10. REL button

11. HOLD button

Note: Tilt stand and battery compartment are on rear of unit.

Symbols and Annunciators

•))) Continuity

Diode test

Battery status

n nano (10-9) (capacitance)

µ micro (10-6) (amps)

m milli (10-3) (volts, amps)

A Amps

k kilo (103) (ohms)

F Farads (capacitance)

M mega (106) (ohms)

Ω Ohms

Hz Hertz (frequency) V Volts

% Percent (duty ratio) REL Relative

AC Alternating current Auto Autoranging

DC Direct current HOLD Display hold

ºF Degrees Fahrenheit ºC Degrees Centigrade

EX505-EU-EN-V7.0-12/11

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and

should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. If “OL” appears in the display during a measurement, the value exceeds the range you have

selected. Change to a higher range.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the Vposition.

2. Press the MODE button to select DC (if necessary).

3. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

4. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

5. Read the voltage in the display.

AC VOLTAGE (FREQUENCY, DUTY CYCLE) MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts

inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As

a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the

probe tips are touching the metal contacts inside the outlet before assuming that no voltage is

present.

CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the V position.

2. Press the MODE button to select AC (if necessary)

3. Insert the black test lead banana plug into the negative COM jack.

Insert red test lead banana plug into the positive Vjack.

4. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

5. Read the voltage in the display.

6. Press the HZ/% button to indicate “Hz”.

7. Read the frequency in the display.

8. Press the Hz/% button again to indicate “%”.

9. Read the % of duty cycle in the display.

EX505-EU-EN-V7.0-12/11

DC CURRENT MEASUREMENTS

CAUTION: Do not make 20A current measurements for longer than 30 seconds. Exceeding 30

seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 4000µA DC, set the function switch to the

µA position and insert the red test lead banana plug into the µA/mA jack.

3. For current measurements up to 400mA DC, set the function switch to the

mA position and insert the red test lead banana plug into the µA/mA jack.

4. For current measurements up to 10A DC, set the function switch to the 10A

position and insert the red test lead banana plug into the 10A jack.

5. Press the MODE button to indicate “DC” on the display.

6. Remove power from the circuit under test, then open up the circuit at the

point where you wish to measure current.

7. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

AC CURRENT (FREQUENCY, DUTY CYCLE) MEASUREMENTS

CAUTION: Do not make 20A current measurements for longer than 30 seconds. Exceeding 30

seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 4000µA AC, set the function switch to the

µA position and insert the red test lead banana plug into the µA/mA jack.

3. For current measurements up to 400mA AC, set the function switch to the

mA position and insert the red test lead banana plug into the µA/mA jack.

4. For current measurements up to 10A AC, set the function switch to the 10A

position and insert the red test lead banana plug into the 10A jack.

5. Press the MODE button to indicate “AC” on the display.

6. Remove power from the circuit under test, then open up the circuit at the

point where you wish to measure current.

7. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

10. Press the Hz/% button to indicate “Hz”.

11. Read the frequency in the display.

12. Press the Hz/% button again to indicate “%”.

13. Read the % duty cycle in the display.

14. Press the Hz/% button to return to current measurement.

EX505-EU-EN-V7.0-12/11

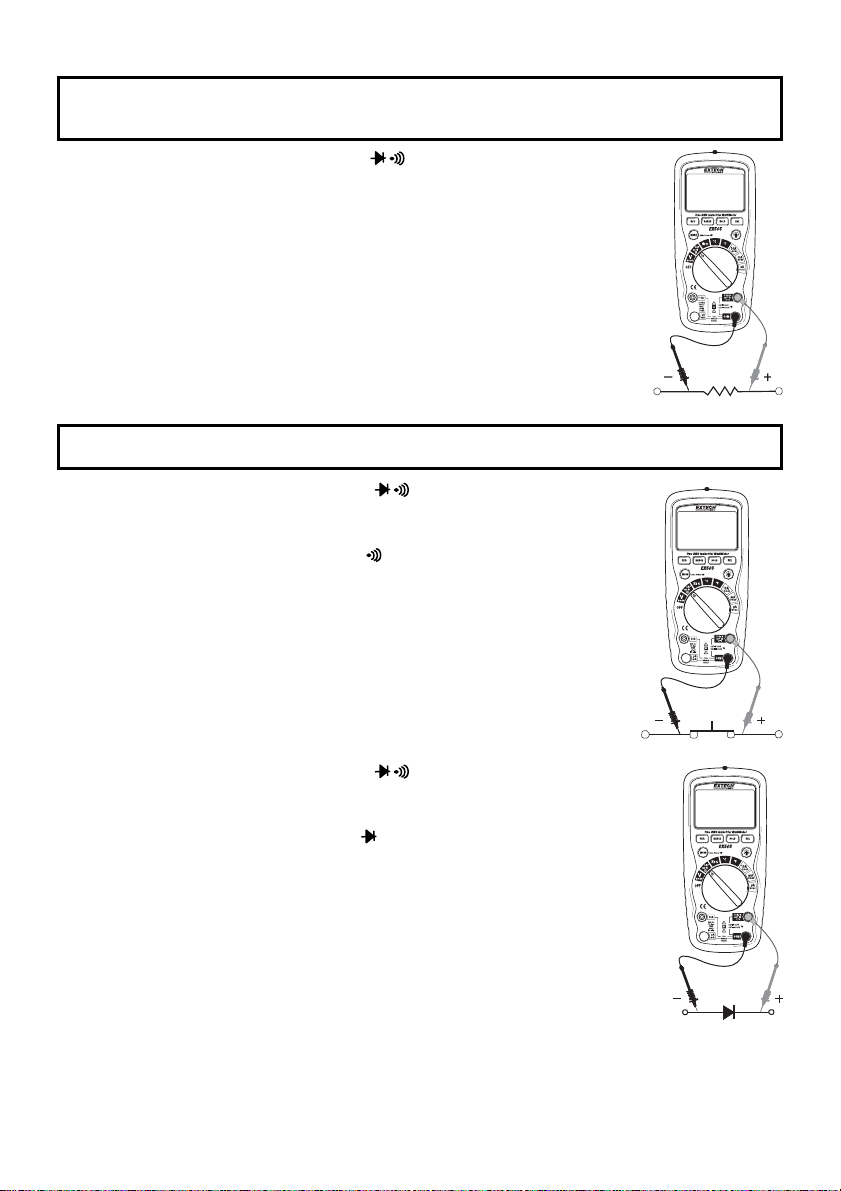

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any resistance measurements. Remove the batteries and unplug the line

cords.

1. Set the function switch to the ΩCAP position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Ωjack.

3. Press the MODE button to indicate “Ω" on the display.

4. Touch the test probe tips across the circuit or part under test. It is best to

disconnect one side of the part under test so the rest of the circuit will not

interfere with the resistance reading.

5. Read the resistance in the display.

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that have

voltage on them.

1. Set the function switch to the ΩCAP position.

2. Insert the black lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Ωjack.

3. Press the MODE button to indicate” "and “Ω”on the display

4. Touch the test probe tips to the circuit or wire you wish to check.

5. If the resistance is less than approximately 100Ω, the audible signal will

sound. If the circuit is open, the display will indicate “OL”.

DIODE TEST

1. Set the function switch to the ΩCAP position.

2. Insert the black test lead banana plug into the negative COM jack and the

red test lead banana plug into the positive Vjack.

3. Press the MODE button to indicate and Von the display.

4. Touch the test probes to the diode under test. Forward voltage will typically

indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted

devices will indicate near 0V and an open device will indicate “OL” in both

polarities.

EX505-EU-EN-V7.0-12/11

TEMPERATURE MEASUREMENTS

1. Set the function switch to the ºF or ºC position.

2. Insert the Temperature Probe into the input jacks, making sure to

observe the correct polarity.

3. Touch the Temperature Probe head to the part whose temperature

you wish to measure. Keep the probe touching the part under test until

the reading stabilizes (about 30 seconds).

4. Read the temperature in the display.

Note: The temperature probe is fitted with a type K mini connector. A mini

connector to banana connector adaptor is supplied for connection to the

input banana jacks.

CAPACITANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any capacitance measurements. Remove the batteries and unplug the

line cords.

1. Set the rotary function switch to the ΩCAP position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

3. Press the MODE button to indicate “nF” on the display.

4. Touch the test leads to the capacitor to be tested.

5. The test may take up to 3 minutes or more for large capacitors to charge.

Wait until the readings settle before ending the test.

6. Read the capacitance value in the display

FREQUENCY/DUTY CYCLE MEASUREMENTS (ELECTRONIC)

1. Set the rotary function switch to the “Hz %” position.

2. Press the Hz/% button to indicate “Hz” in the display.

3. Insert the black lead banana plug into the negative COM jack and the red

test lead banana plug into the positive Hz jack.

4. Touch the test probe tips to the circuit under test.

5. Read the frequency on the display.

6. Press the Hz/% button again to indicate “%” on the display.

7. Read the % of duty cycle on the display.

EX505-EU-EN-V7.0-12/11

FREQUENCY SENSITIVITY (ELECTRICAL)

The frequency sensitivity is range dependent when the function is selected from while in the voltage

or current measuring function. Below are typical sensitivities for the “electrical” measurement modes.

Range

( DC/AC )

Sensitivity Frequency width

4V ≥1.5V rms 5Hz~10kHz

≥10V rms 5Hz~20kHz40V, 400V

≥20V rms 5Hz~200kHz

1000V/1000V ≥420V rms 50Hz~1kHz

400mA ≥45mA rms 5Hz~5kHz

10A ≥4A rms 5Hz~1kHz

AUTORANGING/MANUAL RANGE SELECTION

When the meter is first turned on, it automatically goes into Autoranging. This automatically selects

the best range for the measurements being made and is generally the best mode for most

measurements. For measurement situations requiring that a range be manually selected, perform

the following:

1. Press the RANGE key. The “Auto” display indicator will turn off.

2. Press the RANGE key to step through the available ranges. Observe the decimal point and

units displayed until the preferred range is located.

3. To exit the Manual Ranging mode and return to Autoranging, press and hold the RANGE key

for 2 seconds.

Note: Manual ranging does not apply for the Capacitance and Frequency functions.

RELATIVE MODE

The relative measurement feature allows you to make measurements relative to a stored zero

reference value. A reference voltage, current, etc. can be stored and measurements made in

comparison to that value. The displayed value is the difference between the reference value and the

measured value.

1. Perform the measurement as described in the operating instructions.

2. Press the REL button to store (zero) the reading in the display and the "REL" indicator will

appear on the display.

3. The display will now indicate the difference between the stored value and the measured value.

4. Press the REL button to exit the relative mode.

Note: The Relative function does not operate in the Frequency function.

DISPLAY BACKLIGHT

Press the backlight button to turn on. The light will slowly fade to off after approxamately 10 to 15

seconds.

HOLD

The hold function freezes the reading in the display. Press the HOLD key momentarily to activate or

to exit the HOLD function.

AUTO POWER OFF

The auto off feature will turn the meter off after 30 minutes. To disable the auto power off feature,

hold down the MODE button and turn the meter on.

LOW BATTERY INDICATION

The icon will appear in the display when the battery voltage becomes low. Replace the battery

when this appears.

Inhaltsverzeichnis

Andere Extech Instruments Multimeter Handbücher

Extech Instruments

Extech Instruments PQ3470 Bedienungsanleitung

Extech Instruments

Extech Instruments EX210T Bedienungsanleitung

Extech Instruments

Extech Instruments 407735 Bedienungsanleitung

Extech Instruments

Extech Instruments MM750W Bedienungsanleitung

Extech Instruments

Extech Instruments 411 Bedienungsanleitung

Extech Instruments

Extech Instruments EX503 Bedienungsanleitung

Extech Instruments

Extech Instruments EX430A Bedienungsanleitung

Extech Instruments

Extech Instruments EX205T Bedienungsanleitung

Extech Instruments

Extech Instruments MN47 Bedienungsanleitung

Extech Instruments

Extech Instruments MultiMaster MM560A Bedienungsanleitung

Extech Instruments

Extech Instruments 380946 Bedienungsanleitung

Extech Instruments

Extech Instruments RC200 Bedienungsanleitung

Extech Instruments

Extech Instruments MultiMaster MM560A Bedienungsanleitung

Extech Instruments

Extech Instruments MultiPro MP510 Bedienungsanleitung

Extech Instruments

Extech Instruments EX310 Bedienungsanleitung

Extech Instruments

Extech Instruments MiniAmp Series Bedienungsanleitung

Extech Instruments

Extech Instruments EX330 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL900 Bedienungsanleitung

Extech Instruments

Extech Instruments 38073 Bedienungsanleitung

Extech Instruments

Extech Instruments AUT500 Bedienungsanleitung

Extech Instruments

Extech Instruments EX623 Bedienungsanleitung

Extech Instruments

Extech Instruments EX210 Bedienungsanleitung

Extech Instruments

Extech Instruments MN25 Bedienungsanleitung

Extech Instruments

Extech Instruments MiniTec Series Bedienungsanleitung

Beliebte Multimeter Handbücher anderer Marken

Agilent Technologies

Agilent Technologies 34420A Bedienungsanleitung

Fluke

Fluke 83 Bedienungsanleitung

Hameg

Hameg HM 8012 Bedienungsanleitung

Mastech

Mastech MY70 Bedienungsanleitung

Steren

Steren MUL-300 Bedienungsanleitung

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Bedienungsanleitung

PeakTech

PeakTech 4000 Gebrauchs- und Pflegehandbuch

YOKOGAWA

YOKOGAWA 90050B Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Bedienungsanleitung

Fluke

Fluke 8846A Bedienungs- und Wartungshandbuch

Tempo Communications

Tempo Communications MM200 Bedienungsanleitung

Elenco Electronics

Elenco Electronics CM-1555 Bedienungsanleitung

Mastech

Mastech MS8238C Bedienungsanleitung

SDAR

SDAR 830A, 830B, 830D, 830C Bedienungsanleitung

RS PRO

RS PRO RS-9519BT Bedienungsanleitung

BGS technic

BGS technic 8890 Bedienungsanleitung

Amprobe

Amprobe Hexagon 60 Bedienungsanleitung
