User Guide

True RMS Multimeter with

IR Thermometer

Extech EX210T

EX210T-EU-EN V1.1 8/12

Introduction

Thank you for selecting the Extech EX210T True RMS Autoranging Multimeter. This meter measures

AC/DC Voltage, AC/DC Current, Resistance, Diode Test, and Continuity plus non-contact InfraRed

Temperature. Proper use and care of this meter will provide many years of reliable service. Please visit

the Extech Instruments website (www.extech.com) to check for the latest version of this User Guide.

Extech Instruments is an ISO-9001 certified company.

Safety

This symbol adjacent to another symbol, terminal or operating device indicates

that the operator must refer to an explanation in the Operating Instructions to

avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth ground

exceeds (in this case) 600 VAC or VDC.

This symbol adjacent to one or more terminals identifies them as being associated

with ranges that may, in normal use, be subjected to particularly hazardous

voltages. For maximum safety, the meter and its test leads should not be handled

when these terminals are energized.

This symbol indicates that a device is protected throughout by double insulation or

reinforced insulation.

WARNING

CAUTION

MAX

600V

EX210T-EU-EN V1.1 8/12

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which

measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from

the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial use

with permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

CAUTIONS

Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

Always remove the test leads before replacing the battery or fuses.

Inspect the condition of the test leads and the meter itself for any damage before operating the

meter.

Use great care when making measurements if the voltages are greater than 25 VAC rms or 35

VDC. These voltages are considered a shock hazard.

Warning! This is a Class A device. This device can cause interference in residential areas.

Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

This device must not be used by children. It contains hazardous objects as well as small parts

that the children could swallow.

Do not leave batteries and packing material lying around unattended; they can be dangerous

to children.

In the event that this device will be stored for an extended period of time, remove the batteries.

Expired or damaged batteries can leak and can be hazardous to skin. Use suitable hand

gloves in such cases.

Do not short-circuit the battery. Do not place the battery near a fire.

Never mix battery types. Always install new batteries of the same type.

EX210T-EU-EN V1.1 8/12

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules listed below

must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V AC/DC, Resistance, Diode Test, Continuity 600 VDC/AC rms

μA or mA AC/DC 200mA fused

A AC/DC 10A fused

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth

ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the

current, resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making

resistance or diode tests.

6. ALWAYS turn off the power and disconnect the test leads before opening the covers to replace

the fuse or batteries.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place

and fastened securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

EX210T-EU-EN V1.1 8/12

Controls and Jacks

1. IR Thermometer

2. Laser Pointer

3. 2000 count LCD

4. MAX button

5. MODE button

6. FUNCTION switch

7. mA, µA and 10A input jacks

8. IR Thermometer button

9. HOLD button

10. RANGE button

11. Positive input jack

12. COM input jack

Note: Tilt stand, test lead holders, and battery compartment are on rear of unit.

Symbols and Enunciators

Continuity

Diode test

µ micro (10-6) (amps)

m milli (10-3) (volts, amps)

A Amps

k kilo (103) (ohms)

M mega (106) (ohms)

 Ohms

V Volts

AC Alternating current

DC Direct current

ºF Degrees Fahrenheit

ºC Degrees Centigrade

MAX Maximum

AUTO Autoranging

HOLD Display hold

SCAN IR temperature in progress

EX210T-EU-EN V1.1 8/12

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are extremely dangerous

and should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. If “OL” appears in the display during a measurement, the value exceeds the range you have

selected. Change to a higher range.

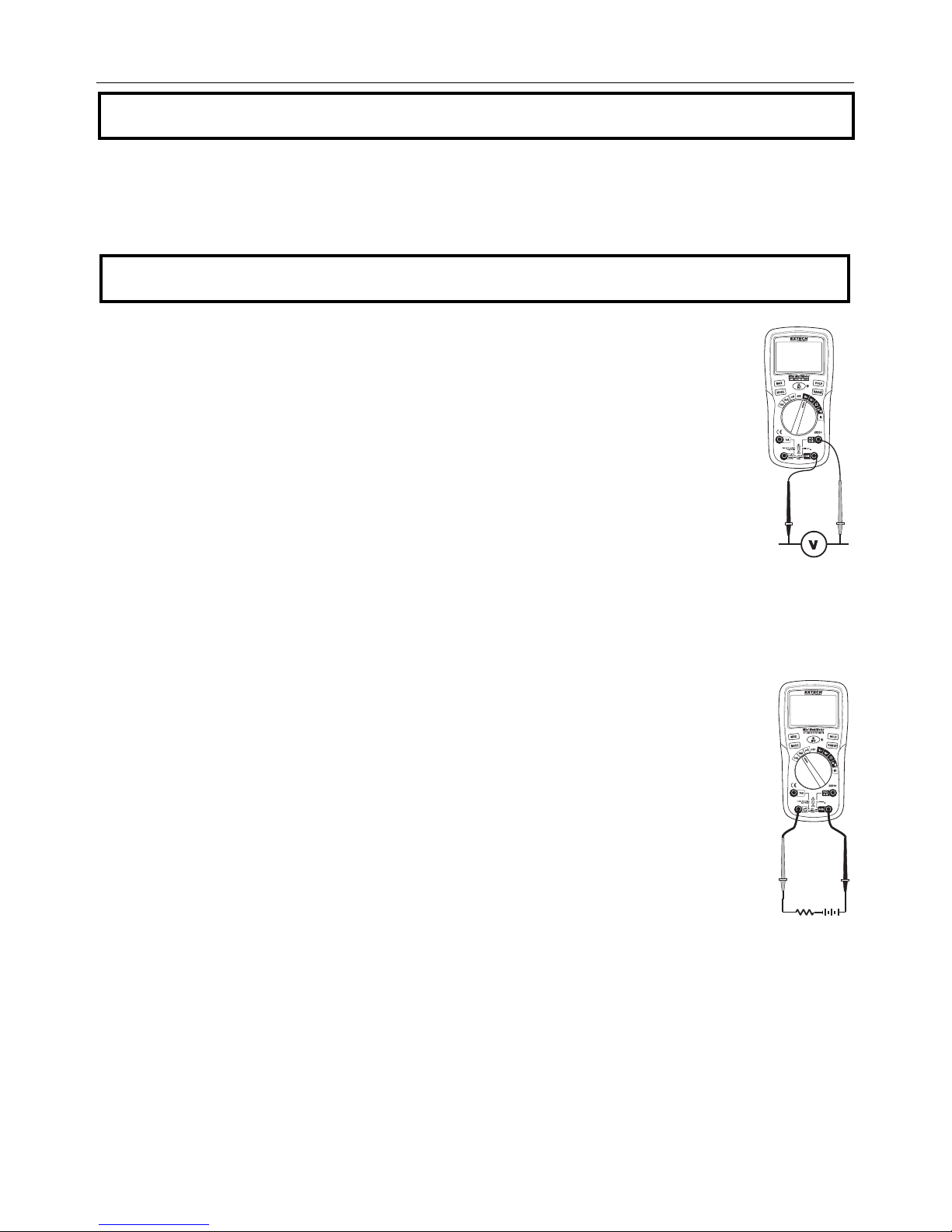

AC/DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Rotate the function switch to the VAC or VDC position.

2. Insert the black test lead banana plug into the negative COM jack. Insert the red

test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

4. Read the voltage in the display.

AC/DC CURRENT MEASUREMENTS

1. Insert the black test lead banana plug into the negative COM jack.

2. Press the MODE button to indicate “DC” or “AC” on the display.

3. For current measurements up to 2000µA, set the function switch to the µA position

and insert the red test lead banana plug into the µA/mA jack.

4. For current measurements up to 200 mA DC, set the function switch to the mA

position and insert the red test lead banana plug into the µA/mA jack.

5. For current measurements up to 10A DC, set the function switch to the 10A position

and insert the red test lead banana plug into the 10A jack.

6. Connect the test leads in series with the circuit under test.

7. Apply power to the circuit.

8. Read the current in the display.

EX210T-EU-EN V1.1 8/12

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any resistance measurements. Remove the batteries and unplug the line

cords.

1. Rotate the function switch to the Ωposition.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive jack.

3. Touch the test probe tips across the device under test.

4. Read the resistance in the display.

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that have a

voltage potential.

1. Rotate the function switch to the position.

2. Insert the black lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive jack.

3. Press the MODE button to indicate“ "on the display

4. Touch the test probe tips to the circuit or wire you wish to check.

5. If the resistance is less than the continuity threshold, the audible signal will sound.

DIODE TEST

1. Rotate the function switch to the green position.

2. Insert the black test lead banana plug into the negative COM jack and the red test

lead banana plug into the positive jack.

3. Press the MODE button to indicate “ “and “V” on the display.

4. Touch the test probes to the diode under test. Forward voltage will typically indicate

0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate

near 0V and an open device will indicate “OL” in both polarities.

EX210T-EU-EN V1.1 8/12

NON-CONTACT INFRARED TEMPERATURE MEASUREMENTS

1. Rotate the function switch to the IR position. The upper right four digit temperature display will

switch on.

2. Press the MODE button to select °F or °C.

3. Aim the infrared sensor (top of meter) at the surface to be measured.

4. Press and Hold the IRT button to turn on the IR thermometer and laser pointer. The laser

pointer identifies the surface spot to be measured and “SCAN” will flash in the display.

5. Read the temperature in the display.

6. The area of the surface to be measured must be larger than the spot size as determined by the

distance to spot size values listed in the specification table.

7. Release the IRT button to turn the IR thermometer and laser pointer off. “HOLD” and the

final measured value will remain in the display.

WARNING: Do not directly view or direct the laser pointer at an eye. Low power visible lasers

do not normally present a hazard, but may present some potential for hazard if viewed directly for

extended periods of time.

IR Spot to Distance Diagram

The 4:1 spot to distance ratio determines the size of the measured surface area with respect to the

distance the meter is held away from the surface.

IR Measurement Notes

1. The object under test should be larger than the spot (target) size calculated by the field of view

diagram.

2. If the surface of the object under test is covered with frost, oil, grime, etc., clean before taking

measurements.

3. If an object's surface is highly reflective, apply masking tape or flat black paint to the surface

before measuring.

4. The meter will not make measurements through glass steam, dust, and smoke.

5. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and

down motion) until the hot spot is located.

1”

@4”

2”

@8”

4”

@16”

20mm

@ 80mm 40mm

@ 160mm 80mm

@ 320mm

EX210T-EU-EN V1.1 8/12

AUTORANGING/MANUAL RANGE SELECTION

When the meter is first switched on, it automatically enters the AutoRanging mode. This

automatically selects the best range for the measurements being made and is generally the best

mode for most measurements. For measurement situations requiring that a range be manually

selected, perform the following:

1. Press the RANGE button. The “AUTO” display indicator will turn off.

2. Press the RANGE key to step through the available ranges until the range desired is selected.

3. Press and hold the RANGE button for 2 seconds to exit manual ranging.

Note: Manual ranging does not apply to the Temperature, Diode and Continuity functions.

MAX (MAXIMUM READING) MODE

1. Press the MAX button to activate the MAX mode. The display icon "MAX" will appear. The meter

will display and hold the maximum reading and will update only when a new maximum value is

detected.

2. Press the MAX button again to exit the mode.

Note: Max does not apply to the Resistance, Diode and Continuity functions.

DISPLAY BACKLIGHT

Press and hold the IRT button for 2 second to turn the backlight on. The backlight will

automatically turn off after approximately 10 seconds or press and hold the button again for 2

seconds to manually turn it off.

HOLD

The HOLD function freezes the reading in the display. Press the HOLD button momentarily to

activate or to exit the HOLD function.

Note: The HOLD button does not function in the IR measurement mode.

AUTO SLEEP

If no button is pressed the auto sleep feature will place the meter in sleep mode after approximately

15 minutes of operation. If this happens, press any button to wake the meter or switch the meter to

OFF if it no longer in use.

EX210T-EU-EN V1.1 8/12

Maintenance

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before

removing the back cover or the battery or fuse covers.

WARNING: To avoid electric shock, do not operate the meter until the battery and fuse covers are

in place and fastened securely.

This MultiMeter is designed to provide years of dependable service, if the following care instructions

are followed:

1. KEEP THE METER DRY. If it gets wet, wipe it off.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature extremes can

shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the electronic parts

or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use

chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove old or

weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries should be

removed to prevent damage to the unit.

BATTERY and FUSE Replacement

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before

removing the battery cover.

1. Turn power off and disconnect the test leads from the meter.

2. Open the rear battery/fuse compartment by removing the Phillips head screw on the lower rear of

the meter. .

3. Pull down on the cover to release the latch and then lift it off.

4. Remove the old battery or fuse and install a new one of the correct rating.

5. Place the battery/fuse cover back in place. Secure with the screw.

WARNING: To avoid electric shock, do not operate the meter until the battery cover is in place and

fastened securely.

NOTE: If the meter does not work properly, check the fuses and replace the battery to make sure that

they are still good and that they are properly inserted.

All EU users are legally bound by the Battery Ordinance to return all used batteries to

community collection points or wherever batteries / accumulators are sold!

Disposal in household trash or refuse is prohibited!

Other Battery Safety Reminders

Never dispose of batteries in a fire. Batteries may explode or leak.

Never mix battery types. Always install new batteries of the same type.

Inhaltsverzeichnis

Andere Extech Instruments Multimeter Handbücher

Extech Instruments

Extech Instruments EX330 Bedienungsanleitung

Extech Instruments

Extech Instruments 407910 Bedienungsanleitung

Extech Instruments

Extech Instruments 38387 Bedienungsanleitung

Extech Instruments

Extech Instruments EX520-S Bedienungsanleitung

Extech Instruments

Extech Instruments MultiMaster MM560A Bedienungsanleitung

Extech Instruments

Extech Instruments 382075 Bedienungsanleitung

Extech Instruments

Extech Instruments 407119A Bedienungsanleitung

Extech Instruments

Extech Instruments MiniTec Series Bedienungsanleitung

Extech Instruments

Extech Instruments EX410 Bedienungsanleitung

Extech Instruments

Extech Instruments 38070 Bedienungsanleitung

Extech Instruments

Extech Instruments MN26 Bedienungsanleitung

Extech Instruments

Extech Instruments EX330 Bedienungsanleitung

Extech Instruments

Extech Instruments EX410A Bedienungsanleitung

Extech Instruments

Extech Instruments 380926 Bedienungsanleitung

Extech Instruments

Extech Instruments Extech 470 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik EC505 Bedienungsanleitung

Extech Instruments

Extech Instruments EX210 Bedienungsanleitung

Extech Instruments

Extech Instruments EX470A Bedienungsanleitung

Extech Instruments

Extech Instruments MN62 Bedienungsanleitung

Extech Instruments

Extech Instruments MN30 Bedienungsanleitung

Extech Instruments

Extech Instruments EX350 Bedienungsanleitung

Extech Instruments

Extech Instruments EX570 Bedienungsanleitung

Extech Instruments

Extech Instruments EX623 Bedienungsanleitung

Extech Instruments

Extech Instruments MA200 Bedienungsanleitung

Beliebte Multimeter Handbücher anderer Marken

Agilent Technologies

Agilent Technologies 34420A Bedienungsanleitung

Fluke

Fluke 83 Bedienungsanleitung

Hameg

Hameg HM 8012 Bedienungsanleitung

Mastech

Mastech MY70 Bedienungsanleitung

Steren

Steren MUL-300 Bedienungsanleitung

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Bedienungsanleitung

PeakTech

PeakTech 4000 Gebrauchs- und Pflegehandbuch

YOKOGAWA

YOKOGAWA 90050B Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Bedienungsanleitung

Fluke

Fluke 8846A Bedienungs- und Wartungshandbuch

Tempo Communications

Tempo Communications MM200 Bedienungsanleitung

Elenco Electronics

Elenco Electronics CM-1555 Bedienungsanleitung

Mastech

Mastech MS8238C Bedienungsanleitung

SDAR

SDAR 830A, 830B, 830D, 830C Bedienungsanleitung

RS PRO

RS PRO RS-9519BT Bedienungsanleitung

BGS technic

BGS technic 8890 Bedienungsanleitung

Amprobe

Amprobe Hexagon 60 Bedienungsanleitung
