Setup Guide — P/2 DA2 WM F, WM F AAP, EC F, D

This guide provides basic instructions for an experienced

installer to set up and operate the Extron®

P/2 DA2 WM F, WM F AAP, EC F, D Series of

distribution ampliﬁers.

Installation

These distribution ampliﬁers are high performance one input, two output video devices with

audio that accept video input from a VGA-QXGA compatible PC and distributes that signal to

separately buffered outputs. Refer to the user manual for speciﬁc mounting instructions. An

example application for the P/2 DA2 D is shown below. Refer to the user manual for other

application and installation examples.

COMPUTER IN

MONITOR OUT

AUDIO IN

Projector

Extron

MHR-5 Cable

PC w/ Audio

Extron

P/2 DA2 D

Distribution Amplifier

Audio

Output

Extron

MPA 122

Mini Power Amplifier

POWER

12V

3A MAX.

OUTPUTS

4/8 Ohms SPEAKERS

INPUTS

REMOTE

10V

VOL/MUTE

MPA 122

CUS

Extron

SI 3CT LP

Full-Range Ceiling

Speakers

CInstallation and service must be performed by authorized personnel only.

Step 1 — Power down

Power off the display device, the PC and its local monitor.

Step 2 — Connect inputs

• For video input, connect the VGA output of the PC to the Input or Computer In 15-pin

HD connector on the faceplate of the distribution ampliﬁer.

• For unbalanced stereo audio input, connect the input device

to the 3.5 mm female audio jack on the faceplate of the

distribution ampliﬁer. Wire the audio plug as shown on the

right.

Step 3 — Connect outputs

• If a local monitor is being used, connect the monitor of the PC to the Buffered Local

Monitor or Monitor Out 15-pin HD output connector on the faceplate of the distribution

ampliﬁer.

(Continued on reverse side)

Sleeve ( )

Ring (R)

Tip (L)

Setup Guide — P/2 DA2 WM F, WM F AAP, EC F, D

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FA X

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

68-463-52

Rev. A

01 10

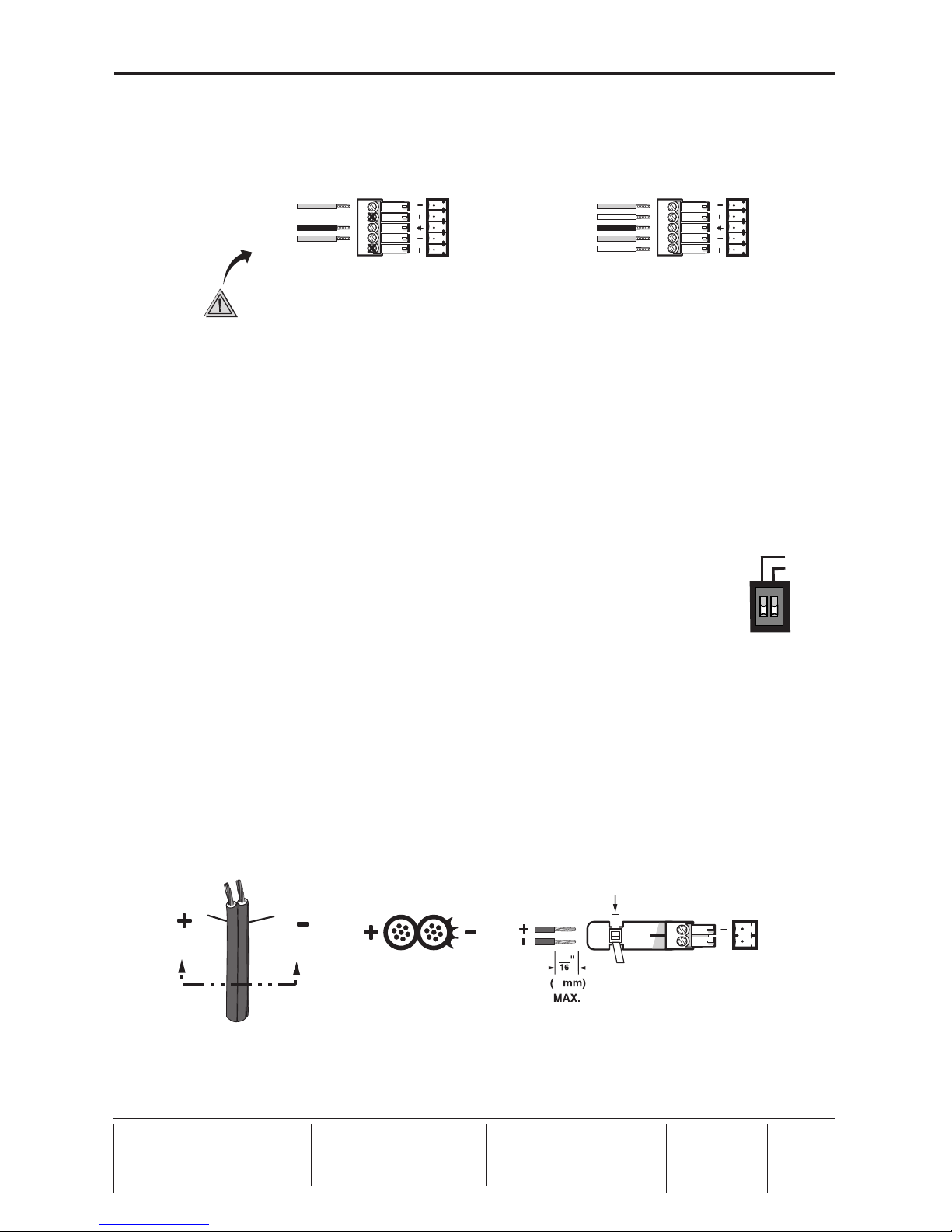

• Connect the display device to the 15-pin HD connector on the rear panel of the

P/2 DA2 WM F, WM F AAP, EC F or to the 5 BNC connectors on the rear panel of the

P/2 DA2 D.

• For audio output, connect the audio output device to the 3.5 mm direct insertion 5-pole

connector on the rear panel of the distribution ampliﬁer. See the diagram below.

Unbalanced Stereo Output

Tip

NO GROUND HERE.

Sleeve(s)

Tip

NO GROUND HERE.

Balanced Stereo Output

Tip

Ring

Sleeve(s)

Tip

Ring

L R

Left

Right

Left

Right

CAUTION

For unbalanced audio, connect the sleeve(s) to the center contact ground. DO NOT connect the

sleeve(s) to the negative (-) contacts.

Step 4 — Set DIP switches

Two sliding-type DIP switches can be found on the faceplate of the P/2 DA2 WM F,

WM F AAP, EC F. Refer to the user manual for setting the DIP switch for the D model.

To set these DIP switches, slide the switch to on/closed or off/open position.

The two DIP switches provide proper ID bit termination for a laptop computer that is not

attached to a local monitor. Also, see the note below regarding local monitor output and the

setting of internal jumpers.

IDPin4andIDPin11

ON – Set both pins to On if you are using the P/2 DA2 WM F, WM F AAP,

EC F with a laptop computer that is not attached to a local monitor.

 OFF – Set both pins to Off if you are attaching a local monitor to the

P/2 DA2 WM F , WM F AAP, EC F.

NThe jumpers inside the distribution ampliﬁer are set at the factory for output

to a local monitor. However, you can direct output to a data display by resetting the

jumpers. Refer to the user manual for further details.

Step 5 — Power up

Connect the power supply cord of the distribution ampliﬁer to a 100 to 240 VAC power source

and power up the local monitor, PC, audio and display device. See the wiring diagram below.

CAlways use a power supply speciﬁed by Extron for the distribution

ampliﬁer. Use of an unauthorized power supply voids all regulatory

compliance certiﬁcation and may cause damage to the power supply and

the distribution ampliﬁer.

Power Supply

Output Cord

Captive Screw

Connector

SECTION A–A

Ridges

Smooth

A A

Tie Wrap

CPower supply voltage polarity is critical. Incorrect voltage polarity can

damage the power supply and the distribution ampliﬁer. Identify the

power cord negative lead by the ridges on the side of the cord.

ID PIN 4

ID PIN 11
