IMPORTANT:

Go to www.extron.com for the

complete user guide and installation

instructions before connecting the

product to the power source.

www.extron.com

EDID 101H 4K PLUS• Setup Guide

This setup guide provides instructions for an experienced installer to install and operate the EDID 101H 4K PLUS.

The EDID 101H 4K PLUS is a single-input, single-output HDMI EDID emulator supporting video rates up to 4K@60 Hz 4:4:4. It

supports EDID Minder, HDCP 2.2, and Extron Product Conguration Software (PCS) conguration. The EDID 101H 4K PLUS can

also capture and store EDID information from a connected display via the front panel STORE button.

The EDID 101H 4K PLUS is housed in a 1” high, quarter-rack width, 6” deep enclosure. An external universal power supply is

included.

NOTES: For full installation, conguration, menus, connector wiring, and operation details, see the EDID 101H 4K PLUS

User Guide, available at www.extron.com

Rear Panel Cabling

POWER

12V

0.3A MAX

OUTPUTINPUT

EDID 101H 4K PLUS

ABC

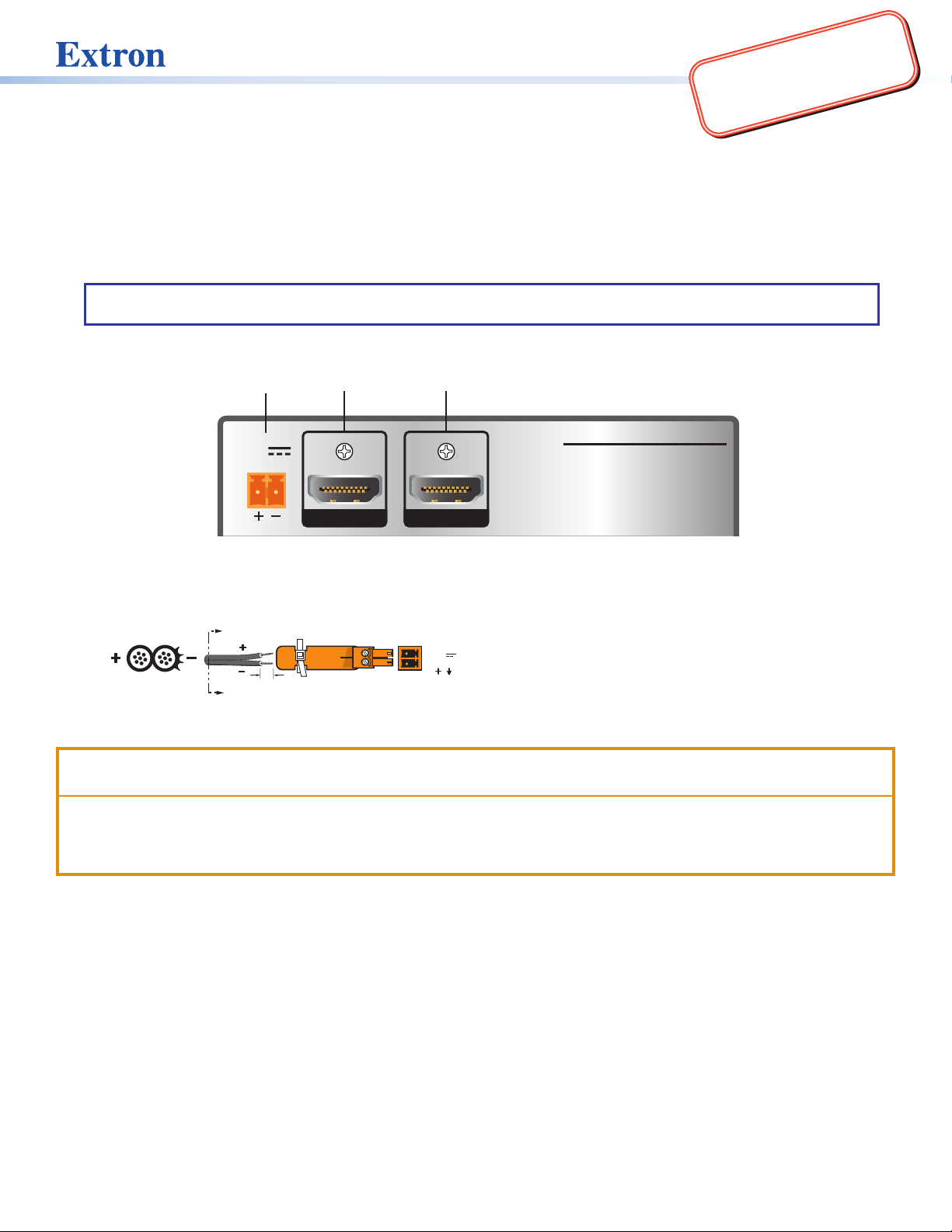

Figure 1. EDID 101H 4K Plus Rear Panel

APower Connector – Connect the included 12VDC power supply to the orange, two-pole, 3.5mm captive screw connector.

Wire the power supply as shown in Figure 2.

Figure 2. External Power Supply Connection

ATTENTION: Risk of property damage:

ATTENTION : Risque de dommages matériels :

• Do not connect any external power supplies until you have read the Attention notications in the Power Supply section of

the user guide for that device.

• Ne branchez pas de sources d’alimentation externes avant d’avoir lu les mises en garde dans la section « Power Supply »

du guide utilisateur pour cet appareil.

BHDMI Input – Connect an HDMI source to this HDMI connector.

cHDMI Output – Connect a display or other output device to the HDMI connector.

SECTION A–A

Ridges

Smooth

3/16"

(5 mm) Max.

POWER

12V

0.3A MA

EDID 101H 4K PLUS • Setup Guide (Continued)

HDMI Connector LockIt Lacing Bracket

Figure 3. Connecting HDMI cable to LockIt Lacing Bracket

Use the Extron LockIt Lacing Bracket to secure HDMI cables to the device.

1. Plug the HDMI cable into the rear panel connection (1).

2. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt Lacing Bracket to be

placed over it (2). The screw does not have to be removed.

3. Place the LockIt Lacing Bracket on the screw and against the HDMI connector (3), then tighten the screw to

secure the bracket.

ATTENTION:

• Do not overtighten the HDMI connector mounting screw. The shield to which it is fastened is very thin and

can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très n

et peut facilement être dénudé.

4. Loosely place the included tie wrap around the HDMI connector and the LockIt Lacing Bracket as shown (4).

5. Hold the connector securely against the lacing bracket, tighten the tie wrap, then remove the excess length (5).

Front Panel

EDID 101H 4K PLUSExtron

SIGNAL

HDCP

IN OUT STORE

EDID

CONFIG

AB CD

Figure 4. EDID 101H 4K Plus Front Panel

APower LED – Illuminates when power is supplied.

BConfig Port – Connect a USB mini-B cable to provide USB communication with unit.

CEDID STORE Button – When pushed in, the EDID STORE button initiates both reading and storing the EDID from

the connected display. Press the Store button to read the EDID of the connected device and store it to a user

slot selected by the rotary switch. Up to four EDID files (switch positions C through F) can be stored.

Reset – To reset the EDID101H4K PLUS to its default state, press and hold the EDID STORE button while

applying power. As power is applied, all front panel LEDs blink 3 times indicating a successful reset.

DEDID Selection Rotary Switch – The 16-position rotary switch allows the user to select from 12 factory EDID

files and 4 store slots. When any position 0-F is selected, the corresponding slot in the EDID lookup table will

be assigned to the input, and an unsolicited SIS response will be sent. This is summarized in the table on the

following page.

HDMI Connector LockIt lacing Bracket

EDID 101H 4K PLUS • Setup Guide (Continued)

Rotary Switch Position Native Resolution Refresh Audio Format

01280 x 800 60 Hz 2-Ch

11600 x 900 60 Hz 2-Ch

21920 x1200 60 Hz 2-Ch

32560 x 1400 60 Hz 2-Ch

42560 x 1600 60 Hz 2-Ch

5720p 50 Hz 2-Ch

6720p 60 Hz 2-Ch

71080p 50 Hz 2-Ch

81080p 60 Hz 2-Ch

94K/UHD 30 Hz 2-Ch

A4K/UHD 4:2:0 60 Hz 2-Ch

B4K/UHD 4:4:4 60 Hz 2-Ch

CStore Slot 1

DStore Slot 2

EStore Slot 3

FStore Slot 4

LED

State

Rotary Switch Store Button Description

Off 0-B Non-functional EDID storing is not possible on the selected rotary position.

Green

(ashing)

C-F Button has been pressed

and released

The STORE button has been pressed and the EDID is cur-

rently being stored to the selected user store slot.

Green

(solid)

C-F N/A EDID storing is possible on the selected rotary position, or the

storing process is complete (if following the ashing state).

Connect and Power the EDID 101H 4K PLUS

1. Set the rotary switch (see ﬁgure 4, D) for the desired resolution.

2. Connect an HDMI cable from the source to the EDID 101H 4K PLUS Input (see gure 1, B).

3. Connect an HDMI cable from the EDID 101H 4K PLUS Output (see ﬁgure 1, C) to the display or distribution system.

4. Turn on the video display.

5. Connect the power supply to the EDID101H 4K PLUS (see ﬁgure 1, A).

6. Connect AC power to the power supply. The EDID 101H 4K PLUS power LED lights green.

7. Turn on the video source. The video source reads the EDID from the EDID101H 4K PLUS.

EDID 101H 4K PLUS • Setup Guide (Continued)

All trademarks mentioned are the property of their respective owners.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

68-3109-50 Rev. A

03 20
