DTP T 3G-SDI 230/330 D • Setup Guide

This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP T 3G-SDI 230/330 D

series of SDI extenders. The DTP T 3G-SDI 230 D and 330 D products can transmit video, control, and audio (if applicable)

signals up to 230 feet (70 meters) and 330 feet (100 meters), respectively.

Installation

Step 1 — Prepare the Mounting Surface

NOTE: Use a wall box with a depth of at least 3.0 inches

(7.6 cm). Alternatively, the included mud ring (MR 100)

can be used.

For more information, see the full product user guide at

www.extron.com. The installation must comply with the

National Electrical Code and all applicable local codes.

a. Place the wall box against the installation surface and mark

the opening guidelines.

b. Cut out the material from the marked area.

c. Secure the wall box with 10-penny nails or #8 or #10 screws, leaving the front edge ush with the surface.

d. Run all required cables (see steps 4, 5, and 6) and secure them with cable clamps.

TIP: To ensure a proper t the unit in the junction box, do not

install boots on TP cables and RJ-45 connectors.

Step 2 — Disconnect Power

Disconnect all equipment from power sources.

Step 3 — Connect Inputs to the Transmitter

A SDI input connector — Connect a coaxial cable to the output port of the SDI or HD-SDI video source.

B Loop Thru SDI connector — Connect a display to this BNC loop-through connector for local monitoring.

C Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack.

NOTES:

• The DTP T 3G-SDI 230 D and 330 D products do not embed this audio onto the SDI

signal. Audio is transported separately over the DTP connection.

• AES/EBU digital audio is passed through with the supported SDI format.

Tx TxRx RxG

RS-232

3G/SDI IN

AUDIO IN

OVER TP

DTP T 3G-SDI 330 D

DTP

HDBT

OUT

12V

1.0A MAX

POWER

+–

CONFIG

DTP T 3G-SDI 230/330 D

Front Panel

DTP T 3G-SDI 230/330 D

Rear Panel

A SDI Input connector

B SDI Loop Thru connector

C Audio Input connector

D Over TP RS-232 and IR connector

E USB Conﬁg port

F DTP Out connector (Step 4, page 2)

G HDBaseT/DTP mode switch

H Power connector (Step 6, page 2)

I Power LED (Operation, page 3)

Wall Stud

Screws

or Nails

Signal

Output

Cable

Decora Faceplate

Extron

DTP T 3G-SDI 330 D

Extron

OVER TP

RS-232 IR

AUDIO IN

3G-SD I IN

Rx Tx RxG

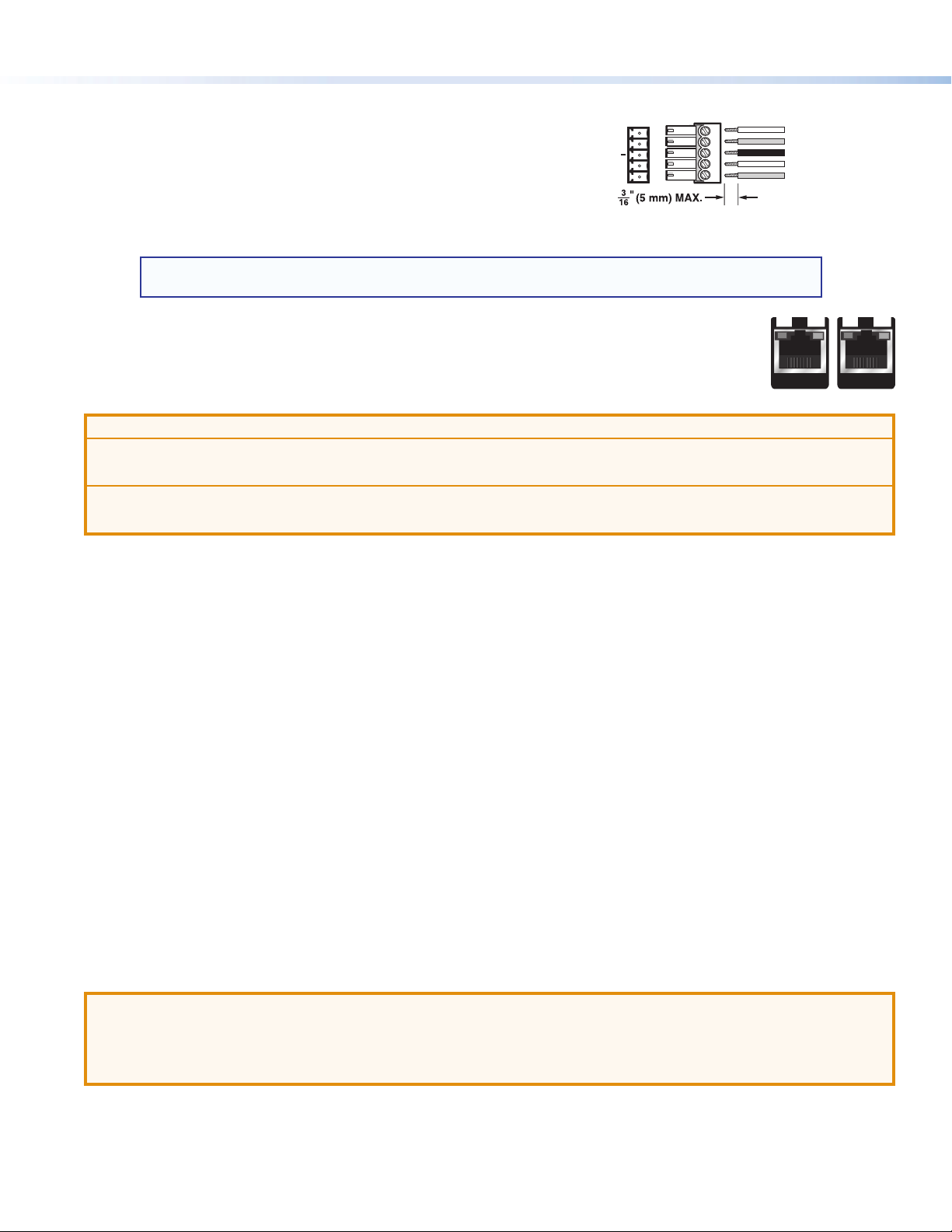

DTP T 3G-SDI 230/330 D • Setup Guide (Continued)

D Over TP connector — Plug an RS-232 or modulated IR device into this

RS-232/IR pass-through port. Wire the cable as shown to the right.

E USB Conﬁg port — Connect a PC to this mini USB-B port for device

conguration and rmware updates.

GHDBaseT/DTP mode switch — Set this 2-position, recessed switch to

congure the output between HDBaseT and DTP modes.

When congured for HDBaseT, use an HDBaseT-compatible receiver.

When congured for DTP, use a DTP-compatible receiver.

NOTE: Prior to setting the switch, ensure that the transmitter and receiver are both powered off and that

the correct DTP or HDBaseT receiver is connected.

Step 4 — Run Cables Between Units

Connect the rear panel transmitter output (see F on page 1) to the rear panel receiver input using shielded

twisted pair (STP) cable.

ATTENTION:

• Do not connect these outputs to a telecommunications or computer data network.

• Ne connectez pas ces appareils à des données informatiques ou à un réseau de télécommunications.

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable.

• N’utilisez pas le câble AV Skew-FreeUTP version améliorée UTP23SF d’Extron ou le câble STP201.

For optimal performance, Extron highly recommends the following:

zRJ-45 termination with STP cable must comply with TIA/EIA T 568B wiring standard for all connections. For more

information on cable wiring and termination, see the full product user guide at www.extron.com.

zUse shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable bandwidth of 400 MHz.

zUse shielded RJ-45 plugs to terminate the cable.

zLimit the use of RJ-45 patches. Overall transmission distance capabilities vary depending on the number of patches

used. If possible, limit the number of patches to a maximum of 2.

zIf RJ-45 patches must be used in the system, shielded CAT 6 (or better) patches are recommended.

Step 5 — Connect Outputs from the Receiver

The DTP T 3G-SDI 230/330 D series is compatible with DTP 230 and DTP 330 receivers (sold separately).

a. Output connector — Connect a DP or HDMI cable between this port and the input port of the display. For complete

instructions on connecting receivers or switchers to outputs, see the user guide for the appropriate product at

www.extron.com.

b. Audio output — Connect a stereo audio device to this 3.5 mm mini stereo jack to receive the passed through

unbalanced audio.

c. RS-232/IR Over TP connector — Plug an RS-232 or modulated IR device into the RS-232/IR pass-through port.

Wire the connector as shown in step 3 above.

Step 6 — Power the Units

ATTENTION:

• Extron recommends installing the DTP T 3G-SDI into a grounded, UL Listed electrical junction box.

• Extron recommande d’installer le DTP T 3G-SDI dans un boîtier d’encastrement électrique mis à la terre,

listé UL.

When congured for DTP mode via the rear panel switch (see G on page 1), the unit can be powered either locally, with the

included external 12 VDC power supply, or over the DTP line by a locally powered receiver or switcher.

When congured for HDBaseT mode, remote power capability is disabled and the unit must be powered locally.

SIG LINK

OUT

SIG LINK

Rear Panel TP Ports

Ground

Receive pin on connected unit

Transmit pin on connected unit

Connected RS-232

and IR Device Pins

Tx/Rx

Pins

Receive pin on connected unit

Transmit pin on connected unit

RxTx

RS-232 IR

RxTx

OVER TP

DTP T 3G-SDI 230/330 D • Setup Guide (Continued)

To power the unit locally in either mode, wire the 2-pole captive screw connector for the included

external 12 VDC power supply as shown at right. Plug the power supply captive screw connector

into H.

Step 7 — Final Installation

a. Make all connections and test the system for satisfactory operation.

b. At the power outlet, unplug the power supply.

c. Mount the transmitter into the wall box and attach the supplied Decora®faceplate to the

unit.

d. At the power outlet, reconnect the power supply. This can power up both the transmitter

and receiver, unless in HDBaseT mode.

Operation

After all devices are powered up, the system is fully operational. See the denitions of the power indications below.

Transmitter Power Indicator

I Power LED — This two-color front panel LED on both DTP T 3G-SDI 230 and 330 model transmitters

lights to indicate signal and power status as follows:

Amber — The unit is receiving power but no signal on the SDI input.

Green — The unit is receiving power and a signal is present on the SDI input.

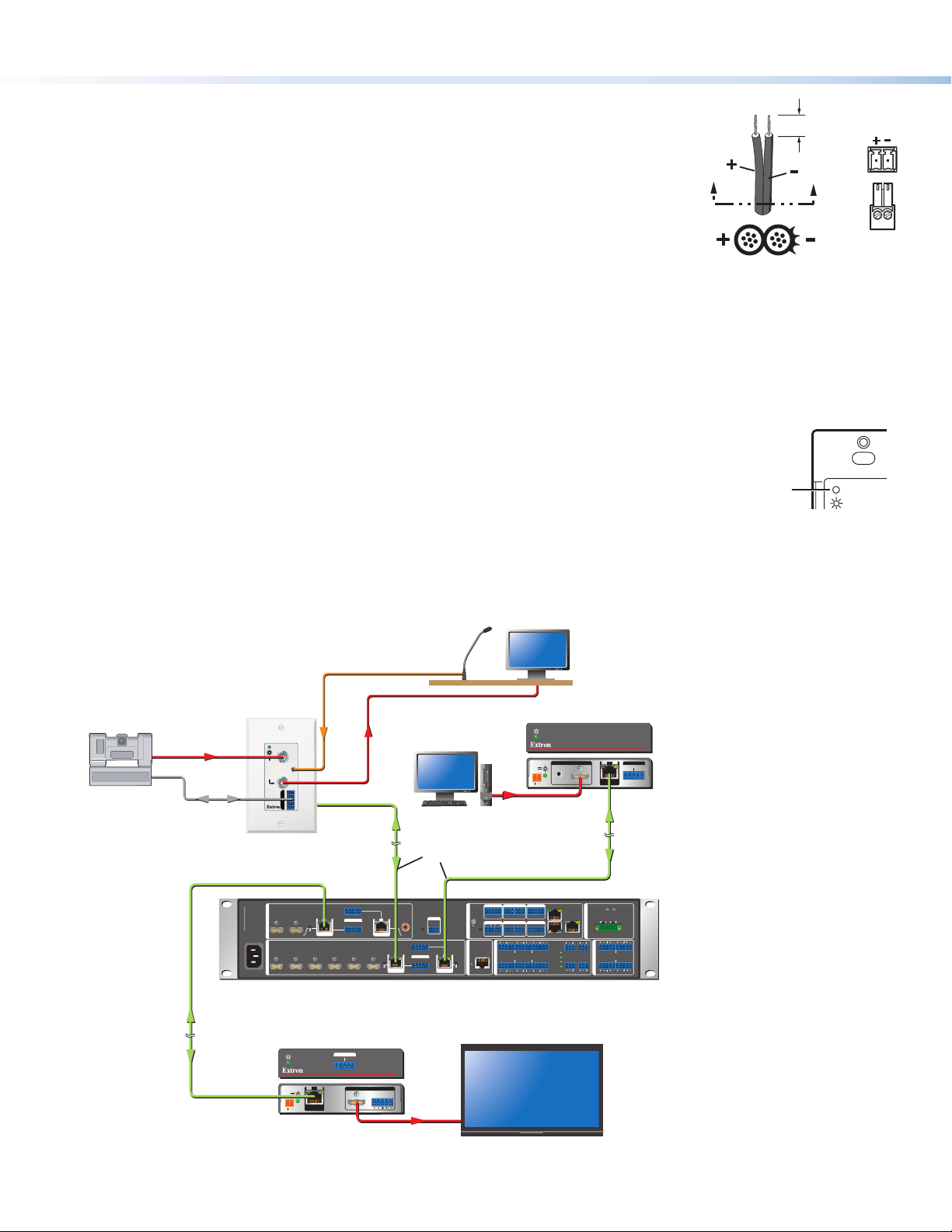

Application Diagrams

The following gures show typical applications for the DTP T 3G-SDI 230/330 D transmitters.

DTP HDMI 330 Tx

AUDIO

INPUTS OVER DTP

RS-232 IR

Tx Rx Tx RxG

POWER

12V

0.7A MAX

SIG LINK

DTP OUT

DTP HDMI 330 Rx

OVER DTP

RS-232 IR

Tx Rx Tx RxG

POWER

12V

0.7A MAX

AUDIO

SIG LINK

DTP IN

OUTPUTS

50-60 Hz

100-240V ~

2.0 A MAX

SIG LINK

OUT

SIG LINK

OUT

1344

XTPRS-232 IR

Tx Rx

RTSCTS

GTxRxG Tx Rx G

RS-232 IR

Tx Rx Tx RxG

Tx Rx G

Tx Rx Tx Rx

XTP RESET

S/PDIF

OUT

DTP

XTP

DTP

XTP

DTPEXP

+48V

MIC/LINE

113

LINK

LAN 2

LAN 1

LAN 3

HDBT

DTP

HDBT

1234 578

DTP CROSSPOINT 84

CLASS 2 WIRING

RS-232 IR

Tx Rx Tx RxG

OVER TP

OVER TP REMOTE

SIG LINK

AUDIO INPUTS

AUDIO OUTPUTS

AMP OUTPUT

CONTROL

1234G

DIGITAL I/OCOM 3COM 2COM 1

DMP EXPANSION

SGG

2C34C

INPUTS

-S G+S+V

PWR OUT = 6W

OUTPUTS

RS-232 IR

Tx Rx Tx RxG

LR 3

LR 4

LR 2

LR 4

IR/SERIALeBUSRELAYS

Tx TxRx RxG

RS-232

3G/SDI IN

AUDIO IN

OVER TP

Extron

DTP T 3G-SDI 330 D

Transmitter

Flat Panel Display

CATx Cable

up to 230'

(70 m)

CATx Cable

up to 330'

(100 m)

Extron

DTP HDMI 330 Rx

Receiver

Extron

DTP HDMI 330 Tx

Receiver

HDMI

Extron

DTP CrossPoint 84 IPCP SA

Scaling Presentation Matrix

-SDI Camera RS-232 / IR

3G-SDI

AudioLocal Monitor

Figure 1. A Typical DTP T 3G-SDI 230/330 D Application

LOCAL OUT

DVI-D

AUDIO

REMOTE

DDC

ROUTE

LOCAL Tx Rx GTxRx

RS-232 IR

Tx TxRx RxG

RS-232

3G/SDI IN

AUDIO IN

OVER TP

DTP T 3G-SDI 330 D

DTP

HDBT

OUT

12V

1.0A MAX

POWER

+–

CONFIG

DTP T 3G-SDI 230/330 D

Front Panel

DTP T 3G-SDI 230/330 D

Rear Panel

SECTION A–A

Power Supply

Output Cord

Captive Screw

Connector

Ridges

Smooth

3/16"

(5 mm) Max.

68-2683-50 Rev. A

03 15

DTP T 3G-SDI 230/330 D • Setup Guide (Continued)

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron

Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

Inside India Only

+91.80.3055.3777

+91.80.3055 3737 FAX

Dieses Handbuch passt für folgende Modelle

Andere Extron electronics Extender Handbücher

Extron electronics

Extron electronics CSVEQ 100 D Bedienungsanleitung

Extron electronics

Extron electronics DTP HDMI 230 Bedienungsanleitung

Extron electronics

Extron electronics DTP DVI 330 Bedienungsanleitung

Extron electronics

Extron electronics USB Extender Tx Bedienungsanleitung

Extron electronics

Extron electronics Tx-Rx Bedienungsanleitung

Extron electronics

Extron electronics DVI 104 Rx Bedienungsanleitung

Extron electronics

Extron electronics VGAUXGA Line Drivers With Audio Extender... Bedienungsanleitung

Extron electronics

Extron electronics DTP2 T 204 Bedienungsanleitung

Extron electronics

Extron electronics PowerCage FOX 4G Rx DVI Bedienungsanleitung

Extron electronics

Extron electronics DTP T UWP 4K 232 D Bedienungsanleitung

Extron electronics

Extron electronics DTP DVI 330 Bedienungsanleitung

Extron electronics

Extron electronics UCS FT 901 Bedienungsanleitung

Extron electronics

Extron electronics FOX3 SR 20 Bedienungsanleitung

Extron electronics

Extron electronics DTP T/R DP 330 Bedienungsanleitung

Extron electronics

Extron electronics Extender Wall Mount Series Bedienungsanleitung

Extron electronics

Extron electronics USB Extender Plus T Bedienungsanleitung

Extron electronics

Extron electronics DTP T DP 4K 330 Bedienungsanleitung

Extron electronics

Extron electronics FOX T UWP 302 Bedienungsanleitung

Extron electronics

Extron electronics DTP T DWP 4K 232 D Bedienungsanleitung

Extron electronics

Extron electronics DTP T/R DP 330 Bedienungsanleitung

Extron electronics

Extron electronics DTP HDMI 4K D Series Bedienungsanleitung

Extron electronics

Extron electronics DTP HWP 4K 231 D Bedienungsanleitung

Extron electronics

Extron electronics PowerCage FOX 4G Tx VGA Bedienungsanleitung

Extron electronics

Extron electronics PowerCage FOX HDMI Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
