FeiYu Tech AK2000 Bedienungsanleitung

3-Axis Stabilized Handheld Gimbal for Camera

Guilin Feiyu Technology Incorporated Company

V3.1E NUser Manual

Instructions

5.1 Introduction to functional models

5.2Handle - Function / Operation

5.AK2000 Function / Operation

5.3Modes

1.Product Overview 1

2.Installation

3.Gimbal Balancing

3.1Balance Adjustment of the Tilting Axis

3.2Balance Adjustment of the Rolling Axis

3.3Balance Adjustment of the Panning Axis

2.1Battery Charging

2.2Battery Installation

2.3 Installation handles

6.Advanced Operation

6.1Gimbal Initialization

6.2Firmware Upgrade

7.Speciﬁcations

2.4Camera Installation

8.Compatible Cameras for Reference

4.App - Download and Connecting

4.1Download and Install Feiyu ON App

4.2Connecting App

Catalogue

www.feiyu-tech.com

1.Product Overview

Nikon shutter release

Shortcut Button

Pan Axis Knob Ring

1/4 Inch Thread Hole

Vertical Arm

Pan Lock Screw

1/4 Inch Thread Hole

Lens Support Frame Roll Axis

Screw

Sliding Arm

anti-column

Roll Lock Screw

Tilt Lock Screw

Quick Release Plate

1/4 Inch Thread Hole

Cross Arm

Retaining Ring

Power Button

Mode Button

Touch Screen

Recording Button

Joystick

Capturing Button

Function Button

Tilt Axis

Fixed Plate

1/4 Inch Thread Hole

Safety

Lock

Multifunction Knob

Handle

Accessories

Canon Control Cable

（RS-80N3）

Charger

Micro USB Cable

18650 Li-ion Battery

Sony Control Cable

(3.5 audio to multi)

Tripod

Panasonic Control Cable

(Shift audio 3.5 to 2.5)

Thumb Screw

(Short)

2.1Battery Charging

www.feiyu-tech.com

2.Installation

(1) Please mount the camera before powering on the gimbal.

(2) When the battery is low, please charge the gimbal.

(3) When not in use, turn oﬀ the gimbal and then remove the batteries.

TIPS

Micro USB

Cable

（not included）

5V / 3A

Please fully charge the batteries before powering on the gimbal for the ﬁrst time.

Note: When installing the battery, pay attention to the direction of the battery. If the battery is reloaded,

it will cause the battery to short-circuit.

Charge the batteries with the charger.

2.2Battery Installation

Remove the tail cap, open the batteries compartment, and install the batteries correctly.

Battery Model:

18650 Li-ion Battery

www.feiyu-tech.com

2.3 Installation handles

2.3.1 Installation handles

2.3.2 Split handle

Figure 1 Figure 2

Figure3 Figure4 Figure5

The stabilizer is placed ﬂat on the ground, holding the stabilizer's head, and only twisting the retaining ring,

as shown in Figure 3. After twisting, the head is lifted vertically and upwards, as shown in Figure 4. Do not

move left or right, as shown in Figure 5, to prevent the stylus from breaking.

A B C

alignment

T=Tight L=Loose

Note: When installing the handle, the four positioning screws must be aligned with the corresponding

positioning holes and then tighten the ﬁxing ring to avoid the stylus being hit and causing troubles to

the stabilizer.

Align the handle positioning screw with the head positioning hole, ﬁx the handle part and the head, then

move up the ﬁxing ring up and tighten it, and the installation is completed.

A.Stylus

B.Positioning hole

C.Positioning screw

www.feiyu-tech.com

www.feiyu-tech.comwww.feiyu-tech.com

Note: make sure the camera is ready to shoot, the lens cover is removed, the battery and memory card

are loaded before installation.

2.4 Camera Installation

Thumb Screw

(Long)

2Thumb Screw

(Short)

Safety Lock Anti-column

1. Lock the lens support frame with the screw to the quick release plate;

2. Use the thumb screw to lock the camera from the bottom slot of the quick release

plate, and slightly adjust the lens support frame after locking the camera;

(Select the long/short thumb screw according to the position of the camera to be

mounted on the quick release plate)

3. Press and hold the anti-column；

4. Place the quick release plate on the ﬁxed plate, loosen the anti-column and tighten

the safety lock.

www.feiyu-tech.com

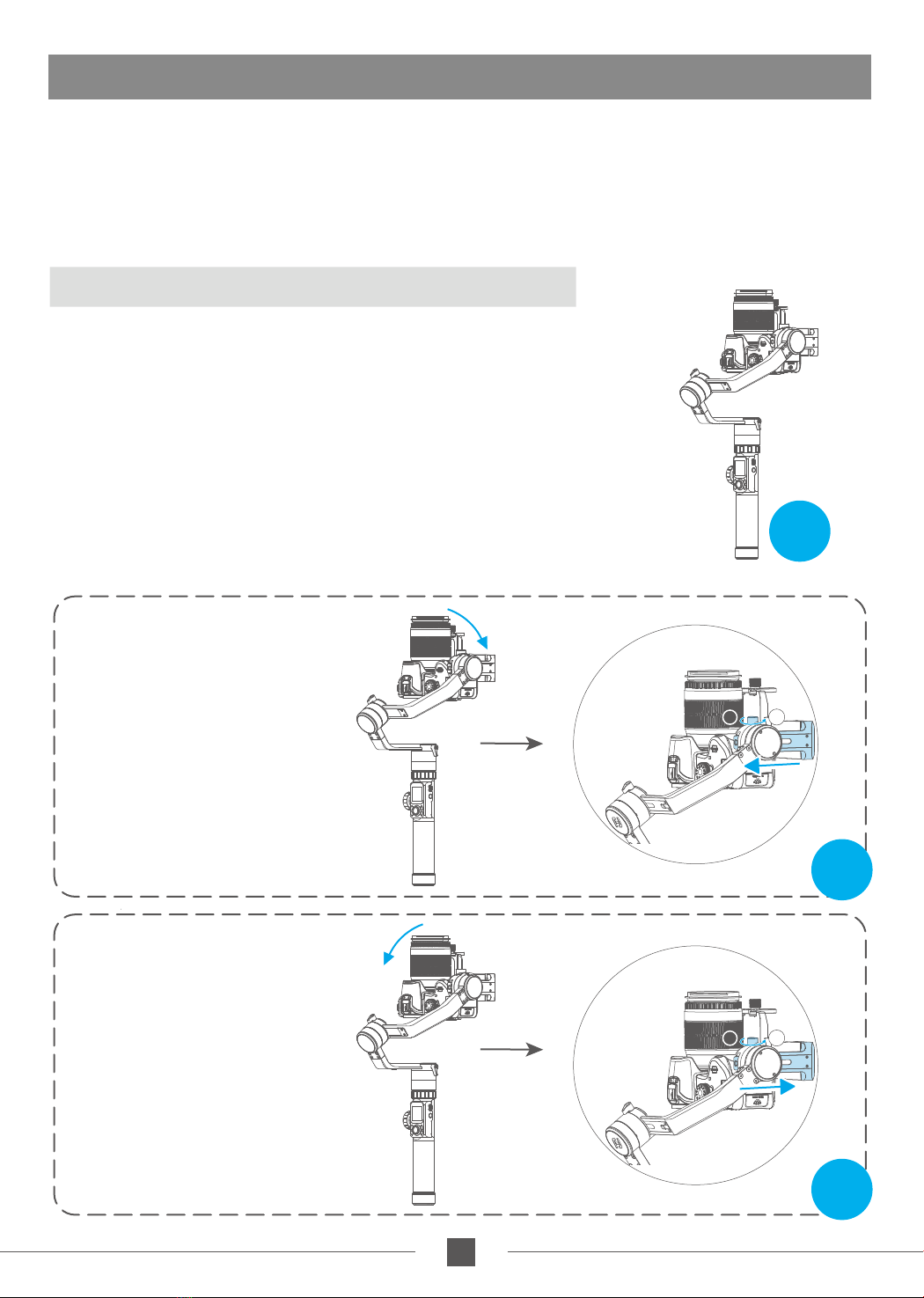

3.1 Balance Adjustment of the Tilting Axis

Camera right leaning，

slide to left to adjust

Camera left leaning，

silde to right to adjust

Note:

1. Before adjusting the balance, the camera needs to remove the lens cover and insert it into the memory

card to complete all the connections to ensure that the camera is ready to shoot.

2. During the balancing process, ensure that the camera power is turned oﬀ and the stabilizer motor is

turned oﬀ. It is possible to lock each axis of the stabilizer to the installation posture to facilitate balance

adjustment.

3. Tripods can be installed (refer to 20 pages for installation) for easy balance adjustment.

Unscrew the locking screw of the tilt axis motor and adjust the balance by

adjusting the sliding arm left and right (see Figure 7, Figure 8). When the cross

arm is kept horizontal, the camera lens is placed vertically upwards and stays

in a vertical state with the ground. The sliding arm adjustment is completed,

as shown in Figure 6.

（1）Adjust the position of the camera's tilting axis up and down: Place the

camera lens upright and keep the cross arm horizontal, as shown in Figure

6. After releasing the hand, observe the camera lens rotation state.

Figure6

Figure7

3.Gimbal Balancing

Adjust the center of gravity of the camera in two steps to

the axis of rotation of the tilting axis.

* After adjustment, make sure tighten the lock screw .

T=Tight

L=Loose

T=Tight

L=Loose

Figure8

www.feiyu-tech.com

Camera backward,slide the adjustment

skateboard up to adjust

Camera forward,slide the adjustment

skateboard down to adjust

（2）Adjust the center of gravity position of the

tilting axis forward and backward: point

the camera lens horizontal forward, adjust cross

arm to maintain the level as shown

in ﬁgure9,let go and observe the state of rotation.

Unscrew the camera safety lock on the right side and adjust

the balance by sliding the quick release plate at the bottom

of the camera back and forth (see Figure 10, Figure 11).

When the cross arm is kept horizontally, the tilt axis can stay

stably at any angle, indicating that the balance adjustment

of the tilt axis is completed.

*Be sure to fasten the safety lock after adjustment.

Figure9

Figure10

Figure11

Safety

Lock

Safety

Lock

www.feiyu-tech.com

3.2Balance Adjustment of the Rolling Axis

Camera leftward,slide the

cross arm right to adjust

Camera rightward,slide the

cross arm left to adjust

Unscrew the lock screw of the motor of roll axis and adjust the left and

right sliding cross arm (see Figure 13, Figure 14). When the roll axis can

stay stably at any angle, it means that the balance adjustment of the

roll axis is completed.

When the balance adjustment of the tilt axis of the stabilizer is

completed, the balance adjustment of the roll axis can be

performed: the camera lens is placed horizontally forward, the cross

arm is kept horizontally as shown in Figure 12, and the cross arm is

released to make the cross arm in a natural state. Observed camera

tilt state.

* After adjustment, be sure to tighten the lock screw.

Figure12

Figure13

Figure14

T=Tight

L=Loose

T=Tight

L=Loose

138

www.feiyu-tech.com

3.3Balance Adjustment of the Panning Axis

The lens is down，slide the vertical

arm backward to adjust

The lens is up，slide the vertical

arm forward to adjust

When the balance adjustment of tilting axis

and rolling axis is completed, the balance

of the panning axis can be adjusted.

Keep the stabilizer handle part parallel to the

horizontal ﬂoor, and hold the vertical arm parallel to

the ground, as shown in Figure 15.

Unscrew the lock screw of the pan axis motor and slide

the vertical arm to adjust it (see Figure 16, Figure 17).

When the vertical arm is parallel to the ground, the pan

axis can stay stably at any angle, indicating that the

balance adjustment of the pan axis is completed.

* After adjustment, make sure tighten the lock screw.

T=Tight

L=Loose

T=Tight

L=Loose

Figure15

Figure16

Figure17
