FeiYu Tech SCORP-C Bedienungsanleitung

Instructions V 1.1

Tutorial Videos

Catalogue

1. Overview ……………………………………………………………………………………………………… 1

2. Getting started ……………………………………………………………………………………………… 2

2.1 Charging ……………………………………………………………………………………………………………… 2

2.2 Adjust the gimbal position to gimbal balancing position …………………………………………………… 3

2.3 Using support stand ……………………………………………………………………………………………… 3

3. Mounting the Camera ……………………………………………………………………………………… 4

3.1 Attach the quick release plate and camera backing base(Optional) ……………………………………… 4

3.2 Install lens holder (Optional) ……………………………………………………………………………………… 4

3.3 Mount camera on gimbal ………………………………………………………………………………………… 5

4. Gimbal Balancing …………………………………………………………………………………………… 6

4.1 Balancing the tilt axis ……………………………………………………………………………………………… 6

4.2 Balancing the roll axis ……………………………………………………………………………………………… 7

4.3 Balancing the pan axis …………………………………………………………………………………………… 7

4.4 Using the memory slider ………………………………………………………………………………………… 8

5. Power ON/ OFF ……………………………………………………………………………………………… 9

6. Function/Modes introduction …………………………………………………………………………… 9

6.1 Follow modes introduction ……………………………………………………………………………………… 9

6.2 Other function introduction ……………………………………………………………………………………… 10

7. App Connecting …………………………………………………………………………………………… 11

7.1 Connect with Feiyu SCORP APP ………………………………………………………………………………… 11

7.2 Function introduction of APP …………………………………………………………………………………… 11

8. Operation ………………………………………………………………………………………………… 14

8.1 Button operation …………………………………………………………………………………………………… 14

8.2 Indicator ……………………………………………………………………………………………………………… 18

8.3 Control ports ………………………………………………………………………………………………………… 18

9. Speci󽗉cations …………………………………………………………………………………………… 19

Introduction

Feiyu SCORP-C is a professional 3-axis stabilized handheld gimbal for DSLR and

mirrorless camera which developed by Guilin Feiyu Technology Incorporated

Company. It is compatible with popular DSLR and mirrorless cameras on the market.

Feiyu SCORP-C is designed with button area, multifunction knob and touch screen,

which can switch follow modes, control the rotation, image transmission transmitter

and the parameters settings by one hand. The camera shutter cable is equipped for

controlling the photo taking, video recording and focusing directly at handle.

Feiyu SCORP-C also come with camera control port, image transmission port and 2

extension ports, which support to connect focus motor and other extension device at

the same time.

Tutorial

·The tutorial videos can be watched at FeiyuTech o󽗋cial

website or scan the QR code.

https://www.feiyu-tech.com/play/

- 1 -

1. Overview

* Not include camera.

[11]

[12]

[13]

[19] [20]

[1]

[14]

[27]

[15] [16]

[17]

[10]

[25]

[26]

[28]

[29]

[24]

[18]

[28]

[23]

[22]

[2]

[5]

[4]

[3]

[6]

[7]

[8]

[9]

[21]

[1] Power button

[2] Motor auto tune button

[3] Portrait button

[4] Joystick

[5] Shutter button

[6] Mode button

[7] R button

[8] Auto rotation button

[9] L button

[10] Kickstand

[11] Handle

[12] FPV button

[13] Knob function switching button

[14] Multifunction knob

[15] Fixed plate slider

[16] Slider lock

[17] Roll lock

[18] Quick release plate safety lock

[19] Quick release plate

[20] Arca quick release plate

[21] Roll axis

[22] Cross arm

[23] Tilt lock

[24] Tilt axis

[25] Slide arm

[26] Lens holder

[27] Cross arm

[28] A/B button

[29] Trigger button

- 2 -

Download the App

Scan the QR code to download the app, or

search for "Feiyu SCORP" in the App Store or

Google Play.

* Requires iOS 9.0 or above, Android 6.0 or above.

iOS Android

2. Getting started

2.1 Charging

Please fully charge the battery before power on the gimbal for the 󽗉rst time.

Charging with USB 2.0 to Type-C cable, supports quick charge.

- 3 -

2.2 Adjust the gimbal to gimbal balancing position

The gimbal is folded by default, please unlock all the three axes and adjust the

gimbal to gimbal balancing position, and then lock the three axes.

Gimbal folded position Gimbal balancing position

2.3 Using support stand

Users can unfold the built-in kickstand or install tripod to place the gimbal on a 󽗊at

surface.

Unfold the built-in kickstand Unfold the tripod

- 4 -

3. Mounting the Camera

Before mounting the camera, make sure the camera is ready for shooting (Install the

camera lens, and the lens cover should be removed, the memory card and battery

needs to be inserted to the camera, and battery is fully charged) , complete all the

steps which mentioned in chapter "2. Getting started" and the gimbal is adjusted to

gimbal balancing position. Make sure the gimbal is powered o󽗈 or in sleep mode

before mounting the camera.

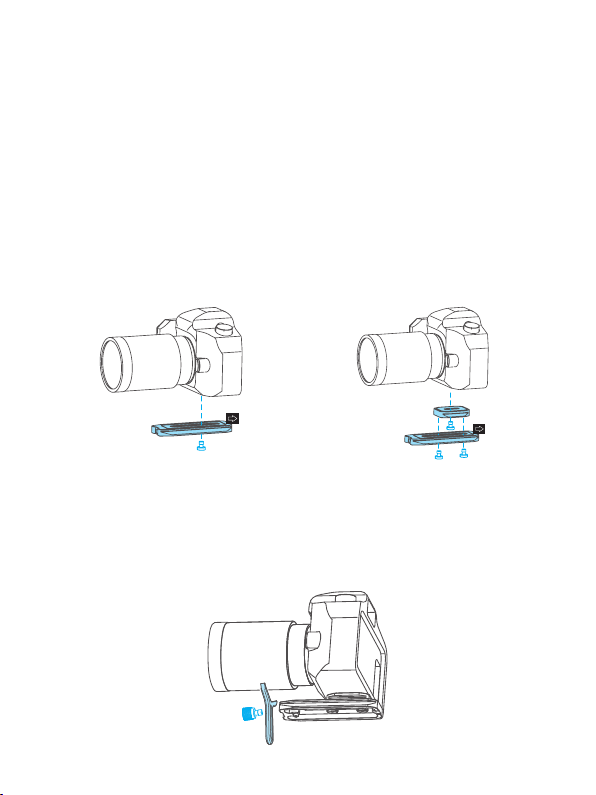

3.1 Attach the quick release plate and camera backing

base(Optional)

Attach the quick release plate to camera by tightening the screw.

User can choose to attach the camera backing base if needed ( For example, when

using a long or heavy lens). Attach the camera backing base to camera, then attach it

to quick release plate by tightening 2 screws.

Attach with quick release plate only Attach with camera backing base and quick

release plate

3.2 Install lens holder (Optional)

Install the lens holder on the quick release plate if needed, the rubber of the lens

holder must be directly under the lens. It is recommended to use the lens holder

when using a long or heavy lens.

- 5 -

3.3 Mount camera on gimbal

Unlock the quick release plate safety lock ①, install the plate with the mounted

camera into the slot ② in direction of icon, lock the safety lock ① once the camera is

roughly balanced. It is recommended to push the camera against the tilt axis. Unlock

the slider lock ③ to move the camera left or right according to camera's width, then

lock the slider lock ③.

- 6 -

4. Gimbal Balancing

Please balance the gimbal before shooting. Make sure the

camera and lens are ready for shooting, and the gimbal

is powered o󽗈 or in sleep mode before balancing. It is

recommended to hold up the camera 󽗉rst, then move the

slide arm, cross arm and vertical arm. Tutorial Videos

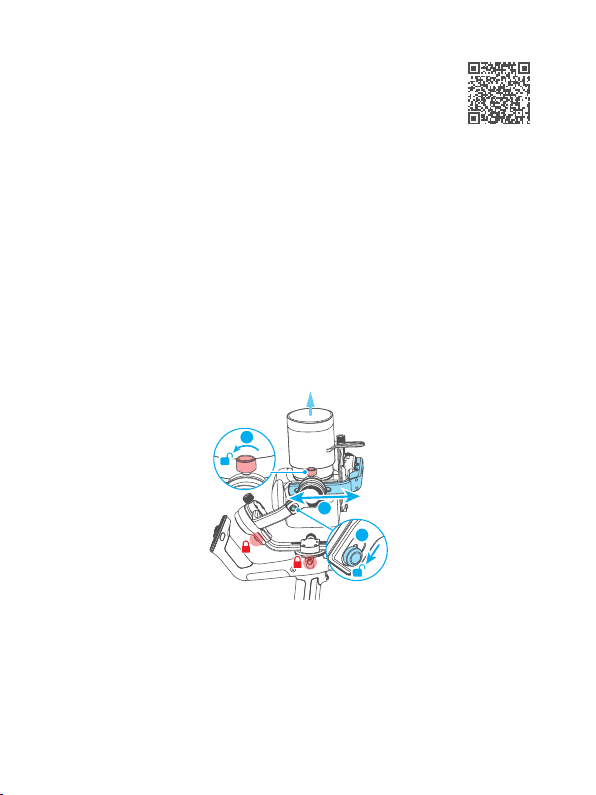

4.1 Balancing the tilt axis

4.1.1 Balancing the vertical tilt

a. Unlock the tilt lock ① , and loosen the slide arm lock knob ②.

b. Rotate the tilt axis so that the camera lens is pointing upward. Check the direction

which the lens tilts to.

c. If the lens tilts to one side, then the camera is that side heavy, move the slide

arm ③ to the opposite direction, until the camera is steady pointing upward.

d. Tighten the slide arm lock knob ② while holding the camera.

4.1.2 Adjust depth for the tilt axis

a. Rotate the tilt axis so that the camera lens is pointing forward. Check the direction

which the lens tilts to.

b. If the lens tilts to one side, then the camera is that side heavy, unlock the quick

release plate safety lock ① and then move the quick release plate to the opposite

direction, until the camera is steady pointing forward.

- 7 -

c. Lock the quick release plate safety lock ① while holding the camera.

The tilt axis is balanced when the camera is steady while tilted up or down by 45° .

4.2 Balancing the roll axis

a. Unlock the roll lock ① , check the direction which the camera tilts to.

b. If the camera tilts to one side, then the camera is that side heavy, loosen the cross

arm lock knob ②and then move the cross arm to the opposite direction, until the

camera can stay still and horizontal to the ground.

c. Tighten the cross arm lock knob ②.

The roll axis is balanced when the camera can stay still and horizontal to the ground.

4.3 Balancing the pan axis

a. Unlock the pan lock ①. Hold the tripod, and tilt the gimbal forward until it is

horizontal to the ground.

b. If the camera tilts to one side, then the camera is that side heavy, loosen the

vertical arm lock knob ② and then move the vertical arm ③ to the opposite
