FeiYu Tech AK2000 Bedienungsanleitung
3-Axis Stabilized Handheld Gimbal for Camera
Guilin Feiyu Technology Incorporated Company
V2.0E NUser Manual
Instructions
Catalogue
1.Product Overview 1
2
2
2
3
4
4
6
8
8
13
16
16
16
17
17
7
2.Installation
3.Gimbal Balancing
3.1Balance Adjustment of the Tilting Axis
3.2Balance Adjustment of the Rolling Axis
3.3Balance Adjustment of the Panning Axis
4.1Handle - Function / Operation
4.2Function
2.1Battery Charging
2.2Battery Installation
2.3Camera Installation
4.AK2000 Function / Operation
5.App - Download and Connecting
5.1Download and Install Feiyu ON App
5.2Connecting App
6.Advanced Operation
6.1Gimbal Initialization
18
6.2Firmware Upgrade
19
7.Parameters
20
8.Compatible Cameras for Reference
1.Product Overview
Accessories
1
Canon Control Cable
（RS-80N3）
X1
Charger
X1
Micro USB Cable
X1
18650 Li-ion Battery
X4
Sony Control Cable
(3.5 audio to multi)
X1
Tripod
X1
Shortcut
Button
Pan Axis Knob Ring
1/4 Inch Thread Hole
Vertical Arm
Pan Lock Screw
1/4 Inch Thread Hole
Lens Support Frame
Roll Axis
Screw
Sliding Arm
anti-column
Roll Lock Screw
Tilt Lock Screw
Quick Release Plate
1/4 Inch Thread Hole
Cross Arm
Retaining Ring
Power Button
Mode Button
Touch Screen
Recording ButtonJoystick
Capturing Button
Function Button
Tilt Axis
Fixed Plate
1/4 Inch Thread Hole
Panasonic Control Cable
(Shift audio 3.5 to 2.5)
X1
Thumb Screw
(Short)
X1
www.feiyu-tech.com
Safety
Lock
Multifunction
Knob
Handle
2.Installation
Remove the tail cap, open the batteries compartment, and install the batteries correctly.
(1) Please mount the camera before powering on the gimbal.
(2) When the battery is low, please charge the gimbal.
(3) When not in use, turn off the gimbal and then remove the batteries.
TIPS
Battery Model:
18650 Li-ion Battery
Battery Charging2.1
Please fully charge the batteries before powering on the gimbal for the first time.
Charge the batteries with the charger.
Micro USB
Cable
（not included）
5V / 3A
2
2
1
3
2.2 Battery Installation
www.feiyu-tech.com
Camera Installation
2.3
1. Lock the lens support frame with the screw to the quick release plate;
2. Use the thumb screw to lock the camera from the bottom slot of the quick release
plate, and slightly adjust the lens support frame after locking the camera;
(Select the long/short thumb screw according to the position of the camera to be
mounted on the quick release plate)
3. Press and hold the anti-column；
4. Place the quick release plate on the fixed plate, loosen the anti-column and tighten
the safety lock.
3
4
Anti-column
Safety Lock
3
Thumb Screw
(Long)
1
2Thumb Screw
(Short)
1
2
www.feiyu-tech.com
3.Gimbal Balancing
44
www.feiyu-tech.com
Adjust the center of gravity position of the tilting axis up and down: point the camera
lens down, adjust cross arm to maintain the level, as shown in figure ①, let go and
observe the state of rotation. Adjust the balance via adjust the sliding arm up and
down (refer to figure ② ③).
Adjust the center of gravity of the camera in two steps to the axis of rotation of the tilting
axis.
* After adjustment, be sure to tighten the lock screw.
Camera forward Slide up to adjust
Silde down to adjustCamera backward
①②
③
(1)
Normal
T
L
T
L
www.feiyu-tech.com
Balance Adjustment of the Tilting Axis
3.1
T=Tight
L=Loose
T=Tight
L=Loose

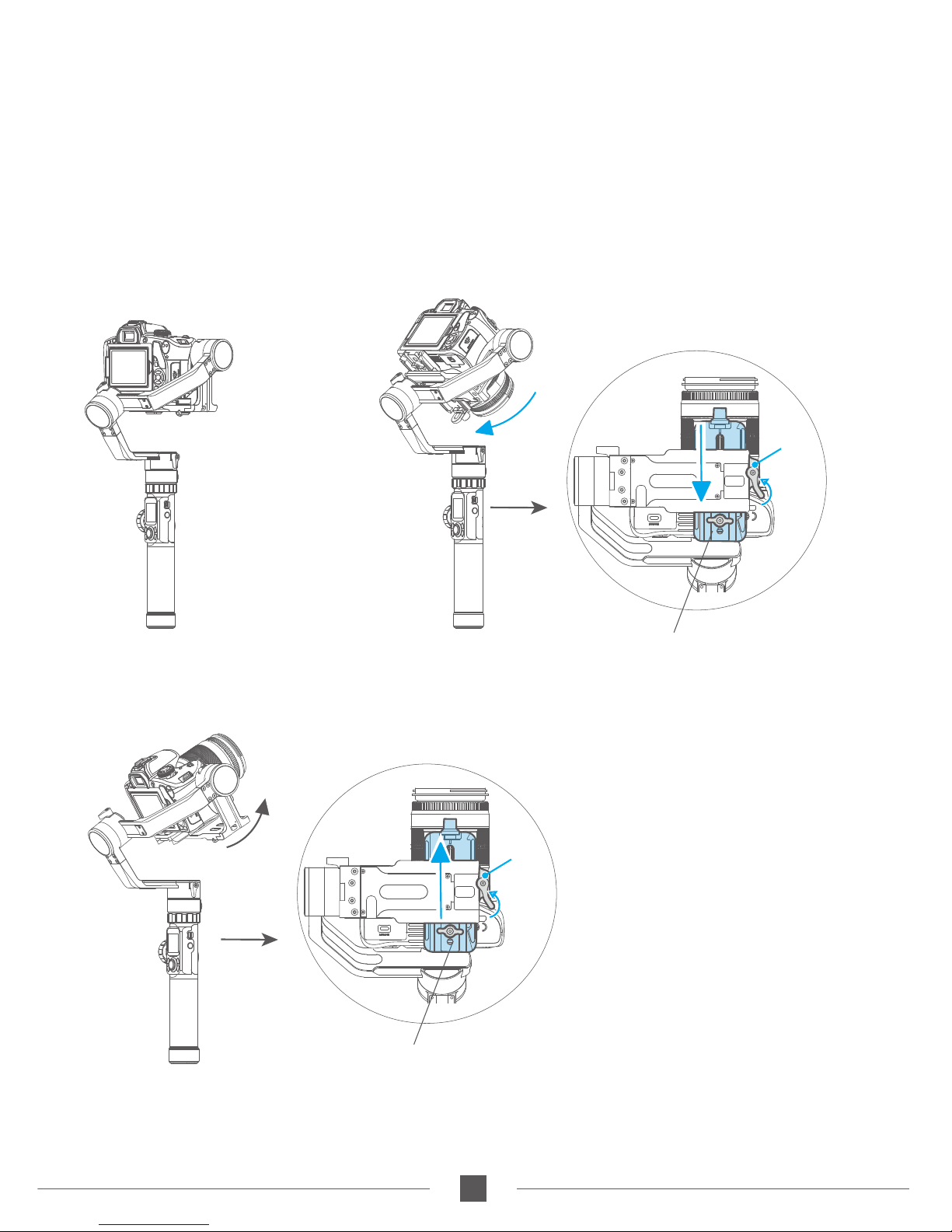

Adjust the center of gravity position of the tilting axis forward and backward: point
the camera lens horizontal forward, adjust cross arm to maintain the level as shown
in figure ①,let go and observe the state of rotation.
Loosen the safety lock on the right side of the camera, and adjust the balance by
sliding up and down the quick release plate on the bottom of the camera (refer to
Figure ② ③).
Camera backward
Slide the adjustment
skateboard down to adjust
Slide the adjustment
skateboard up to adjust
*Be sure to fasten the safety lock after adjustment.
Camera forward
②
③
(2)
Safety
Lock
Safety
Lock
5
Balanced
①
www.feiyu-tech.com
46
Balance Adjustment of the Rolling Axis3.2
www.feiyu-tech.com
L
T
Balanced
When the balance adjustment of tilting axis completed, the balance of the rolling axis
can be adjusted:keep the gimbal socket connector vertical to the ground with the hand
-held control handle as shown in figure ①, leave the gimbal powered off and observe the
balance. Loosen the lock screw and slide the cross arm left and right to adjust the roll
(refer to figure ② ③).
* After adjustment, be sure to tighten the lock screw.
①②
③
Slide the cross
arm left to adjust
Slide the cross
arm right to adjust
L
T
Camera rightward
Camera leftward
T=Tight
L=Loose
T=Tight
L=Loose
Balance Adjustment of the Panning Axis3.3
7
www.feiyu-tech.com
①
When the balance adjustment of tilting axis and rolling axis is completed, the balance
of the panning axis can be adjusted. Keep the gimbal socket connector in the horizontal
position,adjust hand-held panning axis as shown in figure ①,let go and observe the state
of rotation.
Loosen the lock screw on the panning and slide the vertical arm forward and backward
to adjust (refer to figure ② ③).
The lens is down The lens is up
* After adjustment, be sure to tighten the lock screw.
Horizontal ground
②
Slide the vertical arm
backward to adjust
L
T
③
Slide the vertical arm
forward to adjust
TL
T=Tight
L=Loose
T=Tight
L=Loose
8
www.feiyu-tech.com
4.AK2000 Function / Operation
Handle - Function / Operation4.1
* Click the option to switch or select the function mode, and slide the screen to the left or right to switch
the page.
1.Touch Screen
Display icon Mode / Status
HF Panning Mode
Panning Mode + Rolling follow
Lock Mode + Rolling follow
HF-R
TF-R
LK-R
TF Follow Mode
Follow Mode + Rolling follow
AF All follow mode
Lock Mode
Tilt Axis
Roll Axis
Pan Axis
LK
Display icon
Screen interface
Mode / Status
Bluetooth is connected
Bluetooth is not connect
WiFi is connected
WiFi is not connect
Battery Level
Camera mode
Camera is not connect
Zoom status
Follow focus status
Capture
Mode
Auto
Rotation
Payload
Setting
Settings
Scroll
Setting
Rotation
Time
Single tap the power button in the panning follow mode to enter the panning follow
mode and rolling follow (rolling follow angle ≤ 60°).
Single tap the power button in the follow mode to enter the follow mode and rolling
follow (rolling follow angle ≤ 60°).
Single tap the power button in the lock mode to enter the lock mode and rolling follow
(rolling follow angle ≤ 60°).
I S O
2.3 AUTO
2.0 80
100
125
1.7
1.3
AWB
K
长按 或 锁定多功能旋钮功能，再次单击多功能旋钮或 / 即可恢复。
