FeiYu Tech AK4000 Bedienungsanleitung
3-Axis Stabilized Handheld Gimbal for Camera
Guilin Feiyu Technology Incorporated Company
V1.0E NUser Manual
Instructions
Catalogue
1.Product Overview 1
17
17
18
6.Advanced Operation
19
6.1Gimbal Initialization
6.2Accessories expansion
6.3Firmware Upgrade
20
7.Parameters
21
8.Compatible Cameras for Reference
2
2
2
3
4
4
6
7
2.Install
3.Balance the Gimbal
3.1Balance Adjustment of the Tilting Axis
3.2Balance Adjustment of the Rolling Axis
3.3Balance Adjustment of the Panning Axis
2.1Charge the Batteries
2.2Install the Batteries
2.3Mount the Camera
8
8
13
16
16
16
4.1Handle - Function / Operation
4.2Function
4.AK4000 Function / Operation
5.App - Download and Connecting
5.1Download and Install Feiyu ON App
5.2Connecting App
1.Product Overview
Accessories
1
Extension Rod
X1
Shutter Release Cable
for Sony Cameras
(3.5 audio to multi)
X1
Charger
X1
Shutter Release Cable
for Panasonic Cameras
(Shift audio 3.5 to 2.5)
X1
18650 Li-ion Battery
X4
Micro USB Cable
X1
Shutter Release Cable
for Canon Cameras
（RS-80N3）
X1
Tripod
X1
Stable and Extension
Support of Titling Axis
X1
Roll Axis
Tilt Lock Screw
Roll Lock Screw
Lens Support Frame
Screw
anti-column
Multifunction
Knob
Pan Axis Knob Ring
Vertical Arm
Cross Arm
Handle
Pan Lock Screw
1/4 Inch Thread Hole
1/4 Inch Thread Hole
Sliding Arm
fixed screw
Shortcut
Button
Video Button
Quick Release Plate
1/4 Inch Thread Hole
Fixed Plate
Retaining Ring
Tilt Axis
Function Button
Power Button
Safety Lock
Joystick
Camera
Button
Mode Button
Touch Display
1/4 Inch Thread Hole
1/4 Inch Thread Hole
Thumb Screw
(Short)
X1
www.feiyu-tech.com
Micro USB
Cable
（not included）
5V / 3A
2
2
1
3
www.feiyu-tech.com
2.Install
(1) Please mount the camera before powering on the gimbal.
(2) When the battery is low, please charge the gimbal.
(3) When not in use, turn off the gimbal and then remove the batteries.
TIPS
Charge the Batteries2.1
Please fully charge the batteries before powering on the gimbal for the first time.
Charge the batteries with the charger.
Remove the tail cap, open the batteries compartment, and install the batteries correctly.
2.2 Insert the Batteries
Battery Model:
18650 Li-ion Battery
3
Thumb Screw
(Long)
1
2Thumb Screw
(Short)
1
2
www.feiyu-tech.com
3
4
Safety Lock anti-column
Attach Camera
2.3
1. Lock the lens support frame with the screw to the quick release plate;
2. Use the thumb screw to lock the camera from the bottom slot of the quick release
plate, and slightly adjust the lens support frame after locking the camera;
(Select the long/short thumb screw according to the position of the camera to be
mounted on the quick release plate)
3. press and hold the anti-column；
4. place the quick release plate on the fixed plate, loosen the anti-column and tighten
the safety lock.
44
www.feiyu-tech.com
44
www.feiyu-tech.comwww.feiyu-tech.com
3.Balance the Gimbal
Normal Slide the sliding
arm up to adjust
Slide the sliding
arm down to adjust
① ②
③
紧
松
紧
松
Camera forward
Camera backward
Balance Adjustment of the Tilting Axis
3.1
Adjust the center of gravity position of the tilting axis up and down: point the camera
lens down, adjust cross arm to maintain the level, as shown in figure ①, let go and
observe the state of rotation. Adjust the balance via adjust the sliding arm up and
down (refer to figure ② ③).
Adjust the center of gravity of the camera in two steps to the axis of rotation of the tilting
axis.
* After adjustment, be sure to tighten the lock screw.
(1)
5
Balanced
①
Camera backward
Slide the adjustment
skateboard down to adjust
Slide the adjustment
skateboard up to adjust
Camera forward
②
③
Safety
Lock
Safety
Lock
Adjust the center of gravity position of the tilting axis forward and backward: point
the camera lens horizontal forward, adjust cross arm to maintain the level as shown
in figure ①,let go and observe the state of rotation.
Loosen the safety lock on the right side of the camera, and adjust the balance by
sliding up and down the quick release plate on the bottom of the camera (refer to
Figure ② ③).
*Be sure to fasten the safety lock after adjustment.
(2)
46
www.feiyu-tech.com
Balanced
①
③
Slide the cross
arm left to adjust
Slide the cross
arm right to adjust
紧
松
紧
松
Camera rightward
Camera leftward
②
Balance Adjustment of the Rolling Axis3.2
When the balance adjustment of tilting axis completed, the balance of the rolling axis
can be adjusted:keep the gimbal socket connector vertical to the ground with the hand
-held control handle as shown infigure ①, leave the gimbal powered off and observe the
balance. Loosen the lock screw and slide the cross arm left and right to adjust the roll
(refer to figure ② ③).
* After adjustment, be sure to tighten the lock screw.
7
www.feiyu-tech.com
①
② ③
Slide the vertical arm
backward to adjust
Slide the vertical arm
forward to adjust
The lens is down The lens is up
Horizontal ground
紧
松
紧
松
Balance Adjustment of the Panning Axis3.3
When the balance adjustment of tilting axis and rolling axis is completed, the balance
of the panning axis can be adjusted. Keep the gimbal socket connector in the horizontal
position,adjust hand-held panning axis as shown in figure ①,let go and observe the state
of rotation.
Loosen the lock screw on the panning and slide the vertical arm forward and backward
to adjust (refer to figure ② ③).
* After adjustment, be sure to tighten the lock screw.
8
www.feiyu-tech.com

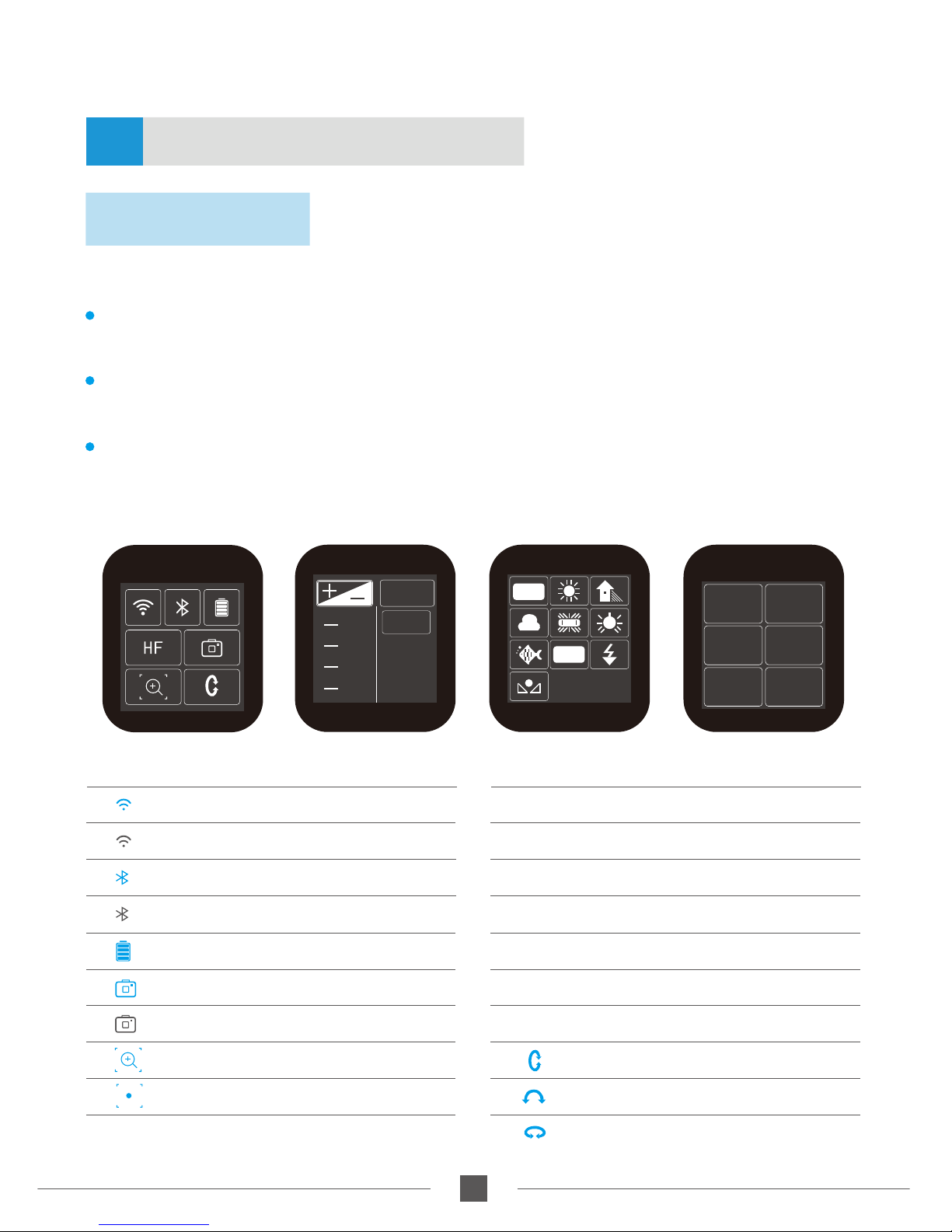

Screen interface
I S O
2.3 AUTO
2.0 80
100
125
1.7
1.3
AWB
K
4.AK4000 Function / Operation
Handle - Function / Operation4.1
* Click the option to switch or select the function mode, and slide the touch-screen interface to the left
or right to switch the screen.
1.Touch screen
Single tap the power button in the panning follow mode to enter the panning follow
mode and rolling follow (rolling follow angle ≤ 60°).
Single tap the power button in the panning and tilting follow mode to enter the
panning, tilting follow mode and rolling follow (rolling follow angle ≤ 60°).
Single tap the power button in the lock mode to enter the lock mode and rolling follow
(rolling follow angle ≤ 60°).
Display icon Mode / Status
HF Panning Mode
Panning Mode + Rolling follow
Lock Mode + Rolling follow
HF-R
TF-R
LK-R
TF Follow Mode
Follow Mode + Rolling follow
AF All follow mode
Lock Mode
Tilt Axis
Roll Axis
Pan Axis Knob Ring
LK
Display icon Mode / Status
Bluetooth is connected
Bluetooth is not connected
WiFi is connected
WiFi is not connected
Battery Level
Camera mode
Camera is not connected
Zoom status
Follow focus status
Capture
Mode
Auto
Rotation
Payload
Setting
Settings
Scroll
Setting
Rotation
Time
