OPERATION MANUALGASOLINE GARDEN MOWER

ENTable of contents

Gasoline garden mower

OPERATION MANUAL

Thank you for your purchase of our garden gasoline rotational mower. Before begin-

ning to use it, please, read this operation manual carefully and keep it for the case of

a further use.

TABLE OF CONTENTS

APPENDIX OF FIGURES .................................................................................................................. 2

GENERAL SAFETY INSTRUCTIONS ............................................................................................. 8

Important safety warnings

Packaging

Instructions for use

EXPLANATION FOR INSTRUCTION PLATES ON THE MACHINE ................................... 9

MACHINE DESCRIPTION AND DELIVERY CONTENT ..................................................... 10

MACHINE ASSEMBLY .................................................................................................................... 10

SAFETY INSTRUCTIONS ................................................................................................................. 11

OPERATION ....................................................................................................................................... 11

GEARBOX .......................................................................................................................................... 12

SAFETY INSTRUCTIONS ................................................................................................................. 12

MAINTENANCE ............................................................................................................................... 13

TECHNICAL DATA ........................................................................................................................... 16

DECLARATION OF CONFORMITY .......................................................................................... 16

DISPOSAL ........................................................................................................................................... 17

WARRANTY CERTIFICATE ........................................................................................................... 80

CONDITION OF GUARANTEE ................................................................................................... 81

10.

11.

12.

FZR 4002-B

8EN General safety instructions

1. GENERAL SAFETY INSTRUCTIONS

Important safety warnings

Unpack the product carefully and be sure not to throw away any part of the package before

having found all components of the product

Keep the product in a dry place out of reach of children

Read all cautions and instructions. The failure to adhere to warning cautions and instructions

may result in an accident, ﬁre and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw

material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for

use. Familiarize with operating elements and the proper use of the device. Keep the manual in a

safe place for future reference. We recommend keeping the original package including the inner

packaging materials, cash voucher and guarantee card for a period of warranty at minimum.

For a case of transportation, pack the machine into the original box from the manufacturer,

thus ensuring a maximum protection of the product during a possible transport (e.g. moving or

sending into a service station).

Note: If you hand the machine over to next persons, hand it over together with the manual.

Adherence to the attached instructions for use is a precondition for the proper use of the

machine. The operation manual includes also instructions for operation, maintenance and

repairs.

The manufacturer does not take any responsibility for accidents or damages

resulting from the failure to adhere to this manual.

OPERATION MANUALGASOLINE GARDEN MOWER

ENExplanation for instruction plates on the machine

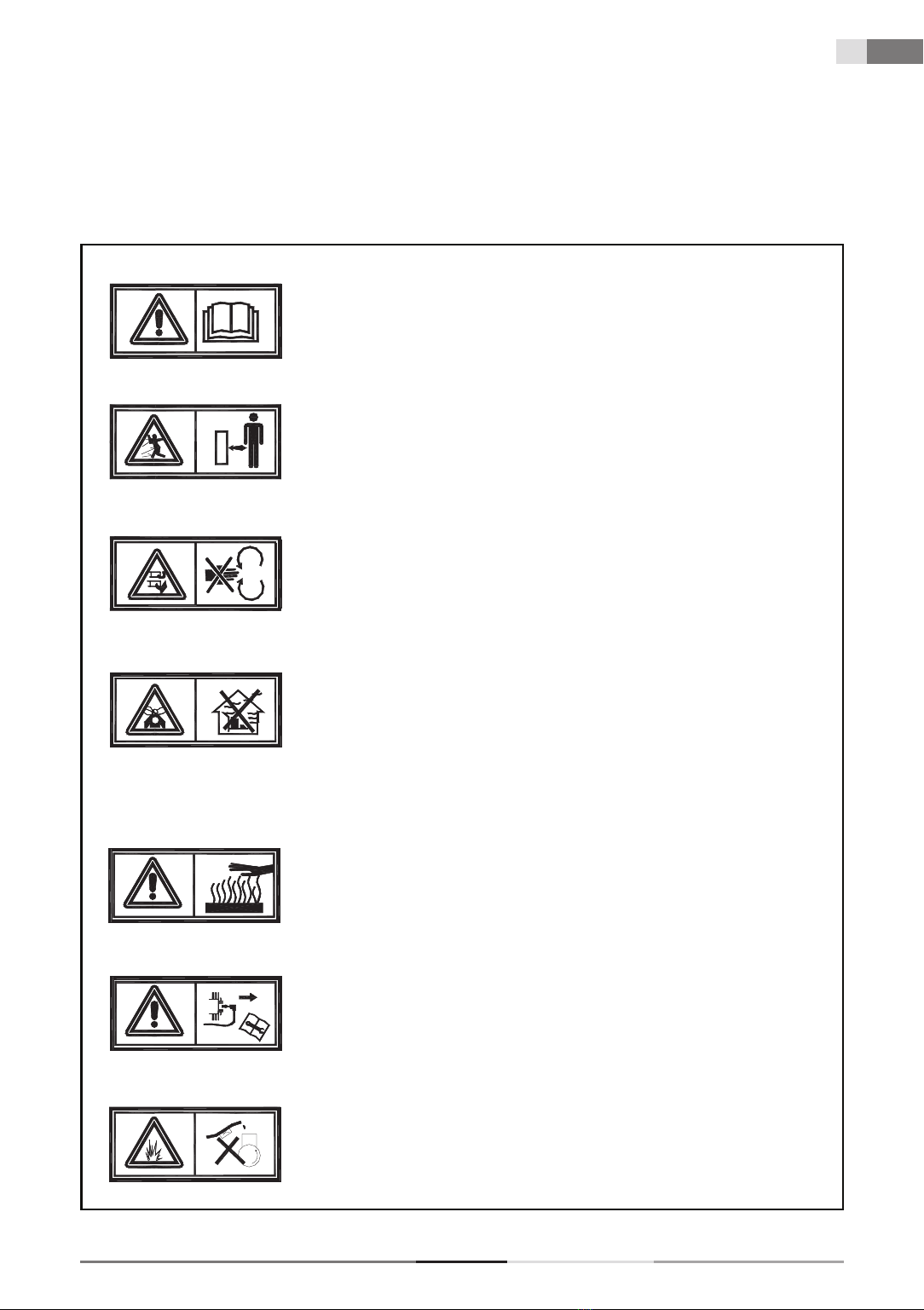

2. EXPLANATION FOR INSTRUCTION

PLATES ON THE MACHINE

Before putting into operation, please,

read the operation manual carefully.

Keep other persons out of the working

area.

Warning! Rotating knives! Protect

yourself against risk of limb injury.

Toxic gases emissions. Do not use

the gasoline mower in enclosed or

unventilated areas.

Hot surfaces, danger of burn injury!

Before maintenance switch-off the

engine and disconnect the spark plug.

Never ﬁll up fuel while the engine is

running.

FZR 4002-B

10EN Machine description and delivery content | Machine assembly

3. MACHINE DESCRIPTION AND

DELIVERY CONTENT

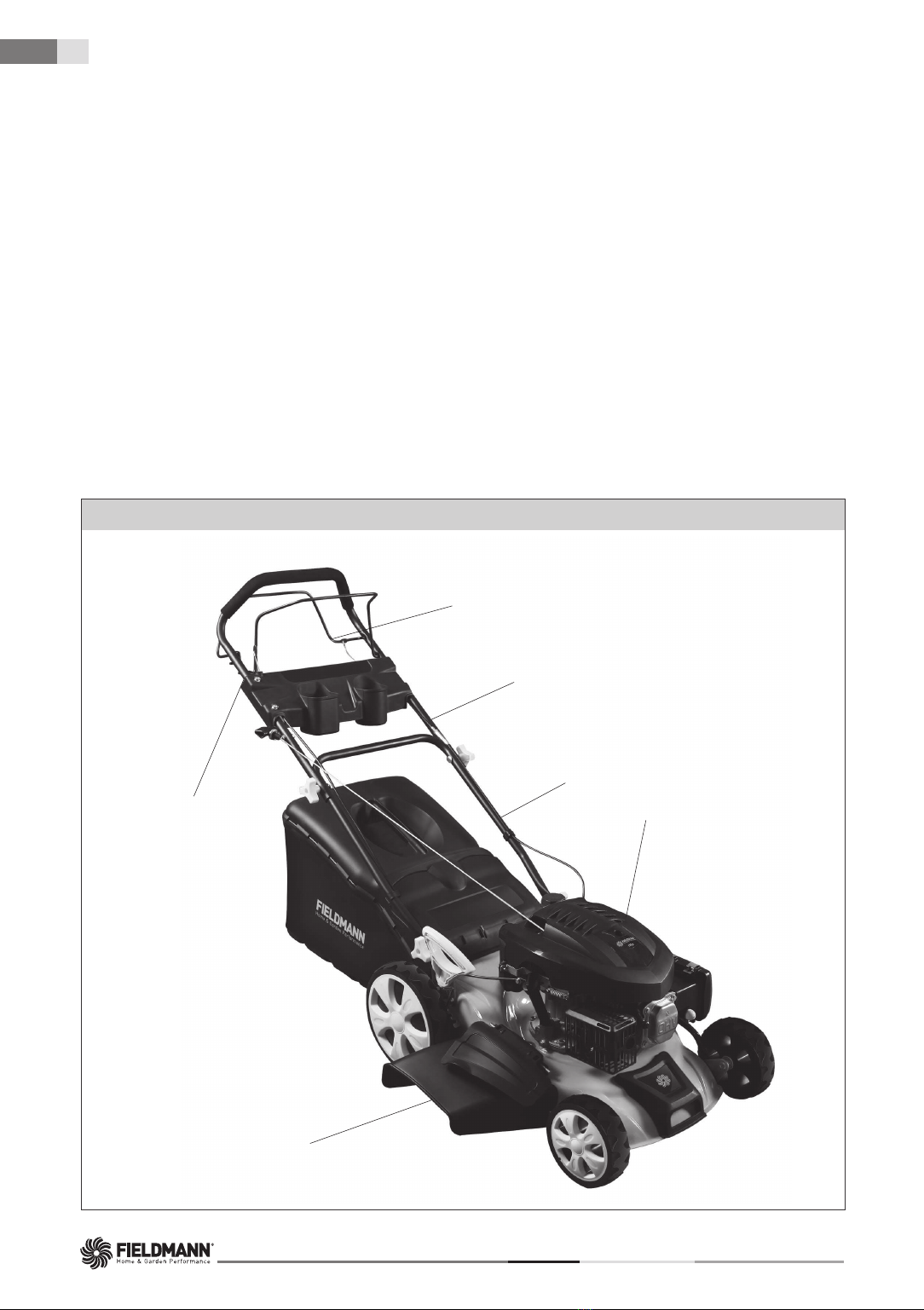

Machine description (see Fig.1)

Delivery content

Take the garden machine carefully out of the package and check whether the following parts are

complete:

Rotational mower

Collection basket

Upper and bottom part of the mower handle

4 wheels

Installation set

Mulching blind ﬂange

Operation manual

Warranty certiﬁcate

Side discharge

In the case of some parts missing or damaged, please, contact the dealer where you’ve bought

the machine.

4. MACHINE ASSEMBLY

Collection basket installation (Fig.2)

Insert the metal frame into the collection basket and ﬁx (Fig. 2)

4 in 1 Introduction:

Rear spitting with grass collection (Fig. 3)

Remove the mulching blind ﬂange (Fig. 7) and fasten the grass collection basket on its place

(Fig. 6).

Brake lever

Travel lever

Upper handle

Bottom handle

Engine

Bogie

1 -

2 -

3 -

4 -

5 -

6 -

7 - Mulching blind ﬂange
