Finisar WaveAnalyzer 200A Bedienungsanleitung

WaveAnalyzer 200A

User Manual

WaveAnalyzer 200A User Manual

Part Number 1344096

Revision A00 (ECO188300)

This document covers the operation of the WaveAnalyzer 200A:

Firmware version 1.0a

Software version 0.1.6

It may not be valid for other product versions.

WaveAnalyzer 200A User Manual



 WaveAnalyzer 200A User Manual

Contents
Section 1 Overview .................................................1-1
1 Operating principle......................................... 1-1
Section 2 Getting Started ........................................2-3
1 Safety considerations .................................... 2-3
2 Electrical safety.............................................. 2-4
3 Laser safety ................................................... 2-5
4 Unpacking and inspection.............................. 2-6
5 Ports and Mechanical Design ........................ 2-7
6 Start-up and initialization ............................... 2-9
7 Connecting optical equipment...................... 2-11
8 Calibration, maintenance and service.......... 2-11
Section 3 Touchscreen interface...........................3-13
1 The Status Bar............................................. 3-13
2 The Grid....................................................... 3-13
3 The Button Bar............................................. 3-15
4 The Files menu .......................................... 3-17
5 The Options menu ..................................... 3-19
6 Update Software and Firmware ................... 3-27
7 Accessing the 200A with your browser ........ 3-33
Section 4 Specifications ........................................4-35
1 Storage conditions ....................................... 4-35
2 Operating conditions.................................... 4-35
3 Measurement specifications ........................ 4-35
4 Dimensions.................................................. 4-36


1-1

WaveAnalyzer 200A User Manual

Section 1 Overview

The WaveAnalyzer 200A is a Portable Optical Spectrum

Analyzer for the C-band (1527.8 to 1568.8nm) offering a high

spectral resolution (15 pm or 1.7 GHz) in combination with a fast

update rate presented directly on the device’s fully interactive 7”

touchscreen display. Ethernet and USB data saving allow traces

to be saved and analyzed.

1.1 Operating principle

Unlike traditional OSA’s, the WaveAnalyzer 200A contains a

coherent receiver allowing extraordinary resolution in a

handheld device. A simplified block diagram of the

WaveAnalyzer 200A is shown in Figure 1-1.

Figure 1-1 Simplified WaveAnalyzer Block Diagram

The optical input is combined with a local oscillator in a coherent

receiver comprising a polarization-diverse optical mixer and two

pairs of balanced photo-detectors. The local oscillator is

stepped across the measurement wavelength range of interest,

and at each wavelength, the combined signals are then

converted from the optical domain into the electronic domain

using the balanced photo-detectors.

1-2

WaveAnalyzer 200A User Manual

Each of these electrical signals consists of three elements:

Intensitynoise

A DC element representing the power of the local

oscillator

The received signal

The baseband electrical signals are digitized by high-speed

analog to digital converters and the resulting digitized spectrum

is then displayed on the 7” touchscreen in the familiar

WaveAnalyzer software format, for direct analysis and

interrogation. Measurement data can be stored on a USB

Memory stick or uploaded to a computer for further analysis via

the in-built Ethernet port.

2-3

WaveAnalyzer 200A User Manual

Section 2 Getting Started

2.1 Safety considerations

The following general safety precautions must be observed

during all phases of operation, service and repair of this

instrument. Failure to comply with these precautions or with

specific warnings elsewhere in this document violates safety

standards of design, manufacture and intended use of the

instrument. Finisar assumes no liability arising from the failure

to comply with these requirements.

This product has been designed in accordance with IEC

Publication 61010-1, Safety Requirements for Electrical

Equipment for Measurement, Control and Laboratory Use, and

IEC Publication 60825-1 Safety of Laser Products - Part 1:

Equipment classification and requirements and has been

supplied in a safe condition. The instruction documentation

contains information and warnings that must be followed by the

user to ensure safe operation and to maintain the product in a

safe condition.

Before operation, review the instrument and manual for safety

markings and instructions. Follow these instructions to ensure

safe operation and to maintain the instrument in safe condition.

To avoid electrical shock, or possible battery fires, do not

operate the instrument if there are signs of structural damage to

any portion of the outer enclosure.

The instrument has been verified to conform to appropriate

safety specifications. Contact Finisar for details, if required.

WARNING

WARNIN

2-4

WaveAnalyzer 200A User Manual

2.2 Electrical safety

The WaveAnalyzer 200A includes an AC/DC power brick to

charge the unit’s 4 18650 Li-ion batteries. The adaptor requires

single phase AC power, 100-240 V, 50/60 Hz and provides

output DC power, 24V, 2.5A to the WaveAnalyzer 200A via a

standard P1J DC plug. Maximum power consumption is 60 VA.

The AC/DC switching adaptor has a C14 power inlet, and

requires a C13 power cable to connect the instrument to an

appropriate power socket (supplied), so that the cable earths

the supplied power brick.

To avoid the possibility of injury or death, observe the following

precautions before switching on the instrument.

Connect the power cable to a power outlet with a

protective earth contact

Do not negate this protective action by using an

extension cord or power block without a protective earth

conductor

Do not interrupt the protective earth connection

intentionally

Do not block or hinder access to the instrument power

inlet or power cable plug.

Do not open the instrument enclosure. The instrument

contains no user-serviceable components. Component

replacement and internal adjustments must be made

only by qualified Finisar service personnel

A WaveAnalyzer chassis that appears damaged or

defective should be made inoperative and secured

against unintended operation until it can be repaired by

qualified Finisar service personnel

A defective, damaged or malfunctioning WaveAnalyzer

must be returned to Finisar for repair. Please contact

Finisar before shipping any unit with mechanical

damage, copying Wa[email protected] to discuss

safe handling of a unit with possible Lithium Ion battery

damage.

WARNING

WARNIN

2-5

WaveAnalyzer 200A User Manual

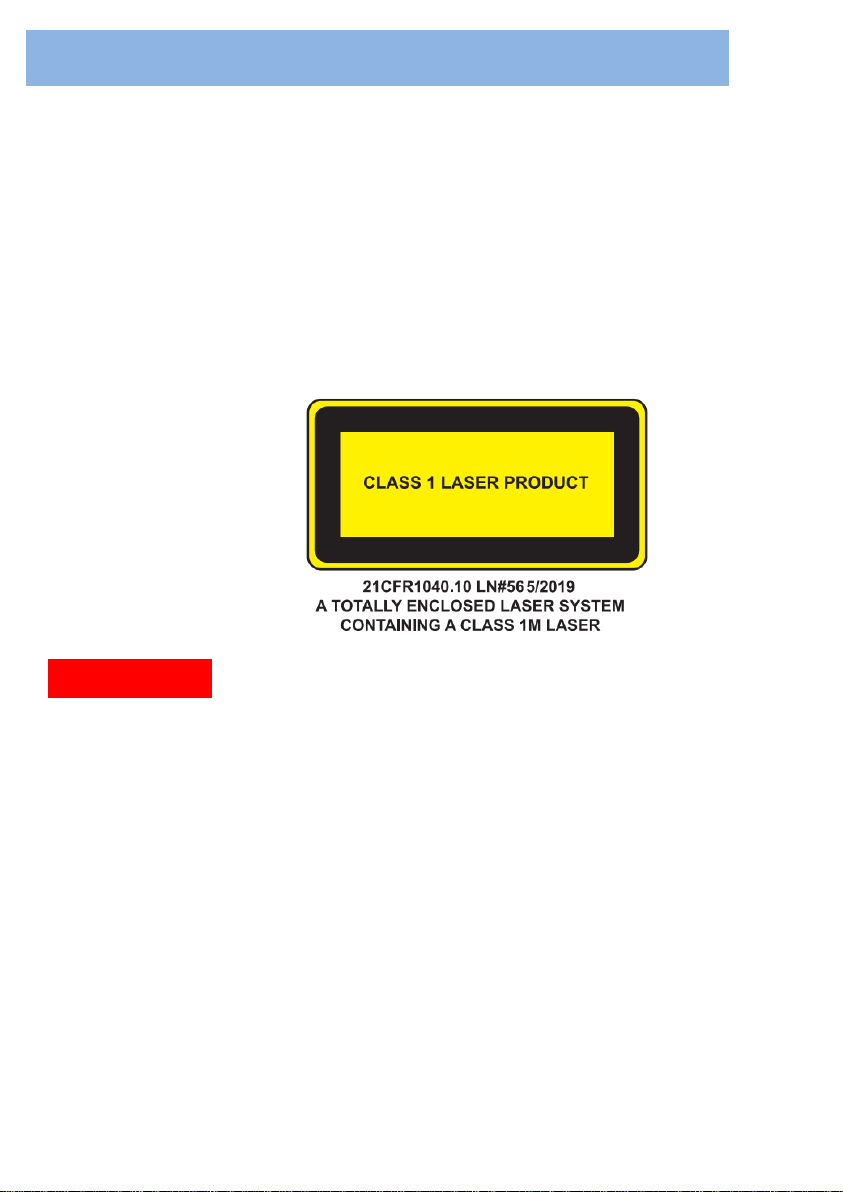

2.3 Laser safety

The WaveAnalyzer 200A uses an internal Class 1M laser for

measurement purposes and is designed to not emit light from

the optical input.

The internal tunable laser is classified as Class 1M, per IEC

standard 60825-1 (2007-03). This product complies with

FDA/CDRH, 21 CFR 1040.10 and 1040.11 except for deviations

pursuant to Laser Notice No. 56, dated May, 2019.

CAUTION: Invisible Laser Radiation –Do not view directly with

optical instruments (magnifiers). In case of optical malfunction

within the instrument, laser power up to 20 mW at 1.55 μm could

be accessible. Viewing the laser output with certain optical

instruments, e.g. eye loupes, magnifiers and microscopes,

within a distance of 100 mm may pose an eye hazard. Use of

controls, adjustments, and procedures other than those

specified herein may result in hazardous laser radiation

exposure.

WARNING
