Fishbone Offroad FB22003 Bedienungsanleitung
FB22003
Jeep® JK Wrangler
Front Fullwidth Winch Bumper w/ LED’s
2200300
REQUIRED TOOLS
16mm Wrench
KIT CONTAINS
M10 Lock Washer
M10 Flat Washer
M10 Nut
D-Rings
QTY
8
8
8
2
FB22003
Jeep® JK Wrangler
Front Fullwidth Winch Bumper w/ LED’s
1 2200300

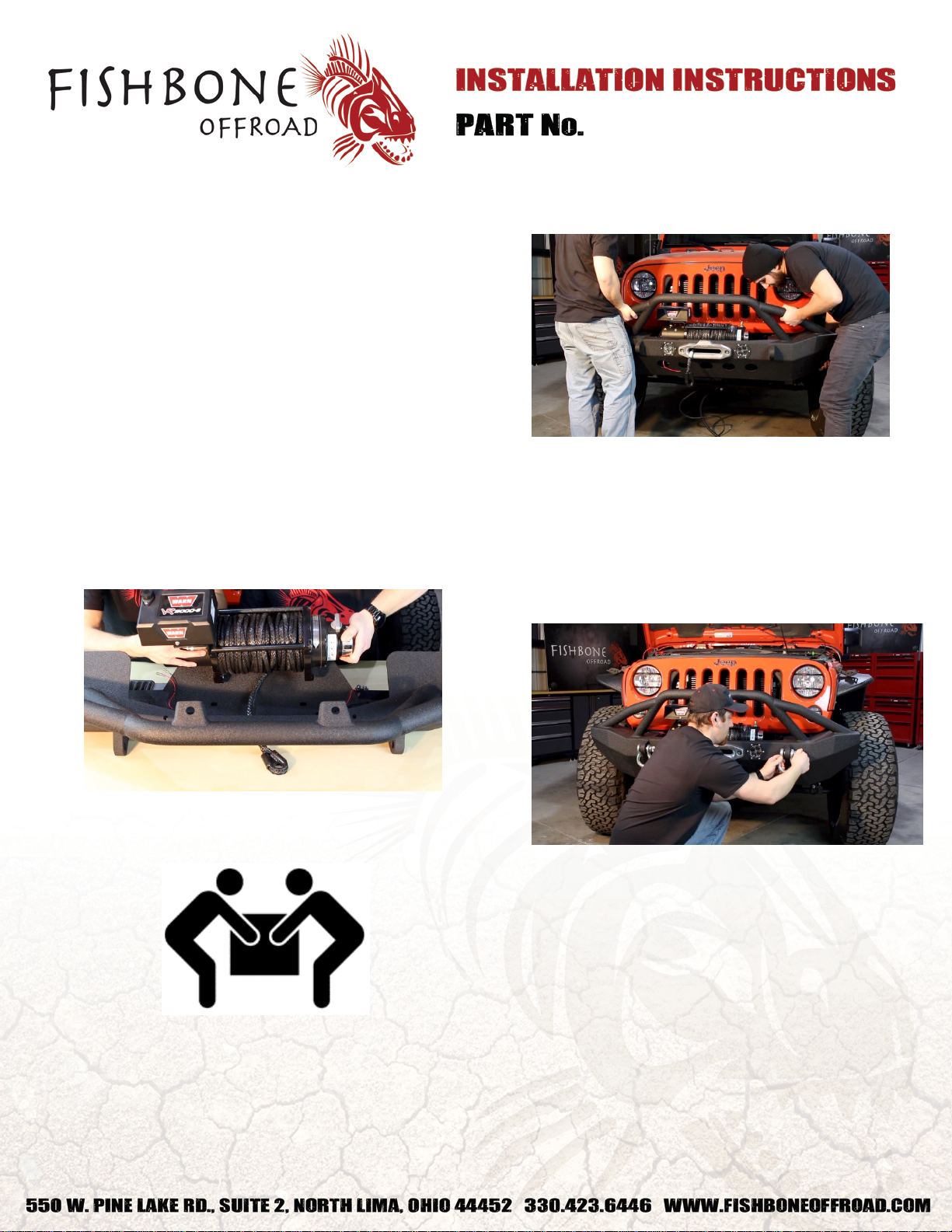

1) REMOVE YOUR FACTORY BUMPER
Begin by removing your factory bumper. Ensure you
disconnect your factory fog lights before you pull
your bumper away.
2) PREP YOUR NEW BUMPER FOR INSTALL
Before installing your bumper on your Jeep, we
suggest attaching your winch and fairlead (if
applicable).
INSTALL YOUR FAIRLEAD AND WINCH
We recommend installing the fairlead first as you’ll
have access to the bolts at this time. Follow the
instructions that came with your winch to install the
fairlead and winch body to the pre-drilled holes on
your new bumper.
3) INSTALL YOUR BUMPER
2 PERSON LIFT
WITH THE WEIGHT OF THE WINCH AND BUMPER,
IT IS HIGHLY ADVISED TO HAVE HELP WHEN
INSTALLING THE BUMPER!
With the help from a second pair of hands, lift the
bumper up to the frame of the Jeep and insert the
bumper studs into the frame. Using one (1) M10
nut, lock washer, and flat washer per stud, secure
the bumper to the Jeep.
4) MOUNT THE SUPPLIED D-RINGS.
5) RUN YOUR WIRING
Wire in your new LED lights by splicing them into
your old fog light wiring, or wire them to their own
dedicated switch.
Wire your winch according to the winch
manufacturer’s instructions.
6) ENJOY YOUR NEW FISHBONE OFFROAD BUMPER!
