Fishbone Offroad FB22005 Bedienungsanleitung
FB22005
Jeep® JK Wrangler
Front Winch Bumper w/ Full Grille Guard
REQUIRED TOOLS
6mm Allen
16mm Wrench
16mm Socket
14mm Wrench

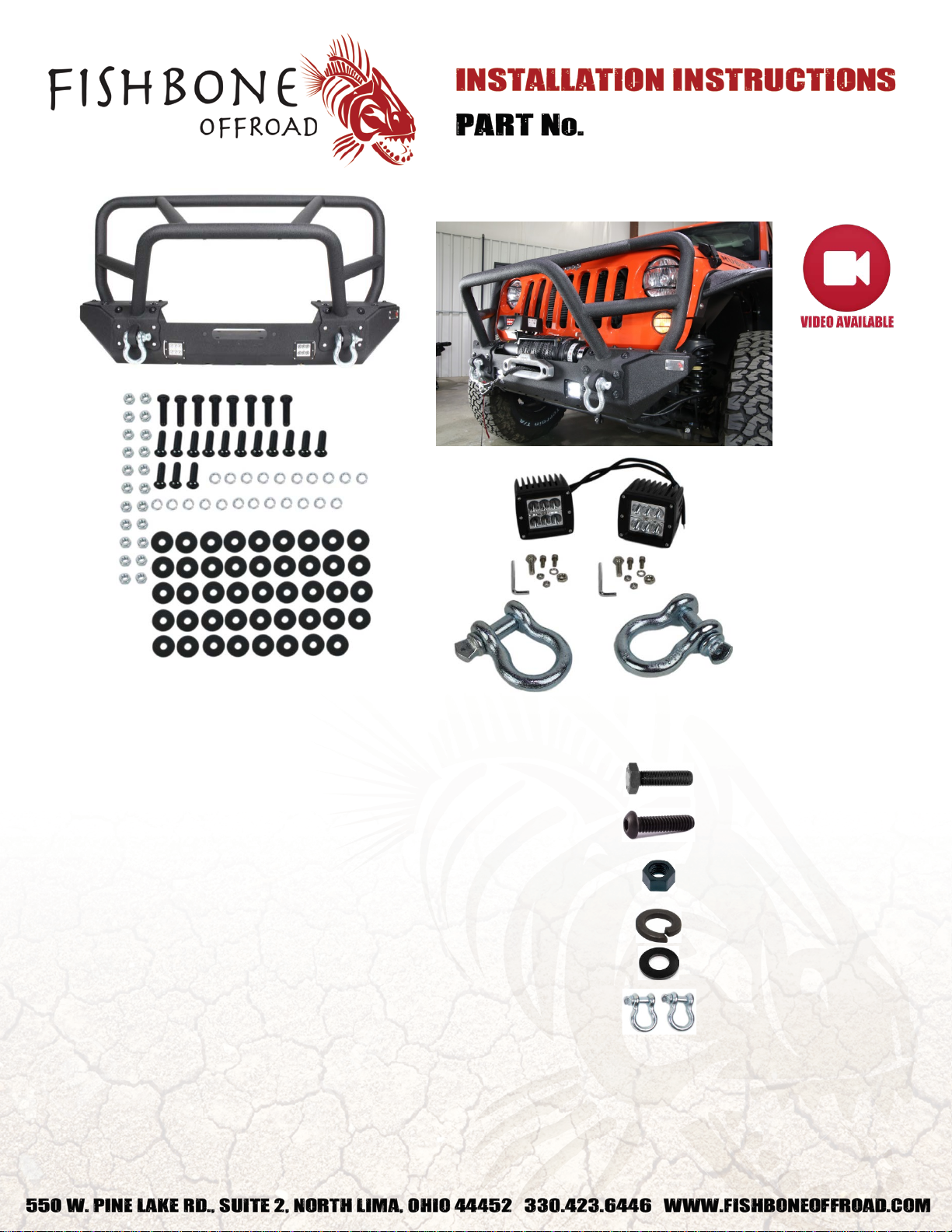

KIT CONTAINS
M10 Hex Bolt
M10 Button Head Screw
M10 Hex Nut
M10 Lock Washer
M10 Flat Washer
D-Rings
Cube Lights
QTY
8
14
22
22
44
2
2
FB22005
Jeep® JK Wrangler
Front Winch Bumper w/ Full Grille Guard
1

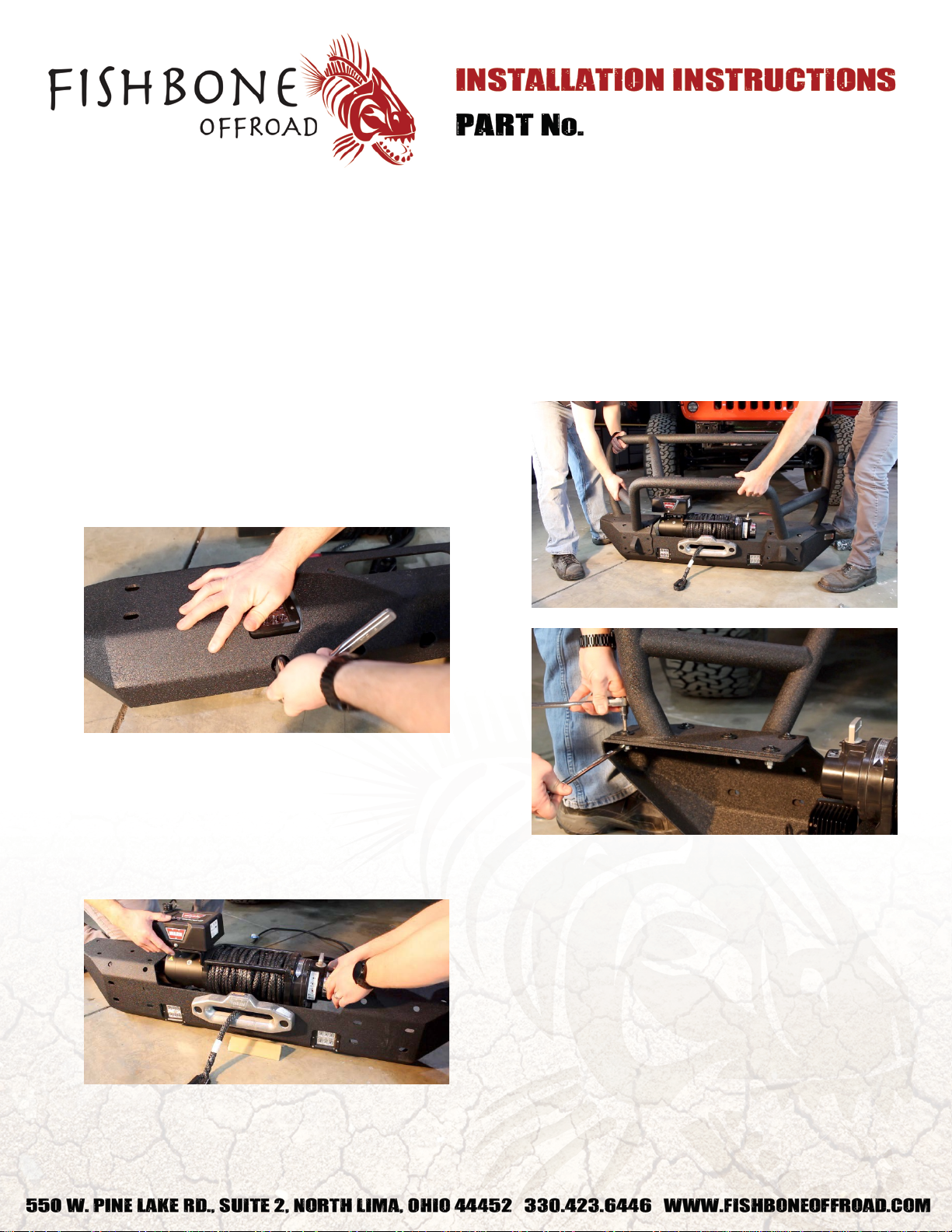

1) REMOVE YOUR FACTORY BUMPER
Begin by removing your factory bumper. Ensure you
disconnect your factory fog lights before you pull
your bumper away.
2) PREP YOUR NEW BUMPER FOR INSTALL
Before installing your bumper on your Jeep, we
suggest attaching your grille guard, lights, winch
and fairlead (if applicable)
INSTALL YOUR CUBE LIGHTS
Using the supplied hardware that came in the LED
kit, secure them to the bumper
INSTALL YOUR FAIRLEAD AND WINCH
We recommend installing the fairlead first as you’ll
have access to the bolts at this time. Follow the
instructions that came with your winch to install the
fairlead and winch body to the pre-drilled holes on
your new bumper.
INSTALL YOUR BOLT-ON GRILLE GUARD
Using one (1) M10 bolt, one (1) M10 lock washer,
two (2) M10 flat washers, and one (1) M10 nut per
hole, secure your grille guard to the top side of your
bumper utilizing the fourteen (14) through holes.
The front face of the guard will be secured when
the bumper is attached to your Jeep.
FB22005
Jeep® JK Wrangler
Front Winch Bumper w/ Full Grille Guard
2

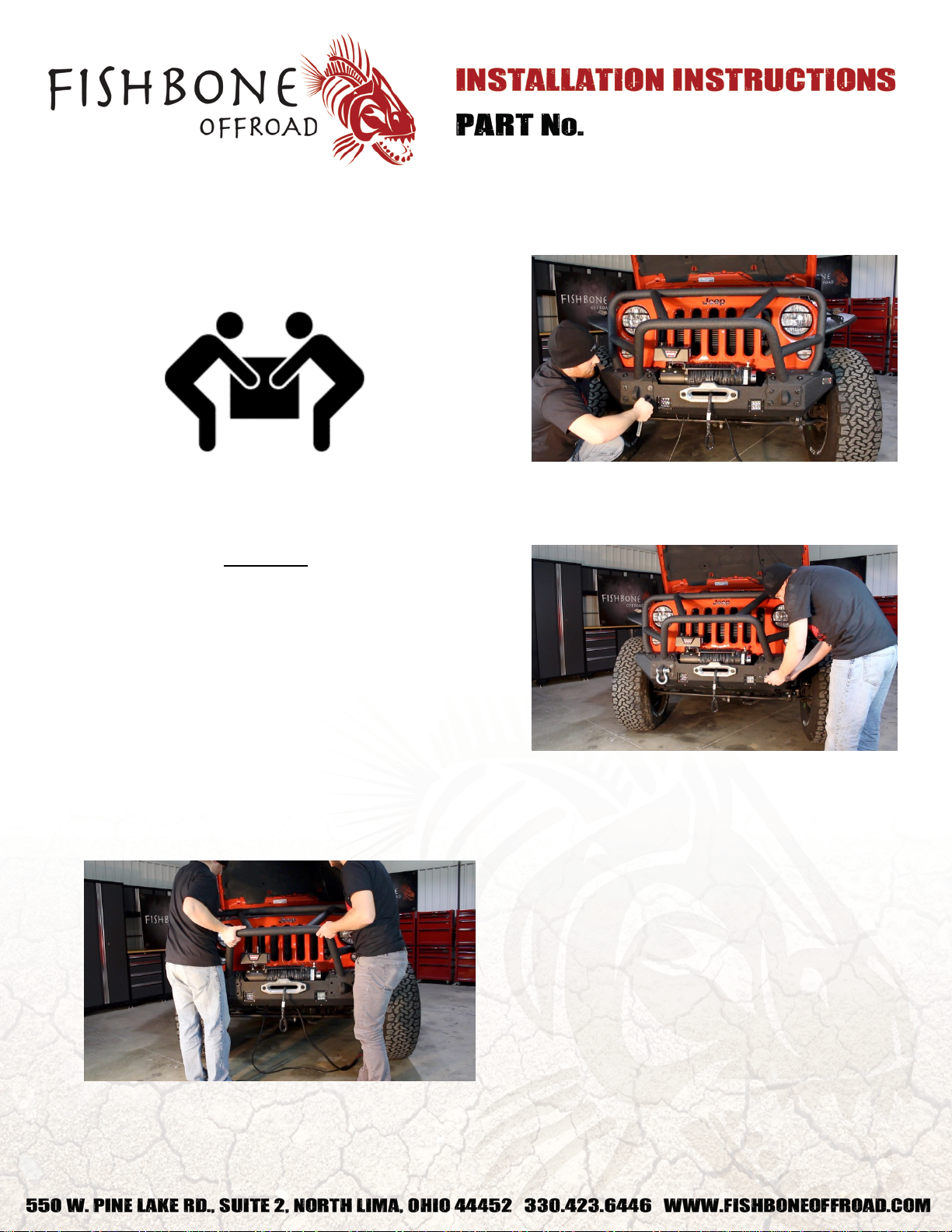

3) INSTALL YOUR BUMPER
2 PERSON LIFT
WITH THE WEIGHT OF THE WINCH AND BUMPER,
IT IS HIGHLY ADVISED TO HAVE HELP WHEN
INSTALLING THE BUMPER!
CAUTION
WITH THE SIZE OF THE GRILLE GUARD, WE
RECOMMEND OPENING THE HOOD OF YOUR JEEP
AND PLACING TOWELS OR RAGS ON YOUR GRILLE
TO PROTECT IT FROM THE GRILLE GUARD AS YOU
BOLT YOUR BUMPER IN PLACE.
With the help from a second pair of hands, lift the
bumper up to the frame of the Jeep. Using the M10
hardware, insert an M10 bolt and washer through
the front of the bumper and into the bumper
bracket on the Jeep frame. Secure each bolt with an
M10 flat washer, M10 lock washer, and M10 nut.
Repeat this for all eight (8) bolts.
Finish the install by mounting the supplied
d-rings to your bumper.
4) RUN YOUR WIRING
Wire in your new LED lights. To utilize your OEM for
light switch, you can splice these into your OEM fog
light harness.
Wire your winch according to the winch
manufacturer’s instructions.
5) ENJOY YOUR NEW FISHBONE OFFROAD BUMPER!
