Foreword

Note:

Dear Flashforge User,

Thank you for choosing and using the products of Flashforge Technology. Thank you for

your support and help to Flashforge Technology.

The products of Flashforge Technology have excellent quality and performance. For your

convenience, please read this Guide carefully before use and follow the instructions

strictly. The Flashforge team is always ready to provide you with the perfect service. In

case of any problems during the use, please contact us by phone or email listed in this

Guide.

In order to better experience our products, you can also get operation knowledge of the

equipment from the following ways:



www.sz3dp.com



hardware, contact, equipment operation and maintenance.



normal if there is residual material in the extruder or slight scratch on the



Safety Instructions

Please read the following safety prompts carefully

Please ensure that the work table of the printer is clean and tidy.



temperature generated by the operation of the equipment may react with dust, liquid



Children and untrained personnel should not operate the equipment alone.











Do not abuse the power cord; be sure to use the power cord provided by Flashforge

Technology.

Never use the equipment during thunderstorms.



power cord.



Safety of Electric Operation

Do not touch the extruder or platform while the equipment is running in order to avoid

high temperature burns or mechanical collisions

Do not touch the heating part when printing is complete in order to avoid high

temperature burns.

When operating, do not wear objects that are easily caught in the equipment, such as

scarves, masks, gloves and jewelry.

Do not operate the equipment after drinking or taking medicine.

Safety of Personal Operation

Do not left the running equipment unattended for a long time.

Do not modify the equipment.

Operate the equipment in a ventilated environment.

Do not use this equipment for illegal activities.

Do not use this equipment to make food storage products.

Do not use this equipment to make electrical products.

Do not put the printing model into your mouth.

Do not use brute force to remove the printing model.

Do not connect the equipment with a network cable longer than 3m.

If the equipment is not in use, please remove the supplies in the extruder.

If the equipment is not used for a long time, use a dust cloth to cover it.

When the adhesion of the blue textured paper becomes weaker on the shell, replace

the paper.

Equipment Operation Tips

Temperature: 15-30°C

Relative humidity: 20% -70%



Abnormal noise may occur if the equipment is used for a long time. Please apply

lubricant on the rails and the screw regularly. It is recommended to apply once every

two weeks.

Equipment Maintenance

The equipment needs to be placed in a dry, ventilated environment. The left and rear

sides must have a space at least 20cm, the front side must have a space at least 35cm,

and the right side must have a space at least 40cm.

Equipment Placement Requirements



Third-party supplies may cause extruder blockage and damage.



Do not unpack the supplies unless needed. Keep the storage environment dry and free

of dust after unpacking.

Supplies Storage Requirements

Do not copy or print any items that are prohibited from being copied by law.

Copy copyrighted works. Some copyrighted works can be partially copied for “fair

use”. Multiple copies will be considered as improper. A work of art is equivalent to

copyrighted work.

The above list is for reference only and does not include all content. We are not

responsible for its completeness and accuracy. If you have questions about the legality

of copying or printing certain items, please consult your legal counsel.



The user is not authorized to make any changes to this Guide.

Flashforge Technology is not responsible for any safety incidents caused by the

customer disassembling or modifying the equipment without permission. Without the

permission of Flashforge Technology, it is prohibited to modify or translate this Guide.



interpretation.

Legal Statement

1 Equipment Introduction



3D printing technology is the technology that transforms 3D models into physical objects.



which is also the application technology of AD1 Ad words printer. Its working mode is to



supplies, and stack them layer by layer to form 3D articles.

Printing Steps

3D printing has three steps, which are acquiring model, processing model, and printing





Flashforge AD1 is 3D printing equipment for making luminous character shell and it can



FlashAD software is used on Flashforge advertising machine. It has three functions, i.e.



produce Ad words.



production of the luminous character shells are provided.

Steps for the production of Ad words:

1. Generate a 3D model;

2. Export the contour line;



4. Cut the acrylic sheet according to the contour line;

5. Assemble the model and acrylic sheet.

You can use the design software such as CorelDRAW to design the font or pattern and





upgrades.

CDR

Software design

FlashAD

Software switch

AD1

Equipment printing

> >



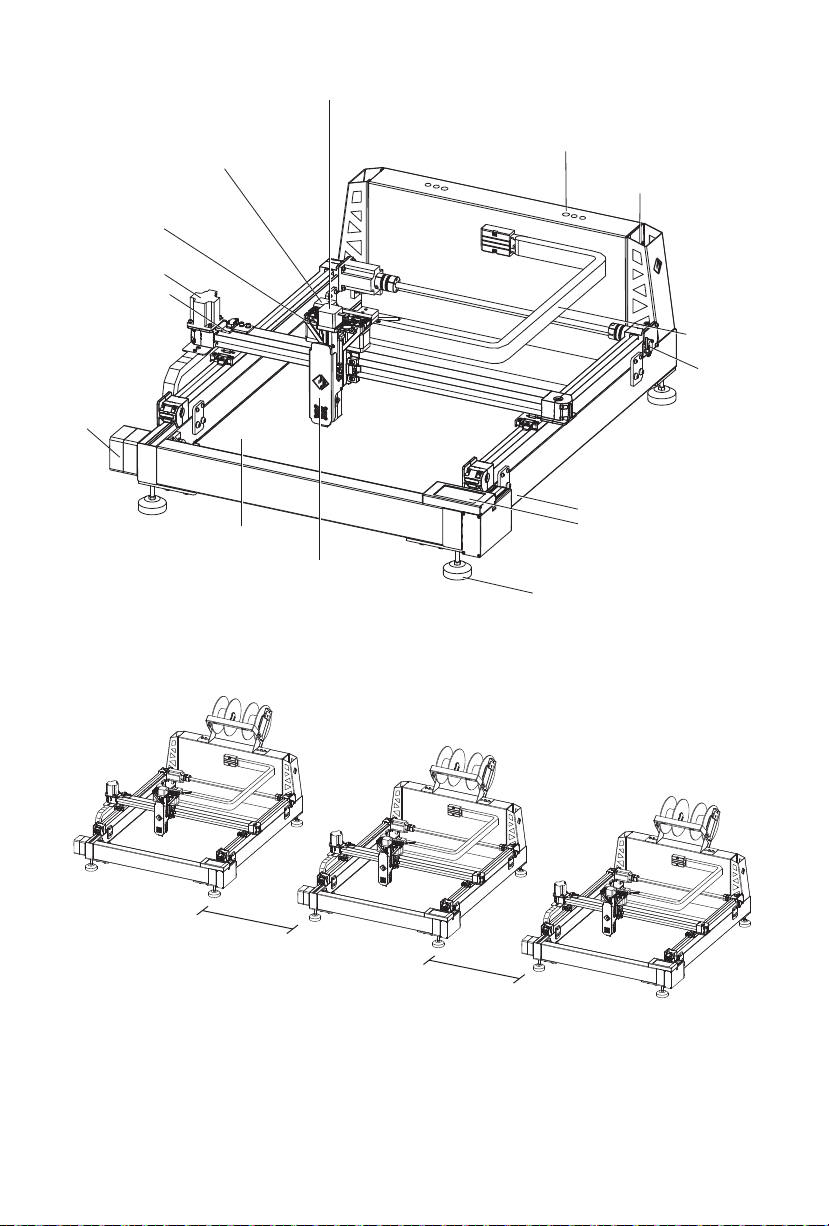

Fliament hole

Mounting bracket

Z-axis sensor

Heat sinks

Heating block

Cooling fan

Teflon tube connector

Nozzle

X-axis guide

Y-axis guide

Y-axis linkage

Spool holder

Filament spool



Z-axis motor

Decorating part

Drag chain

Y-axis sensor

Touch screen

Printing platform

Ethernet port

Extruder cover

Support bracket

Power switch

Filament feeding motor

X-axis motor

X-axis sensor

Filament detection sensor Mounting hole







The part used to build a solid model.

Printing platform

The Flashforge print sticker can be attached to the printing

platform to better attach the printing model to the platform. When



replace it in time, i.e. the attached textured paper.

Platform sticker

The printing volume refers to the length *width* height of the build

model. The maximum printing volume of AD1 Ad word 3D printer is

600*600*70mm. You can’t directly build models that exceed this

parameter.



The 8 leveling nuts under the platform bracket are used to adjust

the spacing between the printing platform and the nozzle.





Extruder

The lowermost brass-colored metal structure constituting the

extruder; the supplies heated by the extruder are extruded here.

Nozzle

Cooling fan

The hole for the supplies to enter the extruder; located at the top of

the extruder.

The cooling fan is used to reduce the temperature of the extruder



Used to clear the residual supplies in the nozzle.



box.

The device for placing supplies; located on the back of the printer.

Filament hole



Filament guide



Nozzle cleaner
