Quick Installation Guide
Outdoor Wireless IP Camera
For Windows OS ------- Page 1
For MAC OS ------- Page 15
ShenZhen Foscam Intelligent Technology Co., Ltd
FI8906W Quick Installation Guide
www.foscam.com
- 1 -
Quick Installation Guide - For Windows OS
IP Camera FI8906W with IR-Cut .x 1
DC Power Adapter (5V-2.0A) .x 1
Network Cable x 1
Wi-Fi Antenna .x 1
Mounting Bracket .x 1
Quick Installation Guide x 1
CD-ROM with Setup Software .x 1
Warranty Card x 1
Quick Installation Guide Flow Chart
P.12
Quick Installation Diagram
Package Contents
Login the Camera
Wireless Connection Setup
Remote Access Setup
Software Installation
Other Settings
Hardware Installation
FI8906W Quick Installation Guide
www.foscam.com
- 2 -
1) Open the package. Take out the camera out of the box carefully.
2) Mount the antenna. Then take the Wi-Fi antenna, mount it on the SMAconnector on the back
of the camera, screw the antenna to the back, and make the antenna stand vertically.
Figure 1.1 Mount the antenna Figure 1.2 Plug the network cable
3) Get the camera connected to the router, and get it powered.
Use the network cable to connect the camera to the router or the switch in the LAN network at your
home or your office. Plug in the power. The small green light on RJ45 will turn on, the small orange
light will blink.
Insert the CD into the CD drive of your computer and go to the folder “FI8906W”,then find the folder
“For Windows OS”.
Copy the IP camera tool to your computer and start the program.
Figure 1.3 Shortcut icon
1. Hardware Installation
Start Installation
2. Software Installation
FI8906W Quick Installation Guide
www.foscam.com
- 3 -
Double click the IP Camera Tool icon and the following screen should appear.
Figure 1.4 IP Camera Tool Windows
The IP camera tool should find the camera’s IP automatically after you plug in the network cable. If
not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls
and anti-virus are disabled temporarily until the camera is set up.
Double click the LAN IP address of the camera, it pops up a password dialog box.
Figure 1.5 Enter the username and password
3. Login the Camera
Default user name is
admin with no password
FI8906W Quick Installation Guide
www.foscam.com
- 4 -
Figure 1.6 Login User Interface
There are three login methods. One is IE ActiveX Mode, the other is Server Push
Mode for Safari, Firefox, Google Chrome, the third mode is Mobile Phone for mobile phone.
Please choose IE ActiveX Mode if you are using IE browser now.
For the first time login the camera, please make sure to allowActiveX to run when prompted.
Note
If you use IE browser, select
this login mode
If you use Firefox, Google
Chrome, Safari, select this
login mode
If you use Mobile phone, select
this login mode
FI8906W Quick Installation Guide
www.foscam.com
- 5 -
Figure 1.7 Install the ActiveX
Figure 1.8 Run the ActiveX
Click Run button, and re-login the camera again, you can see the following surveillance window:
Select Run
Click this button and
install the ActiveX
FI8906W Quick Installation Guide
www.foscam.com
- 6 -

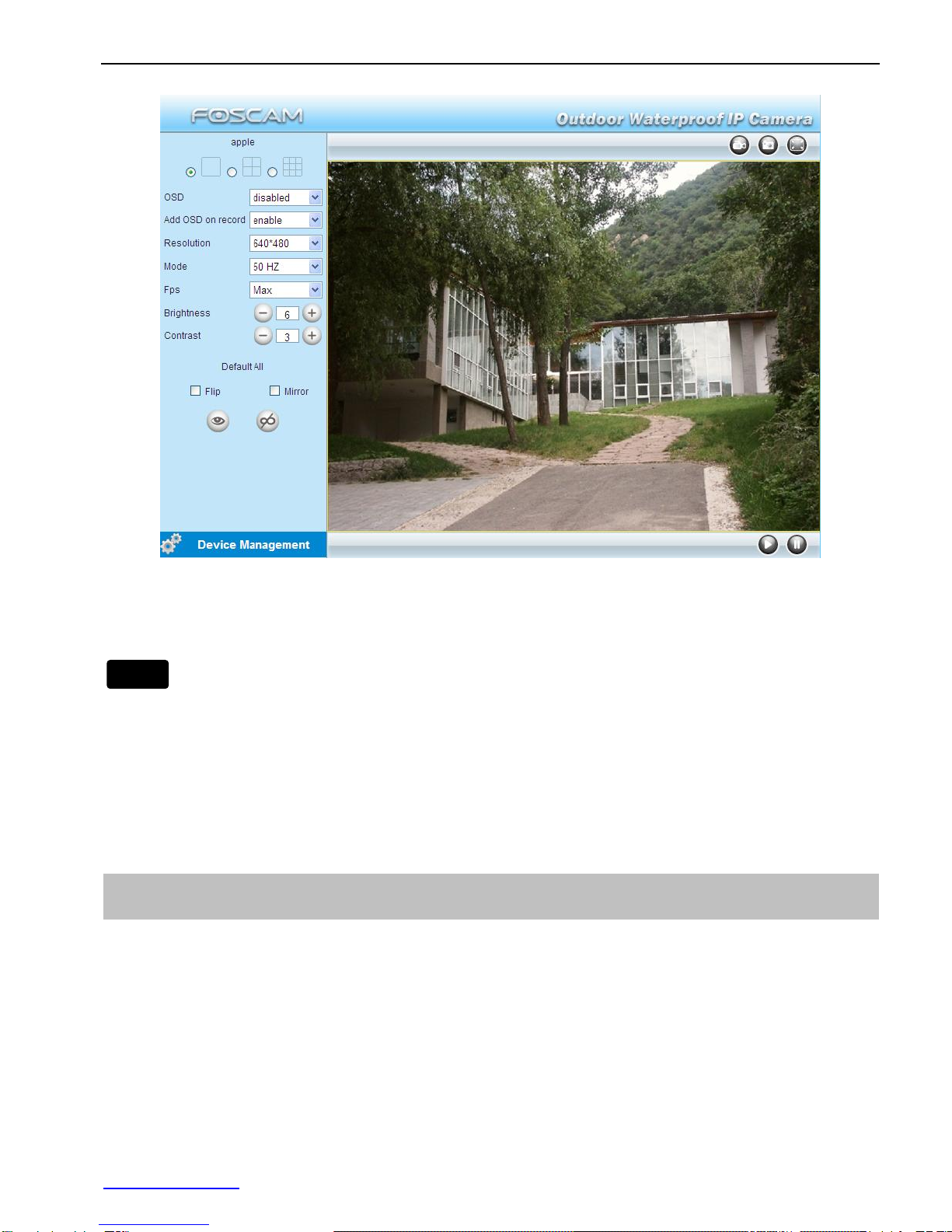

Figure 1.9 Surveillance Windows
Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave
all the menus alone before you finish the quick installation.
The default user name is admin with no password.
If you are unable to see a live video, please make sure to allowActiveX to run when prompted.
If you only see a black screen with a red cross in the center, please try another port number instead
of the default “port 80” .You may want to try port 85, 8005, etc.
If you are still unable to see a live video, try shutting down any firewall or anti-virus software on your
computer.
Wireless Lan Settings support Infra(Do wireless lan settings manually) ,WPS (Wi-Fi Protected
Set-up) and Adhoc modes.
If your router does not support WPS function, please go to chapter 4.1 and make wireless
connection settings manually.
If your router supports WPS function, please go to chapter 4.2 and make wireless connection
settings quickly.
Note
4. Wireless Connection Settings
FI8906W Quick Installation Guide
www.foscam.com
- 7 -
If there is no wireless router, please read Wireless Settings in the User Manual about how to
set Adhoc.
4.1 Infrastructure Mode
Step 01) Please choose “Device Management”and goes to the option Wireless LAN Settings ,
click “Wireless LAN Settings”. Then enable “Using Wireless LAN”.
Click the Scan button and the camera will detect all WIFI devices around the area. It should also
display your router in the list. (Figure 2.0)
Figure 2 .0 Wireless LAN Settings
Step 02) Click the SSID of your router in the list, the corresponding information (SSID & Encryption)
will be filled in the following boxes automatically.
You will only need to fill in the share key. Make sure that SSID, Encryption and share key you filled in
for the camera are exactly the same for your router.
Figure 2.1 Wireless LAN Settings
Click Scan Button to search WIFI
device
Click the SSID of router and SSID,
Encryption will be filled in the
following box automatically
Enter the same share key
with your router
FI8906W Quick Installation Guide
www.foscam.com
- 8 -
Step 03) Please click on the Submit button after all settings have been entered,the camera will
reboot. After the camera has completed the reboot process, wait 10 seconds and disconnect the
network cable.
The LAN IP address will disappear on the window of IP Camera Tool when the camera gets restarted.
Just wait for around 1 minute, the camera will get wireless connection, and the LAN IP of the camera
will be showed again on the window of the IP Cam Tool. You have done wireless connection of the
camera successfully. If the camera has a dynamic IP, after the wireless settings, the IP will be
changed.
If fail to make WiFi connection, please make sure wireless signal is
strong enough first, then you can refer to seller or FOSCAM for help.
4.2 WPS (Wi-Fi Protected Set-up)
Step 01) Press and hold the RESET button for four seconds.
Step 02) Press the WPS button on your router within 60 seconds. The WPS button is usually on
the back or side of your router. On some routers, you may need to log in to the web interface and
click on an on-screen button to activate the WPS feature. If you are not sure where the WPS buttons
is on your router, please refer to your router’s User Manual.
The camera will automatically create a secure wireless connection to your router. If you have
plugged in the network cable, please plug it out. While connecting, the green network light on RJ45
will blink and the wireless settings will take effect. The IP Camera Tool will search the camera’s LAN
IP. Make sure the PC and the camera share the same subnet.
1 During the WPS Settings, you must press the Reset button only for four seconds, or else, the
camera may be reset back to factory default settings if you press and hold on the reset button above
10 seconds.
2 The security mode of router cannot be WEP, or else the WPS settings may be failed.
Note
Note
Reset Button
FI8906W Quick Installation Guide
www.foscam.com
- 9 -
We have been able to access the camera within the LAN network, but how to access the camera via
WAN or via internet? We have to do Remote Access Settings before we want to access the
camera outside the LAN network.
What is the HTTP Port no. and How to change it ?
1) Default HTTP No.: 80
All the cameras’ default http no. is 80. For example, if the LAN IP link of the camera is
http://192.168.1.35, it says that the camera’s http port no. is 80, if the LAN IP link of the camera is
http://192.168.1.35:88, it says that the camera’s http port no. is 88. Port 80 could be blocked when
accessing via internet, we need to change port 80 to another one like 88, or 85 as you like, which will
not be conflict with other existing ports like 25, 21.
2) Change the default http no.80 to another one like 88, or 85 etc.
How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera
Tool？
Firstly Open the IP Camera Tool, select the camera you want to change the port no, right click on
the IP address link, and goes to Option ”Network Configuration”, it pops up another dialogue showed
as Fig2.2, Fig2.3.
Figure 2.2 Goes to Option Network Configuration
5. Remote Access Settings
Select the camera you
want to change the port
no, right click
