Franke SEMI PRO Bedienungsanleitung

PROFESSIONAL

EN Installation manual Kitchen Faucet

ES Manual de instalación Grifo de cocina

FR Manuel d‘installation Robinet de cuisine

FF5300 FF5380 FFPD5300 FFPD5380 FFPD5400 FFPD5480

SEMI PRO

– 3 –

TABLE OF CONTENTS

Overview 4

Contents in box 4

Technical data 5

Installation instructions 6

Cleaning and maintenance 10

Replacing the cartridge 10

General maintenance 10

Spare/replacement list 11

FF5300 Series 11

Spare/replacement list 12

FFPD5300 Series 12

Spare/replacement list 13

FFPD5400 Series 13

Limited lifetime warranty 14

– 4 –

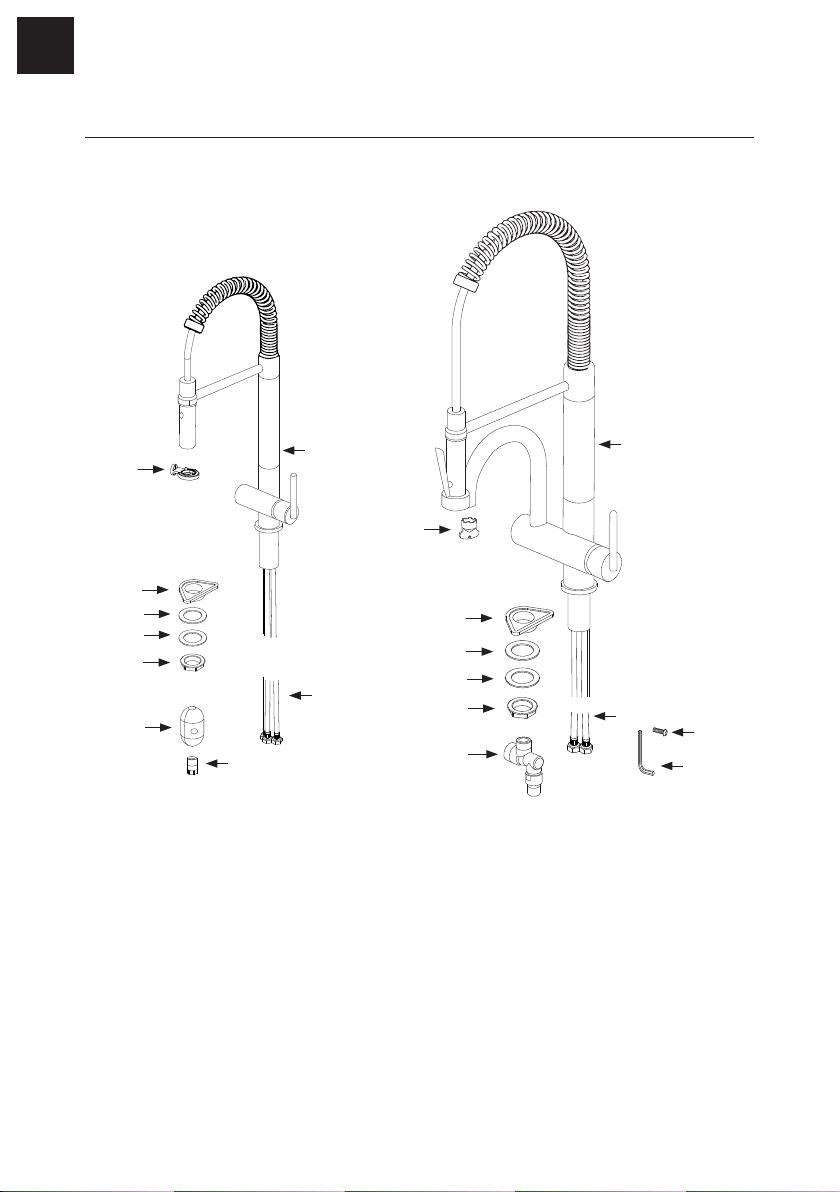

OVERVIEW

Contents in box

FFPD5300 Series

1- Faucet Assembly

2- Aerator Key

3- Plastic Flange

4- Rubber Washer

5- Fixing Plate

6- Fixing Nut

7- Supply Hoses

8- Diverter

9- Spout Set Screw

10 - Hex Key

FF5300 Series

1 - Faucet Assembly

2- Aerator Key

3- Plastic Flange

4- Rubber Washer

5- Fixing Plate

6- Fixing Nut

7- Supply Hoses

8- Weight

9- Check Valve Holder

– 5 –

Technical data

Operating data Value

Operating pressure (ideal) 60 PSI 4.1 bar 410 kPa

Operating pressure (max.)* 125 PSI 8.6 bar 860 kPa

Operating pressure (min.)* 20 PSI 1.4 bar 140 kPa

Water temperature (ideal) 140°F 60°C

Water temperature (max.) 158°F 70°C

Hole Size For Faucet 1 3/8“ 35mm

NOTE: Contact us immediately if you see

inconsistencies.

phone: (1- 800-626-5771)

website: www.franke.us/ks

email: ks-customerservice.us@franke.com

FFPD5400 Series

1- Faucet Assembly

2- Aerator Keys

3- Plastic Flange

4- Rubber Washer

5- Fixing Plate

6- Fixing Nut

7- Supply hoses

8- Check Valve Holders

9- Filtered water supply ﬁtting

10 - 3/8“ poly tubing

11 - Hex Key

12 - Spout Set Screw

13 - Shut oﬀ valve

Certiﬁes this faucet complies with ASME A112.18.1 / CSA B125.1 & NSF 61, NSF 372

and AB1953. The faucet also complies with water usage requirements of the

California Energy Comission and the US Department of Energy.

– 6 –

INSTALLATION INSTRUCTIONS

1. Remove all contents from the package

and check for completeness.

2. Turn oﬀ water supply.

3. Cut a mounting hole 1 3/8“ diameter

(35 mm) in the desired mounting surface

(if one isn’t available).

4. Insert the faucet into the hole, hoses

ﬁrst (ﬁg. 2A).

ATTENTION: O-ring should come

pre-assembled in the base of the

faucet escutcheon sitting between the

countertop and the faucet base.

DO NOT use putty or other sealant at

this location.

NOTES: Solid surface installation:

The countertop mounting surface needs

to be ﬂat and free of debris; otherwise the

faucet may not sit properly and could leak.

5. Install the mounting hardware to the

mounting shank of the Faucet Base (1)

underneath the mounting surface in the

following order: Plastic Flange (3), Rubber

Washer (4) and Fixing Plate (5) (ﬁg. 2A).

6. Secure the faucet by tightening the

Fixing Nut (6) onto the mounting shank

of the Faucet Base (1) (ﬁg. 2A).

ATTENTION: For FF5300 Series

7. Connect Spray Supply Hose (7) to

Check Valve Holder (8) and Spray

Hose(9) (ﬁg. 2B).

8. Attach the Weight (10) to the Spray

Hose (9) approximately 2” above the

bend in the bottom of the Spray Hose

( ﬁ g . 2C).

2“

– 7 –

9. Connect the Flexible Supply

Hoses (13) to the water supply

in the home (ﬁg. 2D).

13 13

10. Remove Aerator (14) using the

Aerator Key (15) (ﬁg. 2E).

12. Turn on water, ﬂush the faucet and

Aerator (14) to remove any debris and

check for leaks (ﬁg. 2F).

13. Reinstall the Aerator (14) and ensure

everything is functioning properly.

ATTENTION: For FFPD5300 Series

8. NOTE: Secondary spout is NOT

secured to allow for better transportation.

Align the secondary spout parallel to the

main spout as shown in image 3A.

Take the set screw attached to the

warning card and insert it into the back

of the body under the spout, and tighten

it with the hex key also attached to the

warning card (ﬁg. 3B).

The secondary spout rotation is

approximately 100 degrees to prevent it

from hitting the main spout (ﬁg. 3C).

100°

9. Connect Stainless Steel Mixed

Water Supply Hose (8) to the top of the

Diverter (10) (ﬁg. 3D).

– 8 –

10. Connect the Stainless Steel Faucet

Supply Hose (9) to the largest ﬁtting on

the Diverter (10) (ﬁg. 3D).

11. Connect the Gray Nylon Spray Supply

Hose (7) to the smallest ﬁtting on the

Diverter (10) (ﬁg. 3D).

12. Connect the Flexible Supply Hoses

(11) to the water supply in the home

(ﬁg. 3E).

11 11

13. Remove Spout Aerator (14) using the

Spout Aerator Key (15) (ﬁg. 3F).

14. Turn on water, ﬂush the faucet and

Aerator (14) to remove any debris and

check for leaks (ﬁg. 3G).

15. Reinstall the Aerator (14) and ensure

everything is functioning properly.

ATTENTION: For FFPD5400 Series

8. NOTE: Secondary spout is NOT

secured to allow for better transportation.

Align the secondary spout parallel to the

main spout as shown in image 4A.

Take the set screw attached to the

warning card and insert it into the back

of the body under the spout, and tighten

it with the hex key also attached to the

warning card (ﬁg. 4B).

The secondary spout rotation is

approximately 100 degrees to prevent it

from hitting the main spout (ﬁg. 4C).

100°

9. Connect the Drinking Water Fitting (10)

to the Drinking Water Supply Hose (11)

with a 17 mm wrench.

– 9 –

10. Connect the 3/8” Poly Tubing (9) to

the Drinking Water Fitting (10) and cut the

Poly Tubing (9) to proper length to remove

any unnecessary loops or low spots as

shown in ﬁgure 5A. Save excess Poly

Tubing (9) for water ﬁltration connection.

IMPORTANT: When using push ﬁttings,

ensure the ends of the tubing are cut

square and free of burrs or damage within

1” of the end of the tube. DO NOT use

any forms of sealing compounds or tools

to remove the tubing or modify the ﬁtting

in any way, as this can damage the ﬁtting

and result in leaks. Proper installation

and removal of tubing with push ﬁttings is

outlined in ﬁgure 5B. Damage in this area

can cause leaks.

How to insert / Remove Tubing

In Push Fit Connections

1. Insert the tubing squarely. See ﬁg. 5B-1.

2. Make sure to insert tubing completely.

See ﬁg. 5B-2.

3. To remove, push in collet and pull out

tubing. See ﬁg. 5B-3.

5B-1 5B-2

5b-3

11. Connect the Check Valve Holders (12)

to the Hot and Cold Supply Hoses

(red/blue) from the faucet as illustrated in

ﬁgure 5C.

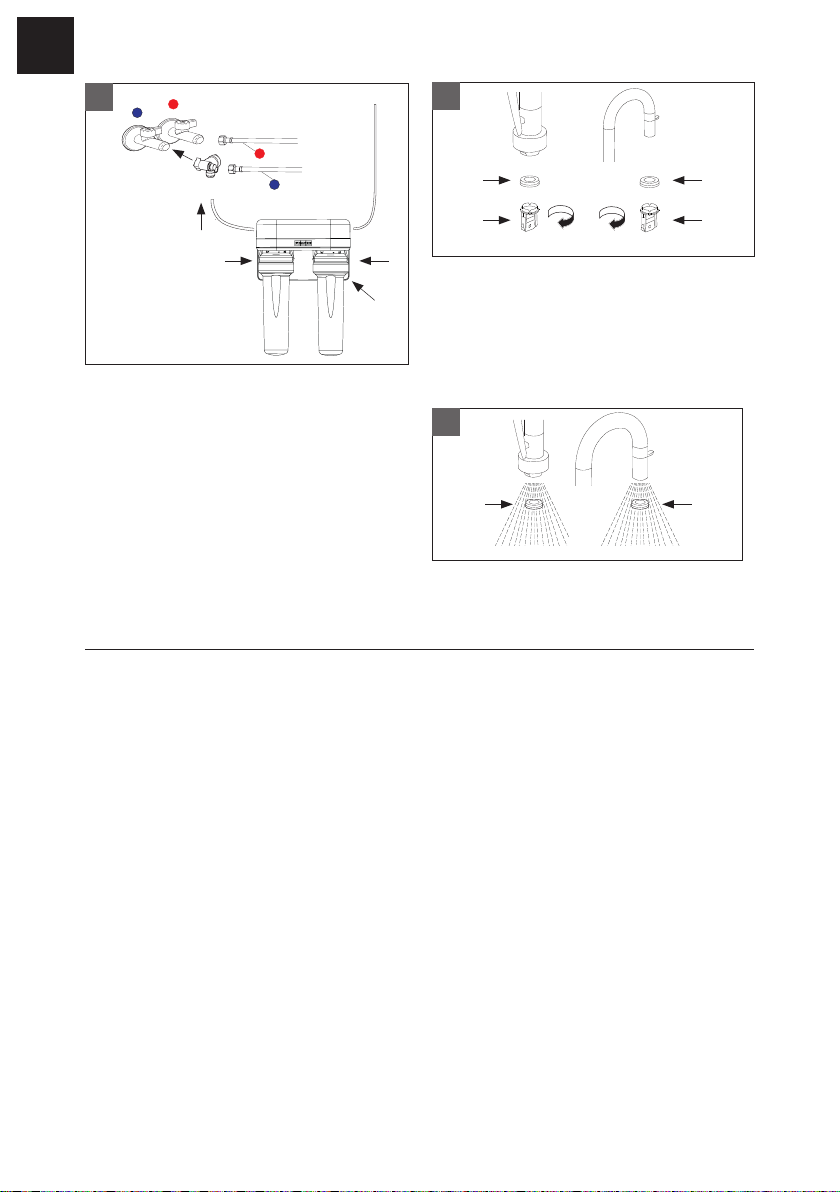

12. Connect the 3/8” Poly Tubing (9) to

the exit of the Water Filter (15), which

is NOT included with the faucet, as

illustrated in ﬁgure 5D.

IMPORTANT: Franke strongly

recommends using only genuine Franke

water ﬁltration products with this faucet.

The installation or function of the faucet

can’t be guaranteed if using other

ﬁltration products.

13. Connect the Shut-oﬀ Valve (13)

to the Cold Water Supply in the home

(blue) and connect the other side to the

Cold Water Supply Hose (blue) from the

faucet as illustrated in ﬁgure 5D.

IMPORTANT: DO NOT over-tighten

threaded connections for the shut-oﬀ

valve (13). DO NOT exceed 25 In-lbs of

torque.

14. Take excess 3/8” Poly Tubing (14)

from Step 10 and connect one end to

the push ﬁtting connection of the Shut-

oﬀ Valve(13). Take the other end and

connect it to the inlet of the Water

Filter (15). See ﬁgure 5D for overview.

– 10 –

15. Connect the Hot Water Supply Hose

(red) to the Hot water supply in the

home (red) as indicated in ﬁgure 5D.

16. Remove Spray Aerator (16) using

the Spray Aerator Key (17) and remove

Spout Aerator (18) using the Spout

Aerator Key(19) (ﬁg. 5E).

17. Turn on water, ﬂush the faucet and

both Aerators (16 and 18) to remove any

debris and check for leaks (ﬁg. 5F).

18. Reinstall the Aerators (16 and 18)

in reverse and ensure everything is

functioning properly.

CLEANING AND MAINTENANCE

Replacing the cartridge

1. Shut oﬀ the water supply to the faucet.

2. Turn on the faucet brieﬂy to relieve

any pressure inside the faucet.

3. Move the faucet handle to the

“OFF” position.

4. Remove the set screw from the handle

assembly (A) using a 2.5 mm hex key.

5. Pull handle assembly (A) from

faucet body.

6. Unscrew the cartridge cap (B) from

faucet body.

7. Unscrew the cartridge lock nut (C).

8. Lift ceramic disc cartridge (D) from

the body and replace it with a new one.

Ensure the two lugs on bottom of the

cartridge sit properly in the allocated

holes at the base of the body.

9. Re-assemble faucet in reverse order.

10. Test for leakage.

General maintenance

Clean aerator periodically for any buildup.

Do not use harsh detergents, solvents,

chemical agents or metallic sponges as

these can damage the surface ﬁnish.

Clean only with a soft sponge and

soapy water.

Do not store chemicals or cleaning

agents in the immediate vicinity of the

faucet and connection hoses. Chemical

vapors could cause damage.

16 18
