Frico ICWP Bedienungsanleitung

ICWP

.... 4

SE ....32

.... 18

NO .... 25

.... 11

.... 46

ES .... 60

.... 53

.... 39

ICWP

231

228

ICWP

Type A

ICWP17 837

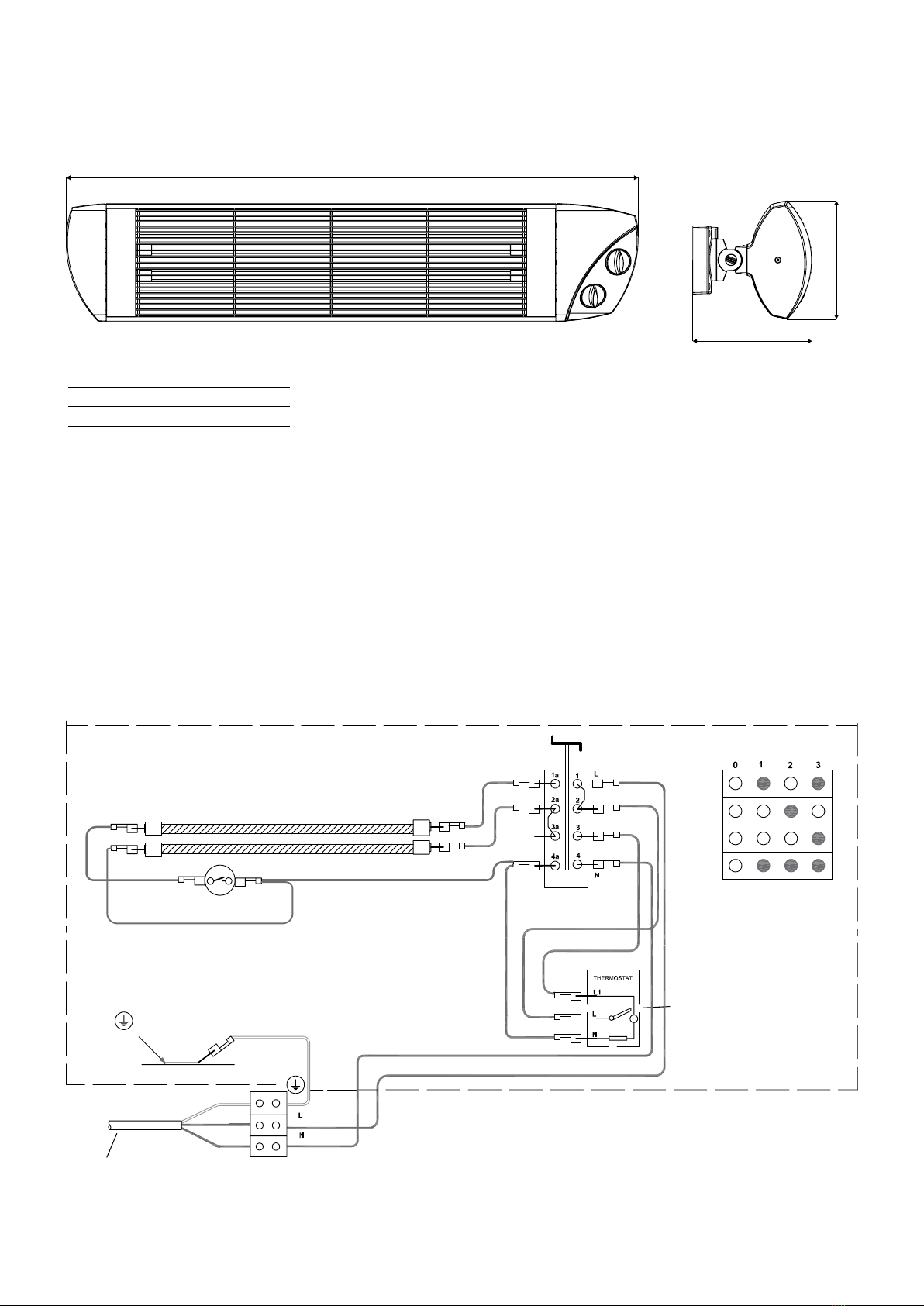

Wiring diagrams

ICWP

Output selector

Thermostat

Safety limit

thermostat

ICWP

Technical speciﬁcations | Carboninfra ICWP, portable with wide heat distribution, installation height 0,4 – 1,5 m 3

Type E-nr (SE) EL-nr (NO) Heat

output

[W]

Voltage

[V]

Amperage

[A]

Max. ﬁlament

temperature

[°C]

Weight

[kg]

ICWP17 85 701 53 1750 230V~ 7, 6 1200 +/-100 10

Protection class IC, horizontal position: (IP44), splash-proof design.

CE compliant.

Stand foot

Power Cord 16 A H05 VV-F

3x1,5mm2

Yellow/Green 1,5 mm2

l=170mm

Blue 1,5 mm2

l=170mm

Brown 1,5 mm2

l=170mm

Tilt Switch

Schuko socket

16A CE

Black 1,5 mm2

l=180mm

PVC Cable

ICWP

General Instructions

Read these instructions carefully before

installation and use. Keep this manual for

future reference.

The product may only be used as set out in

the assembly and operating instructions. The

guarantee is only valid if the product is used

in the manner intended and in accordance

with the instructions.

Application

Carboninfra IC provides a smooth and

direct heat that ﬁts well on the terraces and

balconies. IC is also ideal for spot heating,

both indoors and in more protected areas

outdoors. The heat lamp in IC have very

long service life, the operating time is up to

10 000 h.

ICWP is a portable radiant heater which gives

a comfortable heat in the occupied zone from

close range and also wider heat distribution.

All models can be installed vertically as well

as horizontally and has an integrated output

selector and thermostat.

Protection class, horizontal position: IP44

Assembly and operation instructions

ICWP

Control

Output selector

Thermostat

Control

room thermostat

+5 – +35 °C +/- 1 °C

Max thermostat

setting

approximately

60 °C

Built-in safety limit

thermostat.

ICWP

0,4 – 1,5 m

yes, one element

Thermostat function

Constituent parts

ICWP

Bracket

Reﬂector

Wide angle

80°

Universal

holder

Double

IR-carbon-

element

Medium wave

Horizontal

or vertical

mounting

Ventilating

body

Radiant angle

30° – 0° – 30°

Front grid

metal

Connection

box

Built-in safety limit thermostat

The built-in safety limit thermostat switches

off one element when temperature is too high

and switches on after a short cooling time.

The safety limit thermostat switches off one

element when for example:

1. The heater is too close to walls and other

equipment.

2. The heater is more or less covered.

3. When the reﬂector is positioned at an

incorrect angle

4. When voltage is too high

Please switch off and ﬁx the relevant problem.

Off

Upper element

on, 50% power

Lower element

on, 50% power

Both element

on, 100% power

ICWP

Rip for

horizontal

position Rip for

vertical

position

Bracket

Rotating to horizontal or vertical position

Rotating from

horizontal to vertical

position, 90°.

Note: Only clockwise.

The heater must

be off and the plug

pulled from the

socket. When rotating

the heater, the metal

body should be

carefully touched by

hand.

Rotating from

vertical to horizontal

position, 90°.

Note: Only

anticlockwise.

ICWP

Plastic cover

Post

Fixing

screw

2 cable clips

Stand foot

Plastic feet

Stand legs

Stopper

screw

Mounting

1. Push each stand leg ﬁrmly into the stand

foot until it reaches the stopper inside.

2. Push the post ﬁrmly into the stand foot.

3. Fix the post with a screw on the backside

of the stand foot.

4. When the stand is fully assembled, the

heater can be mounted, see manual.

ICWP

Mounting

Cable that are not needed can

be conveniently stored in the

cable channel under the stand

foot.

The post is pushed in the stand

foot and fastened with ﬁxing

screw.

The plug from the heater is inserted into the

socket in the stand foot and the lid is closed.

The plug from the stand foot is then inserted

in the wall socket. Do not use the plug from

the heater directly in the wall socket. See

minimum mounting distance in the manual.

ICWP

After assembly and after the

radiation angle is set, tighten

the screws.

Mounting

Mounting of bracket

Note: Please observe minimum mounting distance

in the manual.

Minimum mouting distance

Min 0,4 m

from ﬂoor

Fully

adjustable

Min 1,5 m

to textiles

and furniture.

1,5 m

Possible to turn

vertically

Radiant angle

30°

ICWP

Maintenance

Note! When using for the ﬁrst time or when

starting up after a long period of disuse, a

small amount of smoke and a slight odour

may occur temporarily, which is completely

normal.

The power supply to the unit must be

disconnected during all service, repair and

maintenance work.

The unit has no moving parts so the

maintenance requirement is small, but it

must be kept clean and free from dust and

dirt. If the reﬂector is not clean the thermal

radiation from the unit will decrease and the

heater will become hotter. A large amount of

dirt can cause overheating.

The surface of the reﬂector is sensitive and

must be cleaned with care. If the reﬂector

is dirty it must be cleaned or replaced by a

specialist.

Safety

• During operation the surfaces of the unit

are hot!

• The unit must not be fully or partially

covered with inﬂammable materials, as

overheating can result in a ﬁre risk!

• This product is not designed to be used

by children or persons with reduced

physical or mental ability or a lack

of experience and knowledge, unless

instruction regarding the product's

use has been given by a person with

responsibility for their safety or that this

person supervises operation. Children

must be kept under supervision to ensure

they do not play with the product.

• The heater is equipped with a protective

grille to prevent contact or to prevent

large objects from touching the hot lamp.

The unit must not be used without this

protective grille.

• Ensure that there are no inﬂammable

materials gathered on or close to the

heater.

• The free space to the inﬂammable

material in the direction of radiation

must be at least 1,5 meter.

• Do not place the heater directly under the

electrical socket.

• The cable and plug must not be exposed

to the heat from this appliance.

• Do not use timer that switches the heater

on automatically since a ﬁre risk exists

if the heater is covered or positioned

incorrectly.

Assembly and disassembly of the front grid
