M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

M3093EX/GX/DE/DG and ScanPartner 93GX

Consumable Replacement and Cleaning Instructions

cG00000-676501rEviSion b

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

Pad Assembly Qty 3

Pick Roller Qty 2

Kit Contents

Note: Kit Contents may Vary

F1 Cleaner

Isopropyl Alcohol

Qty 1

Q-Tips

Qty 1 100/pack

Lint Free

Cleaning Cloths

Qty 2 20/pack

Cleaning Paper

Qty 1 10/pack

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

Consumables list

m3093eX/GX/De/DG anD sCanPartner 93GX Consumables

Description Qty. Life Fujitsu P/N

Pad Assembly 1 100,000 PA02201-0020

Pick Roller 1 200,000 PA02212-K001

Note:

NCR or Carbonless paper has chemical composition which damages

the Pad the Pick Roller. Cleaning of these items will be needed more

frequently to avoid feed problems. Also their life will be reduced if

this paper is scanned.

Pad Assembly

Pick Roller

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

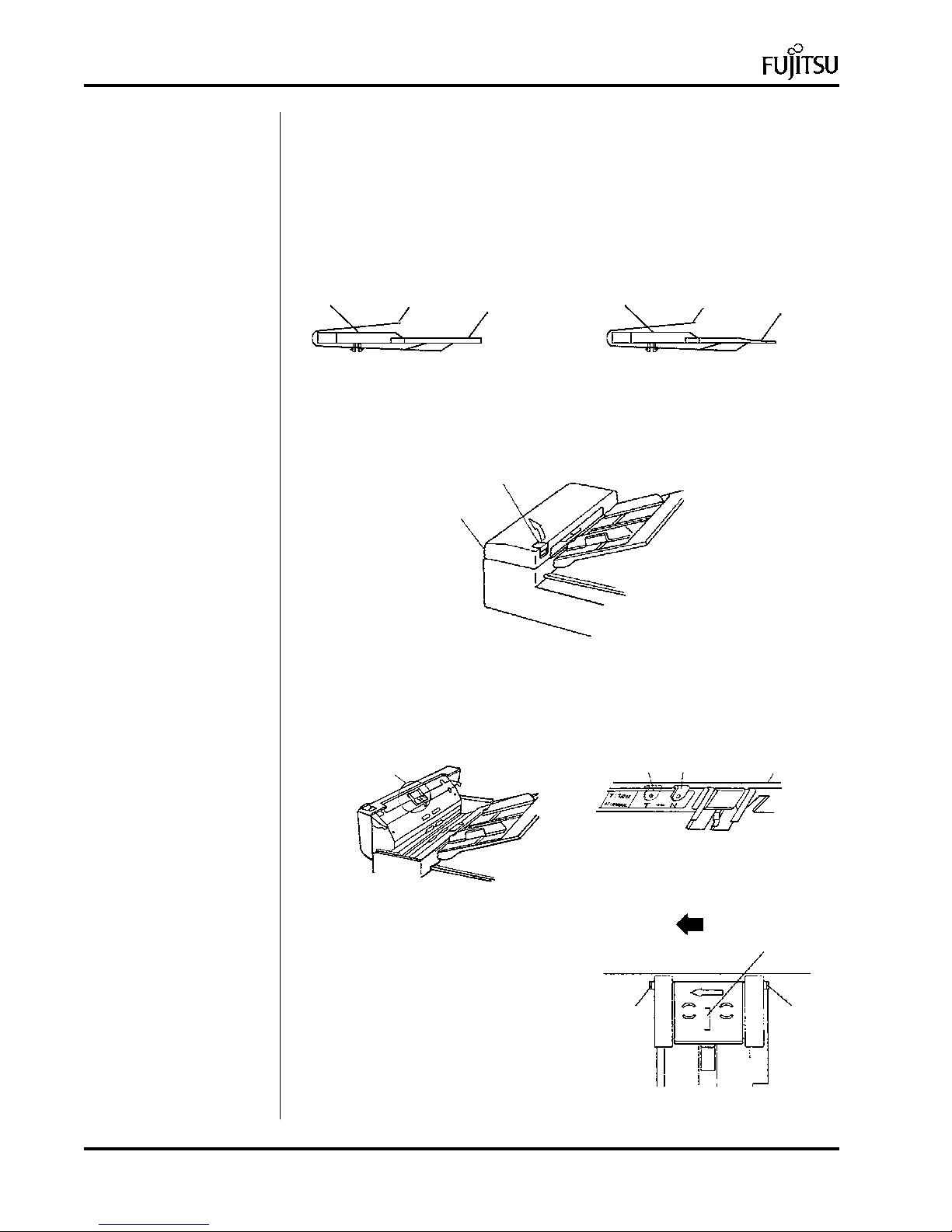

• Lift the ADF Lever and open the ADF.

ADF Lever

ADF

• Make sure the Paper Select Lever is set to “N” before removing the

Pad Assembly.

Paper Thickness

Adjustment

Thick

Paper Normal

Paper

ADF

Frame

Slot

• Hold the Pad Assembly at

points A & B, or insert a coin

or a at head screwdriver

into the slot in the Pad

Assembly.

• Slide the Pad Assembly to

rePlaCinG the PaD assembly

Side Views of New and Worn Pads

Retainer Worn Pad

Pick

Spring

New Pad

Retainer

Pick

Spring

Multiple feeds can be caused by a worn out Pad Assembly. The life span

of the Pad Assembly is about 100,000 sheets or 1 year if maintained

properly. If NCR or carbonless paper is used the life span may be

decreased by half.

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

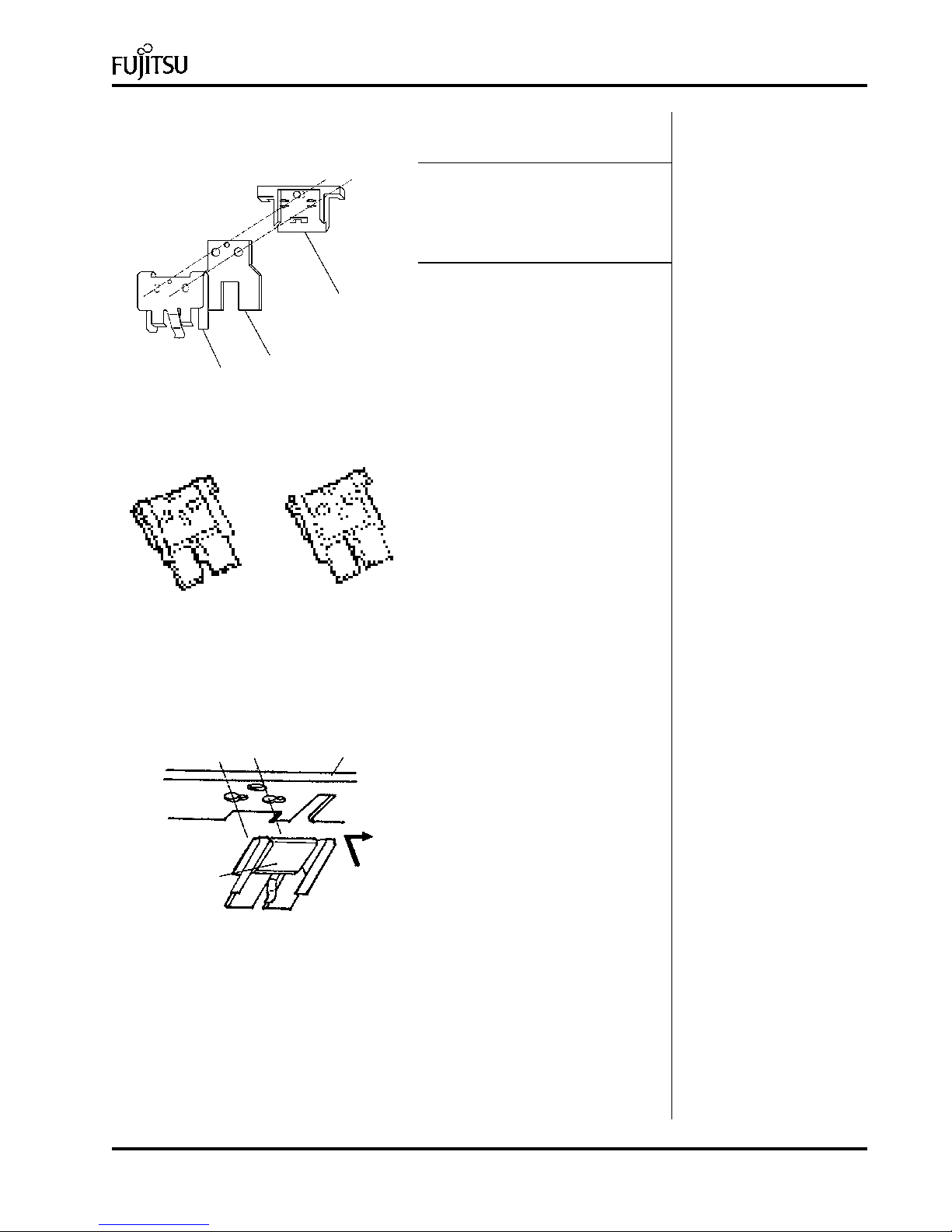

rePlaCinG the PaD assembly (Cont.)

Note:

The Pad Assembly consists of

the Pad, the Pick Spring, and

the Pad Holder.

• If you receive only the

rubber pad, replace the Pad

according to the following

procedure.

• Remove the Pick Spring.

• Remove the Pad from

the Pad Holder.

• Align the holes in the

new Pad with the pins on

the Pad Holder.

• Attach the Pick Spring so

that both ends of the Pick

Spring are located on the

Pad.

• Insert the new Pad Assembly

into the bigger side of the

mounting holes in the ADF

frame, and then slide to the

right until it locks into place.

• Close the ADF.

Pad

Pad Holder

Pick

Spring

Pad Assy

ADF Frame

Correct Incorrect

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

• Lift the ADF Lever and

open the ADF.

• Remove the two thumb

screws and lift the Guide A

Assembly out of the ADF.

• At the front of the ADF,

compress the ends of the

retaining hook and remove

from the groove in the

shaft.

• Slide the hook and the

bushing toward the middle

of the scanner.

• Remove the Pick Roller

by sliding the shaft toward

the front of the scanner

to remove the back of the

roller shaft from the ADF

frame.

• Raise up and then slide

the shaft back toward

the rear of the scanner

to completely remove the

shaft.

rePlaCinG the PiCK roller

Bushing

Retaining

Hook

Front of ADF

Misfeeds can be caused by a worn Pick Roller. The life span of the Pick

Rollers is about 200,000 sheets or 1 year if maintained properly. If NCR

or carbonless paper is used the life span may be decreased by half.

Rear of

Scanner

Thumb

Screw

Thumb

Screw Guide A

Assy.

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

rePlaCinG the PiCK roller (Cont.)

• Place the other bushing into

the hole at the rear of the

ADF. Note that the bushing

and the hole are keyed.

• Place the end of the roller

shaft with the bushing and

retaining hook into the

mounting hole at the front of

the scanner.

• Now slide the roller shaft

into the mounting hole and

bushing in the back of the

scanner.

• Make sure the bushings

are in the mounting holes

properly and move the

retaining hook into the

groove in the roller shaft.

• Reinstall the Guide A

Assembly and tighten the

two thumb screws.

Bushing

Back of Scanner

• Remove the two bushings and the retaining hook from the roller shaft.

• Take the new Pick Roller and place the retaining hook on the end of

the shaft away from the gear.

• Place one of the bushings on the roller shaft, on the same side as

the retaining spring. Make sure the large diameter of the bushing is

facing the inside of the shaft.

Retaining Hook

Bushing Bushing

Gear

Front of

Scanner

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

CleaninG Kit

CleaninG loCations anD FrequenCies

Location Tools Frequency

Flatbed Area Cloth with F1 Cleaner Whenever Dirty

Pad Cloth with F1 Cleaner Every 5,000 Pages

Pick Rollers Cloth with F1 Cleaner Every 5,000 Pages

Feed Rollers Cloth with F1 Cleaner Every 5,000 Pages

Plastic Rollers Cotton Swab with F1 Cleaner Every 5,000 Pages

ADF Glass Cloth with F1 Cleaner Every 5,000 Pages

Sheet Guide Cloth with F1 Cleaner Every 5,000 Pages

F1 Cleaner

Isopropyl Alcohol Q-Tips

Lint Free

Cleaning Cloths Cleaning Paper

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

Document Cover

Document

Holding Pad

Cloth

Document Bed

Neutral Cleanser

or Isopropyl Alcohol

CleaninG the FlatbeD

• Open the Document Cover.

• Apply F1 Cleaner or isopropyl alcohol. to a clean cloth.

• Wipe the Document Holding Pad and Document Bed.

• Allow to dry.

Note:

Window or glass cleaner can be used instead of F1 Cleaner or

isopropyl alcohol.

Be sure to prevent liquid from seeping through the opening between

the document bed and the plastic cover.

A dirty Document Bed or Holding Pad can cause repetitive spots, marks

or unclear areas when scanning from the Flatbed.

M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS

ADF Lever

ADF

Paper Guide

Cleaning

Sheet

CleaninG the aDF with the CleaninG PaPer

• Pull the ADF Lever to open

the ADF.

• Apply F1 Cleaner or

isopropyl alcohol to both

sides of a new sheet of

Cleaning Paper.

• Place the Cleaning Paper

on the ADF so that the

edge of the sheet touches

the Plastic Rollers.

• Close the ADF and turn

the scanner ON. The

Cleaning Paper will be fed

through the scanner.

• Turn the scanner OFF.

The cleaning paper is designed to remove only loose paper dust and ink

from the rollers. Use them approximately every 5,000 pages scanned.

They are to be used in between the thorough cleanings of the scanner.

Using the cleaning paper does not take the place of the more

complete cleanings described later in this section

• Flip the Cleaning Paper over and repeat the steps above.

Note:

The cleaning paper is used to remove loose paper particles and

toner. They are not a substitute for doing a thorough cleaning to the

ADF.
