Sprinter Rear Step
Installation Guide
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
All Flatline Van Co products must be properly assembled and secured before attaching to your
vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily
injury or death to you or to others involved. You are responsible for assembling and securing flatline
van co products to your vehicle, checking the mounting points and attachments prior to use, and
regularly inspecting the products for wear and or damage. We always recommend you use a
professional to install any aftermarket accessories to your vehicle. If you have no mechanical
experience and are not thoroughly familiar with the installation procedures, you must have the
product installed by a professional installer or other qualified persons. The responsibility is yours
and must be taken seriously for everyone's safety.
1
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
thanks.
2
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
THANK YOU!
ARE YOU EXCITED ABOUT YOUR NEW REAR STEP? HERE ARE A FEW THINGS TO DO
BEFORE BEGINNING THE INSTALLATION PROCESS--
• PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO
DAMAGE INCURRED DURING SHIPPING.
• IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
• NEXT, USING THE “PACKAGE CONTENTS” PAGE, CHECK
INVENTORY AND FAMILIARIZE YOURSELF WITH THE PARTS
AND HARDWARE.
•BEFORE YOU START:
-IF YOU DO NOT HAVE A FACTORY HITCH, YOU WILL NEED TO
PURCHASE BOLTS TO SECURE THE REAR STEP ( ??MMX??MMX??MM)
-THE EXHAUST PIPE MAY NEED TO BE PUSHED OUT OF THE WAY
WHILE INSTALLING, AND IT MAY REST ON THE STEP ONCE
INSTALLED.
-A SECOND PERSON WILL MAKE THE INSTALL PROCESS
MUCH EASIER.
• GATHER ALL TOOLS REQUIRED FOR INSTALL.
-16MM BOX WRENCH OR SOCKET
-18MM BOX WRENCH OR SOCKET
-BREAKER BAR (RECOMMENDED)
TOOLS
16MM WRENCH 18MM WRENCH
PACKAGE CONTENTS
3
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

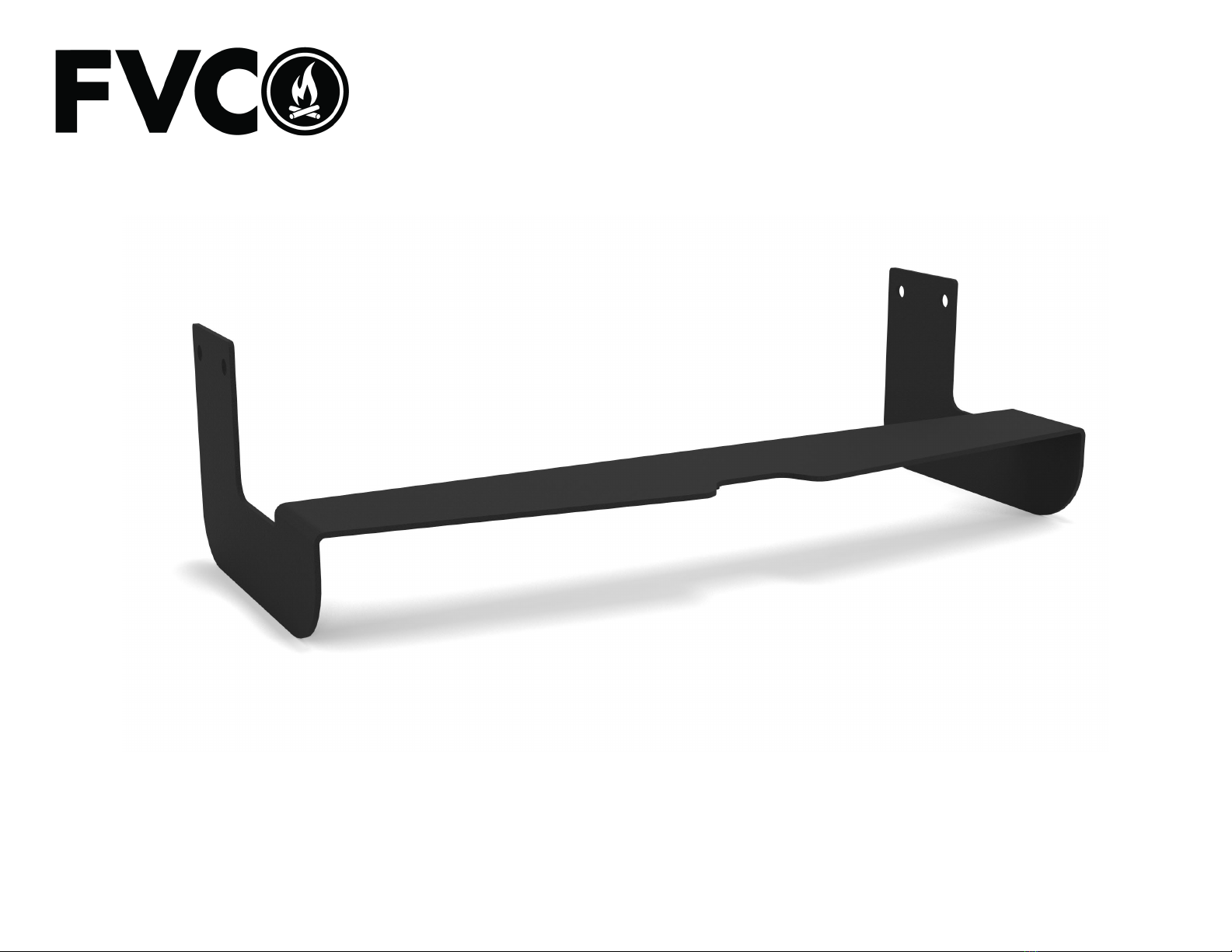

REAR STEP
QTY-1
STICKER PACK
QTY-1
INSTALLATION GUIDE
QTY-1
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
LET’S GET STARTED!
1. IF YOU DO NOT HAVE THE FACTORY TOW PACKAGE WITH STEP, PROCEED TO
NEXT PAGE.
2. BEGIN BY REMOVING THE FACTORY STEP. THERE ARE THREE (3) BOLTS TO
REMOVE, ALL REQUIRING A 16MM BOX WRENCH OR SOCKET. SEE FIGURE 1
AND FIGURE 2 FOR BOLT LOCATIONS.
4
FIGURE 1
FIGURE 2
3. AFTER REMOVING THE BOLTS, THE STEP WILL SLIDE OFF.
NOTE- WE RECOMMEND REATTACHING THE BOLTS/NUTS TO THE
STEP ONCE REMOVED TO ENSURE THEY DON’T GET LOST.
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
4. NEXT, REMOVE THE TWO (2) LOWER BOLTS THAT ATTACH THE TOW HITCH ON
BOTH SIDES OF THE FRAME. THESE BOLTS REQUIRE AN 18MM BOX WRNECH
OR SOCKET, AND THEY SHOULD BE VERY TIGHT WHICH MAY REQUIRE THE
AFOREMENTIONED BREAKER BAR. SEE FIGURE 3 FOR DETAIL.
5. NOW SLIDE THE REAR STEP INTO PLACE (THIS IS WHERE A SECOND SET OF
HANDS COMES IN HANDY) AND REINSERT THE BOLTS BACK INTO PLACE.
NOTE- YOU MAY NEED TO PUSH THE EXHAUST OUT OF THE WAY, AND
IT MAY END UP RESTING ON THE REAR STEP WHEN FINISHED.
6. TIGHTEN THE BOLTS DOWN (TORQUE SPEC IS 250LBS)
5
FIGURE 3
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 6
GET OUT AND EXPLORE!
LEAVE US A REVIEW
Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave
Review." Add a short review and upload a few photos to be showcased on the product page.
SHARE YOUR PHOTOS WITH US
We love seeing how our customers use their FVC products and following along with your adventures. Tag us in your photos
with @flatlinevanco or send them to us via email. We love posting customer pictures in our feed!
CUSTOMER SUPPORT
If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and
outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are!
thanks!
@flatlinevanco
facebook.com/flatlinevanco
youtube.com/c/flatlinevanco
support@flatlinevanco.com
