Galvin Engineering Flowmatic TZ-FLOWSENC24 Merkblatt

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 1of 11

Flowmatic®SS Face Plate w/ Concealed

24v AC Wall Sensor

PRODUCT CODE:

- TZ-FLOWSENC24

SPECIFICATIONS

−Flowmatic®automatic concealed wall assembly is an aesthetically pleasing, single temperature

water control unit, which can be used for hand basins, sinks, or any application to initiate a

controlled flow of water.

−The multiple time cycle option is able to be adjusted on site which provides the facility manager the

flexibility of adjusting to suit user requirements.

−Sensor circuit boards are supplied standard with a lacquer finish to limit the damage that may be caused

by moisture

−Built in capacitors and easy fit electrical filters help suppress external noise and provide a

continuous, reliable delivery of water.

−1.5mm thick stainless steel face plate with hand activation sensor. It is designed to be mounted

flush into the wall/trough.

−Flowmatic®Wall sensor controller is a 24V AC electronic control system that can be used in various

applications. Controller is pre-programmed and ready to use. The solenoid will open for a specific

time once the sensor will detect hands movement. The standard program can be modified to suits

individual needs. To modify the operation settings a compatible Android device with Bluetooth is

required.

TECHNICAL DATA

Power Supply

(Required –not supplied)

Type

Transformer

Input

240V - 50Hz 30VA

Output

24V - 917mA Max 22VA

Sensor

Type

Infra-Red

Activation

Hand movement

Controller

Input Voltage

24V AC

Program type

Flowmatic

Connections

Terminal Plug 2 way 3.81mm

Finish (user)

Stainless Steel

Nominal Flow Rate (LPM)

N/A

NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 2of 11

PRE - INSTALLATION

IMPORTANT:

- INSTALLATION COMPLIANCE: Galvin Specialised products must be installed in accordance with these

installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements.

Water and/or electrical supply conditions must also comply to the applicable national and/or state standards.

Failing to comply with these provisions shall void the product warranty and may affect the performance of the

product (Refer to installation compliance sheet supplied with the product).

- Ensure that access to the sensor, solenoid valve and transformer/GPO is available for future maintenance when

installing the components. It is recommended that isolating valves be installed upstream to the solenoid valve to

allow for servicing. All wiring must be able to be removed when installed into cavities or walls, therefore, it is

recommended that a minimum of 25mm conduit be used to house the leads. The unit is supplied with 3 meters of

lead on the transformer and a 5 meters lead from the solenoid. Additional lead lengths may be accommodated up

to a length of 5m but must be ordered separately.

- Whilst our product designs take into account a broad range of installation types and surfaces, it is important that

surfaces which fixtures are mounted to are flat and free from defect. Additionally, ensure any protruding

connecting thread is square to the wall so that the outlet sits flat against the wall when installed. This is especially

important when installing product ranges that have been designed for correctional and health facilities, where

special attention is required to minimise ligature points and areas for concealment of contraband. In addition to

ensuring the products are fitted securely and in accordance with the following instructions, consideration shall be

given to the use of non-pick mastics such as BASF Sonolastic “Ultra” to ensure a high quality and safe

installation.

- Most installation problems are due to damage to the unit during installation or the selection of an inappropriate

installation location. Select the location carefully and take care with the installation, consider ease of operation for

the end user.

- It is advised that the sensor should not be positioned directly in front of reflecting surfaces, such as ceramic tiles,

stainless steel basins or mirrors. Any bright lighting reflecting off a highly reflective surface such as a stainless

steel basin, or a high visibility reflective vest, may interfere with correct sensor operation (Refer sensor settings

for operation and adjustment)

GENERAL INSTALLATION REQUIREMENTS

- Do not cut or extend the existing leads without using a correct lead extension from Galvin Specialised, as

this will void warranty.

- Suitable access to the service of all components must be provided.

- Do not apply heat near this product when connecting water lines. Heat generated by soldering could

damage plastic or electrical parts and seals, and will void the warranty.

- For personal installation assistance and spare parts, please call our head office on 1300 514 074 and

speak to our customer service staff.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 3of 11

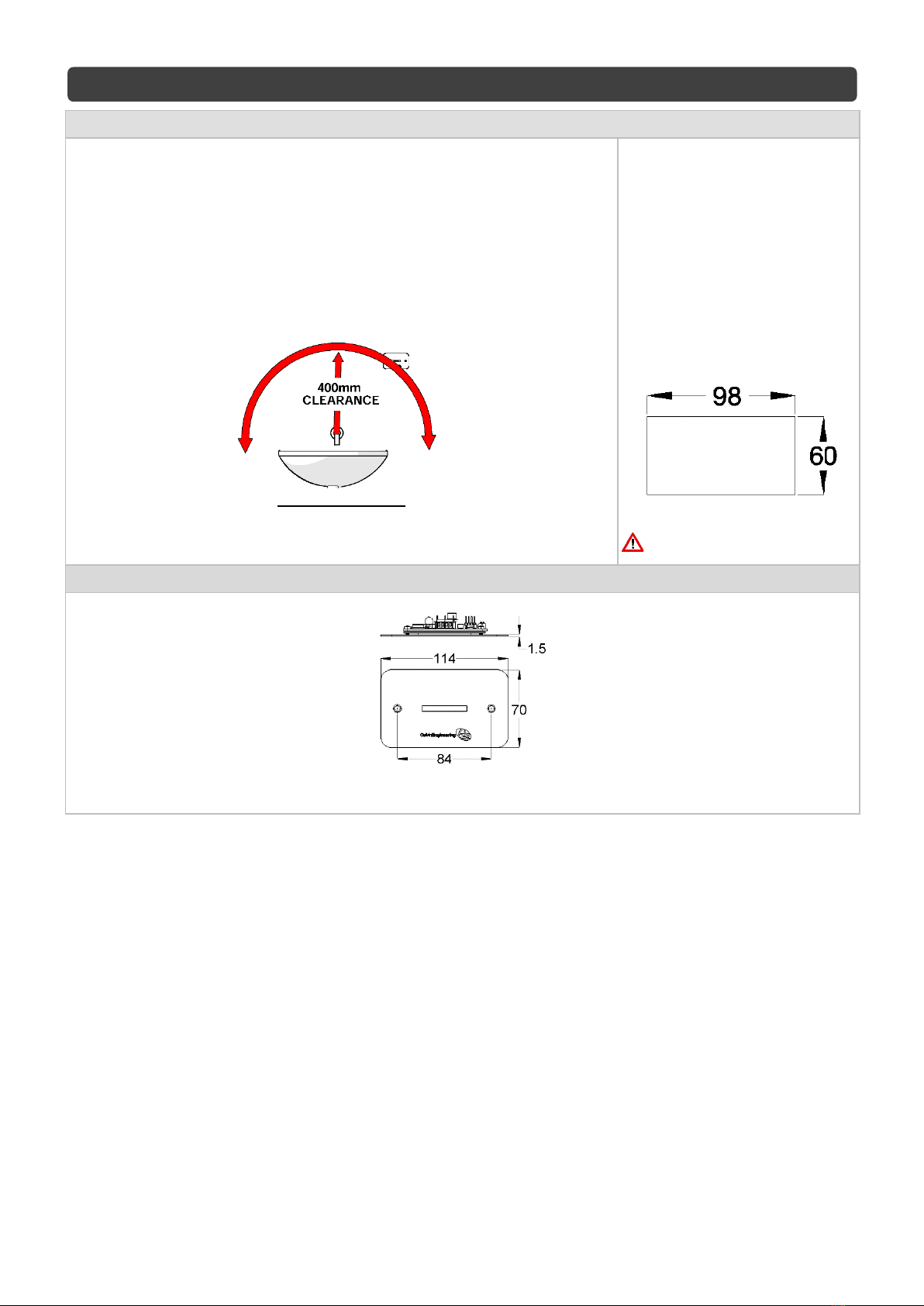

MOUNTING DETAILS

Face plate cut out position

- A position above and to the right of the water outlet is ideal. The best way

to select the location is to stand centrally in front of the outlet and extend

you right forearm in front of you in a natural arc. Be sure that passing

traffic cannot trigger the sensor. Allow at least 400mm clearance.

- Ensure that when selecting a mounting position nothing is within range of

the sensor. If the sensor unit is installed into a location where a nearby

wall or object is reflecting the Infrared light back, the unit is effectively

blinded and will not operate. It is similar to having a torch shone into your

eyes.

Note: Outlets are not supplied and must be ordered separately.

Typical Installation

Cut out details for Galvanised

box (not supplied as a

standard)

- If the unit is supplied with a

Galvanised Inwall electrical

box and stainless steel face

plate. Assembly should be

mounted flush to the wall over

a 98mm x 60mm cut-out.

Ensure wall depth is between

45mm minimum - 70mm

maximum from finished wall

surface to the back of box.

Do not install sensor

under the spout.

COMPONENT DIMENSIONS

TZ-FLOWSENC24- STAINLESS STEEL FACE PLATE

WITH CONCEALED WALL SENSOR ASSEMBLY

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 4of 11

(NOT SUPPLIED)

INSTALLATION

Avoid common installation errors :

- Non-compliance to Australian Standards.

- No access for service.

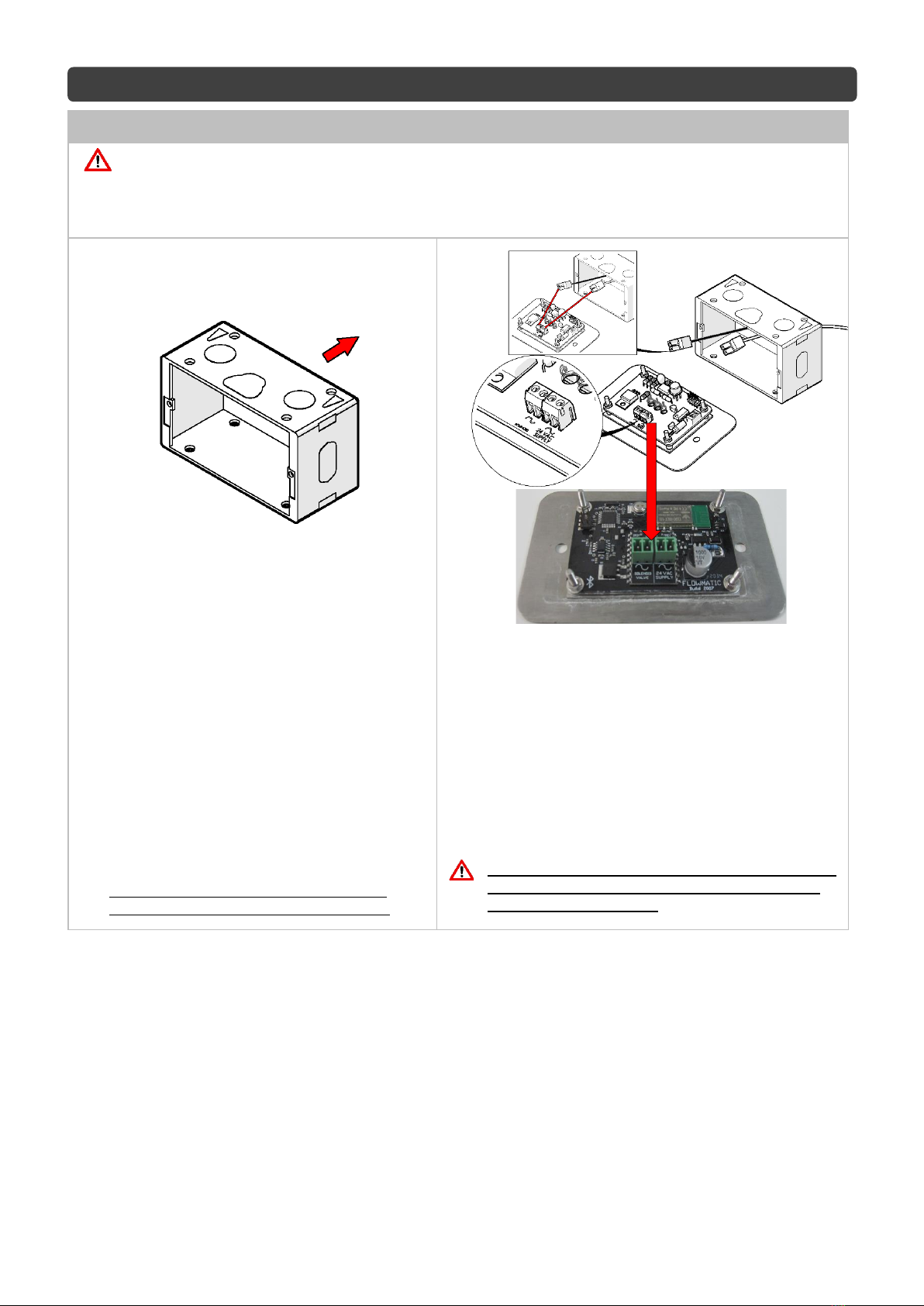

1. Mount galvanised electrical box (not

supplied)

- Mount galvanised box into the wall 1 or 2mm

below the finished wall surface.

- The galvanised box can be fixed to a masonry

wall or wall frame using screws suitable for

the fixing method. (Fasteners to be supplied

by installer).

- If more lead is required extension leads

are available. In this case please contact

Galvin Specialised

Note: For the galvanized box supply and

orders please contact Galvin Specialised

2. Connect to sensor plug

−We recommended that all cabling is fed through

25mm conduit to make servicing and

replacment easier.

−Connect the transformer plug to the rear of the

Sensor, observing the correct plug connection.

−If more lead is required extension leads are

available. In this case please contact Galvin

Specialised.

Do not cut the leads. If the leads are too long, it

is recommended that any excess is coiled up

and clipped to the wall.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 5of 11

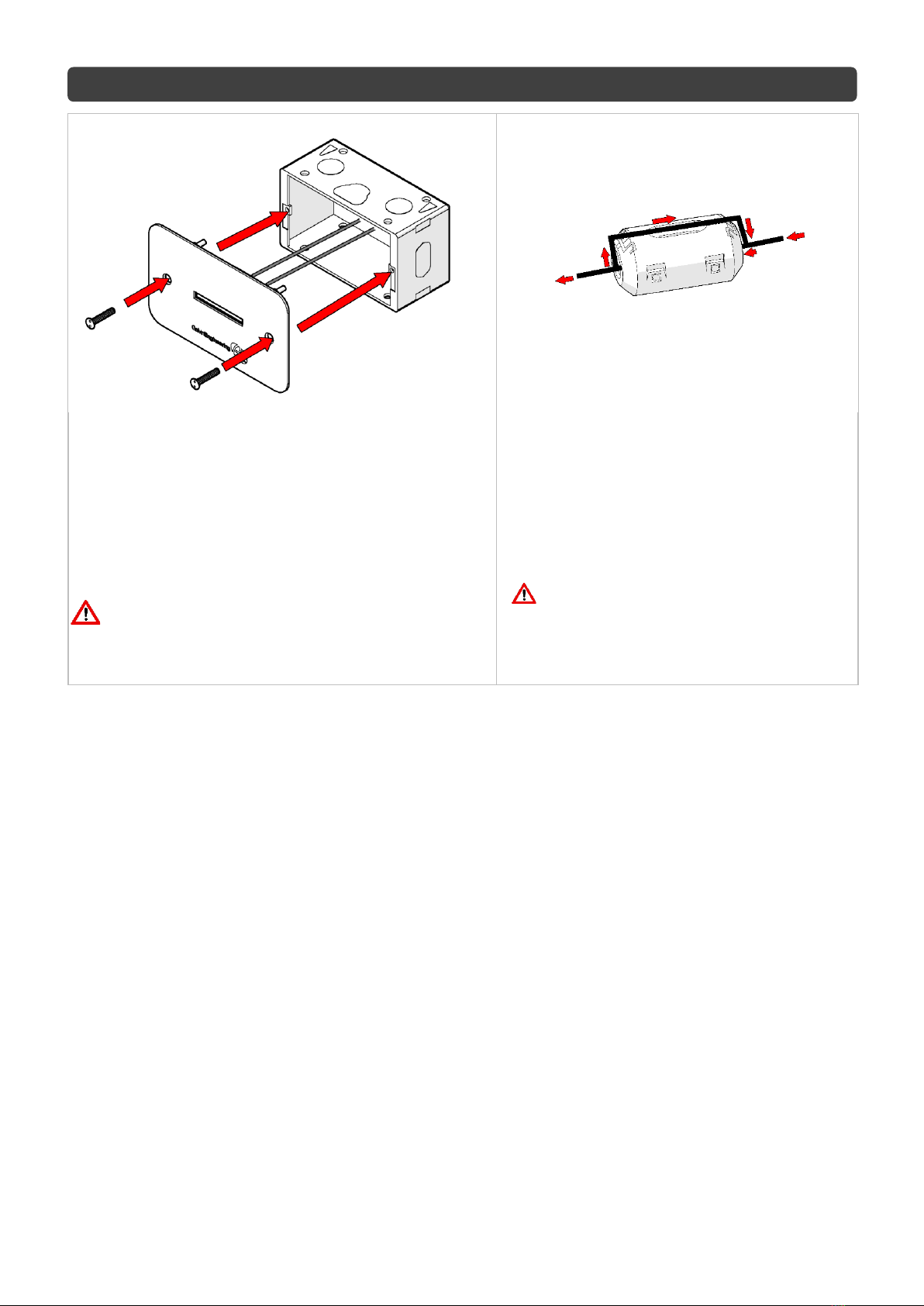

3. Mount face plate

- We recommend that all cabling is fed through 25mm

conduit to make servicing and replacment easier.

- Apply a thin bead of silicon on the edge of the wall cut

out.

- Fit the face plate using screws suitable for the fixing

method. (Fasteners to be supplied by installer).

- If extension leads are required, please contact

Galvin Specialised.

Do not force the faceplate to fit onto wall or

attempt to disassemble components, as this

could result in damage to sensor.

4. Secure wiring with suppressor (not

supplied)

−Connect the electrical interference

suppressor to each cable (1x

Transformer, 1x Solenoid Lead) as shown

and ensure they are as close to the

sensor face as possible

All electrical components should be

protected from contact with water or

excessive heat and installed in

accordance with local regulations.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 6of 11

Typical Installation

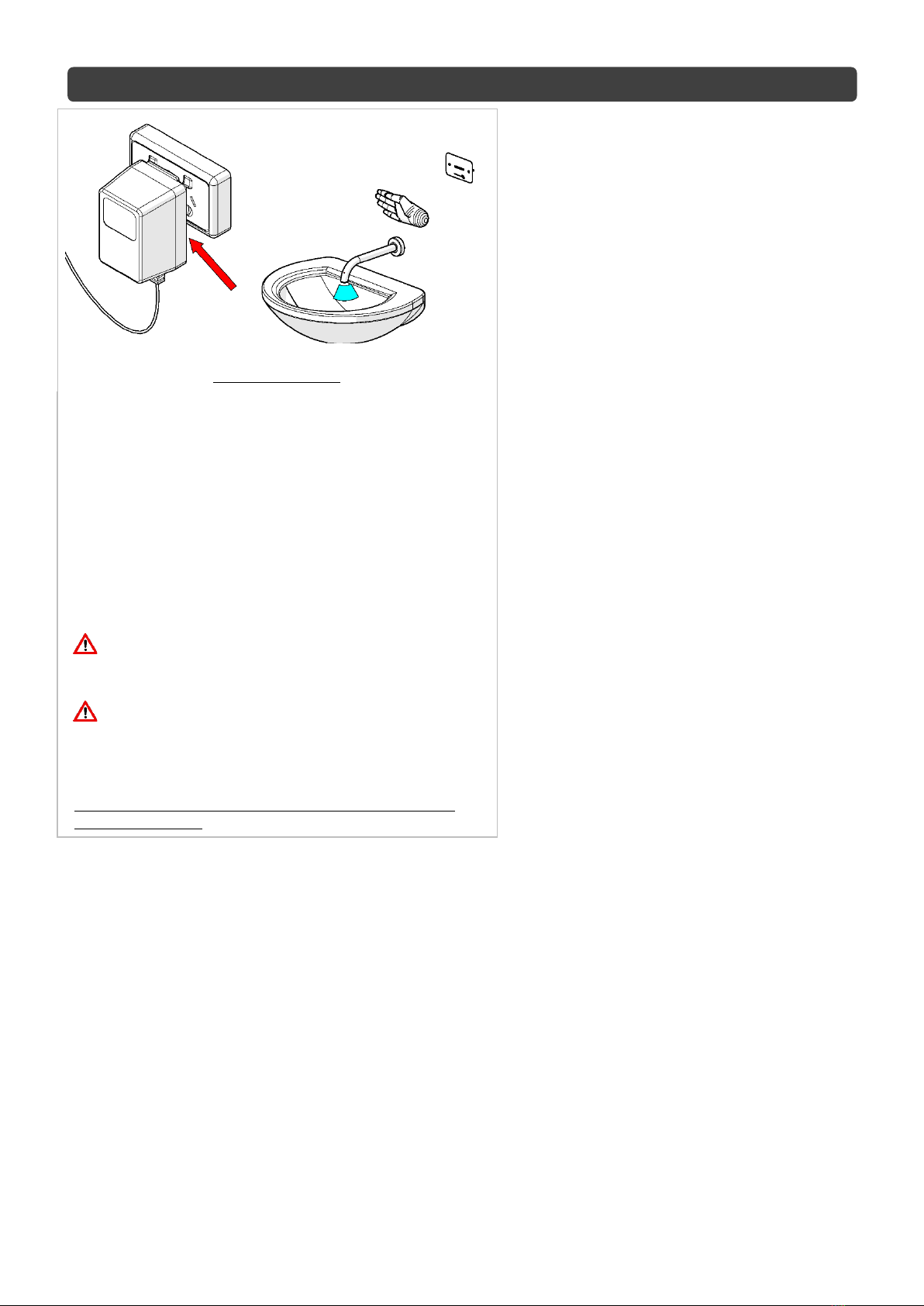

5. Connect power supply & Check for correct operation

−The 24V AC transformer (not supplied) is plugged into a

standard mains power point (GPO).

−Turn on the power point and test the unit.

−Wave the back of your hand through the beam to turn

the water on and again to turn the water off.

−The sensor may require adjustment. Please ensure that

the sensor is in a position that reflects the actual

installation

Note: The sensor is factory set to medium and will

need to be adjusted to suit individual installations.

All electrical components should be protected

from contact with water or excessive heat and

installed in accordance with local regulations.

The connection of this product to mains power

supply should be undertaken by a competent

person and should conform to local Wiring

Regulation –AS3000 Wiring rules.

Note: For transformer supply and orders please contact

Galvin Specialised

(NOT SUPPLIED)

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 7of 11

CONTROLL MODULE PROGRAM MODIFICATION

Required to make changes to the controller

settings :

- Android device (e.g. smartphone,

tablet).

- Installed from PlayStore ‘Flowmatic

system’ software. Locate and

download ‘Flowmatic Syatem’

software.

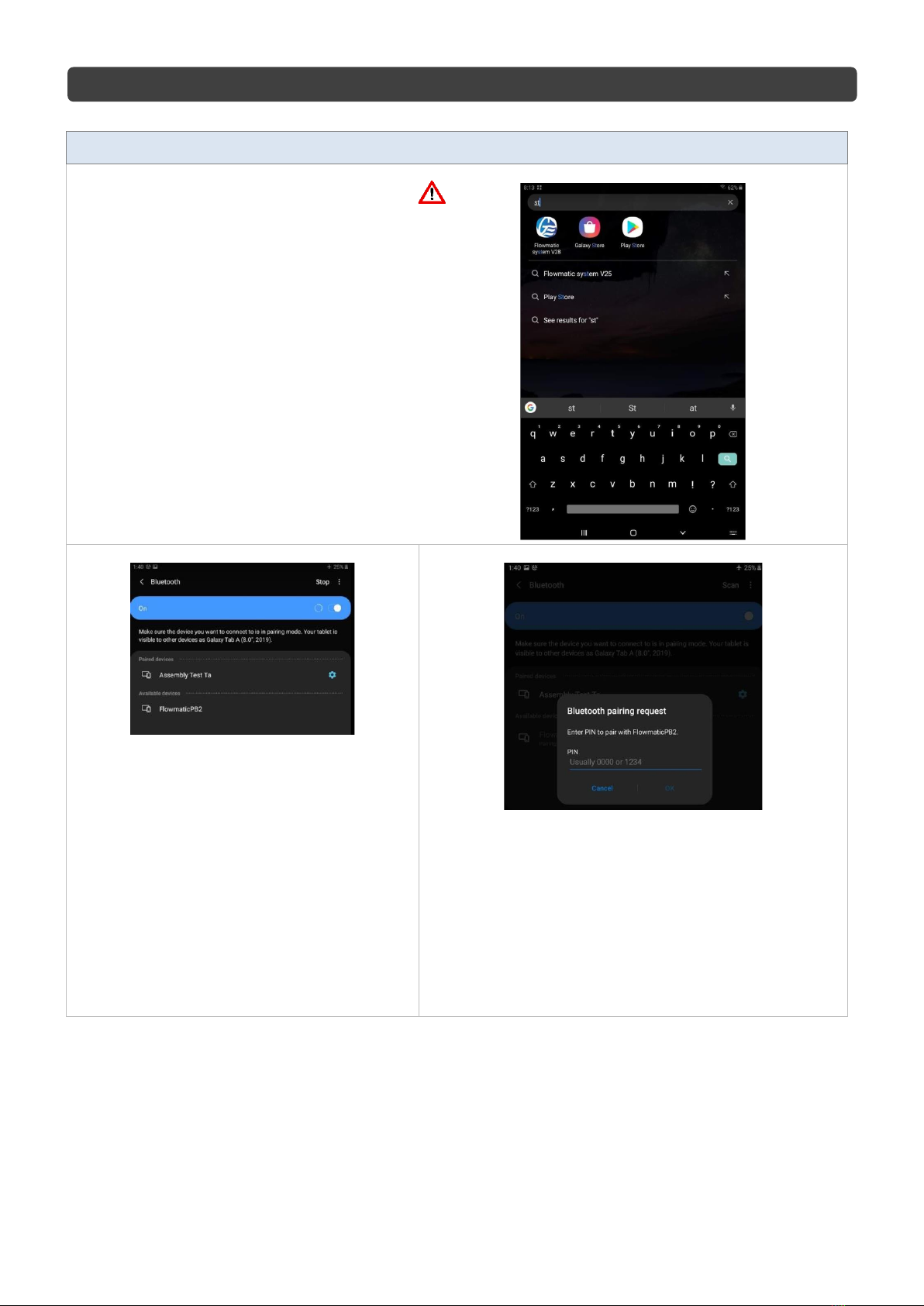

1. Establish Bluetooth connection

−Go to the Bluetooth settings on your

device then scan for devices. Generally,

when scanning the first thing to come up

in available devices will be a Mac address

that looks like this example

(AB:EC:69:57:34:02). This will eventually

change to the name of the device (this

can be changed to a custom name in the

app).

−Select this device.

2. Entering the pin

- The device will ask for a pin, which from factory is

‘1234’. Enter this in. (This pin can be changed later

in the app.). Your device is now connected to the

controller, and is ready to be adjusted from the

‘Flowmatic system’ app.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 8of 11

3. Changing controllers settings

−Open the Flowmatic system’ app. The

device will appear on the screen. with Mac

Address first and then controller name

e.g. ‘AB:EC:69:57:34:02 Flowmatic’.

−Select the Flowmatic, this will then update

the controllers time clock, and then open

the setting screen by pressing ‘Next’.

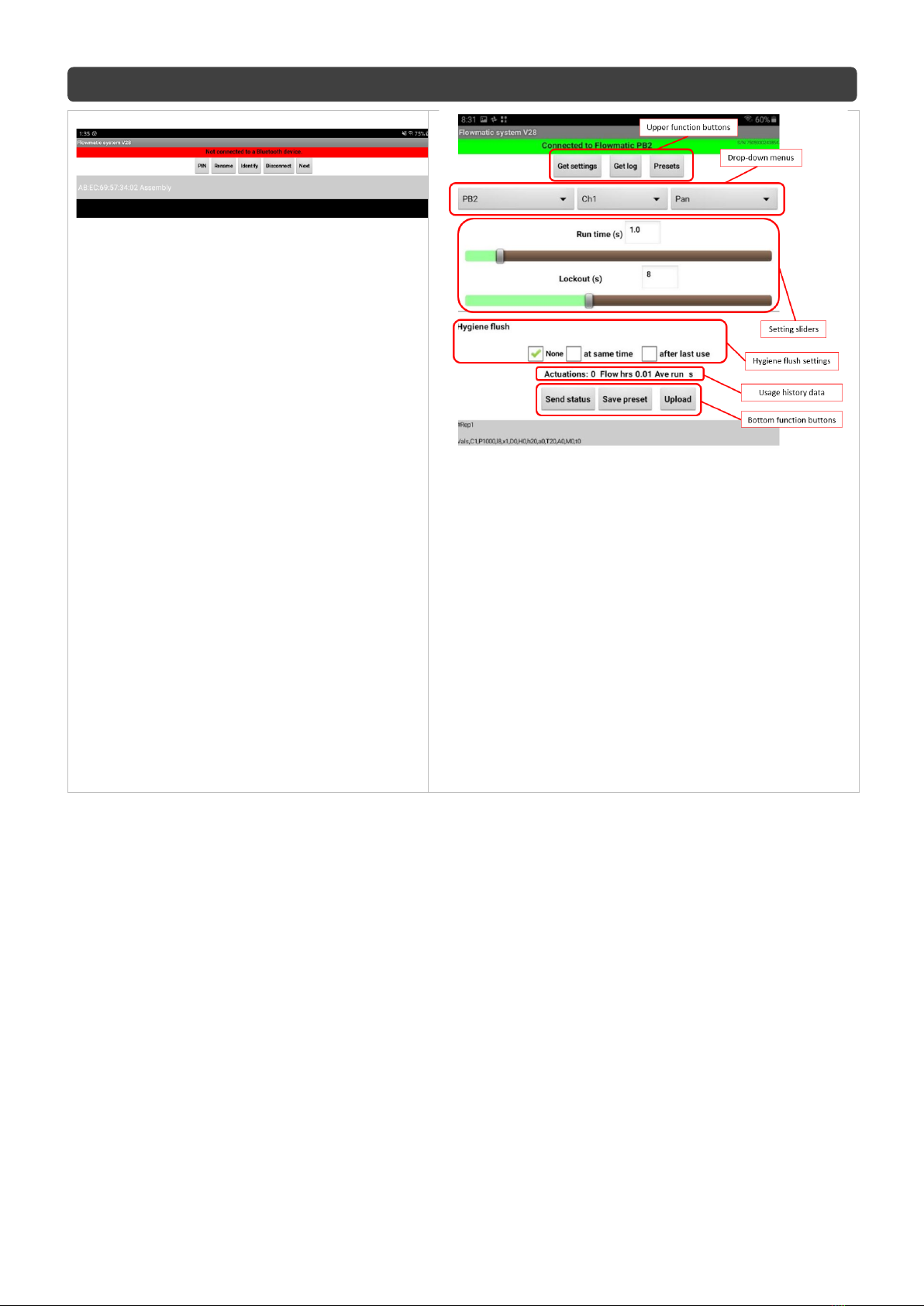

4. Setting screen overview.

−Upper function buttons. By pressing the ‘Get settings’

button the currently stored parameters in the

controller’s internal memory will be downloaded to the

app. The ‘Get log’ button will pop up the log data

screen. The ‘Presets’ button will list all saved presets.

−Drop-Down menus. First menu from left is to select

the type of controller the app is connected to. The

second menu is to select which ‘channel’ is going to

have parameters changed (only for PB2). The third

menu is to declare what is the controlled feature

designed for (only for PB2).

−Setting sliders. Depending on the selected controlled

feature there will appear one, two or three setting

sliders.

−Hygiene flush setting menu allows to set the time and

intervals of hygiene flush.

−Bottom function buttons are to be used to manage

the controller internal memory.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 9of 11

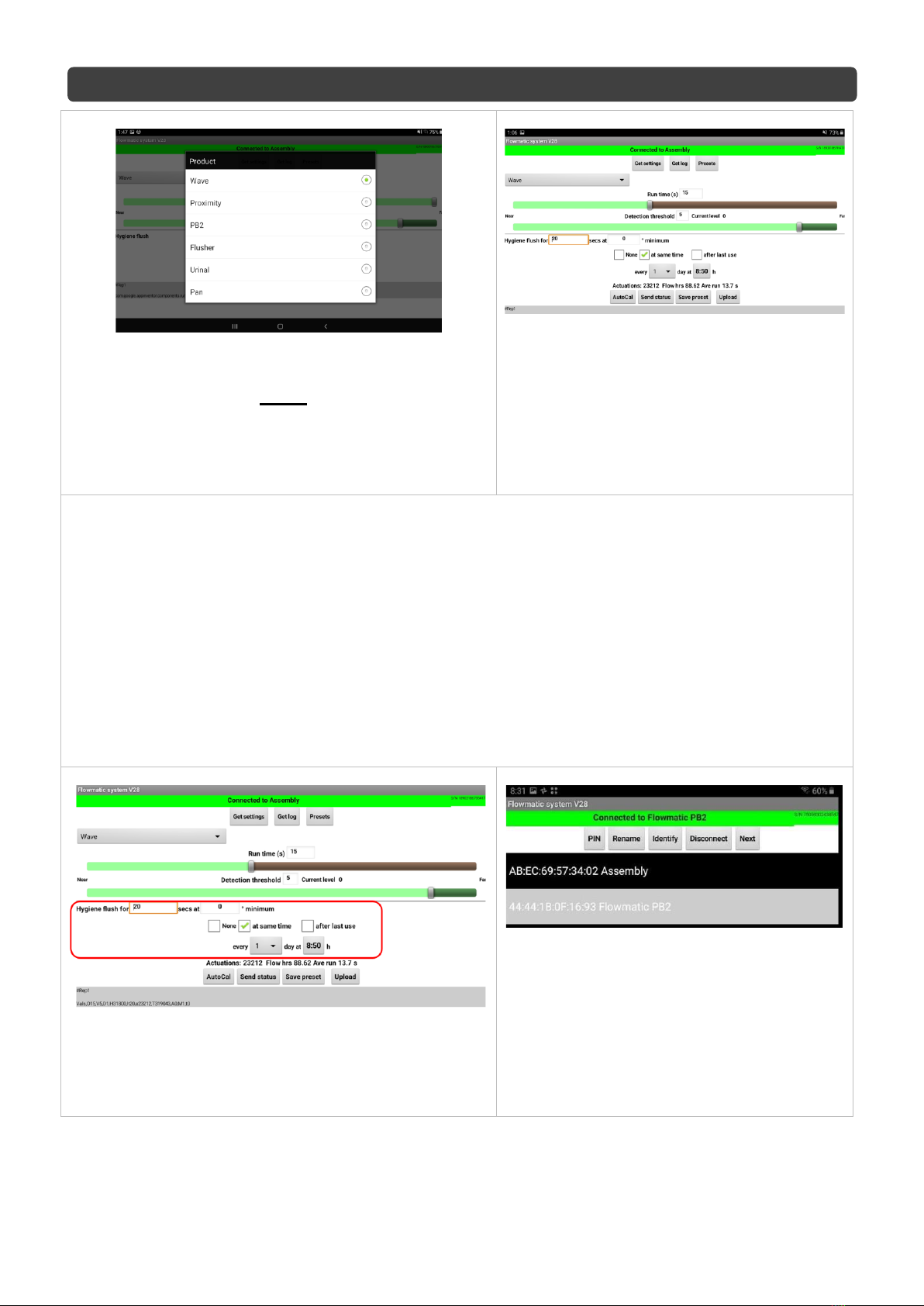

5. Type of controller (left drop-down menu)

- For the TZ-FLOWTAPC24 controller the ‘Wave’ or

‘Proximity’ selection may be used depending on the

application. Please do not change the selection to

the , ‘Urinal’, ‘Pan’ ‘PB2’or ‘Flusher’.

6. ‘Wave’, ‘Proximity’ setting screens

contains the same setting parameters.

- Run time (s) slider –to set the required

flow time.

- ‘Detection threshold’ slider – to set

sensing range. By setting smaller value

the detection distance is farther. Bigger

value is making the detection distance

shorter.

7. Choosing the suitable mode

- ‘Wave’ mode:

•If a hand is detected, the water will start and keep flowing until the time set in the ‘Run time’ section will

pass or another ‘wave’ will appear in front of the sensor.

- ‘Proximity’ mode:

•If a hand is detected, the water turns on for as long as the hand is there, up to a certain timeout value set

in the ‘Run time’ section.

- ‘Urinal’ mode:

•When a user is first detected in front of the sensor, the cycle is triggered so that a timer starts when the

user leaves. At the end of this timed period, the solenoid valve is actuated to flush the urinal and the

cycle is then reset.

- ‘Pan’ mode:

•When a user is first detected in front of the sensor, a timer starts. After a pre-set time, if the user is still

there, the sensor decides that a full flush will be required, otherwise, only a half flush will be triggered.

This flush happens a set time after the user leaves the immediate vicinity

8. Settings ‘Hygiene flush’.

- Set the required time for Hygiene flush and press

‘Upload’.

9. Connection menu.

- By pressing the back arrow, the

connection screen will pop up.

The buttons allow to rename the

controller, set new PIN, disconnect, or go

to setting screen ‘Next’.

Product Installation Guidelines

Version 1.1, 30 April 2021, Page 10 of 11

TROUBLE SHOOTING

PROBLEM

CAUSE

RECTIFICATION

Sensor Not

Responding

Damaged or scratched lens

Replace Sensor Unit

Sensor lead damaged

Replace sensor lead

No Power

Check power is reaching transformer

Waving Hand too fast past the sensor

Slow down the action in front of the sensor

Transformer faulty

Replace transformer

False

Activation

Electrical interference

Ensure electrical suppressors are installed

correctly

Reflection from a light source

Re-align sensor or shield light source

No water flow

Sensor not responding

Check fault relating to sensor

No power

Check power is reaching transformer

Power supply leads joined incorrectly

Replace electronic components

Water or structural damage to

electrical components

Replace damaged electrical components

Incorrect connections

Check all connections

Damage to sensor lead or power

supply lead

Check and replace lead & controllers

Water corroded electrical

connections

Replace electronic components

MAINTENANCE INSTRUCTIONS

Sensor:

The Electronic Sensor is a non serviceable product. If damaged the sensor must be replaced.

−Turn power off at GPO.

−Unscrew the two fixing screws. The silicon seal may have to be cut with care to free the sensor.

−Unplug the solenoid plug and transformer plug from the rear of the sensor. Generally, if the sensor has been

damaged by an electrical surge, it is recommended that the transformer be replaced at the same time.

−Replace the sensor and reconnect the new sensor. Plug the solenoid and transformer plugs back onto the

rear of the sensor. Fix the sensor panel back onto the galvanised inwall box with the existing screws.

Important: Seal the stainless steel face panel and screws using silicon, ensuring it has a water tight

seal.

Note: Before attempting to replace any of these items check that you have access to re-run the

connection leads. If you do not have access or you have any doubts please contact Galvin Specialised

for advice before commencing replacement.

Inhaltsverzeichnis

Andere Galvin Engineering Sanitärprodukte Handbücher

Galvin Engineering

Galvin Engineering Ezy-Drink Lead Safe 170.50.14.00 Bedienungsanleitung

Galvin Engineering

Galvin Engineering Ezy-Drink Lead Safe SS316 Merkblatt

Galvin Engineering

Galvin Engineering GalvinAssist CP Bedienungsanleitung

Galvin Engineering

Galvin Engineering Capstan 175.91.00.03 Bedienungsanleitung

Galvin Engineering

Galvin Engineering GalvinCare CP-BS Merkblatt

Galvin Engineering

Galvin Engineering GalvinSafe 190.81.12.32 Merkblatt

Galvin Engineering

Galvin Engineering GalvinSafe 190.82.11.90 Merkblatt

Galvin Engineering

Galvin Engineering BS Capstan SBA Merkblatt

Galvin Engineering

Galvin Engineering Ezy-Drink Lead Safe 170.81.13.01 Merkblatt

Galvin Engineering

Galvin Engineering GalvinSafe 190.80.10.12 Merkblatt

Galvin Engineering

Galvin Engineering 49920 Bedienungsanleitung

Galvin Engineering

Galvin Engineering Ezy-Drink 35188X Bedienungsanleitung

Galvin Engineering

Galvin Engineering Haws SP220SS Merkblatt

Galvin Engineering

Galvin Engineering GalvinCare CP-BS Lead Safe 121.35.64.00 Bedienungsanleitung

Galvin Engineering

Galvin Engineering Haws GalvinSafe Axion 8100-A Merkblatt

Galvin Engineering

Galvin Engineering CliniLever CP-BS Merkblatt

Galvin Engineering

Galvin Engineering Safe-Cell 50150 Merkblatt

Galvin Engineering

Galvin Engineering 170.01.13.00 Merkblatt

Galvin Engineering

Galvin Engineering GalvinSafe 190.41.12.12 Merkblatt

Galvin Engineering

Galvin Engineering CliniLever TCWSC150C Merkblatt

Galvin Engineering

Galvin Engineering 656512 Merkblatt

Galvin Engineering

Galvin Engineering Ezy-Push CP-BS Lead Safe Bedienungsanleitung

Galvin Engineering

Galvin Engineering Haws 7777-A Merkblatt

Galvin Engineering

Galvin Engineering CliniLever TCBTC80CC Bedienungsanleitung

Beliebte Sanitärprodukte Handbücher anderer Marken

Weka

Weka 506.2020.00E Betriebsanleitung

Kohler

Kohler K-6228 Montageanleitung

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Bedienungsanleitung

American Standard

American Standard DetectLink 6072121 Bedienungsanleitung

Uponor

Uponor Contec TS Bedienungsanleitung

Pfister

Pfister Selia 49-SL Bedienungsanleitung

Fortis

Fortis VITRINA 6068700 Bedienungsanleitung

Fortis

Fortis MILANO 78211JS Bedienungsanleitung

Kohler

Kohler K-12183 Montageanleitung

Maxxus

Maxxus MX-M206-01 Bedienungsanleitung

Moen

Moen 5922 Series Bedienungsanleitung

Viega

Viega Prevista Pure 8512 Bedienungsanleitung

Kohler

Kohler Centerset K-15240 Montageanleitung

Viega

Viega Prevista Dry 8522.33 Bedienungsanleitung

Sanela

Sanela Lema SLP 59RB Bedienungsanleitung

Elkay

Elkay EDF15AC Installationshandbuch

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Handbuch

baliv

baliv WT-140 Bedienungsanleitung
