Gama Sonic 10051 Bedienungsanleitung

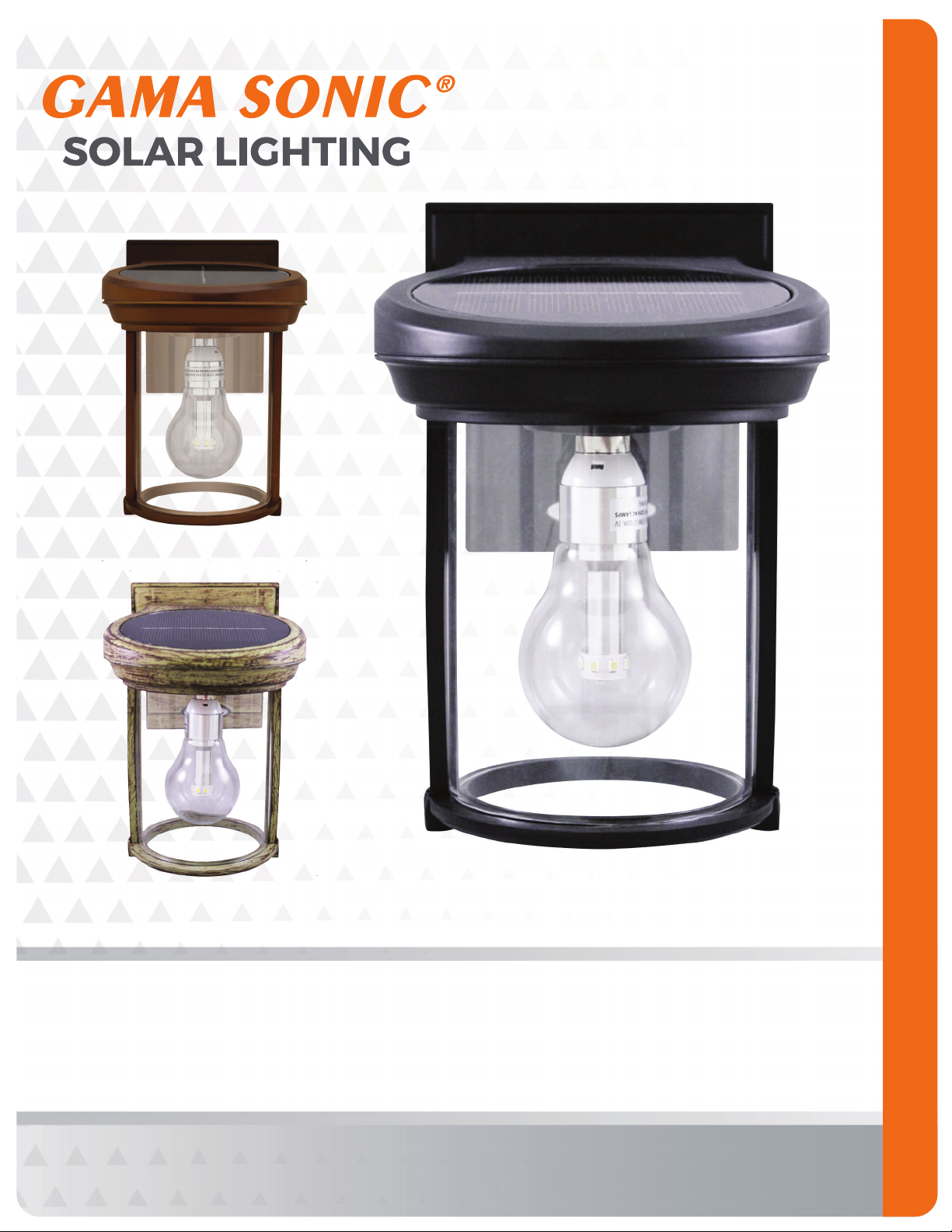

SOLAR COACH LANTERN

Part #: 10001, 10003, 10051

Version 1.1

Instruction Manual

10001

10003

10051

US Patent #9458970

Solar Lamp Location:

Tools that are needed but not supplied with the solar post

lamps are: a screwdriver, power drill.

For optimum light duration throughout the night, it is very important

to place your solar lamp in a spot where it will receive the maximum

amount of direct sunlight throughout the day.

Note: The unit will operate optimally after 2 full days of charging in

direct sun in the “LOW" or "HIGH" position.

Open your package and remove the contents. Check to

make sure all pieces are present and accounted for.

page 2

Thank you for your purchase. GAMA SONIC

solar charged lights are brighter and last all

night with a full day solar charge. Unique designs, superior light output, and numerous

installation options conﬁrm the outstanding value of our product.

For technical assistance and more information call our Toll-Free number:

800-835-4113 (only within the US)

visit our website or download the latest version of your instruction manual:

www.gamasonic.com Or www.gamasonic.com/user-guides

Please read the instruction manual carefully to obtain the best results from your purchase.

What’s Inside:

page 3

1. Screw the wall mount (B) to a ﬂat,

vertical surface by drilling two holes and

inserting the wall anchors. Then align

the wall anchors with the holes on the

wall mount plate and twist the screws in

to hold in place. (Fig. 4).

2. Simply slide the ﬁxture (A) down onto

the grooves on the wall mount (Fig. 5).

1. Remove part (A) from part (B) by

screwing in Fig. 1.

2. Screw in provided A50WW10W Gama Sonic

bulb while gripping the base only (Fig. 2).

WARNING: GAMA SONIC®Light bulbs are not

to be used in other electrical sockets these

are low-voltage light bulbs that are built and

designed for our products only.

3. Reattach part (A) to part (B). Turn the

operation switch (Fig. 3) to the LOW or

HIGH position, and the solar lamp will

automatically operate from dusk to dawn.

Operation Instructions

InstallationInstructions

Fig. 2

Fig. 3

OPERATION SWITCH

Fig. 1

Fig.4

Fig. 5

LOW OFF HIGH

I O II

page4

ReplacingtheBatteries

Replacement batteries are available

at www.gamasonic.com or via our Toll free number: +1-800-835-4113

After several years of use, the battery may need replacing.

1. Remove lamp from wall bracket

2. Flip the lamp over and unscrew the battery compartment to remove the battery (Fig. 6).

3. Unclip the connector and remove the old battery.

4. Clip on new battery and install into the battery compartment.

5. Insert the new battery and close the compartment, then re-install.

This lamp takes a 3.2V/1500 mAh Li-Ion battery pack (GS32V15).

Replacement batteries can be purchased through our

authorized dealers or by going to www.gamasonic.com

WARNING: Do not dispose of Li-Ion batteries in the regular trash,

municipal waste stream or by ﬁre as batteries may leak or explode.

Do not open, short circuit, or mutilate batteries as injury may occur.

Preserve our environment by recycling Li-Ion batteries or disposing

of them in accordance with local, State and federal regulations. Do

not mix old and new batteries.

Maintenance

Clean the solar module regularly with a damp towel to guarantee optimum performance

of the solar panel. Do not use any type of solvent for cleaning and be careful not to put too

much pressure on the module while cleaning.

Troubleshooting

If your solar charged light does not come on at dusk despite

observance of all the instructions, please try the following steps:

1. Make sure that the solar light is not being affected by any other light source.

2. Ensure the solar light is not positioned in the shade during the day.

3. Make sure the switch in the lamp head is in the ”LOW” or "HIGH" position.

4. Check that the batteries are installed correctly.

NOTE: The performance of the solar light will vary with the time of year. It will deliver

longer duration when it has had a full day in the sun rather than a day in overcast

weather.

WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris

accumulation from solar panel(s). A solar panel free of debris will charge the batteries

much more efﬁciently.

WARNING: Please keep out of reach of children.

Fig. 6
